Polycarbonate Injection Molding
Injection molding of polycarbonate is one of the most versatile processes used in modern plastics engineering. This thermoplastic polymer offers exceptional clarity, heat tolerance, and impact resistance. It is used for applications from medical devices to automotive components. Understanding the nuances in injection-molded polycarbonate has a significant impact on product quality, manufacturing efficiency, and costs.
Comparing options is important when selecting the best material for your project. Is polypropylene better than ABS for injection molding? ProLean Tech helps you make informed decisions. It’s a polycarbonate plastic molding specialist that offers comprehensive services. Custom injection molding services are designed to exact specifications. ProLean Tech’s engineers and advanced equipment ensure optimal results in demanding applications.
Fundamentals of Polycarbonate in Injection Molding
To create the complex parts of the plastic, melted polycarbonate is injected into a mold at high pressure and temperature. Polycarbonate is an amorphous, thermoplastic substance. High polymers contain a carbonate group (O-C(=O)-O-) in their molecular chains. The material is produced by a polymerization process involving Bisphenol A and Phosgene.
PC, a thermoplastic with high performance, is used widely for its excellent transparency, heat resistance, and impact resistance. Plastic injection molding manufacturing technology is best for mass production without spending too much budget.
Basic Parameters of PC Injection Molding

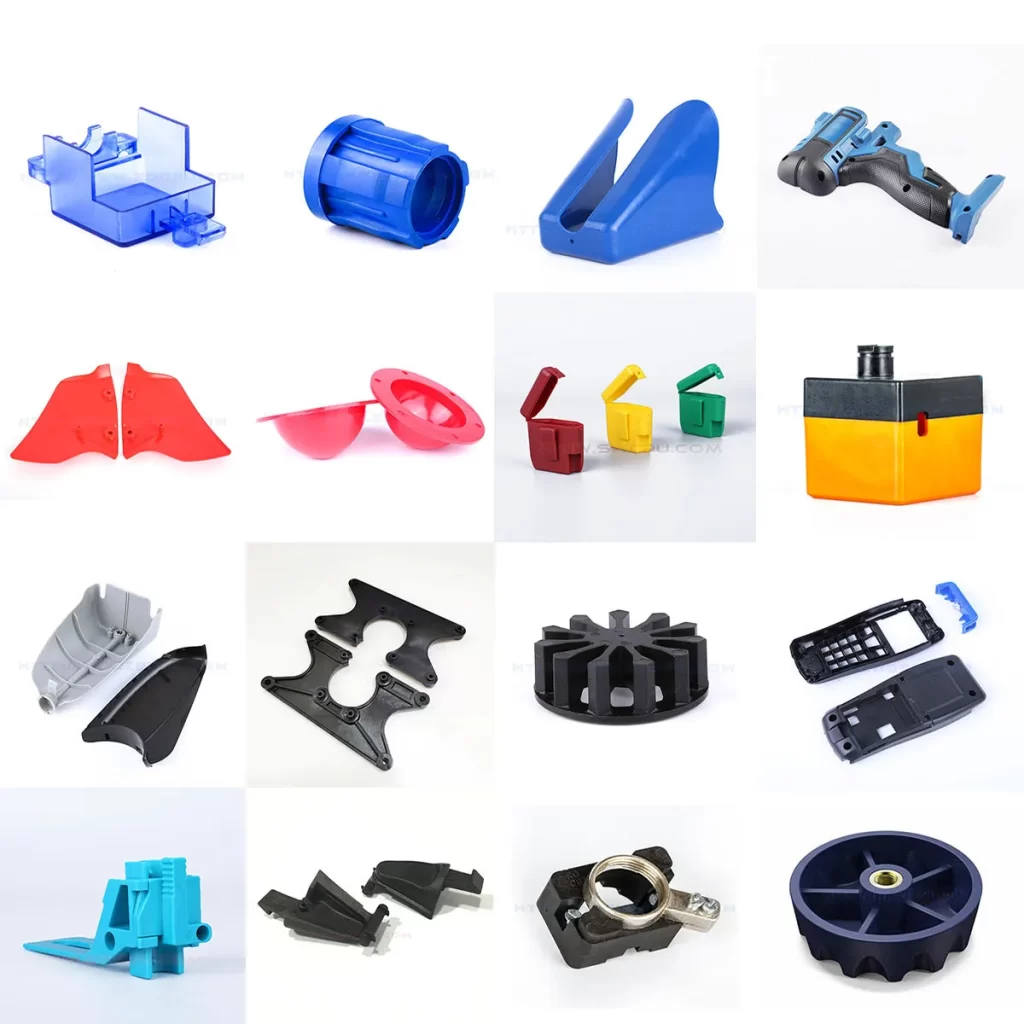

Product creation by injection molding
Some of the basic parameters of PC molding are discussed below.
Density
Polycarbonate density typically ranges from 1.20 to 1.22 g/cm³. It is lightweight compared to glass. Because of its low density, designers can build robust parts without excessive weight.
Melting Point
Polycarbonate is an amorphous polymer, so it does not have a true melting point. It doesn’t melt all at once. It gradually changes from solid to liquid. During processing, careful temperature control is needed.
Injection Molding Temperature
The injection molding temperature typically ranges from 270 to 320°C.To prevent thermal degradation, barrel temperature zones are generally maintained and carefully controlled.
Glass Transition Temperature (Tg)
Polycarbonate’s glass transition temperature (Tg) is about 135-150°C. This parameter defines the upper service temperature. For high-temperature applications, it impacts design decisions.
Cantilever Beam Notch Impact Strength
One of polycarbonate’s standout properties is its exceptional cantilever beam notch impact strength. It is around 60 KJ/m2. Due to its high toughness, PC is used in shatter-resistant and safety-critical applications.
Tensile Strength
The tensile strength range is approximately 60 to 70 MPa (Megapascals). It provides excellent structural integrity. Due to high elongation, it helps to handle a lot of stress without breaking.
Flexural Strength
The flexural strength of polycarbonate can reach about 90 to 120 MPa.This characteristic is useful for applications requiring load-bearing capabilities.
Transparency
Polycarbonate transparency ranges from up to 90% in the visible light range. It has exceptional clarity with strong impact resistance. It is commonly used for protective glazing and optical applications.
Chemical Resistance
To weak acids and bases, it has good resistance. But it is sensitive to some solvents and strong chemicals. Understanding these limitations helps to avoid incorrect material selection.
Water Absorption
Polycarbonate has moderate moisture absorption, which is why drying is required before molding. But it will hydrolyze under high-temperature conditions.
Types of PC and Modified PC
In this section, we will discuss the types of Polycarbonate (PC) and the nature of modified PC. Modified PC is made by incorporating reinforcing materials or additives into the base PC resin to enhance its original properties. Some common types of modified PC include.
High & Low Molecular Weight PC
High molecular weight PC has high strength, better heat resistance, and mechanical properties. It has longer chain lengths. It is best for high-performance applications, such as high-end mechanical parts, and for making bulletproof materials.
Low molecular weight PC has shorter chain lengths. It is easy to mold and process due to its shorter chain length. But it has low heat resistance and mechanical strength. For making non-heavy-duty applications and general consumer products, we can use it.
Glass Fiber Reinforced PC
Its structural applications require high load-bearing capacity. Reinforcing PC with glass fiber improves its mechanical strength and dimensional stability. It is useful for applications that require high strength and rigidity.
Flame Retardant PC
Flame-retardant PC maintains mechanical properties. Adding flame retardants improves PC’s fire resistance. Unmodified, PC has a V2 flame retardant rating, which is not enough for many products. It can reach a V0 rating when flame retardants. It can be halogenated or non-halogenated.
Flame-retardant polycarbonate is commonly used in electrical and transportation applications.
UV Resistant PC
When we add the UV stabilizers, it improves the PC’s weather resistance. It minimizes the discoloration and degradation that occur due to long-term UV exposure.
PC/ABS Alloy
Mixing PC with ABS (Acrylonitrile Butadiene Styrene) combines the high strength and heat resistance of PC. When mixed with ABS, PC becomes easier to mold, smoother, and less prone to cracking under stress. It is widely used in making applications such as automotive parts and electronic device casings.
Carbon Fiber Reinforced PC
Adding carbon fibers enhances the strength of the material and thermal stability. It is suitable for making lightweight and high-performance applications. Such as in the automotive and aerospace industries.
PC/PBT or PC/PET Alloy
Blending with PBT (Polybutylene Terephthalate) or PET (Polyethylene Terephthalate) improves chemical resistance and impact strength. It is suitable for products that require high chemical corrosion resistance and strong impact performance.
Transparent PC
Transparent PC is inherently transparent. We can enhance its transparency by making specific modifications. It is used in products that require high transparency. Such as decorative and optical applications. We can minimize optical defects like flow lines and contamination by specialized processing.
PC/ASA Alloy
Polycarbonate blend with ASA (Acrylate-Styrene-Acrylonitrile) improves UV resistance and weatherability. This combination is best for outdoor applications that stay outside for a long time.
Polycarbonate Injection Molding Process

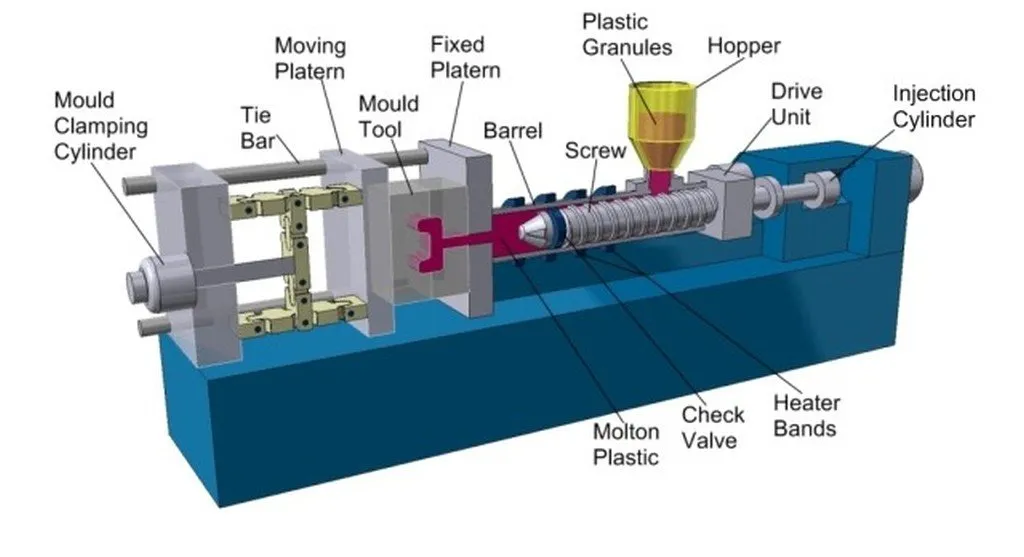

Injection Molding Machine Diagram
Here is the step-by-step process of PC injection molding. It ensures consistent quality and optimal production efficiency. Specific attention is required in each phase to get the high quality results.
Step 1: Prepare the Mold
In this step, we will remove the mold. Thorough cleaning to remove any contaminants or residue from previous production runs. To prevent gassing issues, make sure that tool vents are clean. To maintain smooth machine operations, properly lubricate the machine before the process.
Step 2: Prepare the Material
The most critical preprocessing step for PC injection molding is material preparation. It starts by issuing the required amount of thermoplastic for the production run. Then dry the material in a dedicated dryer to remove moisture, depending on the processing requirements. To achieve the desired color, mix the masterbatch.
Step 3: Set up the Process
In the setup process, we configure barrel temperatures, injection speeds, pressures, and cooling times. This step is also important because it plays a role in ensuring the efficiency and convenience of the entire process. The first thing is to securely clamp the mold tool into the press. Properly configure the ejection system for the complete mold tool within the machine.
Carefully control the temperature. Prepare the working area with additional ancillary equipment that may be required. Such as conveyor belts, workbenches, and tool shielding. When the setup is done, load the polycarbonate granules into the machine through the feeder. Adjust the machine settings carefully to get the desired results.
Step 4. Injection Molding Process
This is the final step where cooling, plasticizing the resin, ejection, and removal of the runner and packaging take place. Once pellets are fed automatically through the hopper, they flow down into the machine and reach the screw, which heats up to melt the plastic material.
The barrel is also heated at different set temperature zones, which allows the material to soften, melt, and move forward along the screw in a controlled manner. After product injection, maintain the mold tool at a constant temperature to allow the smooth flow of material. Once the process comes to an end, the finished product is collected in the collection box.
Polycarbonate Injection Molding Techniques
Below are commonly used techniques for PC injection molding, such as
Rapid Heating & Cooling (RH&C)
Polycarbonate is most commonly used to manufacture transparent parts. During the injection molding process, molten material enters the mold. Due to temperature differences between the plastic and the mold, a thin layer is formed on the surface of the mold. This layer can create weld lines and surface imperfections.
In Rapid Heat and Cool (RH&C) molding, to prevent the formation of this layer, the mold is heated just before injection and then rapidly cooled.
Water-Assisted Injection Molding
Injection molding large thin-walled or hollow parts from polycarbonate is challenging. In these situations, water-assisted injection molding can be an ideal solution. In this process, high-pressure water is used inside the mold to press the plastic against the sides of the mold. It is used to achieve a uniform thickness and smooth internal volumes.
Compression Injection Molding
At low pressure, a specific amount of molten plastic is injected into an open mold. Then, close to force the plastic into the desired shape. This technique reduces internal stresses that are commonly associated with plastic injection molding.
Overmolding
Techniques such as insert molding or overmolding can be used. When multi-material components are required. In this process, molten plastic is injected over a pre-existing part that has been placed inside the mold.
Try Prolean Now!
Common Problems in Polycarbonate Injection Molding

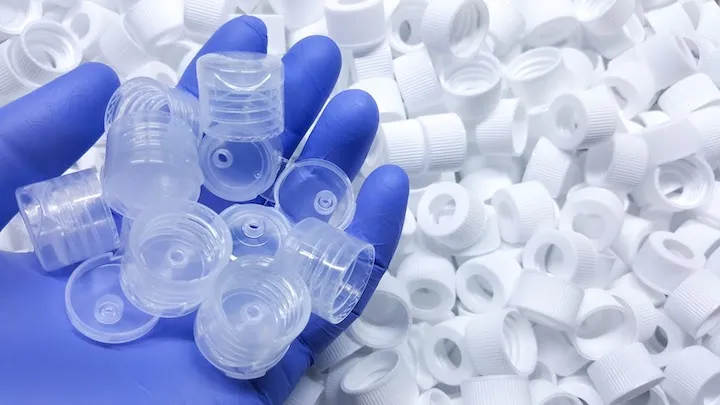

Applications of PC Injection Molding
This process is complex and comes with a lot of challenges. Common problems in PC injection molding are
Flow Lines
Flow lines are off-tone lines or patterns that appear on the part surface. It is caused by variations in the cooling rate or the viscosity of the material. Increasing mold temperature, injection speed, or material temperature usually eliminates this defect.
A slow injection speed causes the molten resin to solidify at different stages as it flows through the mold. Depending on the actual cause of the problem, fixing this issue is very simple. By increasing the injection speed and pressure. It will help to complete the filling of all mold cavities.
Flash
It is the condition when material escapes between mold surfaces, through the ejector pins, or parting lines. Flash is typically caused by insufficient clamping force, excessive injection pressure, or worn mold parting surfaces. The solution is to increase the clamping pressure of the clamp. Through proper mold maintenance, we can prevent recurring flash issues.
Sink Marks
Once the final product shrinks, these marks are small depressions that appear on thicker areas of injection-molded polycarbonate. It may be due to insufficient cooling time or incorrect processing, causing the material not to cool adequately while inside the mold. The best way to deal with this situation is to increase the holding pressure and reduce the temperature of the mold.
Weld Lines
Weld lines form where two flow fronts meet, creating a visible line and potential weak point. This is due to multiple flow fronts along with poor bonding between them. To increase the temperature of the molten material, we can control the problem of weld lines. Increasing the injection speed, using a less viscous plastic material, or adjusting the flow pattern to a single-source flow can solve this problem.
Jetting
When molten material shoots through the gate without contacting the cavity walls, jetting creates a snake-like distortion. It’s the condition when the molten resin fails to adhere to the surface of the mold and creates wavy folds on the part’s surface. It may be due to low melt temperature, highly viscous plastic material, or low speed of injection.
Warping
Due to various unintentional reasons, the final product appears twisted, bent, or uneven in some areas. It may occur due to differences in cooling rates, causing warping. To solve this problem, avoid rushing the cooling process.
Vacuum Voids
These are the air pockets formed near or inside the surface of an injection-molded part. Due to insufficient holding pressure, it may occur. It causes the molten plastic to shrink and condense inside the mold. By positioning the gate system closer to the thickest section of the molded part, we can solve this problem.
Burn Marks
When creating a product through the injection molding process. Excessive heating or relatively fast injection speeds, which may results a prototypes with burn marks. Trapped air, or material degradation from excessive temperature, causes these marks. By reducing your injection speeds and enhancing degassing quality, we can control the burn marks.
Surface Delamination
Surface delamination means peeling or flaking layers on the part surface. It is usually caused by contamination when foreign material gets into the material. It may be due to excessive use of release agents. Before molding, pre-drying is a way to solve this problem.
Short Shots
Short shots occur when the molten resin fails to fill the mold cavity fully. It may be due to Incorrect calibration or the use of excessively viscous plastics. One of the best way is to resolve this issue is by using less viscous materials. To improve material flowability, increase the mold or melt temperature.
Advantages of PC Injection Molding
Here are the advantages of polycarbonate plastic molding:
High Transparency
Polycarbonate has optical clarity. It has a light transmission rate of 90% as compared to glass. It is lighter and less prone to breakage. Along with PMMA and PS, it is widely used for transparent plastic applications.
Exceptional Heat and Cold Resistance
During the broad temperature range, polycarbonate maintains its mechanical properties. Polycarbonate remains stable without becoming brittle. At higher temperatures (usually between 140°C and 150°C) and can be used in temperatures as low as -60°C to -40°C.
High Impact Resistance
PC is 250–300 times more impact-resistant than ordinary glass and 30 times stronger than acrylic of the same thickness. This makes the polycarbonate more durable.
Flame Retardant
Many polycarbonate grades achieve UL94 V2 rating even without additives. Standard polycarbonate grades typically achieve UL94 V2, but they are not inherently flame-retardant. Flame-retardant grades require additives, making them suitable for electrical housings, lighting fixtures, and transportation applications.
Excellent Electrical Insulation
Polycarbonate has excellent electrical insulation properties. It has high dielectric strength. It is widely used in electronics applications.
Good Dimensional Stability
It provides good resistance to creep. It maintains dimensional stability during processing. With proper post-molding processing, dimensional changes remain minimal.
Disadvantages of PC Injection Molding
Although polycarbonate has many benefits, it also has limitations that should be considered when choosing materials and designing applications.
Scratches Easily
Polycarbonate is relatively soft and is highly prone to scratches. Polycarbonate is often treated with a scratch-resistant coating to meet the transparency and abrasion resistance requirements.
Stress Cracking
When exposed to mechanical loads or certain chemicals, PC material can develop stress cracks. Especially around edges or weak points. This issue is mainly caused by internal stresses or improper processing conditions. Stress cracking affects the visual appearance of the part and reduces its mechanical strength.
Processing Issues
The processing difficulty of PC is due to its relatively low fluidity and high melting temperature, which typically ranges between 220°C and 260°C. The plastic injection molding and other thermoplastic processes require higher heating temperatures. This leads to increased energy consumption and greater demands on processing equipment. PC has lower flowability compared to some other plastics. It can cause incomplete or uneven mold filling. Especially in complex geometries or thin-walled mold designs.
UV Sensitivity
When exposed to UV light for long periods. PC can turn yellow and become brittle.UV stabilizers are often added, or a protective coating is applied to the surface to prevent this issue.
Chemical Sensitivity
PC is particularly sensitive to organic solvents such as ketones, esters, and chlorinated hydrocarbons, but it generally tolerates weak acids and bases better. It can cause cracking or degradation.
High Cost
Polycarbonate costs significantly more than other types of plastics.
Environmental Concerns
The main component of PC is Bisphenol A (BPA). It is an endocrine disruptor that has attracted attention. The potential health effects of BPA are particularly in infant and children’s products. It has become a major public and regulatory concern.
Try Prolean Now!
Applications of Polycarbonate in Injection Molding

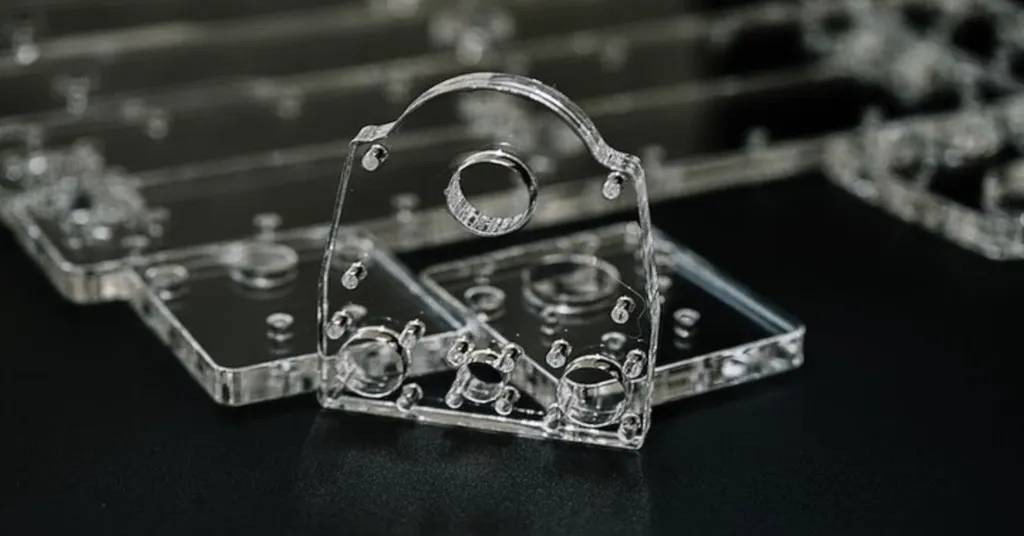

Polycarbonate product
Polycarbonate (PC) plays an important role in various injection molding products. Due to its unique characteristics, it is widely used in many areas:
Transparent Casings and Goggles
PC has high strength and transparency. It is widely used in safety equipment, including protective goggles and casings.
Optical Lenses
Due to its optical properties and lightweight characteristics, it is used in optical lenses. Such as to produce LED lamp lenses, automotive light lenses, and car headlight covers.
Electrical Product Casings
Due to its flame-retardant properties, high strength, and weather resistance. It is used in manufacturing casings of electrical products, such as electric meter housings. It ensures the safety and durability of electrical products.
Optical Discs
Due to its excellent optical properties and processability. It is used in CDs, DVDs, and optical discs.
Automotive Products
Due to polycarbonate’s heat resistance and impact strength properties, it is used in the automotive industry.
Safety Helmets
PC is used in manufacturing safety helmets, which are used in the construction industry, sports, and other fields where head protection is needed. During extended wear, lightweight properties improve comfort.
Injection Molding Parameters for Polycarbonate (PC)
To get the optimal product quality, understanding the right parameters for the injection molding of PC is very important.
Runner and Gate Design
Design runners to be as thick and short as possible, with minimal bends. Round cross-sections and polished runners help reduce melt flow resistance.
Any type of gate design can be used. But the diameter should not be less than 1.5mm. For transparent parts and to minimize defects such as bubbles and stress marks, larger gates are preferred.
|
Parameter |
Recommended Range |
|
Runner Diameter |
6-10 mm |
|
Gate Depth |
0.5-1.5 mm |
|
Gate Land Length |
0.5-1.0 mm |
|
Number of Gates |
Minimize while ensuring fill |
Drying Temperature and Time
Before processing, PC materials must be properly dried at 100–120°C for 3–4 hours. It will prevent the product from cracking and reduce the surface defects.
Temperature of Injection
The injection temperature is important to melt the PC material. It typically ranges between 270°C and 320°C.
Mold Temperature
To create the complex shapes and thin walls, a higher temperature is required. It is usually around 80°C to 120°C. This temperature should not exceed the thermal deformation temperature of the mold. To reduce molding stress and improve product transparency, proper temperature is necessary.
Injection Pressure
To fill the mold, high pressure is used. It generally ranges between 50 and 150 MPa.
Holding Pressure
The internal stress of PC products depends upon the size and duration of holding pressure. Too little pressure can create vacuum bubbles or sink the surface. Too much pressure can cause high internal stress near the gate. Using high material temperature with low holding pressure is the best approach.
Speed of Injection
The speed of the injection is adjusted according to the shape and size of the product. Faster injection speeds are required for thin-walled or long-flow products. In most cases, medium to low speeds are preferred.
Speed of Screw
PC has high viscosity, so the screw speed should not be too high. To ensure good melting, venting, and smooth machine operation. It can be controlled between 30-60 rpm, with back pressure at 10-15% of the injection pressure.
Size of Machine
Machine selection means matching shot size, clamping force, and injection capacity according to part requirements. The ideal product weight should be 40–60% of the injection machine’s capacity. It is reduced by 10% if the capacity is measured in polystyrene ounces.
Design of Screw
PC has good thermal stability and high viscosity. A screw with a length-to-diameter ratio (L/D) of more than 20:1, at least 15:1, is recommended, implying a longer and thinner screw. The compression ratio should be maintained between 1.5:1 and 3:1.
Clamping Pressure
Clamping pressure is calculated based on the product’s projected area with 0.47 to 0.78 tons per square centimeter (or 3 to 5 tons per square inch).
Back Pressure
It helps to reduce material degradation. It typically ranges between 5 and 20 MPa.
Cooling Time
Based on the thickness of the product and mold temperature, cooling time is adjusted.
Common Problems in Polycarbonate Injection Molding
Common problems that you may face when injection molding with polycarbonate are listed below:
Moisture Control
Before injection, polycarbonate easily absorbs moisture. It can cause undesirable streaking on the surface. Due to the inclusion of moisture, the mechanical properties of polycarbonate can be negatively affected. Before molding, polycarbonate pellets must be dried using a suitable desiccant or dehumidifying dryer. The optimal moisture content should be less than 0.02 %.
Metal Adherence
It tends to adhere to injection mold materials. It adheres to the machine material, which is made from high iron-content alloys. If molds or machine parts, such as screws, contain high levels of iron. To prevent adherence, it is necessary to coat with chrome.
High Viscosity
Due to its high viscosity, which makes it is challenging to mold thin-walled parts or components with complex flow paths. With high injection pressure and high injection temperature, this issue can be controlled. However, when higher temperatures are used, injection speeds should be reduced.
Conclusion
Polycarbonate injection molding offers superior performance in applications that require clarity, impact resistance, and thermal stability. Understanding material properties, processing variables, and troubleshooting methods is essential to success. Each variable, from optimal mold temperatures to proper drying protocols, impacts the final part’s quality.
Polycarbonate plastics are used in a variety of industries, including automotive, medical devices, electronics, and safety equipment. ProLean Tech offers expert guidance on custom injection molding services. To ensure that your projects are successful, we will work with you to achieve the best possible results. Get a quote to discover how professional PC injection molding can enhance your product’s performance as well as durability.
