Laser Cutting China
China is renowned for its strong supply chains, skilled engineers, and manufacturing capabilities. It makes China’s machining services both cost-effective and fast. You can expect high-quality results without delay. Obtaining standard-quality sheet metal parts is easy with Prolean Tech. Our laser cutting service online helps you order your parts in a few steps. You can upload your design and request a free online quote with expert feedback.
Our company offers a complete solution for laser cutting. You can send us your design file. After evaluation, our engineers suggest design changes (if applicable), appropriate material selection, and technique usage. We primarily operate in China, but our services are expanding globally.
At our factory, we also provide sheet metal laser cutting and bending for custom projects. You can obtain parts of titanium, steel, aluminium, and stainless steel. Every custom cut sheet metal part is manufactured to ISO standards and undergoes a thorough inspection.
Our goal is to make laser cutting reliable and straightforward for everyone. Explore more about the China sheet metal fabrication process and see how we provide fast and precise results for your next project in this blog post.
How Does a Precision Laser Cutting Machine Work at a Factory Site?

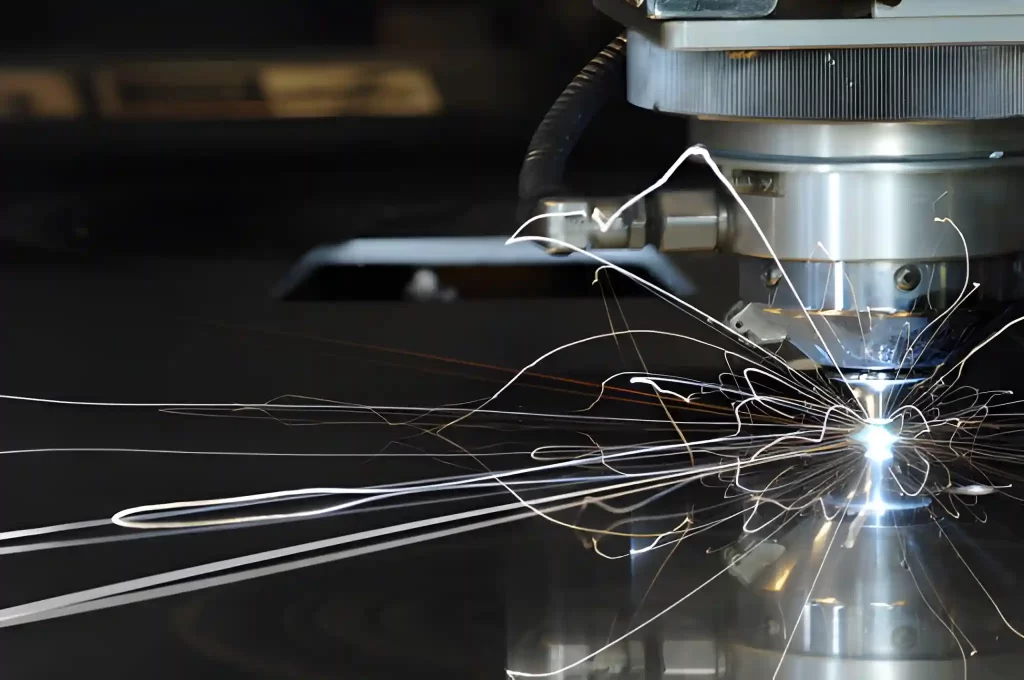

Precision Laser Cutting
Laser cutting is a computerised process used to shape materials. It uses a focused beam of light to cut metals and various plastics. In the process, the beam melts and vaporises the material along a fixed path. A computer controls the motion and speed of the laser cutter.
Modern systems utilise fibre or CO₂ lasers in the 5 to 8kW range. These machines can smoothly cut steel, aluminum, and other metals. Here are the common steps involved in the laser cutting process.
Designing the Part
The process starts with a digital drawing of the part. Engineers create this design using CAD software. The file contains all dimensions, shapes, and tolerances. The drawing serves as the primary guide for the laser cutting machine.
Converting the Design

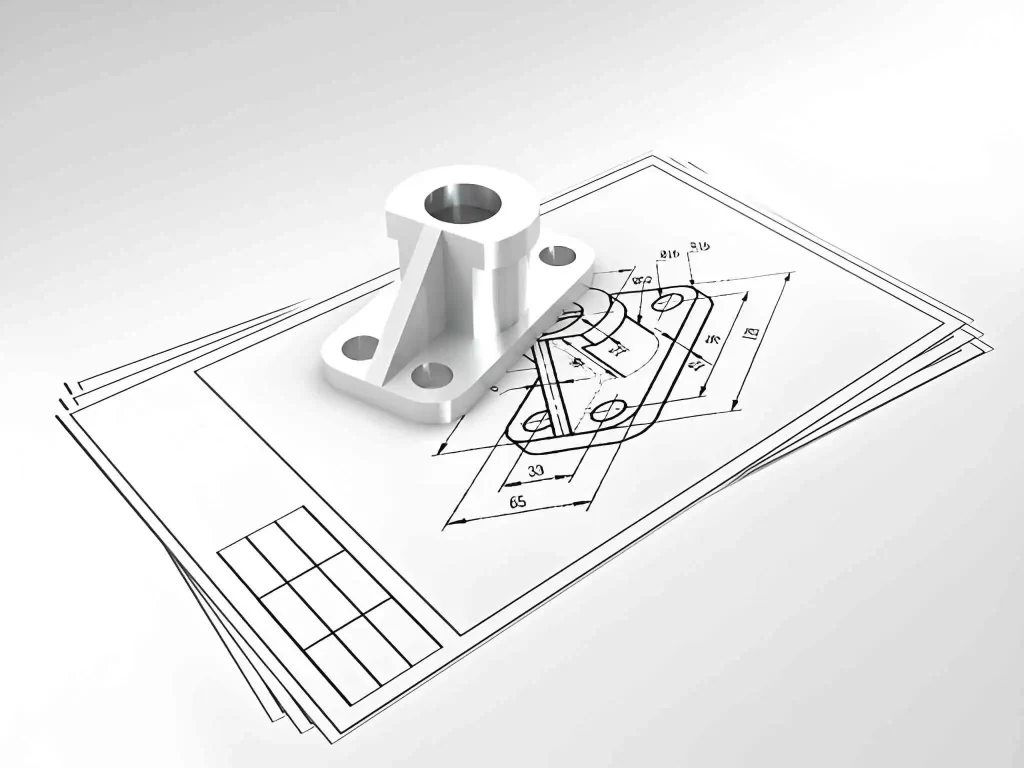

Engineering Part Model
The CAD design is then converted into a code file. This file uses G and M codes. These codes guide the machine. The code tells the laser how to move and where to cut. It also sets the power and speed depending on the material type.
Machine Setup
The sheet metal is clamped or fixed on the cutting bed. The laser head is adjusted and focused on the surface. Operators set the gas pressure and cutting speed. With Proper setup and parameters, smooth and accurate cuts are achieved every time.
Cutting the Material
The laser beam starts to move along the set path. The heat melts/burns through the metal. A flow of gas clears away melted material. This creates a clean edge with no rough marks.
Post Processing

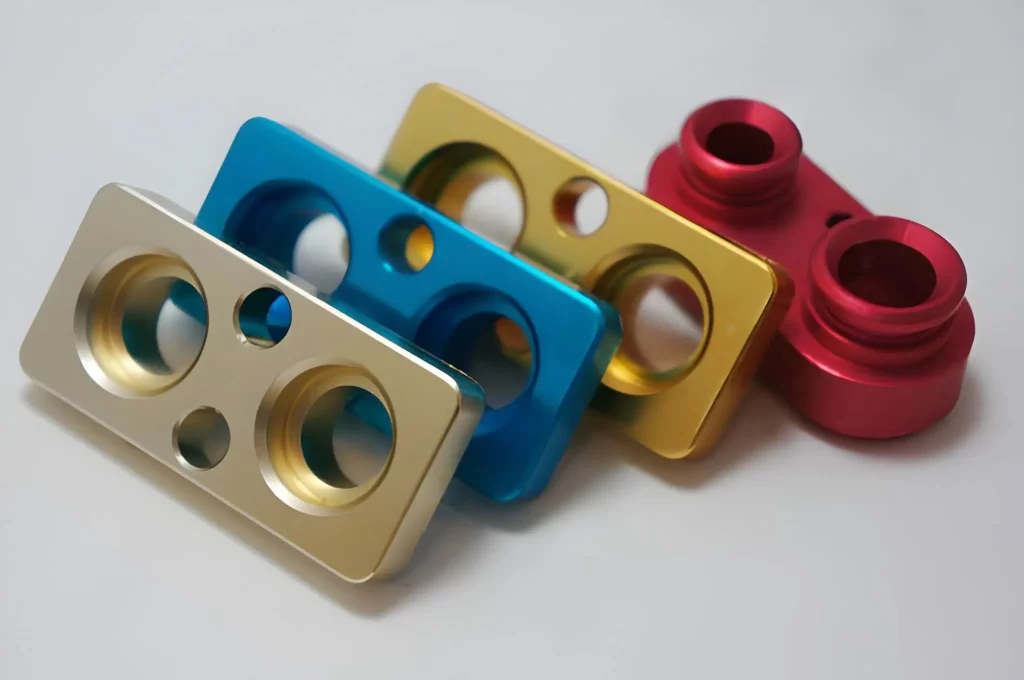

Aluminum Anodized Products
After cutting, the parts are checked carefully. Workers remove burrs and polish rough edges to create a smooth finish. Each custom-cut sheet metal piece is inspected for size and finish. This step ensures that every part meets the client’s standards and exact specifications.
How Laser Cutting China Supports Low Cost Sheet Metal Fabrication
Laser cutting metal sheet is considered more accurate and efficient than other methods. Unlike die punching, saw cutting, plasma cutting, or waterjet cutting, it offers more advantages. For Instance:
No Tooling Required
Laser cutting does not require any physical dies/tools. You can just upload the design, and the machine produces the part. This makes the laser cutting service online fast and straightforward.
High Precision and Narrow Cuts
The laser beam is highly focused. You can create narrower kerf widths and cleaner edges. It allows precision laser cutting with no space for error.
Reduced Material Distortion
Laser cutting heats only a small area. This reduces material distortion and also prevents a large heat-affected zone. Besides this, proper programming optimises sheet metal use for efficiency.
Repeatable and Reliable Results
Every part cut by a laser is highly consistent. It ensures accurate dimensions and repeatable results every time, making it ideal for China’s sheet metal fabrication.
Minimal Finishing Required
Laser cutting leaves uniform edges and fine surfaces. Most parts require little to no secondary finishing. This saves time and costs.
Less Material Waste
Laser cutting uses sheet metal efficiently. The precise cutting path reduces scrap and maximises material usage. This is important for low-cost sheet metal fabrication.
How Fast Can Prolean Tech Deliver Laser-Cut Parts?

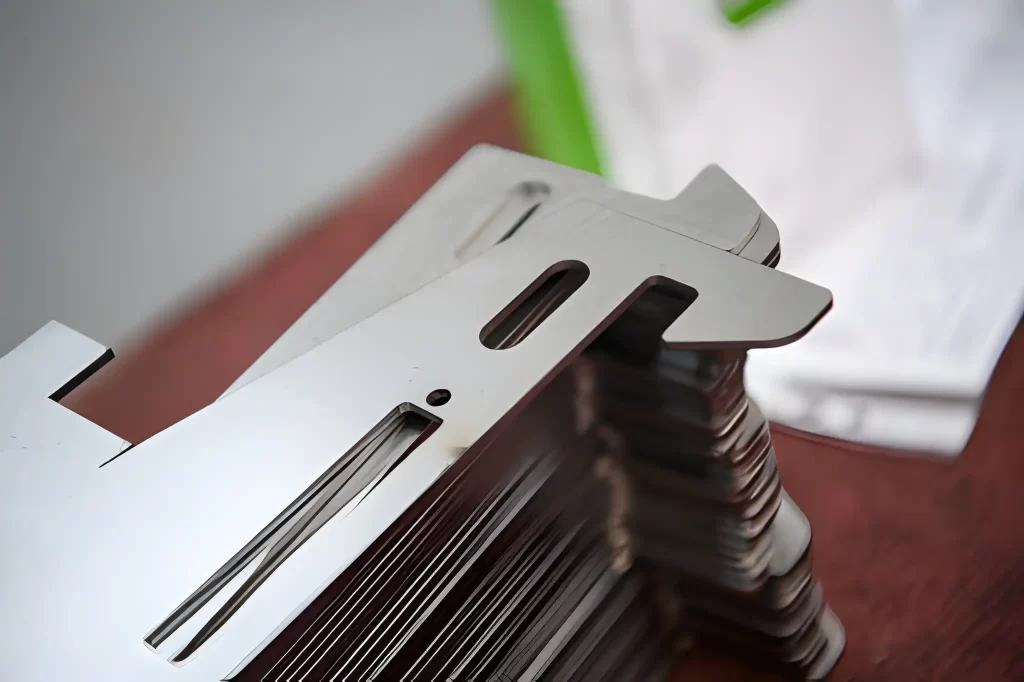

Laser Cut Part In Bulk
At ProleanTech, we deliver laser-cut parts in as little as 3 to 5 days. We use cutting-edge fibre and CO₂ lasers. Our 8 kW LVD Fiber Laser Cutting machine with auto-loading tower ensures high precision and fast production. Whether it is stainless steel laser cutting, aluminium sheet fabrication, or custom cut sheet metal, we deliver quality parts on time. (Learn more about: rapid prototyping China)
What Are the Laser Cutting China Specifications at Prolean Tech
| Specification | Value | Practical Notes |
| Maximum Hole Diameter | Area = (π × diameter²) / thickness | Make sure the holes follow material limits |
| Minimum Corner Radius | R0.2 mm | Smallest curve achievable without distortion |
| Standard Sheet Size | 1.2 m × 2.4 m or 1.5 m × 3.0 m | Choose size based on part layout |
| Maximum Sheet Thickness | 25 mm (metal) | Check laser power for thicker sheets |
| Minimum Feature Size | 1 × 1 mm | Critical for fine details and engraving |
Get more insights into how the laser cutting cost calculation is determined.
What Are the Sheet Metal Laser Cutting Tolerances?

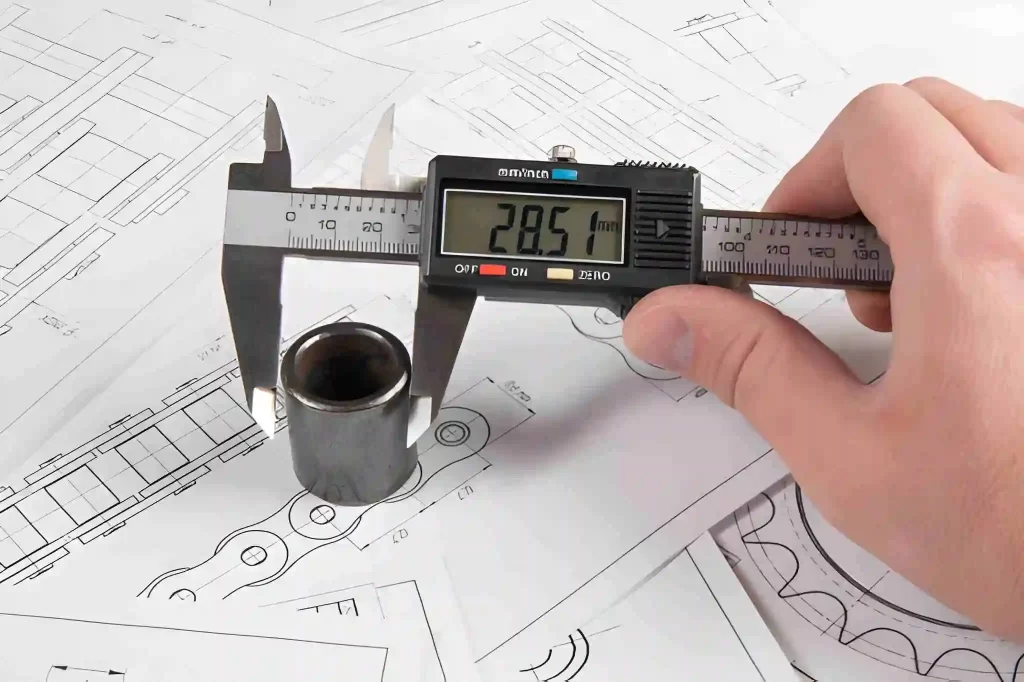

Dimensional Measurement Using Digital Calliper
| Tolerance Type | Specification |
| Linear Tolerance | ±0.20 mm |
| Hole Diameter Tolerance | ±0.08 mm |
| Edge-to-Edge Tolerance | ±0.10 mm |
| Angular Tolerance | ±1° |
| Flatness Tolerance | 0.2 – 2 mm |
What These Tolerances Mean
- Linear Tolerance: This is the allowed variation in the straight-line measurements of a part. For example, a 100 mm long part may actually measure between 99.8 mm and 100.2 mm. It ensures the part fits correctly in assemblies.
- Hole Diameter Tolerance: This indicates the allowable variation in the actual hole size compared to the design. A 10 mm hole may end up between 9.92 mm and 10.08 mm. It is used for bolts, screws, and precise fits.
- Edge-to-Edge Tolerance: It is the allowable variation in the distance between two edges. It helps parts line up properly when assembled.
- Angular Tolerance: This is the acceptable variation in angles. For example, a 90-degree corner may be slightly off, up to 1 degree. This keeps parts aligned during assembly.
- Flatness Tolerance: This defines the degree of flatness required for a sheet metal part. Some bending or warping is allowed. It ensures parts sit flat and work well with other components.
Try Prolean Now!
Types of Materials Can a Laser Machine Cut?
Prolean Tech offers a wide range of metals ready for laser cutting. All materials are stocked in our warehouse for fast shipping. This ensures quick delivery and reliable service for every order.
Stainless Steel
We provide stainless steel laser cutting in grades 201, 301, 304, and 316L. These metals are strong, corrosion-resistant, and ideal for durable parts. Stainless steel is widely used in automotive, electronics, and industrial applications.
Mild Steel

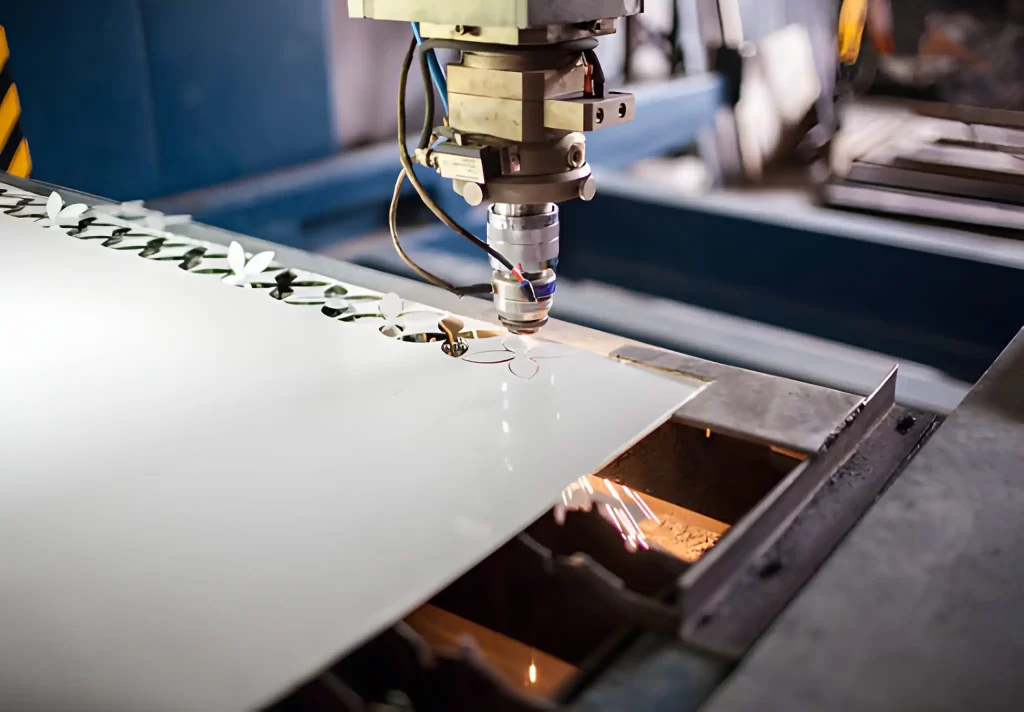

Steel Sheet Laser Cutting
Mild steel options include Q235 and Q235B. It is strong, versatile, and cost-effective. This material is perfect for general sheet metal fabrication and bending projects.
Spring Steel
Our spring steel, 65Mn, is both rigid and flexible. It is suitable for precision parts and mechanical components that require withstanding stress.
Alloy Aluminium
We stock aluminium alloys such as 5052, 5083, 6061, and 7075. Aluminium is lightweight yet strong, making it ideal for aerospace, automotive, and electronics components. (Gain more insights on: aluminium sheet fabrication)
Other Metals
Corten steel, galvanized steel, copper, and brass are also available. These metals provide unique surface finishes and mechanical properties for specialized applications.
Special Steels
Knife steels such as 440C, D2, and DC53 are commonly used for cutting tools. Tool steels S7, D3, and 420 provide high wear resistance. Titanium sheets TC4 and TC21 are lightweight yet strong, making them ideal for advanced engineering projects.
Plastics

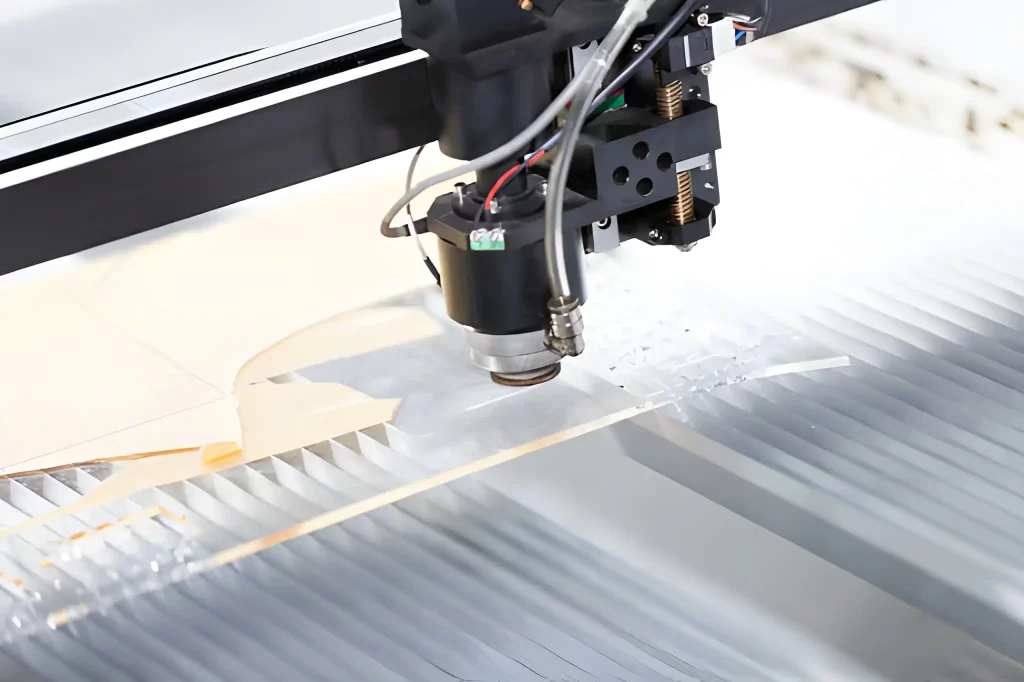

Laser Cutting Plastic Sheet
In addition to metals, we also laser cut engineered-grade plastics. These include PEEK, PEI (Ultem), PTFE, Polycarbonate, PPS, Nylon, PMMA, and ABS, among others. These plastics are ideal for producing lightweight and precise parts for various applications.
Try Prolean Now!
Other Services from Prolean Tech Laser Cutting China
At Prolean Tech, we do more than laser cutting. You can get almost everything done in one place. From bending to printing, we handle all sheet metal processing.
Bending and Folding

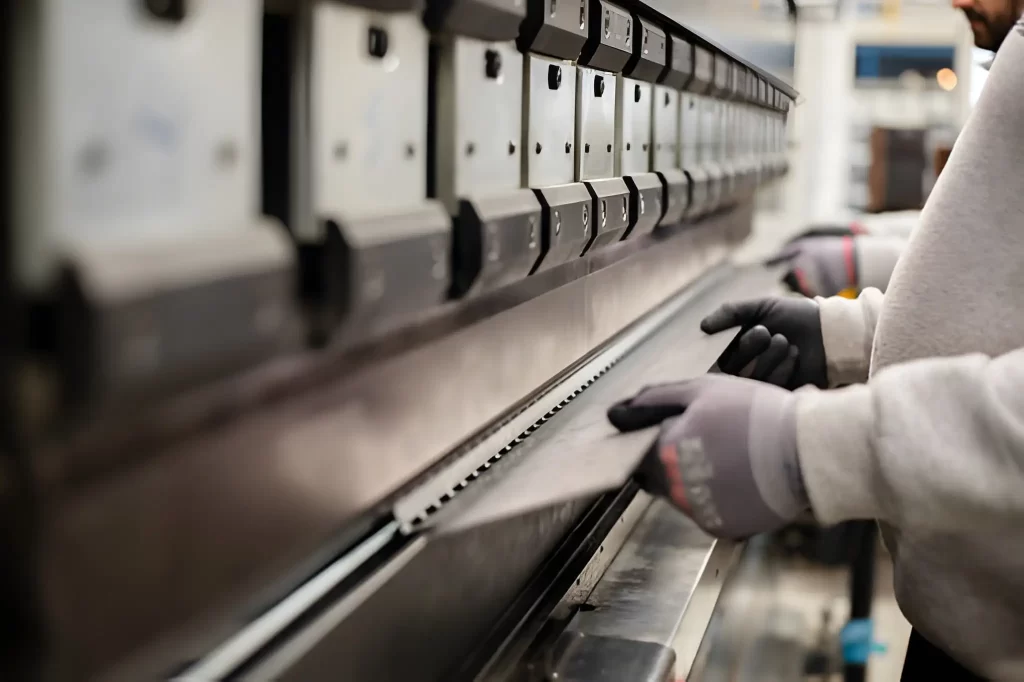

Sheet Metal Bending
After laser cutting, we bend or fold stainless steel and aluminum sheets. This helps make panels, brackets, and boxes. Shapes are accurate and consistent every time.
Welding

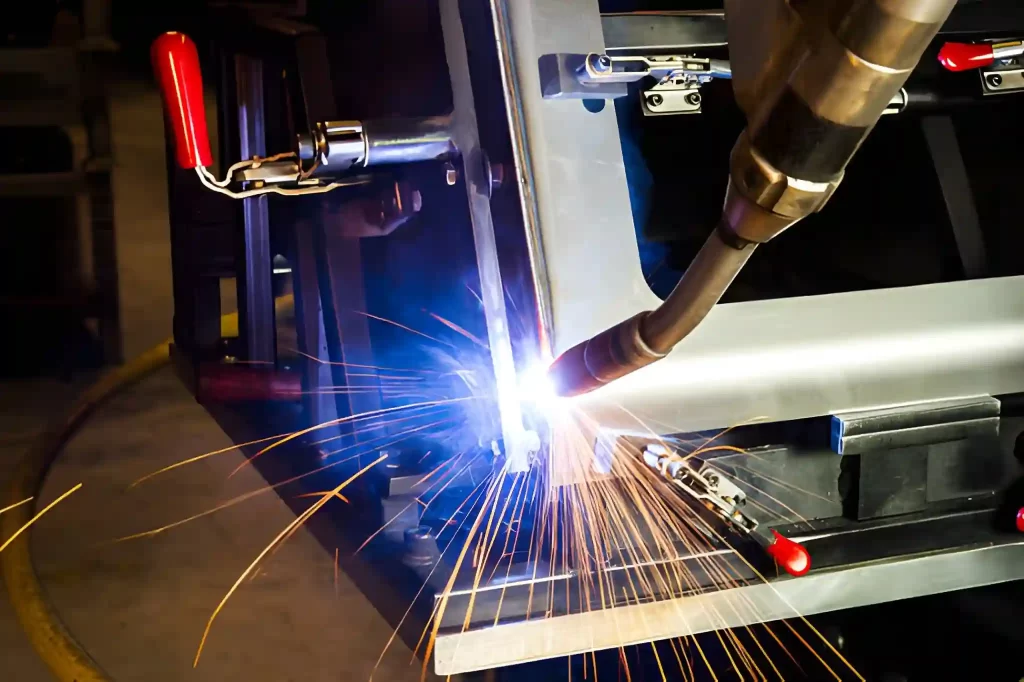

Robotic Arm Welding
Prolean Tech provides regular welding and laser welding. Metals such as stainless steel, aluminium, and alloys can be joined. Our welds are strong, neat, and reliable.
Countersinking and Tapping
We prepare holes for screws and bolts. Countersinking and tapping help parts fit perfectly. This is ideal for panels, enclosures, and custom-cut sheet metal.
Surface Finishes
We offer many surface finishes. Polishing, gold plating, tin plating, painting, and anodising are available options. These finishes enhance the appearance of parts and increase their longevity.
Laser Marking and Engraving
We have five laser marking machines for metals. CO₂ lasers are used for wood and plastic. You can etch text, numbers, or designs with high precision.
CNC Milling and Machining
Prolean Tech provides CNC machining for precision parts. Metals such as aluminium, brass, copper, and stainless steel are supported. Plastics like PVC, POM, ABS, PC, PP, PEEK, and Nylon can also be used.
Water Jet Cutting
For thick materials, laser cutting may not work. We use water jet cutting instead. It handles aluminum up to 20mm, stainless steel up to 15mm, and thick plastics. Cuts are precise and smooth.
Custom Laser Cutting Service Online for Your Project from Prolean Tech
ProleanTech offers high-precision CNC laser cutting for metals, plastics, and acrylics. Our CO₂, fiber, and Nd:YAG lasers can handle both simple and complex designs, ensuring clean, burr-free edges every time. We work with a wide range of materials, including aluminum, stainless steel, titanium, brass, copper, and plastics like PC, ABS, and acrylic. Special alloys and thick materials are also available for custom projects.
Beyond cutting, ProleanTech provides bending, welding, and finishing services. Finishes include polishing, anodizing, powder coating, black oxide, and more. We also offer laser marking, engraving, and UV printing for logos and branding.
For materials too thick for laser cutting, we provide water jet cutting. Metals and plastics up to several centimeters can be cut efficiently without compromising quality. We offer fast quotes in as little as one hour, with no minimum order requirement. All parts undergo strict quality checks to ensure accuracy and a flawless finish.
Submit your design today and let ProleanTech deliver your parts quickly and reliably. From prototyping to full production, we are your one-stop manufacturing partner.
