Electrical discharge machining (EDM) has revolutionized manufacturing by enabling the production of intricate and precise components. Wire EDM, a type of EDM, is a versatile and efficient process used in various industries for over five decades. This process involves using a thin metal wire to cut through electrically conductive materials, such as aluminum, copper, and steel, to create complex parts that are impossible to make using conventional methods. Wire EDM is ideal for making small gears, medical implants, and other intricate parts with high accuracy.
This article delves into the world of wire EDM, exploring the benefits of wire cut techniques for a wide range of applications.
What is EDM Wire and Its Role in Electrical Discharge Machining
EDM wire is a critical component of electrical discharge machining, serving as the primary cutting tool during the wire EDM process. Typically made from brass, copper, or zinc-coated brass, EDM wire is designed to provide excellent electrical conductivity, high tensile strength, and resistance to wear. These qualities allow the wire to withstand the intense heat and electrical energy generated during the wire EDM process.
The role of EDM wire in electrical discharge machining is to create a controlled electrical discharge between the wire and the workpiece. This discharge generates intense heat, which melts and vaporizes the material being cut, leaving behind a precise, clean edge. The wire is continuously fed through the workpiece, ensuring that the cutting process remains consistent and accurate.
By understanding the role of EDM wire in electrical discharge machining, manufacturers can optimize their wire EDM processes to produce high-quality parts with exceptional accuracy and efficiency. Selecting the right type of EDM wire is essential for achieving the desired results and ensuring a smooth, efficient machining process.
The Wire EDM Process: An Overview

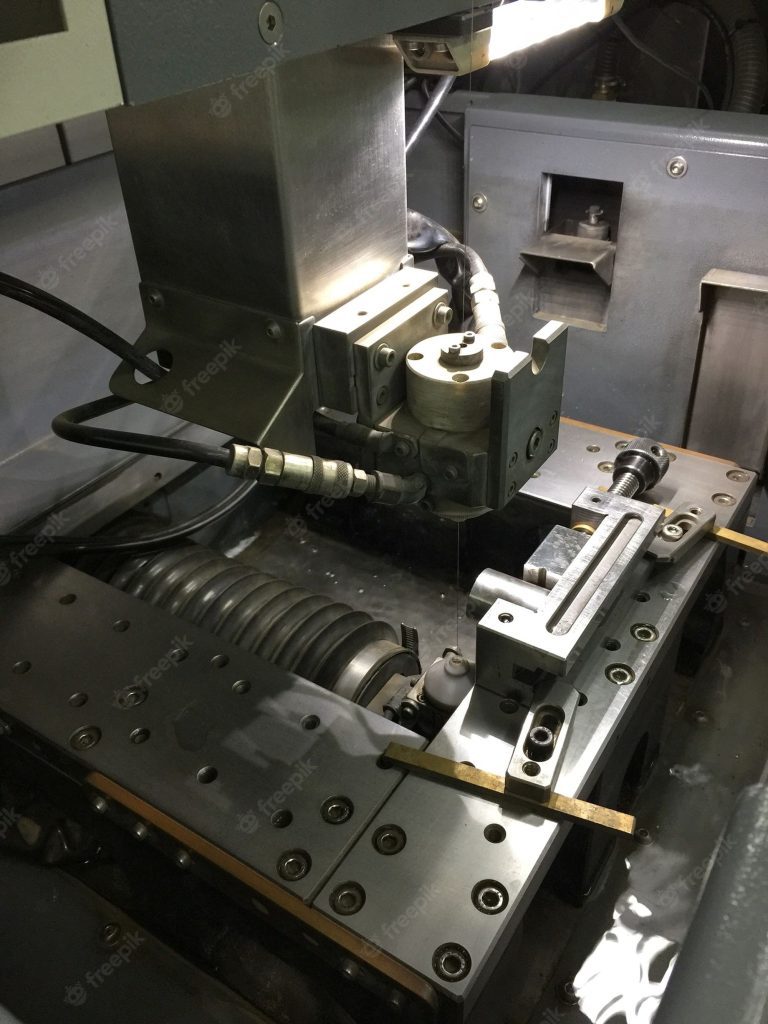

Wire EDM setup
The wire EDM process is a specialized form of electrical discharge machining that relies on a thin, electrically conductive wire to cut intricate shapes and patterns into various materials. This non-contact process involves feeding the wire through the workpiece, with the wire serving as an electrode to generate a series of controlled electrical discharges. These discharges create intense heat that melts and vaporizes the material being cut, resulting in a precise, accurate cut.
The wire EDM process consists of several stages, including wire threading, wire feeding, and cutting. Wire threading involves inserting the wire into the EDM machine and aligning it with the workpiece. Once in position, the wire is fed through the workpiece at a controlled rate, with the electrical discharges melting and vaporizing the material as the wire advances.
Throughout the cutting process, dielectric fluid is used to cool and lubricate the wire, as well as to flush away debris from the cutting area. This fluid also helps to maintain the stability of the electrical discharges, ensuring a consistent cutting process. After the cutting is complete, the wire is retracted, leaving behind a precisely machined part.
Benefits of Using Wire Cut Techniques in Wire EDM Processes
Wire-cut techniques offer numerous benefits to manufacturers seeking to produce high-quality, intricate parts with precision and efficiency. Some of the key advantages of wire cut techniques in wire EDM processes include:
- Accuracy and Precision: Wire EDM processes provide exceptional accuracy and precision, allowing manufacturers to create intricate shapes and patterns with tight tolerances. This is particularly beneficial for industries requiring high levels of precision, such as aerospace, automotive, and medical devices.
- Complex Geometries: Wire-cut techniques enable the machining of complex geometries and intricate patterns that would be difficult or impossible to produce using conventional machining methods. This versatility allows manufacturers to create unique, customized parts that meet the specific requirements of their applications.
- Reduced Tool Wear: Since wire EDM is a non-contact process, there is minimal wear on the cutting tool (the wire), resulting in longer tool life and reduced maintenance costs.
- Minimal Heat-Affected Zone: The controlled electrical discharges generated during the wire EDM process produce minimal heat, reducing the risk of thermal damage to the workpiece. This is especially important for materials that are sensitive to heat, such as certain metals and plastics.
- Wide Range of Material Compatibility: Wire cut techniques in wire EDM processes can be used to cut a diverse range of materials, from conductive metals like steel, aluminum, and copper to non-metallic materials like composites and ceramics.
Applications of Wire Cut Techniques in Various Industries
Wire cut techniques in wire EDM processes have a wide range of applications across numerous industries, including:
| Industry | Precision Components | Description |
|---|---|---|
| Aerospace | Aircraft engines, landing gears, and other critical systems | High accuracy and ability to machine complex geometries make wire EDM an ideal choice for creating intricate parts with tight tolerances |
| Automotive | Engine components, transmission parts, and other critical components | The ability to handle a wide range of materials and produce intricate shapes makes wire EDM a valuable tool for automotive manufacturers |
| Electronics | Connectors, switches, and circuit board traces | The ability to machine small, intricate parts with high accuracy makes wire EDM an essential tool for producing electronic components |
| Medical Devices | Surgical instruments, implants, and other precision components | The high accuracy and ability to machine complex geometries make wire EDM well-suited for creating the intricate parts required in medical devices |
| Mold and Die Manufacturing | Molds and dies used in injection molding, stamping, and other manufacturing processes | The ability to produce intricate shapes and patterns with tight tolerances makes wire EDM an ideal choice for creating high-quality molds and dies |
