Mastering CNC G-Code: A Comprehensive Guide to G & M Codes for Precision Machining
G codes in CNC machining
CNC G-code programming has revolutionized the world of manufacturing and machining. It allows for incredible precision, repeatability, and efficiency in the production process. At the heart of this technology are G and M codes, which serve as the foundation for all CNC programming. This comprehensive guide will provide you with a solid understanding of G and M codes, their importance in precision machining, and how to master CNC G-code programming.
You may have heard the term “G-code” being thrown around quite often. But what does it actually mean? CNC G-code, or simply G-code, is a programming language used to control CNC (Computer Numerical Control) machines. These machines are used in various industries to produce parts with high levels of accuracy and repeatability.
In this guide, we will expertly explore the fascinating realm of G and M codes, covering everything from the fundamentals to their advanced applications in CNC machining. We will also impart invaluable advice for achieving mastery in CNC G-code programming and provide an overview of the abundant resources available, including G-code simulation software and online courses.
Understanding G and M Codes: The Building Blocks of CNC Programming
G and M codes are the building blocks of CNC programming. They are essentially the commands that instruct CNC machines to perform specific actions during the machining process. G-codes (also known as “geometric codes” or “preparatory codes”) are used to define the movement and positioning of the cutting tool, while M-codes (also known as “miscellaneous codes”) are used to control various machine functions, such as spindle rotation, coolant flow, and tool changes.
Each G and M code is followed by a number that represents a specific function or command. For example, G00 is the rapid positioning command, while M03 is the spindle start command. By combining these codes in a specific sequence, CNC programmers can create a complete set of instructions for a CNC machine to follow, ensuring that the final product meets the desired specifications.
In order to successfully program a CNC machine, it is essential to have a thorough understanding of G and M codes, their functions, and how they can be combined to achieve the desired results. This knowledge will not only enable you to create efficient and accurate programs but will also help you troubleshoot issues and optimize your machining processes.
The Importance of G and M Codes in Precision Machining
G and M codes play a crucial role in precision machining, as they are responsible for controlling various aspects of the machining process. By using these codes, CNC programmers can ensure that the cutting tool follows a precise path, maintains a specific feed rate, and performs other essential tasks with pinpoint accuracy. This level of control is vital for producing high-quality parts that meet strict tolerances and specifications.
G and M codes not only enable precise control over the machining process but also contribute to the efficiency and productivity of CNC machines. By automating complex tasks and eliminating the need for manual intervention, CNC programming allows for faster production times and reduced errors. This, in turn, results in cost savings and increased competitiveness for manufacturers.
Common G&M-Codes and Their Functions
There are numerous G&M-codes used in CNC programming, each with its own specific function. While it is not possible to cover every single G&M-code in this guide, below is a list of some common G-codes and their functions:
G-Code | Description | M-Code | Description |
---|---|---|---|
G00 | Rapid positioning | M00 | Program stop |
G01 | Linear interpolation | M01 | Optional stop |
G02 | Circular interpolation (clockwise) | M02 | Program end |
G03 | Circular interpolation (counterclockwise) | M03 | Spindle on (clockwise) |
G04 | Dwell | M04 | Spindle on (counterclockwise) |
G17 | XY plane selection | M05 | Spindle stop |
G18 | XZ plane selection | M06 | Tool change |
G19 | YZ plane selection | M08 | Coolant on |
G20 | Inch unit | M09 | Coolant off |
G21 | Metric unit | M30 | Program end and reset |
G28 | Return to home position | M41 | Tool length compensation |
G40 | Cutter radius compensation off | M42 | Tool length compensation cancel |
G41 | Cutter radius compensation left | M48 | Feedrate override increase |
G42 | Cutter radius compensation right | M49 | Feedrate override decrease |
G43 | Tool length compensation positive | M98 | Subprogram call |
G44 | Tool length compensation negative | M99 | Subprogram end |
G49 | Tool length compensation cancel | M101 | Auxiliary function 1 |
G53 | Machine coordinate system selection | M102 | Auxiliary function 2 |
G54 | Work coordinate system 1 selection | M103 | Auxiliary function 3 |
G55 | Work coordinate system 2 selection | M104 | Auxiliary function 4 |
G56 | Work coordinate system 3 selection | M105 | Auxiliary function 5 |
G57 | Work coordinate system 4 selection | M106 | Auxiliary function 6 |
G58 | Work coordinate system 5 selection | M107 | Auxiliary function 7 |
G59 | Work coordinate system 6 selection | M108 | Auxiliary function 8 |
G61 | Exact stop mode | M109 | Auxiliary function 9 |
G64 | Continuous mode | M110 | Auxiliary function 10 |
Please note that the specific functionality and usage of G&M codes may vary depending on the CNC machine and control system being used. You should always refer to the machine’s documentation and programming manual for accurate and up-to-date information on G&M codes.
How does CNC Programming Work
CNC programming involves creating a set of instructions for a CNC machine to follow, using G and M codes. These instructions, known as “part programs” or simply “programs,” define the tool path, feed rate, spindle speed, and other parameters required to machine a part to the desired specifications.

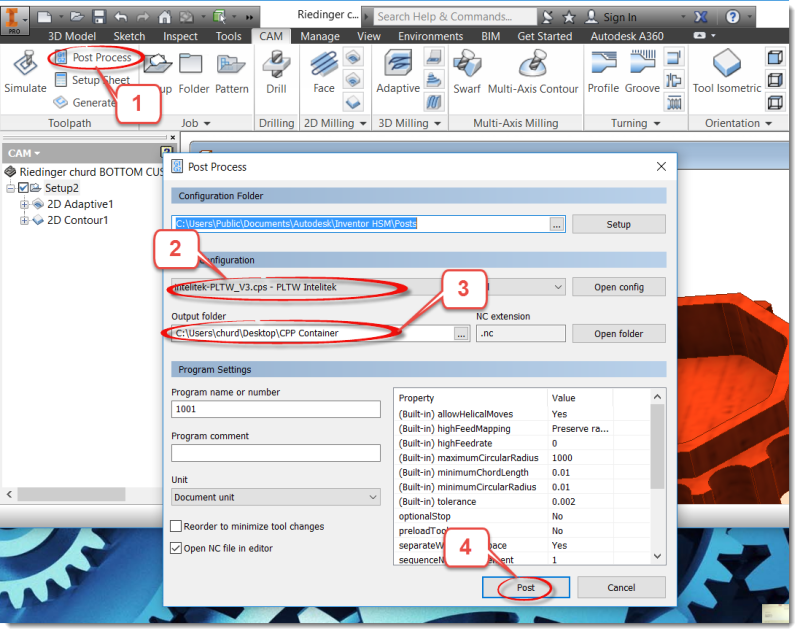

CNC programming can be done using a variety of methods, including manual programming, conversational programming, and computer-aided manufacturing (CAM) software. Manual programming involves writing the CNC program by hand, using G and M codes. Conversational programming uses a more user-friendly interface, allowing the programmer to create CNC programs through a series of prompts and questions. CAM software, on the other hand, automates the programming process by generating CNC programs based on CAD (Computer-Aided Design) models of the part.
Regardless of the programming method used, the end result is a CNC program that can be loaded onto the CNC machine and executed to produce the desired part.
Tips for Mastering CNC G-Code Programming
Mastering CNC G-code programming takes time, practice, and dedication. The following tips can help you hone your skills and become a more proficient CNC programmer:
- Learn the basics: Start by familiarizing yourself with the most common G and M codes, as well as the fundamentals of CNC programming, such as coordinate systems, work offsets, and units of measurement.
- Practice regularly: Like any skill, practice is key to becoming proficient in G-code programming. Write, edit, and analyze G-code programs to gain hands-on experience and a deeper understanding of the codes and their interactions.
- Use simulation software: Before running your G-code program on a CNC machine, use simulation software to verify and validate the program. This will help you identify errors, collisions, and other potential issues, and will also enable you to refine your programming skills in a risk-free environment.
- Study advanced techniques: As you become more comfortable with G-code programming, explore advanced techniques such as high-speed machining, adaptive clearing, and trochoidal milling. These strategies can improve machining efficiency and precision.
- Optimize your G-code: Learn how to optimize your G-code for better performance, including minimizing rapid moves, reducing air cutting, and employing efficient entry and exit strategies. Optimization can lead to better surface finishes, increased tool life, and reduced cycle times.
- Leverage canned cycles: Make use of canned cycles for common operations like drilling, tapping, and boring. Canned cycles simplify and standardize these processes, making your G-code more efficient and easier to maintain.
- Utilize G-code editors and generators: Use dedicated G-code editors and generators, such as Fusion 360 and Mastercam, to create and edit G-code programs more effectively. These tools can automate much of the programming process and help you maintain a consistent programming structure.
- Learn from others: Seek out resources, such as online forums, tutorials, and courses, to learn from experienced CNC programmers. Their insights, tips, and best practices can help you improve your programming skills and avoid common mistakes.
- Stay updated: Keep up to date with the latest developments in CNC technology, programming software, and machining strategies. Staying informed will ensure that your programming skills remain relevant and effective in a constantly evolving industry.
- Be patient: Mastering G-code programming takes time and dedication. Be patient with yourself as you learn and improve, and remember that every challenge you face will ultimately help you become a better CNC programmer.
G-Code Simulation Software and Tools (Full lists)
G-code simulation software and tools play a crucial role in the CNC programming process, as they allow you to visualize and validate your G-code program before running it on a CNC machine. This helps identify potential errors, collisions, or inefficiencies, ensuring a smoother machining process and reducing the risk of damage to the machine or workpiece. Here are some popular G-code simulation software and tools:
- CAMotics: CAMotics is an open-source G-code simulator that provides a 3D visualization of the machining process. It supports a wide range of CNC machines and can help identify potential issues such as tool collisions or out-of-bounds movements. Website: https://camotics.org/
- CNC Simulator Pro: CNC Simulator Pro is a versatile software that simulates both the G-code program and the CNC machine itself, offering a realistic representation of the machining process. It supports various machine types, including mills, lathes, and routers. Website: http://www.cncsimulator.com/
- GWizard Editor: Developed by CNCCookbook, GWizard Editor is a G-code editor that features built-in simulation capabilities. It also includes features for G-code optimization, error checking, and conversational programming. Website: https://www.cnccookbook.com/g-wizard-g-code-editor-simulator/
- NCPlot: NCPlot is a G-code editor and backplotter that allows you to visualize and edit your G-code programs. It supports a wide range of codes and machine types, and includes features such as syntax highlighting, code transformation, and macro debugging. Website: https://www.ncplot.com/
- Mach3: Mach3 is a popular CNC control software that also includes G-code simulation capabilities. While primarily designed to control CNC machines, its simulation feature allows you to visualize the machining process and identify potential issues. Website: https://www.machsupport.com/software/mach3/
- SolidCAM: SolidCAM is an integrated CAM software for SolidWorks that includes a built-in G-code simulator called Machine Simulation. This feature allows you to simulate the machining process in a virtual environment, ensuring that your G-code program will run correctly on your CNC machine. Website: https://www.solidcam.com/
- Fusion 360: Fusion 360 is a cloud-based CAD/CAM software developed by Autodesk. It includes an integrated G-code editor and simulator that allows you to visualize and validate your G-code programs within the same environment where you create your CAD models. Website: https://www.autodesk.com/products/fusion-360/overview
By using G-code simulation software and tools, you can gain confidence in your CNC programs and improve your programming skills. These tools provide valuable feedback and help you refine your G-code to ensure optimal machining results.
CNC G-Code Training and Online Courses
There are numerous online resources and courses available for learning CNC G-code programming. These courses cater to various skill levels, from beginners to experienced programmers, and can help you develop the knowledge and expertise needed to excel in CNC programming. Here are some popular CNC G-code training options and online courses:
Platform/Resource | Description | Website |
---|---|---|
Titans of CNC: Academy | Free online CNC machining courses, including lessons on G-code programming, CAD/CAM, and advanced machining techniques | https://academy.titansofcnc.com/ |
CNC Training Centre | Offers a variety of CNC programming courses, including G-code programming for mills and lathes, available both online and in-person | https://cnctrainingcentre.com/ |
Tooling U-SME | Provides a wide range of CNC programming courses, including G-code programming, CAM software, and setup and operation, accessible online | https://www.toolingu.com/ |
LinkedIn Learning | Offers a variety of online courses related to CNC programming, G-code, and machining, led by industry experts | https://www.linkedin.com/learning/ |
Udemy | Online learning platform that offers a variety of CNC programming courses, including G-code programming for beginners and advanced users | https://www.udemy.com/ |
Coursera | Online education platform that partners with universities and institutions to offer a wide range of courses, including CNC programming and G-code | https://www.coursera.org/ |
YouTube | Features numerous tutorials and demonstrations from experienced programmers and machinists, including channels like NYC CNC, Tormach Inc., and Haas Automation | https://www.youtube.com/ |
Conclusion: Unlocking the Potential of CNC G-Code
CNC G-code programming and the understanding of G&M codes are essential components of precision machining. Mastering these skills will enable you to create efficient, accurate, and reliable CNC programs that deliver high-quality parts. By learning the basics, practicing regularly, and leveraging the wealth of resources available, including G-code simulation software and online courses, you can become a proficient CNC programmer.
For all your CNC machining needs, trust the experts at ProLeanTech Our state-of-the-art CNC machines and experienced team will ensure that your projects are completed with the highest level of precision and efficiency. Contact us today to learn more about our CNC machining services and how we can help bring your designs to life.
FAQ
What are G-codes and M-codes in CNC programming?
G-codes, also known as “geometric codes” or “preparatory codes,” are used to define the movement and positioning of the cutting tool. M-codes, also known as “miscellaneous codes,” control various machine functions, such as spindle rotation, coolant flow, and tool changes.
Can I learn CNC G-code programming online?
Yes, there are various online resources and courses available for learning CNC G-code programming. Some popular platforms include Titans of CNC: Academy, CNC Training Centre, Tooling U-SME, LinkedIn Learning, Udemy, Coursera, and YouTube.
What is the best way to practice CNC G-code programming?
Regular practice is key to becoming proficient in G-code programming. Write, edit, and analyze G-code programs to gain hands-on experience and a deeper understanding of the codes and their interactions. Utilize G-code simulation software to verify and validate your programs in a risk-free environment.
Are there any free G-code simulation software options?
Yes, there are free G-code simulation software options, such as CAMotics, which is an open-source G-code simulator that provides a 3D visualization of the machining process. Another option is Fusion 360 by Autodesk, which offers a free personal use license with some limitations.
Can I use the same G&M-codes for all CNC machines?
While many G&M-codes are standardized, their specific functionality and usage may vary depending on the CNC machine and control system being used. Always refer to the machine’s documentation and programming manual for accurate and up-to-date information on G&M codes.
What are the benefits of mastering CNC G-code programming?
Mastering CNC G-code programming allows you to create efficient, accurate, and reliable CNC programs that deliver high-quality parts. This skill enables you to troubleshoot issues, optimize machining processes, and improve the overall efficiency and productivity of CNC machines.
