Electrical Discharge Machining (EDM) is a versatile and precise machining process used in various industries to achieve complex shapes and intricate designs. Choosing the right type of EDM for your project is essential to ensure optimal results and cost-effectiveness. With several EDM techniques available, it can be challenging to determine which one suits your specific requirements.
This comprehensive guide will walk you through the factors to consider and provide expert tips to help you choose the right type of EDM for your project.
Discovering the World of EDM: What is Electrical Discharge Machining
Understanding the Different Types of EDM

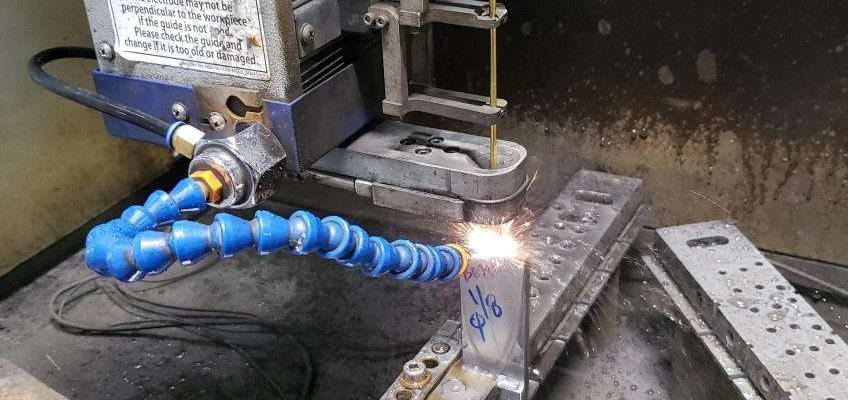

Hole drilling EDM
EDM uses electrical discharges to precisely shape and machine materials. Each EDM technique has its own characteristics, applications, advantages, and limitations. Understanding the different types of EDM can help you choose the most suitable technique for your specific project needs. Here is an in-depth exploration of the major types of EDM
| EDM Types | Description | Advantages | Limitations |
|---|---|---|---|
| Wire EDM (WEDM) | Uses a rapidly moving wire electrode to create precise cuts in conductive materials. | Offers excellent accuracy, intricate cutting capabilities, and the ability to work with complex geometries. Produces fine surface finishes and is suitable for delicate materials. | Slower cutting speeds compared to other EDM techniques. May not be suitable for thick workpieces or materials with low electrical conductivity. |
| Sinker EDM (SEDM) | Involves creating cavities or shapes in a workpiece using a specially shaped electrode and a dielectric fluid. | Allows for intricate details and complex shapes with high accuracy. Suitable for hard and conductive materials. Produces fine surface finishes and sharp corners. | Slower than Wire EDM and may have limitations in terms of the depth of cavities it can create. Electrode wear is a consideration and may require frequent electrode changes. |
| Hole Drilling EDM (HDM) | Used for creating small, precise holes in conductive materials. | Allows for high-precision hole drilling with controlled diameter and depth. Suitable for materials like stainless steel, titanium, and super-alloys. Can achieve high aspect ratios in the drilled holes. | Slower compared to other EDM techniques and may require additional post-processing steps to achieve desired surface finishes. May have limitations in drilling certain materials with high melting points or low electrical conductivity. |
| Small Hole EDM (SHDM) | Used for drilling small holes with high aspect ratios. | Offers high-precision drilling of small holes with excellent surface finish. Suitable for materials like hardened steel, tungsten carbide, and ceramics. Can achieve high aspect ratios and straightness in the drilled holes. | Slower compared to other EDM techniques and may have limitations in drilling large-diameter holes. Requires careful electrode alignment and may involve electrode wear. |
| Laser-Assisted EDM (LA-EDM) | Combines the principles of EDM and laser machining to enhance the efficiency and precision of the machining process. | Offers improved material removal rates, reduced electrode wear, and enhanced surface finish. Suitable for hard and heat-resistant materials. Can achieve high accuracy and complex geometries. | May require additional equipment and expertise. Has limitations in terms of the thickness of the workpiece and the availability of laser equipment. |
Key Factors to Consider for Appropriate EDM Type
When choosing the right type of Electrical Discharge Machining (EDM) for your project, several factors need to be considered. These factors will help you determine the most suitable EDM technique that aligns with your project requirements. Here are the key factors to consider:
- Material Type: Different EDM techniques work best with specific materials. Consider the conductivity, hardness, and thermal properties of the material you will be working with. Some EDM techniques are better suited for conductive materials, while others can handle both conductive and non-conductive materials.
- Precision Requirements: Determine the level of precision and accuracy needed for your project. Some EDM techniques offer higher precision and can achieve intricate details and complex geometries, while others may be more suitable for roughing operations or larger-scale projects.
- Complexity of the Geometry: Assess the complexity of the shapes and features you need to machine. Certain EDM techniques, like Wire EDM, excel at cutting intricate shapes and contours, while others, like Sinker EDM, are better suited for creating cavities and molds.
- Production Volume: Consider the volume of parts or components you need to produce. Some EDM techniques are more efficient for high-volume production, while others may be better suited for prototyping or low-volume production.
- Surface Finish Requirements: Evaluate the desired surface finish of your machined parts. Different EDM techniques can achieve varying levels of surface finish, ranging from rough to mirror-like finishes. Consider the application and functional requirements of your parts.
- Cost Considerations: Assess the overall cost implications of the EDM technique you choose. Factors such as equipment cost, electrode wear, machining time, and post-processing requirements can impact the total cost of the project.
- Operator Skill and Expertise: Consider the skill level and expertise of the operators involved. Some EDM techniques may require specialized knowledge and training to operate effectively.
Let’s Start A New Project Today
Tips for Choosing the Right Type of EDM

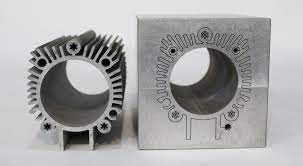

Complex EDM
Choosing the right type of Electrical Discharge Machining (EDM) for your project can significantly impact the quality, efficiency, and cost-effectiveness of your machining process. Here are some valuable tips to consider when selecting the appropriate EDM technique:
1. Understand Your Project Requirements Before deciding on the type of EDM, it’s crucial to have a clear understanding of your project requirements. Consider factors such as the material to be machined, part complexity, precision requirements, production volume, and surface finish specifications. This understanding will guide you in selecting the most suitable EDM technique.
2. Research and Compare Different EDM Techniques There are several types of EDM techniques available, each with its unique capabilities and limitations. Research and compare the various EDM techniques, such as Wire EDM, Sinker EDM, and Hole Drilling EDM. Understand their principles of operation, applications, advantages, and limitations.
3. Evaluate Material Compatibility Different EDM techniques work best with specific materials. Evaluate the compatibility of your chosen EDM technique with the material you intend to machine. Consider factors such as material conductivity, hardness, and thermal properties to ensure optimal performance and accurate results.
4. Consider Part Complexity and Geometry The complexity and geometry of the parts you need to machine play a crucial role in selecting the right EDM technique. Some techniques, like Wire EDM, excel in cutting intricate shapes and contours, while others, like Sinker EDM, are more suitable for creating cavities and molds. Assess the suitability of each technique based on your part’s design requirements.
5. Assess Precision and Tolerance Requirements The precision and tolerance requirements of your project should align with the capabilities of the chosen EDM technique. Some techniques offer higher precision and can achieve tight tolerances, while others may be better suited for roughing operations. Consider the level of accuracy needed for your specific application.
6. Analyze Production Volume and Efficiency Consider the production volume and efficiency requirements of your project. Some EDM techniques are more efficient for high-volume production, while others may be better suited for prototyping or low-volume production. Evaluate the speed, automation capabilities, and overall productivity of each technique.
7. Factor in Cost Considerations Cost is a crucial aspect to consider when choosing an EDM technique. Evaluate the overall cost implications, including equipment cost, tooling, electrode wear, and maintenance requirements. Consider the long-term cost-effectiveness of the chosen technique in relation to your project’s specific needs.
8. Seek Expert Advice If you are unsure about which EDM technique is best suited for your project, seek advice from experienced professionals or EDM service providers. They can provide valuable insights and recommendations based on their expertise and industry knowledge.
9. Perform Test Runs and Evaluate Results Before committing to a specific EDM technique, perform test runs on sample parts to evaluate the results. Assess factors such as surface finish, dimensional accuracy, material removal rate, and overall quality. This will help validate the suitability of the chosen technique for your project.
Conclusion
Choosing the right type of EDM for your project is crucial for achieving precise results, meeting project requirements, and maximizing efficiency. By understanding the different types of EDM available, considering key factors such as project complexity, material properties, budget, and expertise, and following expert tips, you can make an informed decision.
At Prolean, we offer precise and cost-competitive Electrical Discharge Machining (EDM) services to meet your machining needs. With our state-of-the-art EDM equipment and experienced team, we strive to deliver accuracy, efficiency, and superior quality in every project
FAQ’s
Which type of EDM is best for complex geometries?
The best type of EDM for complex geometries is typically Wire EDM (WEDM). It allows for intricate and precise cuts in complex shapes and contours, making it ideal for applications that require high precision and intricate detailing.
Can the same EDM machine be used for different materials?
Yes, the same EDM machine can be used for different materials. However, the machining parameters and settings may need to be adjusted based on the specific material being machined. It’s important to consult with experienced EDM operators to optimize the machine settings for each material.
What are the primary cost considerations when choosing an EDM technique?
The primary cost considerations when choosing an EDM technique include machine setup costs, electrode costs, machining time, and maintenance costs. Additionally, the complexity of the part geometry and the material being machined can also impact the overall cost of the EDM process.
Is EDM suitable for heat-sensitive materials?
EDM is suitable for heat-sensitive materials as it is a non-contact machining process that does not generate significant heat in the workpiece. However, certain precautions may be necessary to manage the heat generated during the machining process, such as using appropriate dielectric fluids and optimizing the machining parameters.
