An In-Depth Look at the Different Types of EDM
Electrical Discharge Machining (EDM), also known as spark machining, is a groundbreaking manufacturing process that has transformed numerous industries. It involves the use of electrical sparks to erode metal surfaces, offering the ability to create complex shapes and work with hard materials that other methods might find challenging. Despite being under the same umbrella, not all EDM processes are the same.
This article explores the different types of EDM processes: Wire EDM, Sinker EDM, and Hole Drilling EDM, highlighting their unique features, applications, and advantages.
Introduction: EDM
Electrical Discharge Machining (EDM) is a non-traditional manufacturing process that employs the principle of electrical discharges or sparks to cut, drill, or otherwise shape a wide variety of materials. It is often referred to as spark machining due to the sparks that are involved in the process.
The EDM process essentially involves creating a series of rapid, repetitive electrical discharges between a tool, known as the electrode, and the workpiece. These electrical discharges generate heat that vaporizes a tiny amount of the material from the workpiece, thus eroding it to gradually create the desired shape.
There are primarily three types of EDM processes, each with its own unique advantages and applications. Wire EDM (Wire-Cut EDM) uses a thin wire as the electrode and is ideal for cutting intricate patterns and fine details. Sinker EDM (Ram EDM), on the other hand, uses a custom-made electrode that “sinks” into the workpiece to create a mirror image of its shape in the workpiece. Hole Drilling EDM, sometimes known as fast hole EDM, uses a tubular electrode and is specifically designed for drilling small, deep holes. Now, let’s delve deeper into each of these types of EDM.
Related: Discovering the World of EDM: What is Electrical Discharge Machining
Wire, Sinker, and Hole Drilling EDM
These three types of EDM – wire, sinker, and hole drilling – offer distinct benefits and are best suited to specific applications based on the nature of the machining task at hand. Each of these EDM processes has its own unique capabilities and applications, and understanding these can help you choose the most suitable process for your machining needs.
1. Wire EDM

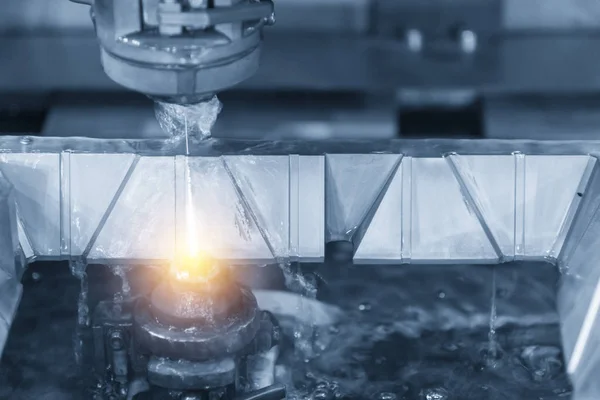

Wire EDM
Wire Electrical Discharge Machining, often referred to as Wire-Cut EDM, employs a thin wire as the electrode. The wire, commonly made of brass or stratified copper, is continuously fed between two spools, ensuring that the machining process always takes place with a new section of the wire.
Table 1: Key Features of Wire EDM
Feature | Description |
---|---|
Precision | Can achieve tolerances of +/- 0.0001 inches. |
Surface Finish | Capable of achieving a high-quality surface finish. |
Geometry | Ideal for cutting intricate patterns and fine details. |
Material Waste | Minimizes material waste due to the thinness of the cutting wire. |
Applications of Wire EDM
- Producing intricate components for the electronics industry.
- Crafting fine jewelry.
- Manufacturing small and precise components in the medical industry.
- Creating parts with complex shapes and geometries in the aerospace industry.
2. Sinker EDM

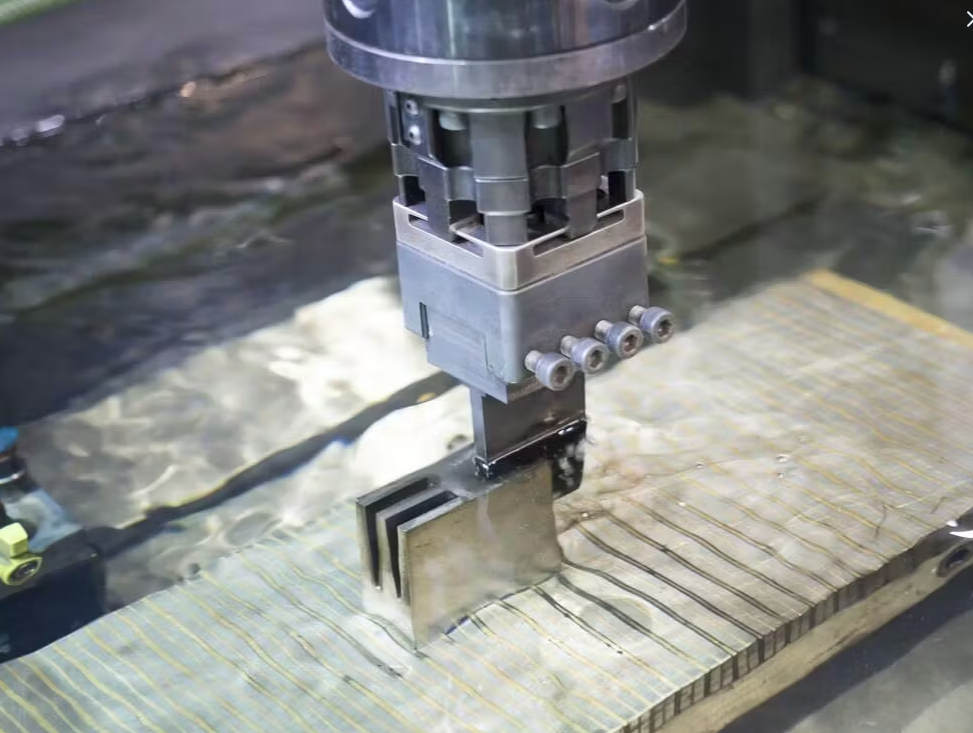

Sinker EDM
Sinker EDM, also known as Ram EDM, uses a custom-made electrode that is shaped to mirror the desired cut or shape on the workpiece. The electrode, typically made of graphite or copper, “sinks” into the workpiece, and electrical discharges between the electrode and the workpiece erode the material to create the desired shape.
Table 2: Key Features of Sinker EDM
Feature | Description |
---|---|
Precision | Provides high-precision machining, suitable for complex geometries. |
Surface Finish | Can achieve excellent surface finishes. |
Electrode Wear | The electrode wears down during the process and may need to be replaced for high-accuracy work. |
Setup Time | Longer setup times due to the need for custom-made electrodes. |
Applications of Sinker EDM:
- Crafting intricate molds and dies in the tool and die industry.
- Manufacturing components with complex shapes in the aerospace industry.
- Creating molds for the injection molding process in the plastic industry.
3. Hole Drilling EDM

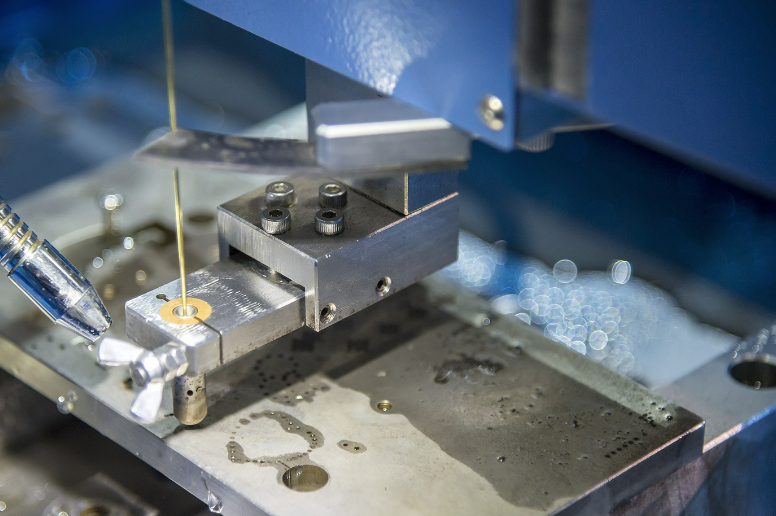

Hole Drilling EDM
Hole Drilling EDM, also known as Fast Hole EDM, uses a tubular electrode to drill small, deep holes into the workpiece. The process is particularly useful for drilling holes into hard materials or for creating holes at odd angles.
Table 3: Key Features of Hole Drilling EDM
Feature | Description |
---|---|
Hole Size | Capable of drilling very small holes, as small as 0.012 inches in diameter. |
Depth | Can drill deep holes, up to 100 times the diameter of the hole. |
Material | Can drill hard materials such as carbide and hardened steel. |
Speed | Faster than traditional EDM drilling processes. |
Applications of Hole Drilling EDM:
- Drilling small cooling holes in turbine blades in the aerospace industry.
- Creating pilot holes for wire EDM processing.
- Manufacturing fuel injector nozzles in the automotive industry.
Comparison Table: Wire Vs Sinker Vs Hole Drilling EDM
Here is a comparative table highlighting the key features of Wire EDM, Sinker EDM, and Hole Drilling EDM:
Criteria | Wire EDM | Sinker EDM | Hole Drilling EDM |
---|---|---|---|
Precision | High (+/- 0.0001 inches) | High | Moderate |
Surface Finish | Excellent | Excellent | Good |
Material Waste | Low | Moderate | High |
Speed | Moderate | Slow (due to custom electrode preparation) | Fast |
Geometry/Shape | Complex shapes and intricate patterns possible | Complex shapes based on custom electrode | Mostly used for drilling holes of varying depths |
Electrode Type | Thin wire | Custom-made to match desired profile | Tubular |
Electrode Wear | Low (continuously fed new wire) | High (electrode may need replacement) | Moderate |
Applications | Electronics, jewelry, medical, aerospace | Tool and die, aerospace, plastics | Aerospace, pre-process for wire EDM, automotive |
Setup Time | Moderate | Long (due to custom electrode) | Short |
Please note that the choice between Wire EDM, Sinker EDM, and Hole Drilling EDM largely depends on the specific requirements of the job, including the type of material, the desired precision, the complexity of the shape, and the production timeframe.
Selecting the Right EDM Drilling Technique
When choosing the appropriate EDM drilling technique for a specific application, several factors should be considered:
- Material type: The workpiece material must be conductive for the EDM process to be effective. Additionally, some materials may be more susceptible to thermal damage or distortion, which can affect the choice of technique.
- Required accuracy: The level of precision and tolerance required for the final product will influence the selection of an EDM drilling method.
- Geometric complexity: The complexity of the desired shape or profile will determine whether wire EDM, sinker EDM, or EDM hole drilling is the most suitable option.
- Production volume: The quantity of parts to be produced can influence the choice of method, as some techniques may be more cost-effective or efficient for larger production volumes.
Which is the Best EDM Process for My Project?
When it comes to Electrical Discharge Machining (EDM), one size does not fit all. The best EDM process for your project will depend on several factors, including the material you’re working with, the desired precision, the intricacy of the shapes involved, and the production time frame. Understanding the key features of each type – Wire EDM, Sinker EDM, and Hole Drilling EDM – can help you determine the most suitable technique for your specific needs.
1. When to Choose Wire EDM?
Wire EDM is the go-to choice when you need to cut intricate designs or complex shapes in hard materials with high precision. This method is particularly advantageous for projects requiring:
- High-precision cuts with tight tolerances
- Small kerfs or fine slots
- Complex shapes or intricate patterns
Some common applications for Wire EDM include creating components for the aerospace, electronics, and medical industries.
Here’s a table that summarizes the types of projects best suited for Wire EDM:
Project Type | Reason for Suitability |
---|---|
Intricate designs | Wire EDM can create fine slots and intricate shapes |
Hard materials | Capable of cutting hard materials with precision |
High-precision components | Offers high precision and consistency |
2. When to Choose Sinker EDM?
Sinker EDM, also known as Ram EDM or Plunge EDM, is the preferred choice for creating intricate, 3-dimensional shapes in a workpiece. This process is ideal for:
- Projects requiring cavities or molds
- Intricate details in hard materials
- Forming complex shapes
Common uses of Sinker EDM include tool and die making, plastic mold manufacturing, and fabricating components for the aerospace industry.
This table summarizes the types of projects best suited for Sinker EDM:
Project Type | Reason for Suitability |
---|---|
Mold and die manufacturing | Sinker EDM is perfect for creating intricate molds |
Complex 3D shapes | Capable of producing 3-dimensional shapes with precision |
Detailed features | Ideal for detailed features in hard materials |
3. When to Choose Hole Drilling EDM?
Hole Drilling EDM is a fast and efficient way to produce deep holes, particularly in hard metals. It is especially beneficial for:
- Rapid drilling of holes in hard materials
- Small hole drilling
- Pre-processing for Wire EDM
Typical applications of Hole Drilling EDM include fuel system components for the aerospace industry and automotive industry parts.
The table below highlights the types of projects best suited for Hole Drilling EDM:
Project Type | Reason for Suitability |
---|---|
Fast drilling of holes | Hole Drilling EDM is designed for rapid hole drilling |
Small hole drilling | Capable of drilling small diameter holes |
Pre-processing for Wire EDM | Often used for start-holes in Wire EDM processing |
Excelling in Precision: ProleanTech’s Superior EDM Services
At ProleanTech, we specialize in delivering high-precision EDM services and Wire cut Service to cater to diverse industrial needs. Our advanced technology and skilled technicians allow us to excel in Wire EDM, Sinker EDM, and Hole Drilling EDM, accommodating complex geometries and ensuring exacting accuracies. We utilize state-of-the-art machines and consistently updated methods, ensuring our clients receive the best service available in today’s fast-paced market.
Our commitment to maintaining top-notch quality standards while meeting tight deadlines sets us apart. We understand the urgency in production schedules and strive to provide timely delivery without compromising the precision and quality of our work. ProleanTech’s focus is on surpassing client expectations with every project we undertake.
Partnering with us means gaining a trusted ally in the machining industry. We offer expert guidance in choosing the right EDM process for your project, considering various factors such as material type, design complexity, and precision requirements. At ProleanTech, your project success is our mission, and we are ready to put our expertise and resources to work for you.
Conclusion: The EDM Selection Matrix
Electrical Discharge Machining (EDM) has revolutionized the way we shape materials, particularly metals, by providing high precision, flexibility, and efficiency. Understanding the distinct types of EDM – Wire, Sinker, and Hole Drilling – is crucial to the success of your project. The choice depends on your specific needs, the material, the desired shape, and the required level of precision. By considering these factors and consulting with EDM experts, you can determine the optimal EDM process for your project.
It may be helpful to consult with an EDM expert to make an informed decision. Prolean Tech provides all types of EDM services and can guide you in choosing the most suitable EDM process for your project.
FAQs
Can EDM machine non-conductive materials?
No, EDM requires the workpiece to be electrically conductive.
What kind of materials can EDM process?
EDM can process a wide range of materials, including but not limited to, steel, aluminum, titanium, and many types of hard metals.
Is EDM suitable for mass production?
While EDM is slower than other machining methods, it is still used for mass production in cases where its unique capabilities are required.
What are the precision levels of EDM?
EDM can achieve very high levels of precision, often up to micrometers, depending on the type of EDM and specific machine used.
