Chatter in Machining: Causes, Effects, and Solutions
During the machining process, there might be undesired vibrations as the cutting tool interacts with the material, known as ‘chatter’. The term might sound trivial, but it’s a key factor that can be the difference between a flawless component and a flawed one. Chatter in machining isn’t about conversations; it’s about the undesired vibrations during machining processes. These vibrations can compromise the quality, accuracy, and finish of the machined parts. This comprehensive guide illustrates the phenomenon of chatter, its causes, effects, and, most importantly, how to counteract it.
What Exactly is Chatter in Machining?
In the process of machining, terms, and jargon fly around that might seem obscure to outsiders. One such term, carrying significant importance in the quality and process of machining, is “chatter”. It’s a term that represents more than just a superficial issue. Instead, chatter can generate a huge impact on how machines operate and the output quality they produce.
An Overview of Chatter
Chatter, in the simplest terms, represents the vibrations that occur between a workpiece and the machining tool during the process. These vibrations, while they might sound inconsequential, can produce a domino effect, leading to numerous challenges and imperfections in the machined product.

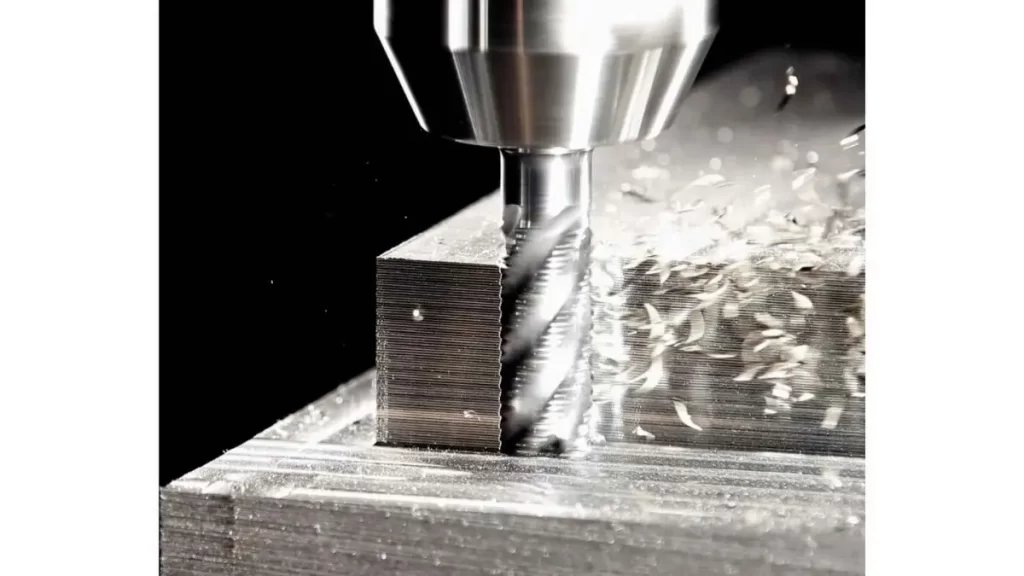

Chatter in CNC machining
Firstly, let’s take a look at how this term occurs. Every machine, no matter how sophisticated, has its inherent frequencies. When the machining operation, through its multitude of processes, aligns with these frequencies, it causes resonance. It’s similar to how a singer’s high-pitched note can shatter glass. The resonance, in the context of machining, results in vibrations termed as chatter.
These vibrations are not always consistent. They can vary based on the kind of material being machined, the type of tool in use, the speed of operation, and even external factors like the environment. Furthermore, these vibrations might not always be prominent or noticeable at the onset. Instead, they can build up over time, subtly influencing the quality of the machining process.
Here are some specifics:
- Origin of Vibrations: Every machining operation, from milling to turning, involves a series of forces. These forces, when combined with the inherent frequencies of the machine, lead to vibrations. The alignment of these forces with machine frequencies is the primary cause of chatter.
- Effects on the End Product: Chatter isn’t just about vibrations. It directly influences the product being machined. When these vibrations are intense, they can leave behind distinct marks on the machined surface, often termed chatter marks. These marks, apart from affecting the aesthetics, can also compromise the structural integrity of the product.
- Influence of Material and Tool: Different materials react differently to forces. For instance, metals like copper, being softer, might not resist the forces as much as something like stainless steel. Similarly, the condition and type of tool also play a significant role. A blunt tool might produce more chatter compared to a sharp one.
- Operational Speeds: The speed at which machining is carried out can influence chatter. Sometimes, operating at high speeds can reduce the effect of chatter, while in other cases, slowing down the process might be beneficial.
Identifying the Causes of Chatter in Machining
In fact, chatter is a common phenomenon, and has its roots in various factors. Pinpointing these causes is the first step toward understanding how to mitigate them. By segregating these factors into three distinct categories: Machine Tool Dynamics, Cutting Conditions, and Tool Geometry and Condition, we can uncover the origins of chatter and pave the way for more efficient machining processes.
1. Machine Tool Dynamics
At the core of any machining process is the machine itself. However, every machine, irrespective of its sophistication, has certain inherent dynamics that play a role in the emergence of chatter.
More about Machine Tool Dynamics, attached is a paper on Machine Tool Dynamics,
- Natural Frequencies: Every mechanical structure possesses certain natural frequencies at which it tends to vibrate. If the machining operation aligns with these frequencies, it can lead to chatter. The exact frequency can vary from one machine to another, based on its design, construction, and wear and tear.
- Stability Lobes: In machining, there’s a phenomenon known as stability lobes which essentially represents the regions of stability in terms of spindle speed. Operating within these stability regions can help reduce chatter.
- Machine Rigidity: The rigidity of the machine plays a vital role. Machines that are more rigid can absorb more vibrations, thereby reducing the chances of chatter.
2. Cutting Conditions
Once we understand the machine’s inherent dynamics, it’s essential to consider the conditions under which cutting occurs. These conditions, often influenced by external factors, play a significant role in either suppressing or exacerbating chatter.

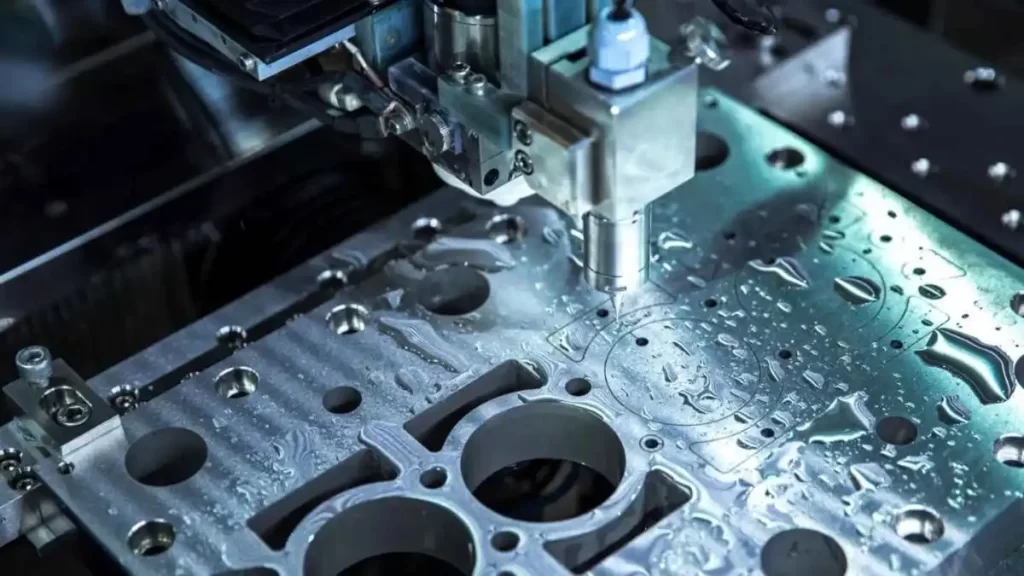

The amount of material being removed in one pass (depth of cut) and the speed at which the tool advances (feed rate) can impact chatter. An aggressive depth of cut can amplify vibrations. While coolants help in reducing heat, their application can affect the cutting process. An uneven or inappropriate application can lead to inconsistencies, paving the way for chatter. Furthermore, how the workpiece is held during the machining process matters. If it’s not fixed securely, it can vibrate and lead to chatter.
3. Tool Geometry and Condition
The third pillar in understanding chatter causes revolves around the tool being employed. The shape, size, material, and overall health of the tool can greatly influence the emergence of chatter.
To visualize this better, we can rely on a table:
Table: Relation of tool geometry & condition with chatter
|Tool Aspect||Relation to Chatter|
|Tool Material and Coating||Variations in material or coating can alter vibration absorption or reflection.|
|Tool Wear||Worn tools can cause inconsistent cuts, heightening the risk of chatter.|
|Tool Geometry||Certain geometrical attributes can influence the generation or suppression of vibrations.|
Factors Affecting Chatter in Machining
The chatter in machining is influenced by a symphony of factors, some more obvious than others. It’s a culmination of intricate interactions between the machine, tool, workpiece, and the environment. To effectively combat chatter, it’s essential to have a comprehensive grasp of these elements. By dissecting these factors and understanding their contributions, one can devise strategies to mitigate their adverse effects.
- Machine Stability: Machines with poor structural integrity or old machines with worn-out parts can be inherently unstable. This instability can be a significant contributor to chatter, particularly if there’s any play or backlash in the machine’s components.
- Tool Wear: As tools wear out over time, their efficiency and stability reduce. Dull tools can cause irregularities during the cut, leading to chatter.
- Tool Overhang: The length by which the tool protrudes from its holder can influence chatter. Longer overhangs can amplify vibrations and lead to increased chatter.
- Cutting Speed: The speed at which the cut is made has a profound effect. Too fast or too slow, both can initiate chatter due to varying reasons.
- Feed Rate: Just like cutting speed, an inappropriate feed rate can introduce or amplify chatter.
- Depth of Cut: A deep cut might push the tool and machine beyond their stability limits, causing chatter. On the contrary, a very shallow cut can also lead to chatter due to reduced tool engagement.
- Workpiece Material: Different materials have varied properties. Some might be more prone to chatter due to their inherent characteristics, like brittleness or toughness.
- Coolant and Lubrication: Improper lubrication can increase the friction between the tool and workpiece, potentially leading to chatter. Moreover, the absence or uneven application of coolant can lead to hotspots, which can introduce thermal chatter.
- Spindle and Tool Holder Condition: A worn-out spindle or a tool holder that doesn’t grip the tool securely can be a significant source of chatter.
- External Vibrations: Sometimes, vibrations from other machinery or external sources can transfer to the machining process, leading to chatter.
Recognizing Chatter Marks in Machining
Detecting chatter marks in machining is both a science and an art. These distinctive marks, often the tell-tale signs of vibrational interruptions during machining processes, can compromise the integrity and aesthetics of the machined part. Recognizing them promptly not only helps improve part quality but also aids in the early identification and rectification of underlying issues in the machining setup. Here’s a comprehensive guide on how to identify chatter marks and the variables that influence their appearance.
Characteristics of Chatter Marks

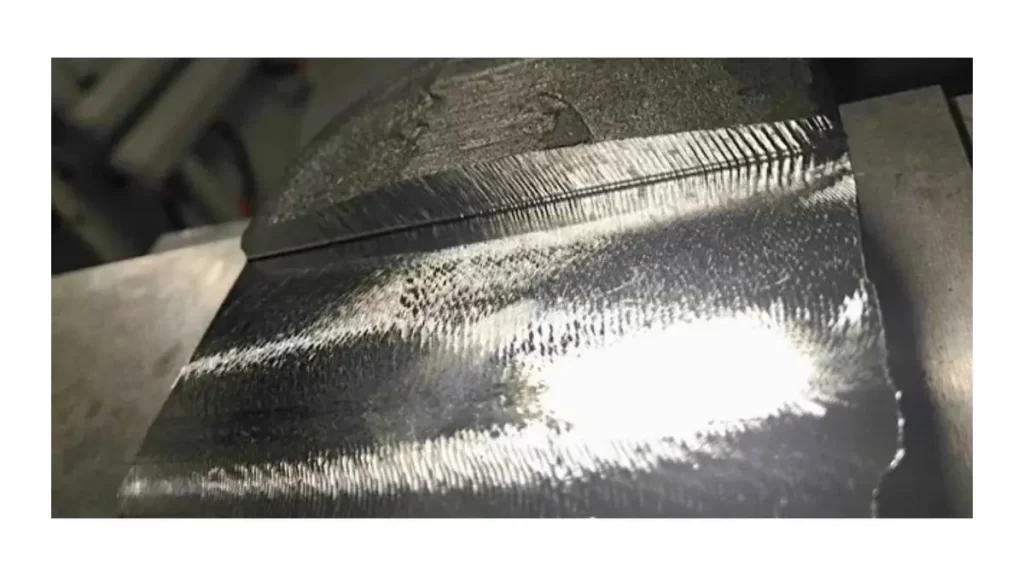

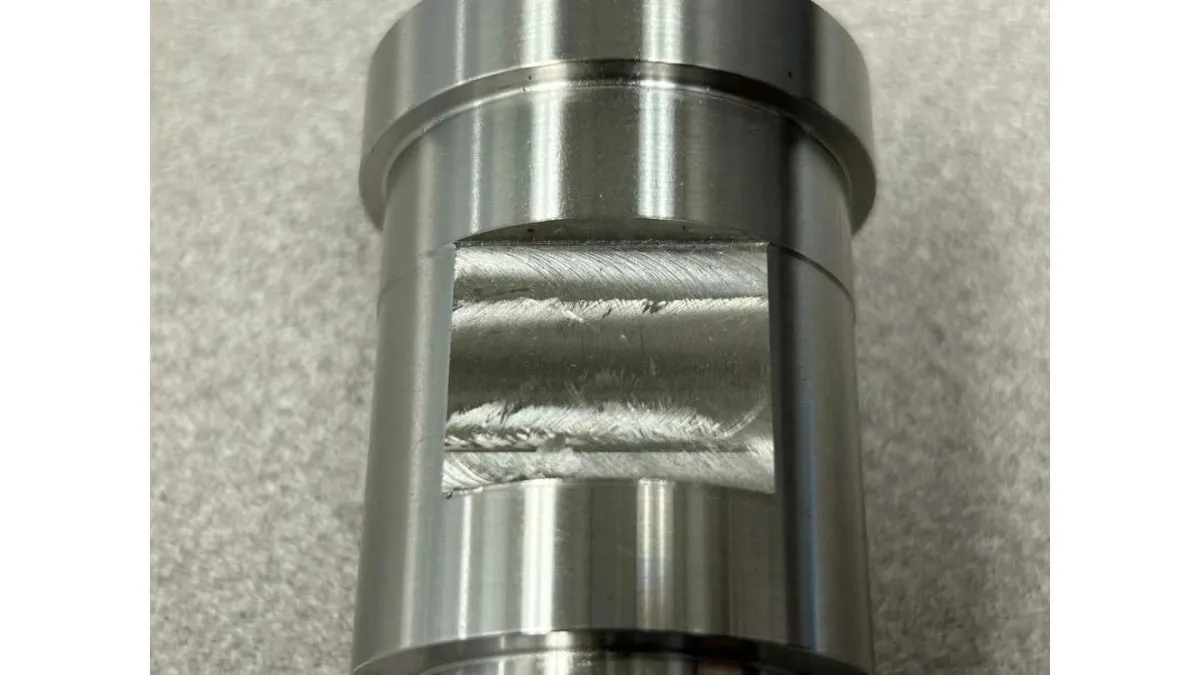

Chatter marks on machined parts
Chatter marks manifest themselves as wavy or undulating patterns on the surface of the machined part. Often, they have a consistent frequency, which is a reflection of the vibration pattern that caused them. Some key characteristics include:
- Consistency: Chatter marks typically exhibit a uniform pattern. This regularity can help distinguish them from other types of surface imperfections.
- Orientation: Depending on the machining operation and the source of vibration, these marks may be oriented in the direction of the tool path or perpendicular to it.
- Depth: The depth of these marks can vary. While sometimes they might be barely perceptible, in severe cases, they can be deep enough to compromise the part’s functionality.
- Frequency: The spacing between individual chatter marks can give clues about the vibration source. Closer spacing may indicate higher frequency vibrations, while more widely spaced marks could signify low-frequency disturbances.
- Surface Finish: In between the chatter marks, the surface might show signs of burnishing, indicating that the tool was rubbing rather than cutting efficiently.
Identifying Chatter Marks vs. Other Imperfections
Distinguishing chatter marks from other machining imperfections is crucial for effective troubleshooting. Here are some comparisons:
|Chatter Marks||Regular, wavy patterns on the machined surface||Vibrations during machining|
|Scratches||Irregular linear marks||Foreign particles or worn tool|
|Burns||Darkened patches on the surface||Excessive heat generation|
|Tool Marks||Visible paths showing tool movement||Incorrect tool path or tool deflection|
|Surface Roughness||General unevenness or coarseness on the surface, without a regular pattern||Combination of tool wear, feed rate, and material properties|
Remedial Actions Upon Identifying Chatter Marks
Once chatter marks are identified, swift action can prevent further deterioration of part quality:
- Review Cutting Parameters: Adjusting the cutting speed, feed rate, or depth of cut can often mitigate chatter.
- Inspect Tool Condition: A worn or damaged tool can be a major culprit. Regular inspections and timely replacements can make a difference.
- Machine Maintenance: Ensuring the machine’s components are tight and well-lubricated can reduce unwanted vibrations.

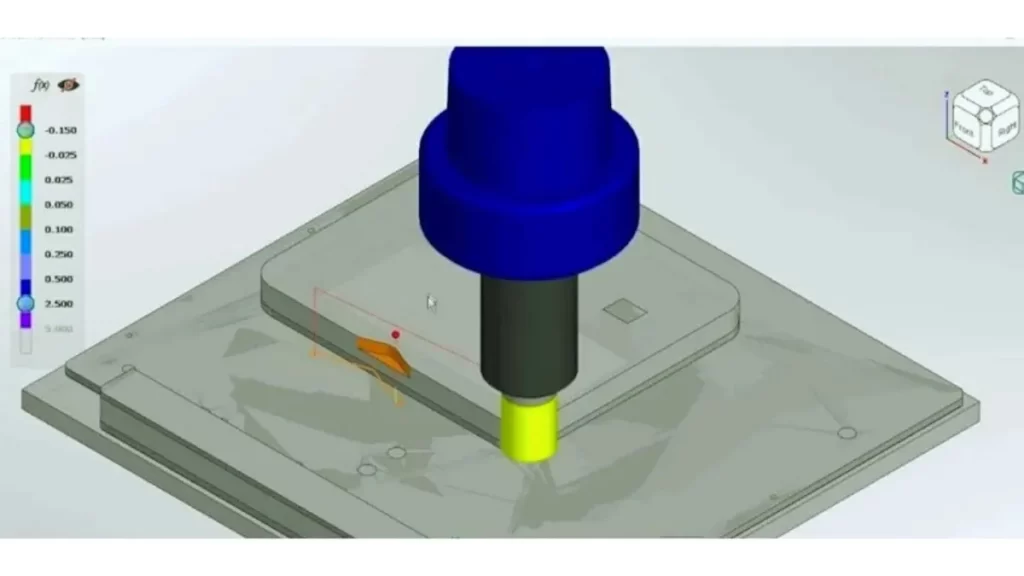

- Tool Path Optimization: Re-evaluating and optimizing the tool’s path can help in reducing the chances of chatter.
Let’s Start A New Project Today
Strategies to Avoid Chatter in Machining
In the realm of precision machining, chatter is a formidable adversary. Its presence not only diminishes the quality of the final product but can also cause excessive wear on machine components and tools. Thankfully, several effective strategies can minimize or completely eliminate chatter. Let’s delve deep into some of these methods.
1. Optimal Tool Selection
Choosing the right tool for a machining task is the first line of defense against chatter. The tool’s geometry, material, and design can significantly influence its tendency to vibrate.
Table: Optimal Tool Selection for Reducing Chatter in Machining
|Tool Component||Description||Impact on Chatter|
|Material and Coating||Tools often made from tougher materials like carbide, or coated with materials such as titanium nitride.||Enhances performance and reduces the likelihood of chatter.|
|Tool Geometry||Considers the tool’s shape and design, including its helix angle, number of flutes, and core thickness.||Influences vibration tendencies. Tools with larger core diameters offer more rigidity.|
|Tool Length||Refers to the length of the tool.||Shorter tools tend to be more rigid, making them less susceptible to vibrations.|
|Insert Selection||Focuses on the geometry and material of replaceable inserts.||Correct insert choices, especially those designed for specific materials, can diminish chatter.|
|Tool Holder||The device that holds the tool in place during machining.||Holders with a snug fit and balance minimize vibrations. Hydraulic and shrink-fit holders offer better damping.|
2. Tweaking Cutting Parameters
The interplay between the tool and workpiece can be optimized by adjusting various cutting parameters. Altering these can change the dynamics of the cutting process, often suppressing chatter.
Table: Tweaking Cutting Parameters to Reduce Chatter in Machining
|Parameter||Description||Impact on Chatter|
|Cutting Speed||Refers to the speed at which the tool moves through the material.||Adjusting the speed can move the operation out of the tool or machine’s resonance range, thereby reducing chatter.|
|Depth of Cut||The thickness of the layer being removed in a single pass.||Changing the depth can alter the forces on the tool. Too shallow or too deep cuts can induce chatter.|
|Feed Rate||The speed at which the tool advances into the material.||A consistent, higher feed rate might reduce chatter, but excessive feed can cause tool overload.|
|Radial Engagement||Measures how much of the tool’s diameter is engaged with the workpiece, especially in milling.||Adjusting radial engagement, like smaller engagements in pocketing, can influence chatter.|
|Coolant Application||Application of a liquid or gas to reduce heat and remove chips during machining.||Proper application reduces heat and improves chip evacuation. High-pressure coolant can help break up tough chips.|
3. Employing Damping Methods
Damping methods absorb the energy from vibrations, thus reducing or eliminating chatter. Integrating such methods can bring about marked improvements in machining quality.
Table: Damping Methods to Counteract Chatter in Machining
|Method||Description||Impact on Chatter|
|Tuned Mass Dampers||Additional masses added to counteract specific vibration frequencies. They “tune in” to chatter and neutralize it.||By tuning to the specific chatter frequency, they help in neutralizing the vibrations.|
|Damping Tool Holders||Modern tool holders with built-in damping systems. They contain materials/mechanisms to absorb vibrational energy.||Especially useful for long overhangs, they absorb the vibrations, reducing the chances of chatter.|
|Serrations in Tools||Tools that have serrations or notches.||The serrations disrupt the flow of vibrations, preventing buildup to problematic levels.|
|Isolation Pads||Specialized pads under machinery to isolate them from external vibrations.||By isolating machinery, they ensure that external disturbances don’t induce chatter.|
|Dynamic Absorbers||Secondary masses added, similar to tuned mass dampers, but not frequency-specific.||They add inertia to the machining system, helping to suppress a broad range of vibrations.|
Addressing the Impact of Chatter
Chatter in machining is more than just an annoyance. It’s a formidable issue, having significant repercussions on both the machining process and the final product. Being a result of oscillatory vibrations, chatter can be traced back to several factors, as discussed previously. Nevertheless, understanding its impact can be crucial in emphasizing why it needs immediate attention.
1. Impact on Surface Finish

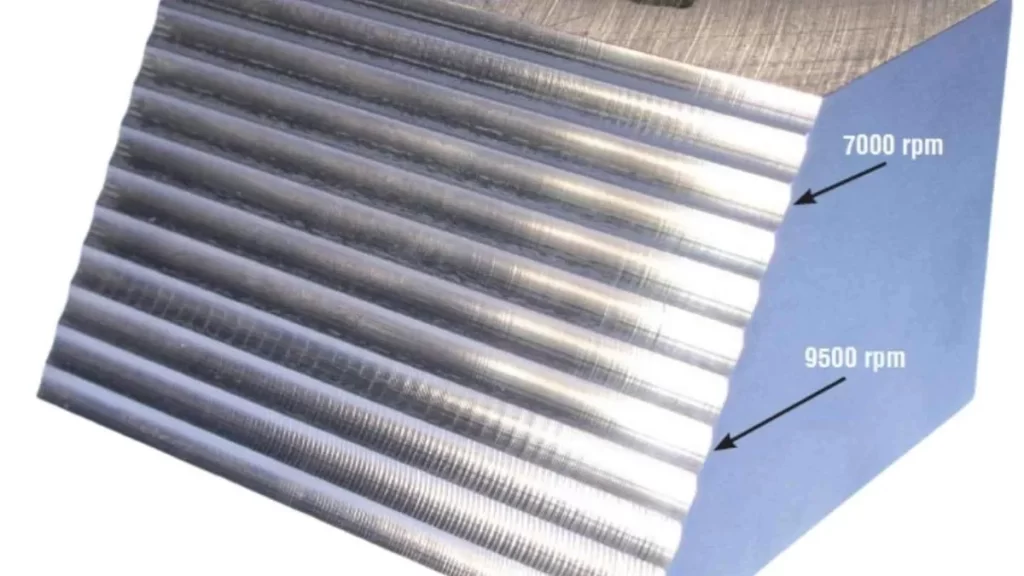

Surface finish effects on chatter and no chatter
The very first and most obvious outcome of chatter is the degradation in surface finish. As the tool vibrates, it leaves behind undulating patterns or marks on the machined surface.
- Surface Roughness: This is characterized by irregularities on the machined part’s surface. It can vary in severity based on the intensity of the chatter.
- Undesired Patterns: Chatter often results in recurring patterns or wave-like structures on the surface, known as chatter marks.

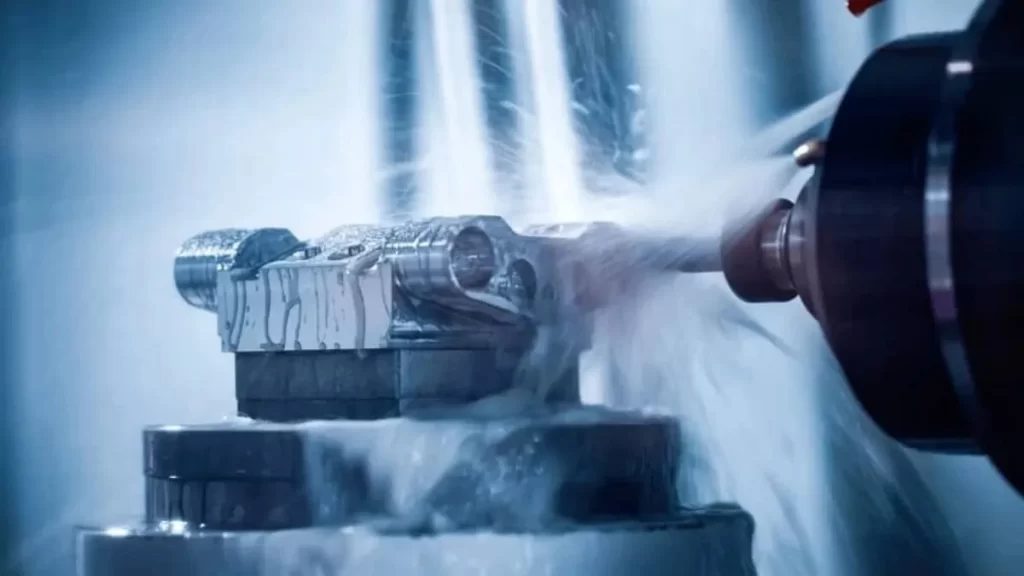

2. Influence on Tool Life
Chatter doesn’t just affect the workpiece; it also takes a toll on the tool itself. Due to the constant vibrations, tools undergo more wear and may even fail prematurely.
The intermittent cutting due to chatter increases the friction between the tool and the workpiece, accelerating wear. In extreme cases, particularly with brittle tools, the vibrations can lead to tool breakage, causing unplanned downtime.
3. Compromised Accuracy and Dimensional Integrity
Precision and accuracy are paramount in machining. However, chatter can wreak havoc on these parameters. The continuous vibrations can cause the tool to deviate from its intended path, leading to parts that are out of tolerance. Batch consistency becomes a challenge. Some parts might be within tolerances, while others might not, leading to increased rejection rates.
4. Economic Implications
Chatter also has considerable economic implications. Unaddressed, it can escalate the costs involved in the machining process.
Table: Economic Impacts of Chatter
|Impact Area||Implication||Economic Result|
|Scrap Rates||Higher number of rejected parts due to quality issues||Direct loss in material cost and associated processing costs|
|Tooling Costs||More frequent tool replacements due to wear or breakage||Increased expenditure on tools|
|Downtime||Machines not operating due to chatter-related issues||Loss in production hours, potential delay penalties, and associated operational costs.|
Prolean’s CNC Machining Services: A Step Ahead in Quality and Precision
In today’s competitive industrial landscape, the precision and efficiency of CNC machining stand as benchmarks for quality. While many companies venture into this field, only a few truly manage to establish a unique mark. Prolean’s CNC Machining Services is one such entity, standing tall and distinct. As machinery whispers and metal transforms, Prolean ensures that every cut, drill, and mill resonates with a commitment to excellence and innovation.
Crafting Perfection at Prolean
Each phase at Prolean, from conceptualization to realization, echoes a holistic approach. Merging the unmatched precision of computer-aided designs with the hands-on expertise of seasoned technicians, they have crafted a symphony of accuracy and reliability. At Prolean, the narrative isn’t just about churning out parts; it’s about building trust, one component at a time.
- Technological Edge: Leveraging the most advanced CNC machinery for unparalleled precision.
- Expertise Fusion: Intertwining decades of hands-on experience with the dynamism of young talent.
- Client-Centric Approach: Prioritizing client visions and ensuring transparent communication throughout.
- Quality Control: Implementing rigorous quality checks at every stage, guaranteeing product excellence.
- Evolving Practices: Constantly updating methodologies to reflect the latest in machining advancements.
Chatter in machining, though commonplace, needn’t be an insurmountable obstacle. With the right knowledge, tools, and techniques, its effects can be minimized or even eliminated. The key is to understand its origins, recognize its manifestations, and employ strategies to counteract it. By doing so, machinists can ensure the production of high-quality, precise components. And when in doubt or seeking the best in machining services, one can always turn to experts like Prolean, where quality meets precision.
What is chatter in machining?
Chatter refers to the undesired vibrations between the tool and workpiece during the machining process.
How does chatter impact the quality of machined components?
Chatter can lead to surface imperfections, reduced accuracy, and even structural weaknesses in the machined part.
Are certain materials more prone to chatter than others?
Yes, some materials, due to their inherent properties, might be more susceptible to vibrations.
How can one minimize chatter during machining?
Strategies include choosing the right tools, adjusting cutting parameters, and employing damping methods.
Do all machining processes have the risk of chatter?
While chatter is common, its extent and impact can vary based on the machining process and conditions.
