Aluminium Welding-Principle, Methods & Challenges
Welding aluminum is an efficient way to join two aluminum parts, however due the unique properties of aluminum, it can be difficult when weld aluminum parts. Aluminum welding is common in both the manufacturing and aerospace sectors due to its distinct mechanical characteristics. Aluminum’s lightweight nature, durability, and corrosion resistance make it a more appealing option for certain uses compared to other metals.
Welding combines heat, metal, and expertise in a delicate balance. Aluminum, with its unique characteristics, stands out as a particularly challenging metal to work with welding. Its lightweight nature and corrosion resistance have made it a popular choice in various sectors, from aerospace to car design. Yet, welding aluminum presents more challenges than steel due to factors such as its heat conduction and persistent oxidation layer. This article aims to clarify the intricacies involved in welding aluminum, providing valuable insights and methods to hone this crucial skill.
The Basics of Aluminum Welding
Aluminum, unlike other metals, brings to the table a suite of characteristics that are both its strength and its challenge. It’s the metal’s lightweight nature that makes it a favorite, ensuring structures maintain robustness without excess weight. The resistance to corrosion, especially for constructs in outdoor or harsh environments, speaks to aluminum’s longevity. Add to this the metal’s remarkable heat conduction capabilities, and we see rapid heating and cooling. Aluminum’s ductility is another hallmark, allowing it to be stretched into thin wires without any breakage.
Performing welding on aluminum

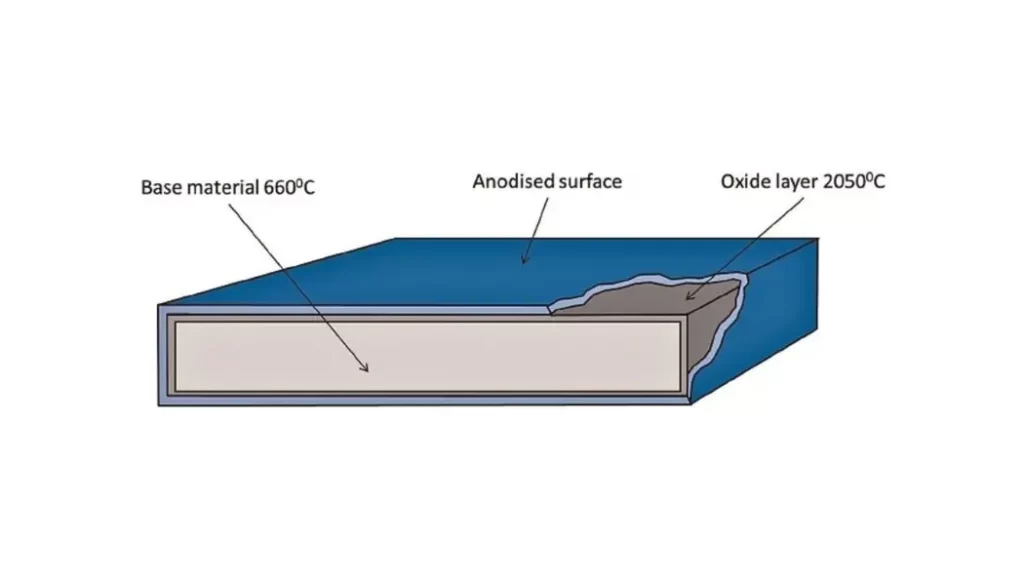

1. Navigating Aluminum’s Oxidation Quirk
One of aluminum’s defining traits is its instant reaction with air, resulting in an oxide layer. While this protective layer serves as a stalwart against further corrosion, it’s a persistent challenge for welders. This oxide layer has a melting point of approximately 3,700°F (2,037°C), starkly contrasting with aluminum’s melting point of about 1,200°F (649°C). This disparity necessitates the removal or penetration of this oxide layer for successful welding. Approaches often include wire brushing with stainless steel brushes or using chemical solutions.
2. Techniques Tailored for Aluminum
In the realm of aluminum welding, two techniques reign supreme: TIG (Tungsten Inert Gas) welding and MIG (Metal Inert Gas) welding. TIG welding, with its non-consumable tungsten electrode, is the go-to for thin sections of aluminum, admired for its precision. It typically employs alternating current (AC), striking a balance between oxide removal and penetration. On the other hand, MIG welding, known for its speed, caters to thicker aluminum sections, facilitated by a continuous wire feed.
3. The Shielding Gas Shield
In welding, nothing is left to chance, especially with atmospheric contaminants lurking. This is where shielding gases step in, forming a protective barrier. Argon, with its impeccable cleaning properties, finds its allegiance with TIG welding. In contrast, MIG welding often dances with helium or an argon-helium mix, seeking deeper penetration and ramped-up welding speeds.
4. Deciphering Quality in Aluminum Welds
Post the welding symphony, the focus shifts to assessing the weld’s quality. A pristine aluminum weld is devoid of the telltale black soot, signaling effective oxide removal. Moreover, the uniform appearance of the bead is a testament to the welder’s steady hand, maintaining a consistent speed and arc length throughout the process.
Preparing Aluminum for Welding
Aluminum preparation holds the key to achieving superior welds. While welding itself demands dexterity, understanding how to meticulously prepare aluminum paves the path to welding success. Diving deeper, Let’s explore the significant steps involved in readying aluminum for its rendezvous with the welder.
- Understanding the Aluminum Alloy
First and foremost, deciding the right type of aluminum alloy is significant. Aluminum is seldom used in its pure form. Instead, it’s typically alloyed with other metals to enhance its properties. There are several aluminum alloys, each possessing its unique set of characteristics. Some are heat-treatable, while others are not. Recognizing the specific alloy assists welders in selecting the appropriate filler material and welding method.
Read more: Different Aluminum Grades
- Addressing the Oxide Layer
As previously mentioned, the natural formation of an oxide layer on aluminum surfaces can be a welder’s bane. This thin yet stubborn layer can impede proper fusion during the welding process. A crucial preparatory step, therefore, involves removing this oxide layer. For effective removal, a stainless steel brush is often the tool of choice. While brushing, ensuring the brush is only used on aluminum prevents potential contamination. Additionally, chemical solvents can also serve this purpose, ridding the surface of both the oxide layer and any lingering contaminants.
- Keeping the Aluminum Clean
Aluminum, by its nature, is a magnet for contaminants. Dirt, grease, oil, and even residues from handling can accumulate on its surface. These foreign elements, when subjected to the high temperatures of welding, can result in porosity and a compromised weld. Therefore, cleaning the aluminum thoroughly using degreasing solvents or solutions, prior to welding, is an indispensable step. Following the degreasing, a quick wipe with a clean, dry cloth ensures the aluminum is pristine and ready.
- Joint Preparation and Design
Joint design and preparation play pivotal roles in aluminum welding. Depending on the type and thickness of the material, different joint designs like butt, lap, or T-joints might be appropriate. For thicker pieces of aluminum, beveling the edges can facilitate better penetration during welding. Having a properly designed joint ensures that the filler material and the base aluminum can meld seamlessly, producing a robust and reliable weld.
- Selection of the Right Filler Material
The dance of welding aluminum reaches its crescendo with the introduction of the filler material. The choice of filler is dictated by the aluminum alloy being used and the desired properties of the finished weld. Using a compatible filler material ensures the resultant weld is both strong and resistant to cracking. Welders often refer to compatibility charts, which offer insights into the most suitable fillers for different aluminum alloys.
- Preheating: When and Why?
While not always necessary, preheating aluminum can sometimes be beneficial, especially for thicker sections or certain alloys. Preheating aids in reducing the risk of cracking and porosity by ensuring a more even temperature distribution during welding. However, care should be taken not to overheat, as excessive temperatures can detrimentally affect the aluminum’s properties.
Methods for Successful Aluminum Welding
Aluminum, with its unique characteristics and versatility, demands specific techniques to be wielded and melded to perfection. While the metal’s lightweight strength has propelled its popularity, it requires precise methods to ensure a successful weld. Various welding methods have emerged, each catering to different needs and situations. Let’s take a look at these vital techniques that have been successfully applied in aluminum welding.
TIG Welding Aluminum
Aluminum TIG Welding
Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW), is often the go-to method for welding aluminum. Offering excellent control over the welding process, TIG welding is suitable for both thin sheets and thicker sections of aluminum.
- Torch and Electrode: The torch, equipped with a non-consumable tungsten electrode, is where the welding arc originates. Using a pointed electrode can enhance control, especially for thinner aluminum sections.
- Shielding Gas: Pure argon is commonly used as a shielding gas in TIG welding for aluminum. It offers a stable arc and mitigates potential contamination.
- AC Welding: Aluminum TIG welding predominantly uses alternating current (AC). This ensures the breaking up of the aluminum oxide layer, facilitating better fusion.
- Filler Rod Selection: The choice of the filler rod is crucial. Often, 4043 or 5356 aluminum alloys are favored for their flow characteristics and strength.
- Foot Pedal Control: A foot pedal allows the welder to modulate the power output, ensuring the right heat is delivered according to the welding needs.
Aluminum MIG Welding
Aluminum MIG welding joint
Metal Inert Gas (MIG) welding or Gas Metal Arc Welding (GMAW) is another prominent technique employed in welding aluminum. Being faster than TIG welding, MIG is preferred for larger projects or production environments.
- Wire Feed Speed: One of the most significant parameters in MIG welding is the wire feed speed. Proper synchronization ensures a steady arc and optimum weld bead.
- Choice of Wire: Common choices for aluminum MIG welding wires are 4043, 5356, and 4943. These vary in terms of strength, crack resistance, and fluidity.
- Shielding Gas: A mix of argon and helium often proves effective in MIG welding, ensuring a stable arc and adequate penetration.
- Electrode Polarity: Direct current electrode positive (DCEP) is used. This configuration results in deeper penetration and faster deposition rates.
- Gun and Liner: A Teflon or plastic liner in the MIG gun prevents wire abrasion. A spool gun or a push-pull system can help mitigate wire feeding issues.
Aluminum Spool Gun Welding
Spool gun welding
When it comes to preventing the issues of wire feeding in MIG welding, spool gun welding steps into the spotlight. It’s especially valuable for softer aluminum wires which can sometimes pose feeding challenges.
- Feeding Mechanism: The spool gun feeds the aluminum wire directly from the gun, eliminating the long pathway usually found in standard MIG welding setups.
- Short Feed Distance: The reduced feed distance ensures fewer chances of wire tangling or bird-nesting, ensuring a more consistent weld.
- Shielding Gas: Just like in standard MIG welding, an argon-helium mix can be employed to safeguard the weld from atmospheric contaminants.
- Portability: The spool gun is often lighter and more compact, granting welders better accessibility and maneuverability, especially in intricate welding scenarios.
- Compatibility: Not all MIG welding machines are compatible with spool guns. Therefore, checking compatibility is pivotal before committing to this method.
What Are the Challenges in Welding Aluminum?
Aluminum, a material found in a range of applications, boasts numerous advantages such as its lightweight nature, corrosion resistance, and strong strength-to-weight ratio. Yet, when it comes to welding this silvery-white metal, there are inherent challenges too. Let’s discuss the challenges with a comprehensive table.
Table: Detailed Challenges in Welding Aluminum
|Thermal Conductivity and Heat Sensitivity||Aluminum has high thermal conductivity, five times that of steel, and a melting point lower than its oxide layer.||Rapid heat dissipation can lead to warping, distortion, and residual stresses in the weld, especially in thinner sheets, impacting joint strength.||Use higher amperage levels for proper fusion; maintain a fine balance during welding.|
|Formation of Aluminum Oxide||Aluminum naturally forms a thin, protective oxide layer on its surface, which has a melting point three times that of pure aluminum.||This oxide layer can inhibit fusion during welding, resulting in weaker welds.||Use AC TIG welding to disrupt oxide; ensure meticulous cleaning and preparation for other welding methods.|
|Susceptibility to Porosity||Presence of hydrocarbons and high solubility of hydrogen in molten aluminum lead to porosity.||As aluminum solidifies, hydrogen release causes tiny bubbles in the weld bead, undermining mechanical properties.||Minimize contaminants; use proper shielding gases; ensure clean base materials.|
|Cracking Concerns||Aluminum’s narrow melting range makes it prone to hot cracking, with certain alloys being more susceptible.||Cracks compromise the structural integrity of the weld and the component.||Choose appropriate filler material; optimize joint design; consider preheating.|
|Alloy-specific Challenges||Different aluminum alloys have unique welding characteristics and requirements.||Some alloys, especially those with high silicon or copper, can be challenging to weld.||Understand alloy properties; adapt techniques and materials based on specific alloy requirements.|
Let’s Start A New Project Today
What Are the Advantages of Aluminum Welding?
Aluminum welding, a process that was once considered challenging due to the unique properties of aluminum, has increasingly become more common, especially in industries like aerospace, automotive, and marine. Why? Because the numerous benefits associated with aluminum welding outweigh the initial learning curve and challenges faced by welders. When the technique is mastered, aluminum welding can be transformative for a project. Next, lets delve deeper into the multitude of advantages that aluminum welding brings to the table.
1. Lightweight Yet Strong
First and foremost, aluminum is known for its impressive strength-to-weight ratio. When welded correctly, structures made from aluminum can be both lightweight and robust. This dual advantage makes aluminum an excellent choice for applications where weight is a significant concern, such as in aircraft or automotive design. Reducing weight, without compromising on strength, can enhance performance and lead to better fuel efficiency in vehicles.

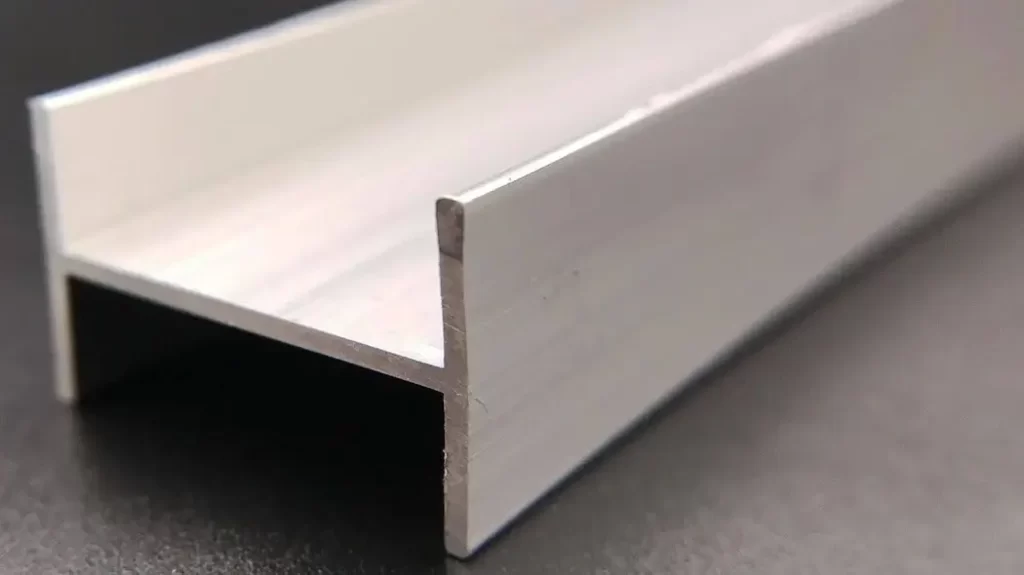

2. Resistance to Corrosion
A significant advantage of aluminum is its natural resistance to corrosion. The oxide layer, which forms on the aluminum surface, acts as a protective barrier, shielding the underlying metal from corrosive elements. This trait is especially valuable in marine applications where saltwater can be a primary corrosive agent. Welded aluminum structures, when done correctly, retain this resistance, providing a longer lifespan for components exposed to harsh environments.
3. Flexibility and Formability
Aluminum possesses a degree of malleability which makes it an adaptable metal to work with. This flexibility ensures that intricate shapes and forms can be achieved through welding, catering to more complex design requirements. When this is combined with aluminum’s lightweight, it opens the doors to innovative designs in industries ranging from electronics to architecture.
4. Thermal Conductivity
Another remarkable property of aluminum is its high thermal conductivity. In certain applications, such as heat exchangers or cooling systems, this characteristic can be leveraged to ensure efficient heat transfer. When components are welded using aluminum, they can effectively dissipate heat, contributing to the overall efficiency of a system.
While the initial cost of aluminum might be higher than some other metals, the long-term benefits often justify the investment. Due to its durability, resistance to corrosion, and reduced need for maintenance, aluminum structures can have a lower total cost of ownership. Additionally, because aluminum welding can be automated in many instances, especially with techniques like aluminum MIG welding or aluminum spool gun welding, production costs can be optimized in high-volume applications.
6. Enhanced Aesthetic Appeal
Aluminum welds, when executed with precision, can result in smooth and clean finishes. Given aluminum’s natural luster and the possibility of achieving polished finishes, welded aluminum components often have a visually appealing aesthetic. This is especially beneficial
Prolean’s Aluminum Welding Services: Excellence in Every Arc
In metal fabrication and industrial applications, aluminum welding is a special joining metal method. Aluminum presents unique challenges due to its distinct properties, but when handled by experts, it transforms into durable and elegant structures. One name synonymous with this expertise is Prolean. Their approach to aluminum welding combines technical mastery with a commitment to quality, making them a go-to service provider in the industry.
Here are some distinguishing facets of Prolean’s Aluminum Welding Services:
- Precision Techniques: Prolean employs precision welding techniques, ensuring that every joint is sturdy and clean.
- Customized Solutions: Recognizing that every project is unique, Prolean offers tailored welding solutions to meet specific client needs.
- Certified Professionals: Their team comprises certified welders who undergo regular training to stay updated with the latest welding standards.
- Quality Assurance: Rigorous quality checks are a norm, ensuring that every weld meets the stringent industry standards.
- Versatility: From MIG to TIG, Prolean is proficient in a variety of aluminum welding methods, ensuring optimal results for every project type.
- Safety First: Prioritizing safety, they uphold strict safety protocols, safeguarding both their team and the project.
- Environmentally Conscious: Prolean adopts eco-friendly practices, ensuring minimal environmental impact during welding operations.
- Client-Centric Approach: With a firm belief in transparent communication, Prolean keeps clients in the loop throughout the project, ensuring satisfaction at every phase.
Please check our aluminum welding service below:
Why is aluminum welding considered more challenging than steel?
Aluminum has distinct properties like a quick oxidation layer formation and excellent heat conduction that require specific techniques.
What is the preferred method for welding thin aluminum sheets?
TIG welding is often chosen for its precision, especially with thinner materials.
Can you weld aluminum using a standard MIG welder?
Yes, but using an aluminum spool gun or a push-pull wire feed system can provide better results.
Why is porosity a common issue in aluminum welds?
Porosity often arises from hydrogen gas getting trapped in the weld, which can be minimized with proper cleaning and technique.
How does Prolean ensure the highest quality in aluminum welding?
Prolean utilizes state-of-the-art equipment, and their skilled professionals adhere to stringent quality standards in every project.
Is it possible to weld aluminum to steel directly?
Directly welding can lead to brittle compounds. Using bimetallic transition inserts or coatings is a better approach.
