What is CNC Milling ?

“Renowned scientist and innovator Nikola Tesla once said, “The progressive development of man is vitally dependent on invention.” In many ways, CNC milling epitomizes this spirit of invention and has been the backbone of modern manufacturing.”

The CNC milling has truly transformed how we shape, mold, and conceptualize designs from mere ideas into tangible products. But a foundational question beckons before we delve deep: what is milling at its core? Simply, it’s a process where the material is methodically removed from a workpiece, using suitable rotary cutters. Furthermore,  CNC milling harnesses computerized controls to drill and carve different materials with unprecedented precision. This comprehensive article will discuss CNC milling in depth, including its process, techniques, suitable materials, tools, applications, and many more.



Overview of CNC Milling Machines

CNC Milling is a part of the large Computer Numerical Control (CNC) processes umbrella, which uses CNC milling machines. These machines integrate mechanical engineering, electronic control, and computer science principles to translate our technological ambition into tangible outcomes.

Evolution over Time

The transition from manual to CNC milling mirrors our societal shift towards automation. Older milling machines, while effective for their time, were tethered by human limitations. The introduction of computer control into this domain has exceeded these limitations. The outcome? precision, efficiency, and repeatability.

• CNC milling machines have become more compact and energy-efficient due to advancements in semiconductor technology.
• Integration of CAD and CAM software has optimized the design-to-production process.
• The advent of the Internet of Things (IoT) has led to the development of intelligent and interconnected milling machines.
• Modern CNC machines, with integrated sensors, can autonomously monitor operations and identify irregularities.  Also, the multiple axes(3, 4, 5, 6, or 9) are very precise and accurate.

Read more: Mastering the Axes: An Insight into 3-Axis, 4-Axis, and 5-Axis CNC Milling

Structures of CNC Milling Machines

The structural components determine the machine’s strength, precision, and durability. The following parts are integral to most CNC milling machines:

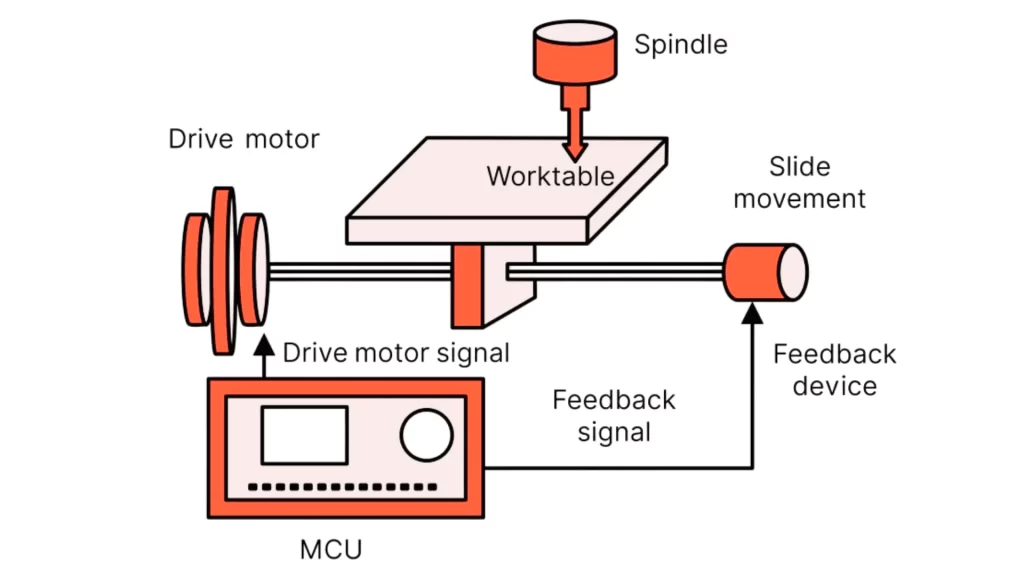

Table: Components in CNC Milling Machines

Component	Description	Notes
Machine Frame	The foundational structure of the milling machine provides rigidity and vibration damping.	Usually made from cast iron or steel.
The spindle	Rotates the cutting tools at various speeds and can be oriented vertically or horizontally.	Central to the machine’s cutting capabilities.
Axes	Guide the machine’s movement and are fundamental to the machining process.	Basic machines have 3 axes; more advanced ones may have up to 9.
Table	The platform where the workpiece is secured, with capabilities to move, rotate, or tilt.	Enhances the versatility of machining operations.
Tool Magazine	Stores different tools and enables the machine to switch tools as needed during operation.	Increases efficiency by reducing manual tool changes.
Control Panel	Interface for operators to input commands and monitor the milling process.	Critical for machine operation and troubleshooting.

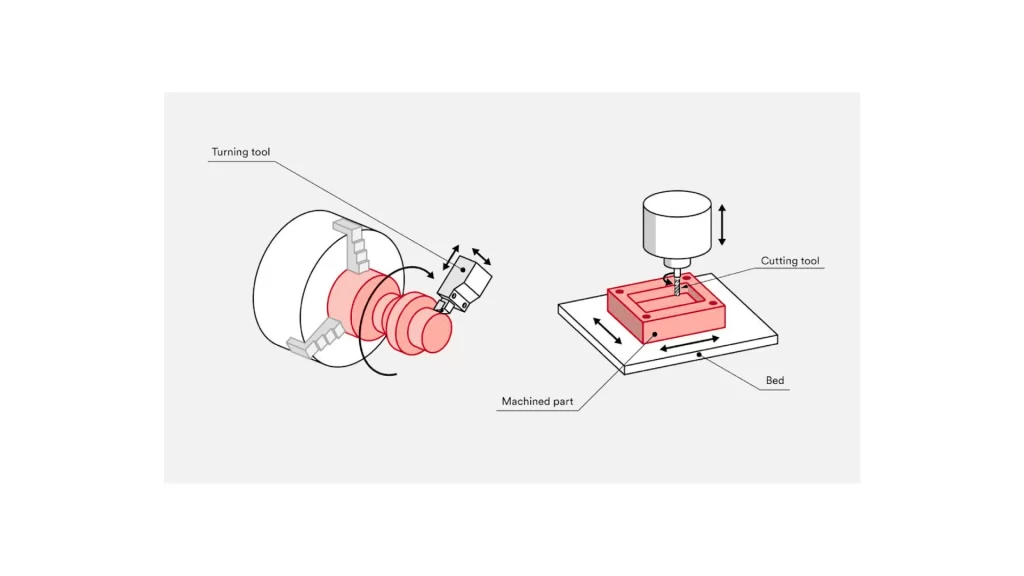

How Does a CNC Milling Machine Work?

A CNC milling machine fundamentally operates by converting a digital design into precise physical movements. This is accomplished through computer-generated code, typically produced by software like CAD & CAM.

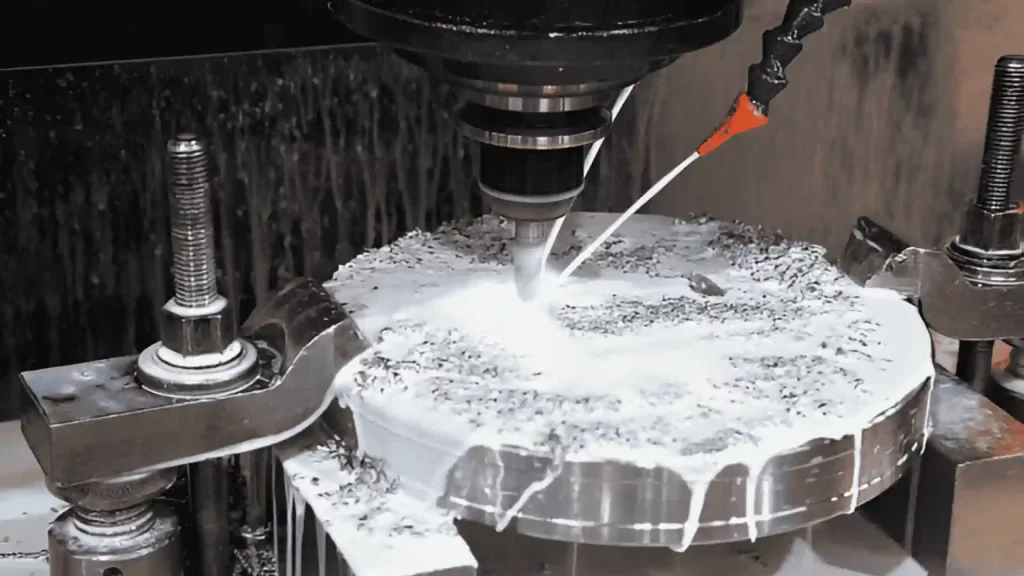

Working on a CNC milling machine

The process begins with the CAD model being converted into CNC G-code by CAM software. After setting up the workpiece on the table and loading tools, this G-code is input into the machine’s control unit. This unit interprets the instructions, coordinating movements and the spindle to shape the workpiece, while feedback systems ensure accuracy. Once the process is finished, the precisely crafted part is ready for removal.



The CNC Milling Process

From the previous elaboration, you know that the CNC milling process converts the virtual design( CAD) of any part or product into functional reality. However, there are different stages in the process, and each requires careful execution of each step with minor detailing. Let’s discuss what are the stages and details involved in CNC milling.

Stage 1: Starting with CAD Designs

Every tangible product, from the simplest of components to intricate aerospace parts, begins its life in the virtual domain of Computer-Aided Design (CAD format). Here, engineers and designers harness the power of advanced software to craft an accurate three-dimensional representation of the intended product.

• Detail-Oriented Design: CAD allows for an extreme level of detail, down to minute features. It ensures the subsequent steps in the CNC milling process will be executed flawlessly.
• Testing Before Production: Before even a single cut is made, the CAD model can be digitally tested for structural integrity, compatibility, and functionality. This virtual testing environment can save countless hours and resources by identifying and rectifying potential issues upfront.
• Ease of Modification: In traditional design methods, changes could mean starting over. With CAD, alterations, no matter how minor or significant, can be integrated seamlessly into the existing design.

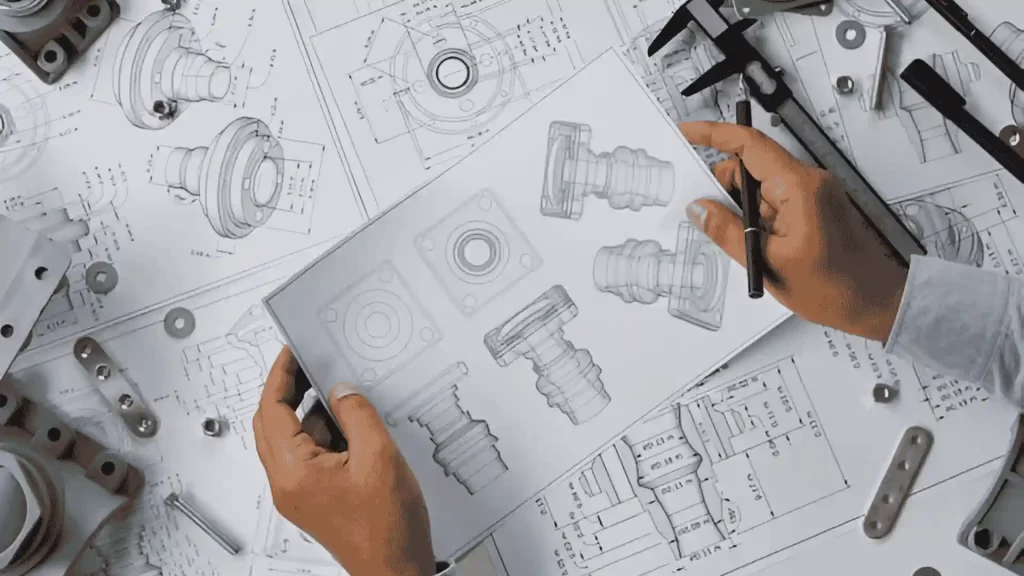

CAD design ready for CNC milling

The CAD stage is not just about design; it’s about foresight. It’s about anticipating potential challenges and mitigating them in the design phase itself.

Stage 2: Translating Designs into Computerized Instructions

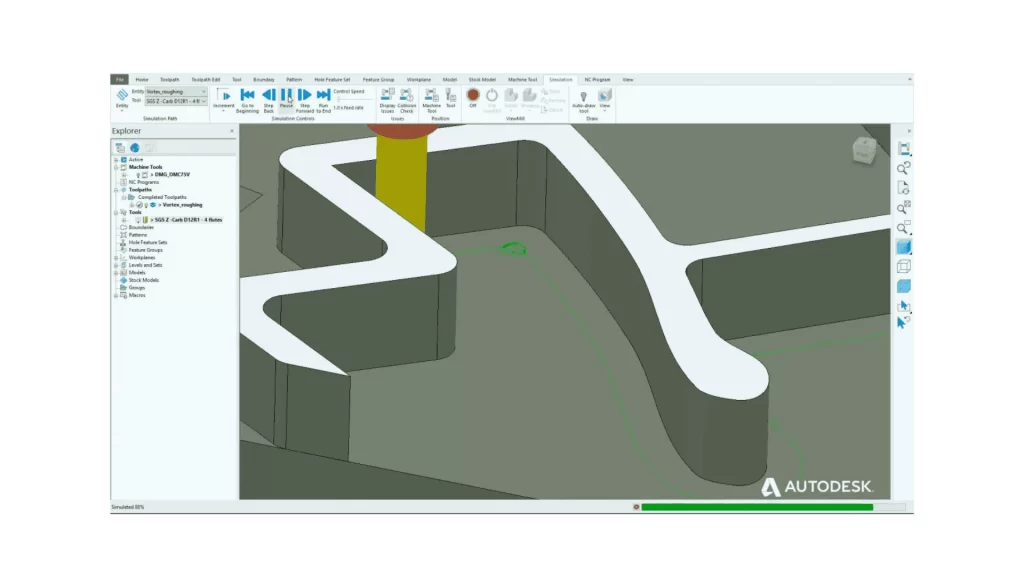

Processing Design with CAM

Upon completing the design, the next challenge is to communicate this design to the CNC machine—a device that, albeit sophisticated, requires explicit step-by-step instructions. Enter Computer-Aided Manufacturing (CAM) software. CAM works as a translator, converting the detailed CAD design into G-code, a language the CNC milling machine understands. This stage is vital for;

• Optimizing Tool Paths: CAM doesn’t just translate; it optimizes. It determines the most efficient route for the tool to take, minimizing wastage and ensuring a smooth, flawless finish.
• Speed and Depth Calibration: Different materials require different milling approaches. CAM software will calibrate the speed of the milling and the depth of each cut based on the material and desired finish.

The magic of the CNC process is in its automation. However, this automation is only as effective as the G-code guiding it. Hence, the CAM stage’s importance cannot be overstated.

Stage 3: Setting up the Machines

Calibration of the CNC milling machine

Next, prepare the machines for actual milling. It includes workpiece clamping, tools section & positioning, and G-coding.

• Workpiece Security: Fix the workpiece securely onto the machine’s table. Any movement during milling can be catastrophic, leading to product defects and potential machine damage.
• Tool Selection: Based on the G-code’s requirements, the appropriate tools are chosen and loaded into the machine’s magazine. This can range from drills for making holes to end mills for shaping.
• G-code Integration: The previously generated G-code is now input into the machine’s control unit, setting the stage for the final act.

Workpiece set-up in CNC milling machine. Source

Stage 4: Creating the Concept into a Product

Execution is where design and preparation converge. The CNC machine, guided by the G-code, begins its intricate dance:

• Synchronized Movement: The spindle, holding the tool, moves in harmony with the table holding the workpiece. This synchronized ballet ensures material is removed with pinpoint accuracy.
• Feedback and Adjustment: Embedded sensors provide real-time feedback to the control unit. If any discrepancy arises between the intended and actual milling, adjustments are made on the fly.
• Layer-by-Layer Transformation: The milling process is both aggressive and delicate. Large chunks might be removed in initial passes, while final touches may shave off just micrometers of material.

Read more: Milling Made Simple: A Beginner’s Guide to CNC Milling



Materials Suited for CNC Milling

Various CNC-milled parts of diverse materials

Choosing the right CNC material for milling can significantly influence the outcome, functionality, and longevity of a final product. While CNC milling machines are versatile enough to work with a vast range of materials, each type possesses unique characteristics, applications, and machining requirements. Understanding the distinct nuances of each material can guide better decision-making in the milling process.

Let’s discuss common CNC milling material in brief;

Metals and Alloys

The allure of metals in manufacturing can be traced to their formidable strength, heat resistance, and conductive properties. CNC milling for metals and their alloys emerge as primary candidates due to their malleability and ability to hold tight tolerances. Commonly milled metals include:

• Aluminum: Lightweight and corrosion-resistant, it is often utilized in aerospace and automotive applications.
• Stainless Steel: Recognized for its anti-corrosive properties, it’s extensively used in medical equipment and kitchenware.
• Brass: An alloy of copper and zinc, brass is easy to machine and is often found in decorative items and musical instruments.
• Titanium: Renowned for its superior strength-to-weight ratio, it’s commonly used in aerospace and medical implants.
• Copper: Excellent conductor of electricity, often used in electrical components and decorative art.

Plastics and Composites

Beyond metals, CNC milling machines are proficient in handling various plastics and composites. These materials often offer lightweight and cost-effective alternatives to their metallic counterparts. Furthermore, CNC milling for plastics brings precision and faster production time than other plastic manufacturing approaches. Commonly milled plastics include:

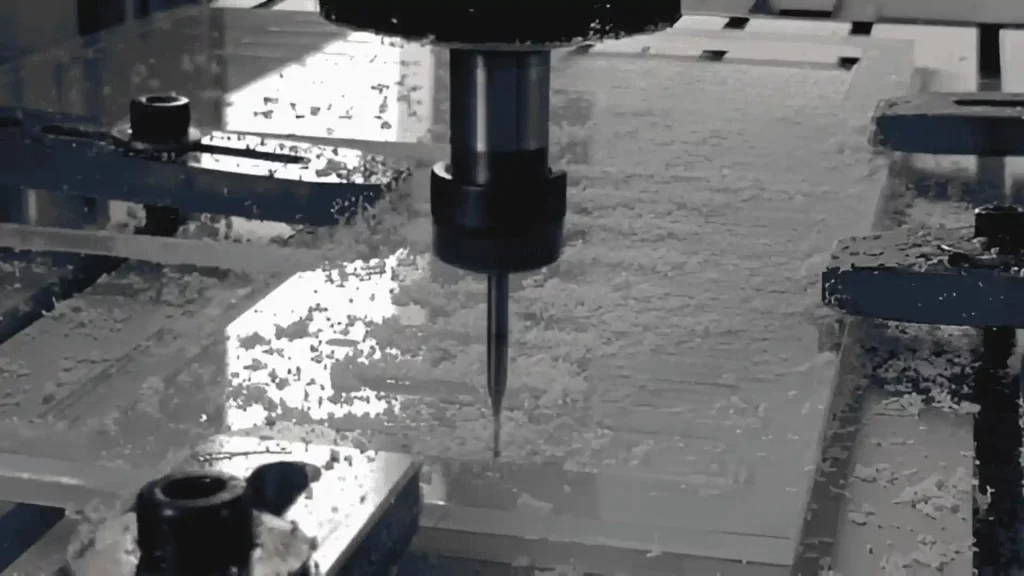

• Acrylic: It is known for its clarity and is used extensively for display items and optical equipment.
• Nylon: Valued for its wear resistance, it finds its place in gears and bearings.
• Polypropylene: This chemically resistant plastic is used in containers and packaging.
• Polycarbonate: Renowned for its impact resistance and optical clarity, used in eyewear and automotive components.
• Teflon (PTFE): Noted for its low friction and high-temperature resistance, commonly used in cookware and industrial applications.

Composites, like fiberglass and carbon fiber, blend the properties of both plastics and metals, offering a middle ground in terms of strength and weight.

How does Prolean have Mastery in the CNC Milling of these Materials?

Prolean, with years of expertise in the domain, has carved its niche by offering unparalleled CNC milling services for diverse materials. Our key success factors include:

• Precision: Leveraging advanced CNC milling machines, Prolean ensures high accuracy, maintaining strict tolerances.
• Versatility: Our extensive experience with metals, composites, and plastics ensures that we can handle diverse client requests with ease.
• Quality Control: Prolean employs rigorous quality checks, ensuring each milled product meets the desired specifications and quality standards.
• Client Feedback Integration: Prolean stands out by continually evolving, integrating client feedback into its process, and pushing the boundaries of what’s achievable in CNC milling.



What are the Essential CNC Milling Tools?

The tools are crucial in shaping, cutting, and engraving the workpiece to the desired specifications with CNC milling. Although the milling machine stands as the centerpiece of the operation, the tools interact directly with the material. Different projects demand different CNC cutting tools, and understanding their applications can drastically improve efficiency and precision.

End Mills

Square end mill with four flutes

Arguably the most utilized CNC milling tool, end mills come in various shapes and sizes to cater to different milling tasks. Their core purpose is to cut and shape the material.

• Flat End Mill: Known for producing a smooth finish, these are mainly used for contouring and roughing.
• Ball Nose Mill: Due to its hemispherical tip, the ball nose mill is used for intricate 3D sculpting.
• Roughing End Mill: Designed for bulk material removal, they reduce the load on machines during heavy cuts.

Face Mills

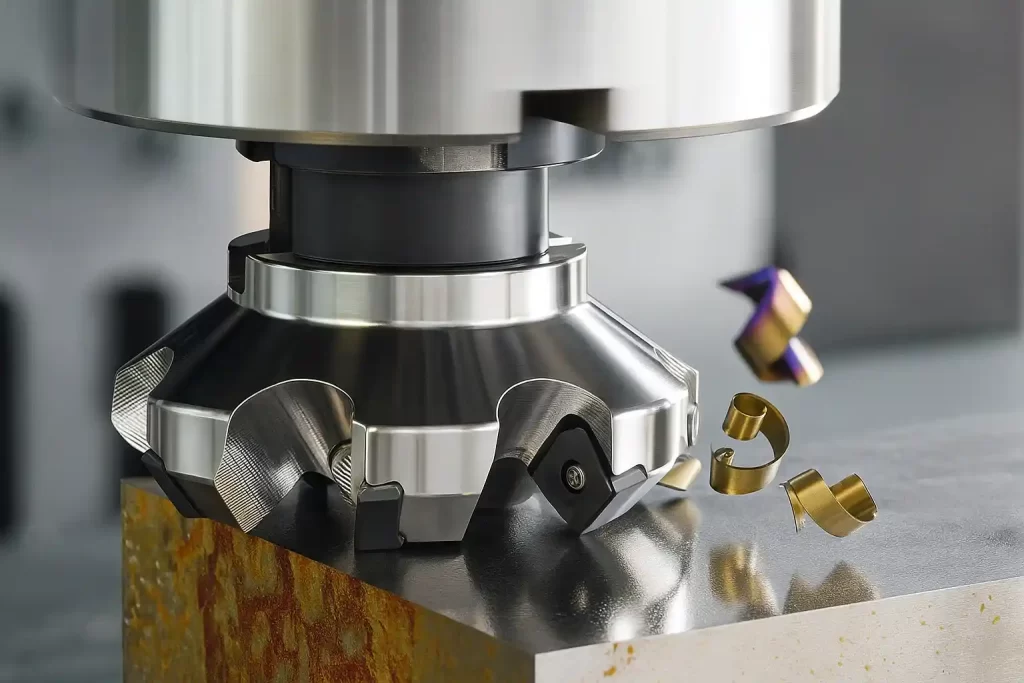

Face mills are ideal for producing a flat surface or face on a workpiece. The cutter has multiple teeth or inserts that spread the cutting load, enabling faster material removal.

• Shell Mill: With replaceable insert tips, this tool is versatile and cost-effective since you don’t need to replace the entire tool, only the worn-out tips.

Drills

Twist drill bit for CNC milling

While primarily known for making holes, drills in CNC milling are more advanced than typical workshop variants. Their primary function is, unsurprisingly, to drill holes.

• Twist Drills: A universal tool used for drilling. Their spiral flutes effectively remove chips from the workpiece.
• Center Drills: Usually stout and robust, they create a pilot hole to guide subsequent drills.

Boring Tools

Boring tools with adjustable head

CNC Boring tools enlarge or improve the accuracy of already drilled holes. They remove material radially to refine the inner surface of the hole.

• Boring Bar: This bar houses a cutting tool, which, upon reaching the desired depth, enlarges the hole by removing material.
• Boring Head: Attached to the milling machine spindle, it adjusts the cutting diameter while the machine is running, providing flexibility.

Thread Mills

In CNC milling, creating threads is essential for parts like bolts. Thread mills, which look somewhat like end mills, serve this purpose.

• Single-Form Thread Mills: With a single row of cutting teeth, these tools are used for small production jobs.
• Multi-Form Thread Mills: More suited for higher production rates, they feature multiple rows of teeth.

Fly Cutter Tools

Fly cutter tools are typically used for surface planing and for producing large flat surfaces with a superior finish. They achieve this by employing a single-point cutting tool that rotates in a large arc.

• Fly Cutter: As the spindle rotates, the cutting tool sweeps across the surface of the workpiece, skimming off material in a broad, flat path.
• Adjustable Fly Cutter: The adjustable fly cutter is a valuable tool when a standard end mill is too small to be practical for large surfaces. It allows for a customizable cutting diameter, providing versatility for different sizes of workpieces or for achieving various surface finishes.

The Tooling Systems

Tool holders in a CNC milling lathe

Beyond the cutting tools, the tool’s holding system is crucial for successful milling. This ensemble ensures the tool is correctly aligned with the workpiece.

• Toolholders: Act as an interface between the machine’s spindle and the cutting tool. Popular types include collet chucks and shrink-fit holders.
• Tool Presenters: These devices measure the tool’s cutting edges, ensuring their precision before the tool is even loaded into the machine.



What are the Types of CNC Milling?

The type of CNC milling used often dictates the kind of tasks it is most suited for. The machinery’s configuration (spindle orientation) impacts its capabilities, the complexity of the components it can produce, and its operational efficiency. Among the different milling configurations available, two stand prominently at the forefront: vertical and horizontal milling. Let’s elaborate on their individual attributes and applications.

Vertical Milling

Vertical milling machines, characterized by their vertically oriented spindle axis, are arguably the most prevalent in modern manufacturing setups. The design, with the spindle positioned up and down, allows for quick and precise up-and-down movements.

In a vertical mill, the cutting tool is mounted vertically. This arrangement means the tool can move up and down while the table, holding the workpiece, moves in the X and Y directions. This configuration offers significant flexibility, especially for mold cavity machining and intricate profiling.

• Space Efficiency: Vertical milling machines typically have a smaller footprint, making them ideal for workshops where space is at a premium.
• Cost: Often more affordable than horizontal counterparts, vertical mills are a popular choice for smaller manufacturers.
• Versatility: Their design allows them to handle a wide range of tasks, from drilling and boring to engraving and die-sinking.

Besides the advantages, one of the inherent limitations of vertical mills is their relatively lower power consumption, which may not make them ideal for heavy-duty tasks or those involving harder materials. Additionally, the vertical setup might lead to faster tool wear in certain conditions.

Horizontal Milling

Horizontal CNC milling

Horizontal milling machines, as the name suggests, have their spindle axis aligned horizontally. This configuration provides certain advantages, particularly for specific applications where vertical milling might fall short.

Horizontal mills come with a horizontally mounted spindle, holding the cutting tool on its side. The workpiece is usually kept on a universal table that can rotate to offer multi-axis machining. This setup permits more aggressive material removal, particularly for tasks like slotting and gear cutting.

• Material Removal Rate: These machines are often more robust and can remove material at a faster rate, especially beneficial when working with harder materials.
• Surface Finish: Given the tool orientation, horizontal mills often produce a better surface finish, especially on flat surfaces.
• Complex Tasks: Equipped with a rotary table, these mills can undertake complex multi-sided machining in fewer setups, which enhances precision.

Talking about limitations, Horizontal milling machines tend to be more expensive and occupy more space. They might be overkill for simpler tasks or for operations that don’t require their specific advantages.



What are the Different CNC Milling Techniques?

CNC milling boasts a range of techniques tailored to achieve precise cuts and shapes. These techniques, defined primarily by the direction of the cut and the surface involved, determine the finish and accuracy of the produced component. Let’s discuss a detailed table showcasing an array of CNC milling techniques.

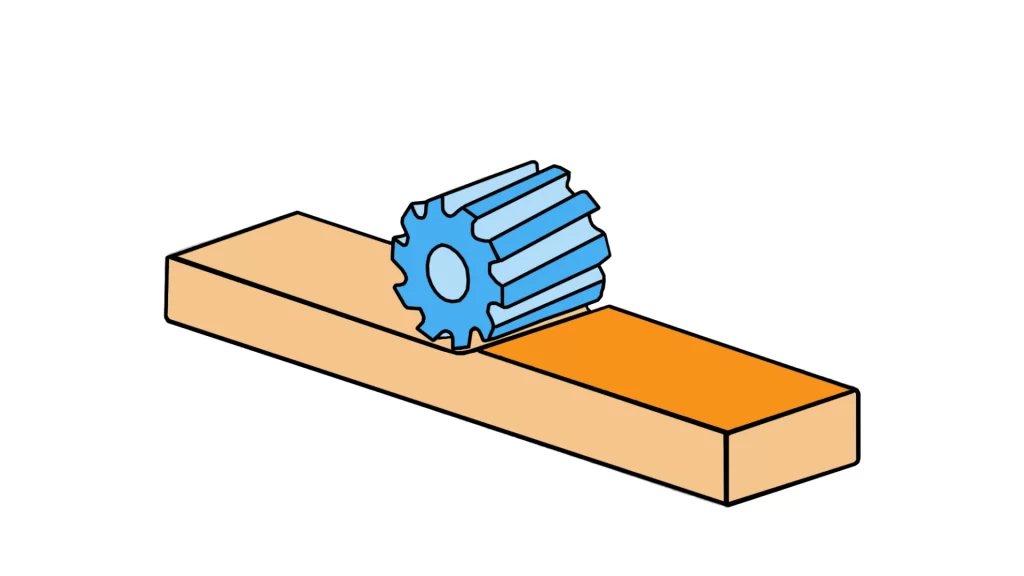

Table: Overview of CNC Milling Techniques

Technique	Primary Application	Tool Used
Face Milling	Achieving flat surfaces	Face Mill
Profile Milling	Milling outer contours	End Mills
Slot Milling	Cutting slots or grooves	Slot Drills, End Mills
Plunge Milling	Vertical material removal	Plunge End Mill
Form Milling	Creating curved profiles	Form Cutters
Ramp Milling	Gradual vertical entry into a workpiece	End Mills

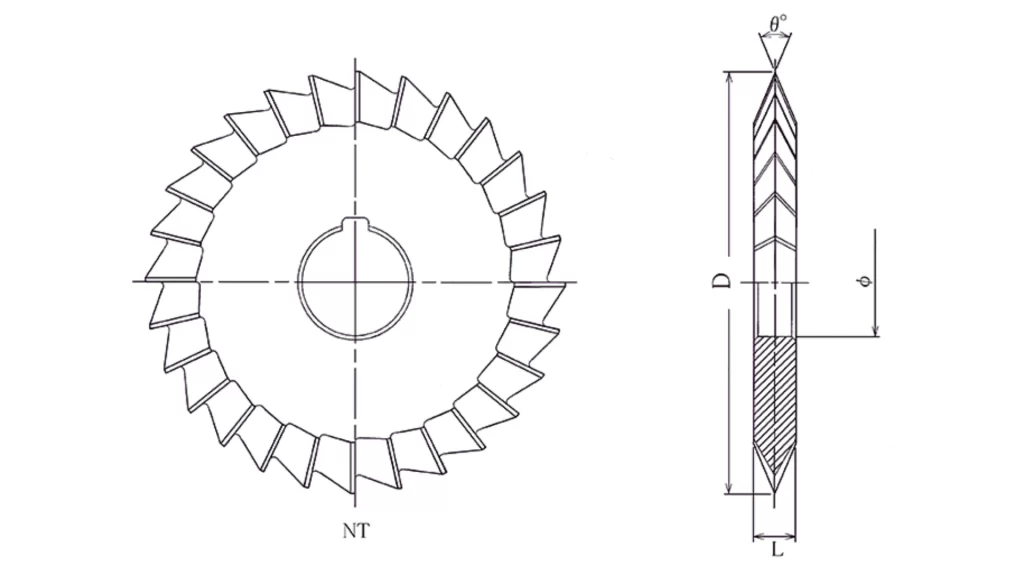

Angular Milling	Crafting surfaces at an angle to the workpiece	Single Angle Cutters
Helical Milling	Cutting with helical motion	End Mills with Helix
Gear Milling	Manufacturing gears	Involute Gear Cutter
Thread Milling	Producing internal and external threads	Thread Mills

(This table provides a snapshot of the vast array of techniques CNC milling offers. Choosing the right one hinges on the intricacies of the project and the desired outcome.)

Click here to download: Various CNC Milling Techniques in Detail



The Benefits of the CNC Milling Process

The CNC milling method has brought about numerous advantages, fundamentally changing the way products are made and industries operate. Here, we explore the manifold benefits of the CNC milling process.

1. Precision and Accuracy

One of the most significant advantages of CNC milling is its unparalleled precision. The computerized nature of CNC milling means that human error, often encountered in manual machining, is minimized. Machines follow a set of computer-generated commands to produce parts to exact specifications, ensuring consistency across batches and even for intricate designs.

2. Scalability and Repetition

Once a design is fed into the CNC machine, it can be reproduced as many times as necessary without deviations. This repeatability ensures that the first part in a production run is identical to the last, even if they’re produced weeks or months apart. This consistency is especially beneficial for large-scale production and industries where uniformity is paramount.

3. Versatility in Materials

CNC milling machines can work with diverse materials, ranging from metals and alloys to plastics and composites. Whether you’re crafting aerospace components from titanium or consumer products from polycarbonate, CNC milling has the versatility to cater to diverse industry needs.

4. Complex Geometries and Designs

Traditional manual milling has its limitations when it comes to intricate designs. In contrast, CNC milling, with its multi-axis movement capability, can produce parts with complex geometries that would be near-impossible or extremely time-consuming to achieve manually.

5. Reduced Labor Costs

While the initial investment in CNC machinery might be substantial, in the long run, it can lead to significant savings in labor costs. One skilled operator can oversee multiple machines, reducing the need for extensive manpower and specialized training.

6. Enhanced Safety

CNC milling minimizes direct human-machine interaction. As machines do the brunt of the work, operators are less exposed to potential hazards, leading to a safer work environment.

7. Time Efficiency

CNC milling machines can operate continuously, 24/7, without taking breaks, barring maintenance periods. This continuous operation capability means faster production rates, leading to quicker turnaround times for projects.

8. Waste Reduction

Precision means less material is wasted. As CNC milling can produce parts with tight tolerances, there’s a significant reduction in the materials discarded, leading to both cost savings and a more sustainable production process.

9. Flexibility in Updates and Changes

In the age of digital designs, modifications can be made swiftly. If a design requires changes, it’s as simple as updating the CAD model and the corresponding CAM programming. There’s no need for extensive machine retooling or downtime.



Diverse Applications of CNC Milling

The CNC milling technology has found its way into virtually every industry. Whether it’s the precision gears in a luxury watch or the intricate components of a space shuttle, CNC milling is the unsung hero behind countless innovations. As we go deep into the varied applications of CNC milling, it’s evident that its influence is ubiquitous, transforming industries and enhancing the quality of products we encounter daily.

Table: Applications of CNC Milling Across Industries

Industry	Application Examples	Why Use Milling?
Aerospace	Aircraft frames, Engine components, Satellite parts, Landing gears, and Structural components	Precision and ability to work with strong alloys are crucial for flight safety.
Automotive	Engine components, Custom gears, Suspension parts, Brake systems, Instrument panels	Consistency in mass production and precision in parts lead to vehicle reliability.
Healthcare	Surgical instruments, Dental tools, Orthopedic implants, and Prosthetics	High precision is crucial for medical tools and devices, ensuring patient safety.
Consumer Electronics	Mobile phone components, Computer parts, Audio equipment parts, Housing structures	Micro-precision is needed for compact and intricate electronic components.
Defense	Missile components, Firearm parts, Communication equipment, and Protective gear	Dependability and precision are paramount for defense applications.
Energy	Wind turbine components, Solar panel parts, Oil and gas equipment, Energy storage components	Reliability and durability for parts often exposed to harsh environmental conditions.
Fashion & Jewelry	Luxury watch components, Intricate jewelry pieces, Eyewear frames	Delicate and detailed crafting for aesthetic and functional appeal.
Construction	Heavy machinery parts, Architectural components, Tooling equipment, Fittings	Durability and precision, ensuring safety and long-lasting construction solutions.
Research & Development	Prototyping, Specialized equipment, Custom tools, Research apparatus	Quick and accurate prototyping, allowing for efficient testing and iterations.
Agriculture	Farm machinery components, Irrigation systems, Harvesting equipment parts	Durability and efficiency in parts crucial for the demanding nature of agricultural activities



Prolean’s CNC Milling Mastery: Crafting Precision with Passion

In the intricate ballet of manufacturing, Prolean takes center stage with its unparalleled CNC milling services. A blend of cutting-edge technology and seasoned craftsmanship, Prolean doesn’t just offer a service; it delivers an experience. This prowess ensures that when you think of precision, durability, and excellence in CNC milling, Prolean resonates as the gold standard.

The Prolean difference is more than just machinery; it’s a promise. A promise that every cut, groove, and contour is sculpted with meticulous attention, ensuring your project’s vision is realized with unmatched accuracy. It’s no wonder that industries far and wide bank on Prolean’s CNC milling expertise.

Key Highlights of Prolean’s CNC Milling Services

• Precision First: Every project, regardless of scale, is executed with unparalleled accuracy.
• Material Versatility: From metals and alloys to plastics and composites, Prolean handles it all.
• Advanced Machinery: Prolean stays ahead of the curve with state-of-the-art CNC equipment.
• Skilled Artisans: A team of experienced professionals ensures every detail is perfect.
• End-to-End Solutions: From design consultation to final product delivery, Prolean has you covered.
• Customer-centric Approach: Bespoke solutions tailored to individual project needs.

CNC Milling

Summing Up

CNC milling is an innovation that has changed the manufacturing sector. This method offers precision with versatility in creating intricate designs across various materials. It brings numerous benefits for vast applications in diverse industries. However, the right material, tools, parameters, and expertise are essential to obtain optimum results.

As industries evolve and the demand for precision and efficiency rises, CNC milling continues to stand out as the preferred choice for many. Indeed, when one reflects on the question, “What is CNC milling?”, it’s clear that it’s not just a process but the Present and future of manufacturing.

Read more:

• CNC Milling for Small-batch Production
• What Are the Six Benefits of CNC Milling?



FAQs

What is CNC milling?

CNC milling is a  computer-controlled method to carve and shape materials.

How does CNC milling differ from traditional milling?

CNC milling employs computerized instructions, ensuring higher precision and automation.

Which industries predominantly use CNC milling?

CNC milling has diverse applications across the industries, such as Aerospace, automotive, healthcare, and many more.

What materials can be used in CNC milling?

CNC milling can process metals, plastics, ceramics, and even some composites.

Why choose Prolean’s Metal CNC Milling services?

Prolean ensures top-notch quality, precision, and expertise in metal milling.

Can CNC milling handle complex designs?

Absolutely, especially with advanced 4-axis and 5-axis machines.



References

1. https://www.researchgate.net/figure/Workpiece-and-3-component-dynamometer-setup-in-the-CNC-for-the-validations-of_fig3_235862436
