Mastering the Grooving Process From Design to Inspection

Published on: 2023-05-22

Grooving is a crucial machining process that removes material from a workpiece to create grooves of a specified width and depth. It is widely used in various industries for precise and intricate parts, from automotive to aerospace and small-scale productions.

Grooving helps manufacturers meet stringent dimensional requirements and tight tolerances, ensuring high-quality outcomes. It also allows for the creation of complex geometric profiles not achievable with other machining methods. CNC technology advancements have elevated the precision and efficiency of grooving operations, making it a preferred choice for high production rates without compromising quality.

This article offers a comprehensive overview of the grooving process, discussing its importance, and various stages, from design and planning to the final quality inspection.



Understanding the Grooving Process

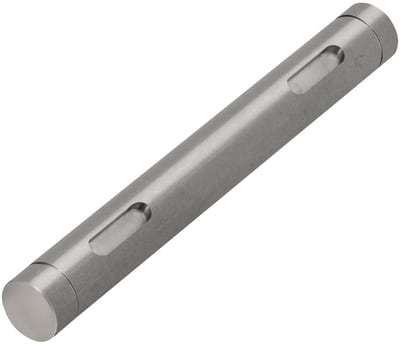

CAD model of double-sided ring grooves

Grooving is a subtractive machining process in which a tool, typically a grooving tool or parting tool, removes material from a workpiece to create a groove. This groove can be straight or curved, shallow or deep, wide or narrow, depending on the specifications of the part being produced.

The grooving process is widely used in various industries, including automotive, aerospace, medical, and manufacturing, due to its ability to create a variety of features on a workpiece. Now, let’s delve into the various stages involved in the grooving process.



Stage1: Design

The design and planning phase in grooving operations is where a project begins to take shape. The effectiveness of this phase can significantly influence the efficiency and quality of the final grooving process. Let’s dive into the various steps involved in design and planning.

1. Understanding the Project Specifications

The first step is to clearly understand the project specifications. This includes determining the type of grooving operation required, the groove’s dimensions and tolerances, the workpiece’s material, and the quantity required.

Design Considerations Description
Type of Grooving Operation Whether it’s external or internal, radial, axial, or angular, the type of grooving operation significantly influences the design and planning phase.
Dimensions and Tolerances These parameters set the standards for the grooving operation, dictating the size and shape of the groove and the allowable margin of error.
Material Different materials have different machining properties, which must be considered when planning the grooving operation.
Quantity Required The number of pieces required can impact the choice of tools and machinery, as well as the timeline for the project.

2. Tool and Machine Selection

Once the project specifications are clear, the next step is to select the appropriate tools for CNC grooving. This involves considering the type of groove, the material of the workpiece, and the required tolerances. The right tooling can significantly improve the efficiency and quality of the grooving operation.

3. Machining Parameters Setting

After selecting the right tools and machinery, the next step is to determine the optimal machining parameters. This includes the cutting speed, feed rate, and depth of cut. These parameters play a critical role in achieving efficient and high-quality grooving operations.

Table 1: Typical Machining Parameters

Material Cutting Speed (m/min) Feed Rate (mm/rev) Depth of Cut (mm)
Aluminum 100 – 300 0.01 – 0.2 0.5 – 5
Steel 30 – 100 0.01 – 0.2 0.5 – 5
Brass 100 – 300 0.01 – 0.2 0.5 – 5
Plastic 100 – 300 0.01 – 0.2 0.5 – 5

Note: The table above is a rough guide, and actual machining parameters should be determined based on specific project requirements and tool manufacturer’s recommendations.”

Optimizing Machining: The Path to Efficient Grooving Operations

4. Process Planning

The final step in the design and planning phase is process planning. This involves sequencing the machining operations in the most efficient manner possible. It also includes planning for auxiliary functions such as cleaning, deburring, or inspection.

A well-structured design and planning phase sets the stage for efficient and high-quality grooving operations, paving the way for successful project execution.



Stage2: Execution of the Grooving Operation

The execution phase is where the rubber meets the road in the grooving operation. It’s where meticulous design and planning are put into action to create precise grooves in the workpiece. It involves a sequence of carefully orchestrated steps, from setup and preparation to machining, quality control, and finishing. Let’s examine the various steps involved in the execution of the grooving operation.

1. Setup and Preparation

Before any actual machining can begin, it’s vital to properly set up the machine and prepare the workpiece. This involves mounting the tool in the tool holder, securing the workpiece in the chuck or fixture, and setting the initial tool position. It’s crucial to ensure that everything is correctly aligned and secure to prevent any inaccuracies or mishaps during the operation.

2. Machining

After the setup, it’s time for the actual machining operation. The CNC machine, following the programmed instructions, will move the grooving tool along the necessary path to create the desired groove. The cutting parameters, such as the speed, feed, and depth of cut, must be carefully monitored and adjusted as necessary to ensure optimal performance.

During the machining process, a few key aspects are of utmost importance:

  • Coolant Application: Coolant helps reduce heat and friction, prolongs tool life, and improves surface finish. It’s essential to ensure the coolant is adequately applied throughout the machining process.
  • Chip Evacuation: Efficient chip evacuation is vital in grooving operations to prevent chip re-cutting and tool damage. This may be facilitated by using suitable chip breakers and coolant.
  • Tool Wear Monitoring: Tools can wear out or break during the machining process. Therefore, regular inspection and timely replacement of tools are necessary to maintain the quality of the grooves and ensure efficient operation.

3. Quality Control

The quality control process is a critical part of the execution phase. This involves inspecting the grooves to ensure they meet the required specifications. Measurements should be taken of the groove’s width, depth, and surface finish to confirm that they are within the specified tolerances. Any discrepancies should be addressed immediately to prevent the production of defective parts.

Table 2: Quality Control in Grooving Operations

Inspection Parameter Measurement Tool
Groove Width Calipers, Micrometers
Groove Depth Depth Gauge
Surface Finish Surface Roughness Tester

4. Finishing and Post-Processing

After the grooving operation and quality control, any necessary finishing or post-processing operations are performed. This could include deburring to remove any sharp edges or cleaning to remove any residual coolant or debris.



Let’s Start A New Project Today

Stage3: Quality Inspection

Quality inspection is an essential step in the grooving operation to ensure the final product meets the predetermined specifications and quality standards. This step involves a thorough examination of the machined parts to verify their accuracy, dimensions, surface finish, and other aspects. The focus of this section is to detail the different stages of quality inspection, the techniques used, and the importance of quality control in grooving operations.

1. Pre-Inspection

Pre-inspection is the first line of defense in quality control. It is conducted before the grooving operation and serves to ensure that the machines, tools, and materials are in their optimal state. This involves checking the tool for wear and tear, verifying machine alignment, and ensuring the workpiece is of the right quality and free from defects.

2. In-Process Inspection

In-process inspection occurs during the grooving operation. It involves continuous monitoring of the machining process and immediate adjustment of machining parameters if necessary. The primary purpose of in-process inspection is to catch and correct any deviations from the plan as early as possible.

In the context of grooving operations, in-process inspection may involve monitoring the following:

  • Cutting Parameters: Ensuring that the cutting speed, feed rate, and depth of cut are within the defined limits.
  • Tool Condition: Checking the grooving tool for signs of wear or breakage.
  • Surface Finish: Examining the workpiece for any noticeable defects in the surface finish.

3. Post-Processing Inspection

Post-processing inspection is conducted after the machining operation is complete. It involves a detailed examination of the final product to ensure it meets all specifications. The following are key aspects that are typically checked during post-processing inspection:

  • Dimensional Accuracy: Measuring the width and depth of the grooves to ensure they are within the specified tolerances.
  • Surface Finish: Checking the surface finish to ensure it meets the required standard.
  • Defect Detection: Visually inspecting the workpiece and using non-destructive testing methods to identify any potential defects or anomalies.



Grooving Operations at ProleanTech

ProleanTech is your go-to partner for high-quality and efficient grooving operations. We leverage state-of-the-art CNC machinery and an expert team of machinists to deliver precise and high-quality grooving processes on a variety of materials.

Our commitment to excellence ensures that we follow strict quality control measures, from the design and planning phase through to execution and final quality inspection. We understand the importance of precision and efficiency in grooving operations, and we continually strive to exceed our client’s expectations.

Whether you require external or internal grooving, axial or radial grooving, ProleanTech has the skills, equipment, and experience to deliver outstanding results. Our focus on customer satisfaction and our capacity to handle both small and large-volume orders make us an ideal choice for all your grooving operation needs, please feel free to reach out.

CNC Grooving Service



Conclusion

Understanding the grooving process from design and planning to quality inspection is essential for optimizing efficiency and quality in your machining operations. By choosing a partner like ProleanTech, you can leverage industry-leading expertise and state-of-the-art equipment to ensure your grooving operations deliver the precision and quality you require.



FAQs

What is grooving in machining?

Grooving is a subtractive machining process where a tool removes material from a workpiece to create a groove.

What factors influence the efficiency of grooving operations?

Factors influencing the efficiency of grooving operations include the selection of the right tool, setting of correct machining parameters, and regular maintenance of machining equipment.

What steps are involved in the grooving process?

The grooving process involves designing and planning, executing the grooving operation, and conducting a quality inspection.

What does the quality inspection process for grooving operations involve?

The quality inspection process for grooving operations involves checking the dimensions of the groove, inspecting the surface finish, and conducting a final quality check to ensure the part meets all required specifications and quality standards.
