In the ever-evolving world of manufacturing, custom CNC milling stands as an epitome of precision and tailor-made solutions. Gone are the days where one-size-fits-all; today, it’s all about bespoke designs that cater to specific requirements. As industries strive for unparalleled perfection, Computer Numerical Control (CNC) milling has revolutionized how materials, be it aluminum or steel, are shaped and refined. Delving deeper, one would realize that it’s not just about cutting and drilling; it’s about breathing life into designs with unmatched accuracy.
So, let’s embark on a journey into the realm of custom CNC milling, where each cut is a testament to precision, and every design is a reflection of craftsmanship.
The Fundamentals: Demystifying Custom CNC Milling

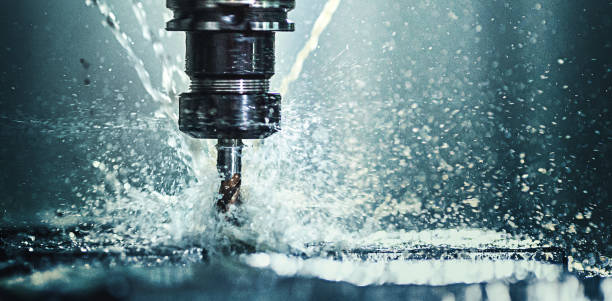

Closeup shot of a CNC machine processing a piece of metal. There are three water streams splashing the object to cool it down.
CNC milling on action
At its core, CNC milling is about computer-driven machinery directing the path of cutting tools, shaping raw material based on digital blueprints. Yet, when the term ‘custom’ is added to CNC milling, the process becomes more intricate, catering to specific needs and materials. So, what sets custom CNC milling apart?
- Depth of Customization: Every industry, from automotive to aerospace, has unique requirements. Custom CNC milling ensures that these precise requirements are met, not just in terms of size but also in design intricacy.
- Materials Galore: Not every design requires the same material. Custom CNC milling is versatile, accommodating different materials such as aluminum, steel, or even polymers. Each material brings its unique challenges and benefits to the table.
- Tools & Techniques: With customization comes the need for specialized tools. While standard milling can get away with general-purpose tools, custom projects might demand specific drill bits or cutters to achieve the desired finish and precision.
- Software Synergy: Advanced CAD (Computer-Aided Design) software plays a pivotal role in custom CNC milling. Before a single cut is made, the entire design is visualized, optimized, and tested in a virtual environment, ensuring that the end product is as close to perfection as possible.
- Precision & Tolerance: One of the hallmarks of custom CNC milling is its impeccable precision. The level of detail achievable in custom projects far exceeds that of standard milling. When a client specifies a tolerance level, say ±0.001 inches, the custom milling process is calibrated to meet this exact specification.
Comparison Between Standard & Custom CNC Milling
When comparing standard CNC milling to custom CNC milling, it becomes clear that the latter offers a higher degree of flexibility, precision, and tailor-made solutions. Custom CNC milling caters to specific requirements and materials, making it the preferred choice for industries with unique demands.
Table: Comparison Between Standard & Custom CNC Milling
| Parameter | Standard CNC Milling | Custom CNC Milling |
|---|---|---|
| Design Flexibility | Moderate; general designs catered | High; accommodates intricate designs |
| Materials Used | Common materials; general-purpose | Diverse range, specific to project requirements |
| Tooling | General-purpose tools | Specialized tools tailored for the project |
| Turnaround Time | Quicker due to less complexity | Might be longer due to design intricacy |
| Cost | Generally lower due to volume | Higher due to specialized nature, but offers better value |
Components Crafted to Perfection: Custom CNC Milling Parts
Custom milling parts
Precision is at the heart of every custom CNC milling project. When a manufacturer invests in CNC milling, the aim isn’t merely to produce parts, but to sculpt components that align with every intricate specification and requirement. From the most delicate prototypes to sturdy industrial parts, custom CNC milling opens up a realm of possibilities for parts tailored to perfection.
- Meticulous Precision A key hallmark of CNC milling is its uncanny precision. Advanced software ensures that every cut, drill, and carve aligns with predefined parameters, resulting in parts that match design intentions to the minutest detail.
- Versatile Capabilities:With CNC milling, the spectrum of parts you can produce is vast. From industrial gear systems to delicate jewelry pieces, the range showcases the technique’s flexibility.
- Material Diversity: Whether it’s metals like aluminum, steel, or brass, or even plastics and ceramics, custom CNC milling caters to a broad material palette, ensuring you get the right part with the right material properties.
- Time Efficiency: Given its automated nature, CNC milling can rapidly produce parts without compromising on quality, especially crucial for bulk orders or industries with tight production schedules.
- Iterative Prototyping: For design phases or prototype development, CNC milling is invaluable. It allows for rapid iteration, where designs can be tested, modified, and re-tested in quick succession.
- Cost-Effective Solutions:While initial setup costs might be higher, the economies of scale with CNC milling mean that per-unit costs often become competitive, especially when compared to manual milling solutions.
- Quality Consistency:Once a design is fed into the CNC system, it will reproduce the same high-quality part every single time, eliminating discrepancies that might arise in manual processes.
- Complex Geometries and Contours:With 3D CNC milling capabilities, producing parts with intricate geometries, undercuts, and contours becomes feasible. This is a boon for industries like aerospace or automotive, where complex components are the norm.
- Reduced Waste: Precision cutting ensures minimal waste of material. This not only brings down costs but also aligns with sustainable manufacturing practices.
Table: Typical Properties and Tolerances for Custom CNC Milled Parts
| Attribute | Description | Standard Tolerance |
|---|---|---|
| Dimensional Accuracy | How precisely the part matches the design specs | ±0.005″ |
| Surface Finish | Smoothness/roughness of the part’s surface | Typically Ra 1.6–3.2 |
| Material Retention | The amount of material retained post-processing | Varies by design |
| Depth of Cut | Depth at which the cutting tool penetrates | ±0.002″ |
| Cutting Speed | Speed at which the tool moves through the material | Varies by material |
| Feed Rate | Speed at which the material is fed into the tool | Varies by design |
The Allure of Aluminum: Custom CNC Milling Aluminum
Custom aluminum milling parts
Aluminum is often considered the star of the CNC milling world and for a good reason. This versatile metal offers a unique blend of attributes that make it a favorite among manufacturers and artisans alike. Its popularity, combined with the tailored capabilities of custom CNC milling, opens up a realm of possibilities. But what makes aluminum so desirable in the CNC milling process? Let’s dive into the allure of custom CNC milling aluminum.
Table: Inherent Qualities of Aluminum
| Attribute | Description |
|---|---|
| Lightweight | Aluminum’s density is about one-third that of steel, allowing for lightweight parts without compromising strength. |
| Corrosion-Resistant | Natural oxidation provides aluminum parts with a protective layer, guarding against rust and corrosion. |
| Excellent Conductor | Aluminum is a good conductor of both heat and electricity, which can be advantageous for specific applications. |
| Malleable and Ductile | Despite its strength, aluminum can be easily bent or shaped, granting designers more flexibility. |
What Makes Aluminum Desirable in the CNC Milling Process?
Aluminum is a popular material for custom CNC milling due to its enhanced machinability, aesthetic appeal, sustainability factor, cost-effectiveness, and thermal and electrical conductivity. Let’s discuss the major desirable qualities that make aluminum so desirable in Custom CNC milling applications.
- Enhanced Machinability: Aluminum’s softness and low melting point make it particularly amenable to CNC milling processes. Tools wear out less quickly, and higher feed rates can be achieved, leading to quicker turnarounds.
- Aesthetic Appeal: Custom CNC-milled aluminum parts often have a sleek, modern finish, which can either be left in its natural state for a silvery appeal or anodized for a variety of colors. This makes it a popular choice for both functional parts and decorative items.
- Sustainability Factor: Aluminum is recyclable, aligning with the increasing global emphasis on sustainable and environmentally-friendly manufacturing processes.
- Cost-Effectiveness: Compared to many other metals, aluminum is more abundant and typically less expensive. When combined with its machinability, it often results in cost savings for bulk orders.
- Thermal and Electrical Applications: Given aluminum’s conduciveness to electricity and heat, it becomes a top choice for parts like heatsinks or electronic housings in custom CNC milling projects.
Table: Qualities and Tolerances of Custom CNC Milled Aluminum
| Attribute | Description | Standard Tolerance |
|---|---|---|
| Density | Approximately 2.7 g/cm³ | – |
| Melting Point | Around 660°C (1220°F) | – |
| Machining Speed | Faster than many metals, owing to the softness | – |
| Surface Finish | Smooth, can be further polished or anodized | Typically Ra 1.6 |
| Typical Tolerance | Standard machining | ±0.005″ |
| Fine Tolerance | Precision machining | ±0.001″ |
While aluminum is favorable in many aspects, it’s essential to understand its limitations. For instance, without appropriate lubrication, aluminum can be sticky during milling. Moreover, if not correctly managed, its softness can lead to deformities or inaccuracies.
Let’s Start A New Project Today
Strength Defined: Custom CNC Milling Steel
When the talk veers towards strength and durability in the manufacturing world, steel often emerges as the undisputed champion. Combining the robustness of this alloy with the precision of CNC milling brings forth a synergy that’s nothing short of transformative.

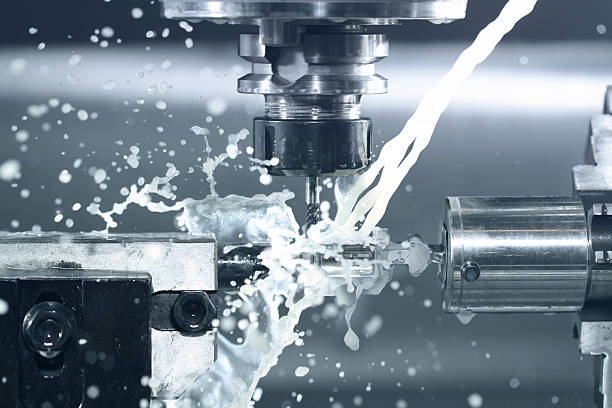

Close-up of CNC machine processing
Steel CNC milling
Custom CNC milling steel ensures that components can withstand the most demanding environments, be it in construction, automotive, or aerospace.
Table : Intrinsic Properties of Steel
| Attribute | Description |
|---|---|
| High Tensile Strength | Steel’s strength-to-weight ratio makes it an ideal choice for heavy-duty components. |
| Durability | Resistant to wear, tear, and degradation, steel parts promise longevity. |
| Resistance to Corrosion | Stainless steels, with added chromium, are especially resistant to rust and other forms of corrosion. |
| Thermal Resistance | Steel retains its form and strength even at elevated temperatures, essential for components like engine parts. |
What Makes Steel a Sought-after Choice for Custom CNC Milling?
Steel is a popular material for custom CNC milling due to its strength, durability, and versatility. Its ability to produce parts tailored to specific needs, resist wear and tear, and withstand degradation makes it perfect for heavy-duty components. Steel is also sought after for its thermal resistance, high tensile strength, and resistance to corrosion. Its cost-effectiveness in bulk production and ability to achieve a range of surface finishes are additional advantages.
Let’s take a comprehensive look, what makes steel a sought-after choice for CNC milling?
- Milling Versatility:
Different steel grades come with distinct properties. From the super-soft leaded steels to the high-carbon tool steels, custom CNC milling can handle them all, producing parts tailored to specific needs.
- Surface Finish: Through CNC milling, steel can achieve a mirror-like finish, or can be left slightly rough for applications requiring friction. Further, steel can be easily painted, plated, or coated for additional aesthetics or protection.
- Cost-Effectiveness in Bulk Production:
While the unit cost might be higher than some materials, steel’s durability often translates to long-term savings, especially when considering the lifecycle of the component.
- Ideal for High-Stress Environments:
Steel parts, given their strength, are particularly suitable for environments that undergo immense stress, such as automotive suspensions or aircraft landing gears.
- Steel Varieties:
Depending on the need, manufacturers can choose between different steel alloys, such as carbon steel, alloy steel, or stainless steel. Each type offers distinct characteristics, from corrosion resistance to increased toughness.
Table: Characteristics and Tolerances of Custom CNC Milled Steel
| Attribute | Description | Standard Tolerance |
|---|---|---|
| Density | Approximately 7.85 g/cm³ | – |
| Melting Point | Ranges from 1370°C to 1510°C depending on alloy | – |
| Machining Speed | Generally slower than aluminum due to hardness | – |
| Surface Finish | Can range from rough to mirror-like | Typically Ra 3.2 |
| Typical Tolerance | Standard machining | ±0.010″ |
| Fine Tolerance | Precision machining | ±0.002″ |
Steel’s very strength can pose challenges. It’s harder on tools, often requiring more robust and durable cutting instruments. Additionally, its weight might make it less suitable for applications where every gram counts, such as in some aerospace contexts.
Applications of Custom CNC Milling Across Different Industries
Custom CNC milling stands as the cornerstone of modern manufacturing in many sectors. Its versatility in producing intricately designed and highly precise parts has paved its dominance across multiple industries. As technology evolves, the demands for accurate, efficient, and tailor-made components have surged, and CNC milling has emerged as the ultimate solution.
The table below explores the multitude of applications and provides detailed examples across various sectors.
Table: Applications of Custom CNC Milling in Various Industries
| Industry | Primary Components | Detailed Example |
|---|---|---|
| Automotive | Engine blocks, transmission gears, brake systems | Modern cars use CNC milling for alloy rims, optimizing aesthetics, aerodynamics, and weight distribution. |
| Aerospace | Airframe parts, landing gear, propulsion system components | Intricate jet engine fan blades are CNC milled for precision, ensuring optimum performance and safety. |
| Medical Industry | Prosthetics, dental implants, surgical instruments | Prosthetics, like athletic prosthetic legs, are custom milled to fit patients’ unique anatomies, enhancing comfort and functionality. |
| Electronics | Motherboard housings, connectors, heat sinks | The aluminum body of smartphones is precision-milled for a lightweight yet robust design. |
| Jewelry and Art | Sculptures, intricate jewelry designs, art installations | Artists commission bespoke sculptures CNC milled to perfection, capturing minutest details. |
| Energy Sector | Solar panel mounts, wind turbine parts, hydropower turbine blades | In hydropower plants, turbine blades are milled for maximum energy harnessing from flowing water. |
| Defense & Military | Armor plates, weapon system components, military gear parts | Sniper rifle components are meticulously milled for long-distance precision and accuracy. |
| Consumer Goods | Household appliances, sports equipment, musical instruments | High-end musical instruments, like flutes, have keys that are custom-milled for precision, resulting in accurate notes and superior sound quality. |
| Marine Industry | Propellers, hull plates, interior fittings | Luxury yachts feature interior fittings, from door handles to railings, custom-milled for opulence. |
| Construction | Architectural fixtures, custom door fittings, window frames | Unique architectural elements in grand buildings, like gargoyles or intricate lattices, are milled to perfection, reflecting historical or cultural significance. |
Prolean’s Custom CNC Milling Services: A Class Apart
In the bustling world of manufacturing and precision engineering, there are players who merely compete and those who redefine standards. Prolean firmly belongs to the latter category. Its CNC milling services aren’t just offerings but are embodiments of excellence, consistently setting the bar high in the domain.
What do We Offer?
At the heart of Prolean’s success in CNC milling is a confluence of traditional craftsmanship and state-of-the-art technology. When these two forces coalesce, the outcomes are nothing short of extraordinary.
1. Cutting-Edge Machinery
The world of design and manufacturing is complex, often demanding intricate detailing and high precision. Our investment in avant-garde machinery ensures that it’s well-equipped to handle any challenge thrown its way. From multifaceted designs demanding meticulous attention to detail, to bulk orders requiring speedy turnovers without compromising on quality, our machines stand up to the task. This commitment to leading technology ensures that every project is executed flawlessly, no matter the scale or intricacy.
Our multi-axis advanced CNC machines allow us to achieve a typical custom CNC milling tolerance of ±0.010″ and a fine tolerance of ±0.002″.
2. Skilled Craftsmen
Machines, no matter how advanced, are only as good as the people who operate them. Our true strength lies in its dedicated team of artisans. These maestros bring with them not just years of experience, but also an intrinsic understanding of the art and science of milling. Their ability to meld age-old artisanship with modern-day technological advancements ensures that every project is a testament to perfection. Each piece, every curve, and every contour reflects their unwavering commitment to excellence.
3. Material Mastery
The brilliance of a custom CNC-milled product is as much about the technique as it is about the material used. Recognizing this, we have cultivated an expansive expertise in handling a variety of materials. Whether it’s the standard favorites like aluminum and steel, known for their robustness and versatility, or more exotic and rarefied alternatives sought for specialized projects, our approaches each with a deep understanding of its unique properties. This ensures that every material is not just processed, but is truly transformed, resulting in consistently immaculate outcomes.
Conclusion
Custom CNC milling has become a cornerstone of modern manufacturing, offering unparalleled precision and the ability to create highly customized parts that meet the unique needs of a wide range of industries. With advances in technology and the increasing demand for precision and efficiency, the use of CNC milling has only continued to grow in popularity in recent years. As a result, manufacturers and businesses of all sizes are turning to custom CNC milling as a reliable and cost-effective solution for their production needs.
FAQs
What is custom CNC milling?
Custom CNC milling is the precision manufacturing process tailored to create specific designs using materials like aluminum or steel.
Is aluminum better than steel for CNC milling?
Both materials have their advantages. Aluminum is lightweight and dissipates heat well, while steel boasts high strength and durability.
How does technology enhance custom milling?
With advanced software, automation, and 3D visualization, technology ensures more accurate, efficient, and consistent custom milling outcomes.
How cost-effective is custom CNC milling?
While custom milling may have higher initial costs, its precision reduces material waste and errors, making it cost-effective in the long run.
Why choose Prolean for custom CNC milling?
Prolean offers unparalleled precision, advanced machinery, and a skilled team, ensuring every project, big or small, is crafted to perfection.
