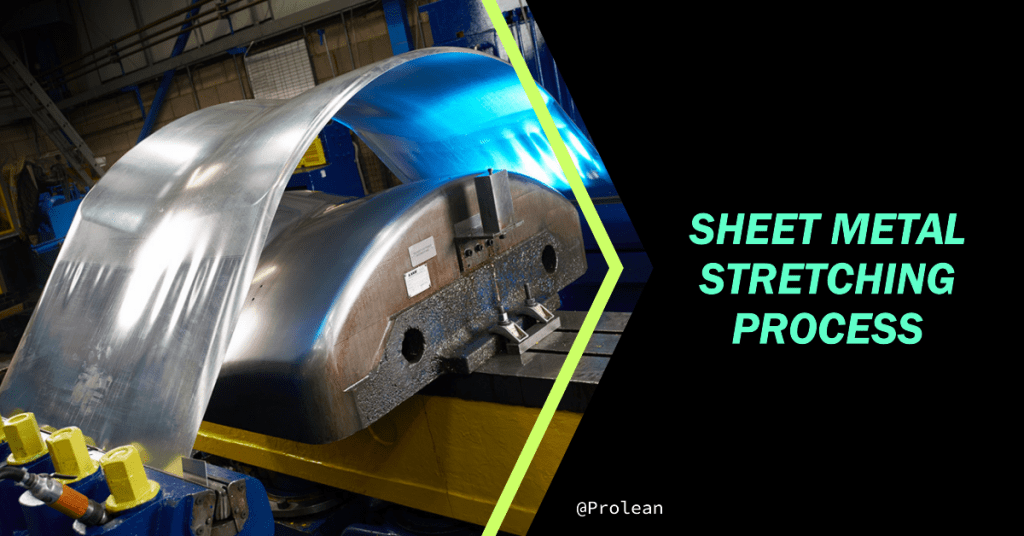

Sheet Metal Stretching Process: A Step-by-Step Guide

Published on: 2023-06-13

In the fascinating realm of manufacturing, the art of bending, shaping, and manipulating metal to the will of human ingenuity holds a prominent place. Among the suite of processes that facilitate this transformation, sheet metal stretching stands as a key player. This critical technique allows manufacturers to exploit the inherent malleability of metal, forging intricate shapes and designs that fulfill a multitude of applications.

This article aims to navigate you through the step-by-step process of sheet metal stretching, illuminating its principles, techniques, benefits, and applications.



Decoding Sheet Metal Stretching

Understanding the concept of sheet metal stretching requires a deep dive into the fundamental principles governing this process and the core techniques that make it possible. The sheet metal stretching process is deeply rooted in the inherent physical properties of metals. Two critical properties come into play, ductility, and elasticity.

1 Ductility

Ductility refers to the ability of a metal to undergo significant deformation before rupture. This property is crucial in the stretching process as it enables the metal sheet to change shape without breaking. Highly ductile materials, such as aluminum and certain grades of steel, are typically selected for this process.

2 Elasticity and Plasticity

When a force is applied to a metal, it initially deforms elastically, meaning it will return to its original shape once the force is removed. However, if the applied force surpasses the metal’s yield strength, it starts to deform plastically. In plastic deformation, the metal doesn’t return to its original shape even when the force is removed. This characteristic is essential in the stretching process, allowing the metal to retain the new form it takes on during stretching.



Core Techniques in Sheet Metal Stretching

The stretching of sheet metal requires an array of sophisticated techniques that balance precise control and masterful manipulation. Here, we delve deeper into some of the crucial techniques that facilitate successful sheet metal stretching.

1. Force Control

Force control is at the heart of the sheet metal stretching process. It involves applying just the right amount of force to the metal sheet to induce plastic deformation without causing breakage. Advanced machinery equipped with force sensors and precision actuators helps accomplish this task.

Aspects of force control in sheet metal stretching:

  • Determination of the Correct Force: Depending on the material’s ductility, thickness, and complexity of the desired shape, the force required can significantly vary. Calculation of the correct force is typically done using mathematical models and software tools.
  • Application of the Force: With the help of hydraulic or pneumatic actuators, the calculated force is applied to the metal sheet. The force is typically applied uniformly to ensure even stretching.
  • Monitoring and Adjustments: Throughout the process, the applied force is continuously monitored, and adjustments are made in real-time to maintain optimal stretching conditions.

2. Die Manipulation

Die manipulation plays a significant role in determining the final shape of the stretched metal. The process involves guiding the metal sheet over a form block or die. This die corresponds to the desired shape, and the metal sheet takes on this form during stretching.

Key considerations in die manipulation:

  • Die Design: The form block or die must be designed with utmost precision to match the desired final shape of the metal sheet. CAD tools are typically used to create a 3D model of the die.
  • Die Manufacturing: Once the design is finalized, the die is manufactured, often through a CNC machining process to ensure high accuracy. The surface of the die is polished to a high finish to prevent any scratches or imperfections transferring onto the metal sheet.
  • Die Positioning: The die is carefully positioned in the stretching machine, and the metal sheet is guided over it during stretching. Adjustments to the position of the die may be made during the process to achieve optimal results.

3. Lubrication

Lubrication plays a crucial role in reducing friction between the metal sheet and the die, preventing any surface defects and allowing smoother deformation. Different materials may require different types of lubricants.

Key steps in lubrication are:

  • Choosing the right lubricant based on the material properties and the complexity of the design.
  • Evenly apply the lubricant on the metal sheet surface and the die.
  • Regularly check and replenish the lubricant throughout the stretching process.

Through the strategic application of these core techniques, the sheet metal stretching process can transform a simple metal sheet into a complex, precision-engineered component.

4. Thermal Control

Maintaining a stable temperature throughout the stretching process is a significant aspect that can impact the overall quality and outcome of the finished product. As the deformation of metals is a temperature-sensitive process, heat is generated during stretching due to internal friction in the material. The rate of stretching, material, and the amount of deformation all contribute to the heat generated.

Key considerations in thermal control:

  • Thermal Monitoring: The use of temperature sensors to continuously monitor the heat levels during the stretching process. Any significant rise in temperature might lead to excessive softening of the metal, compromising the quality of the final product.
  • Heat Dissipation: Implementing cooling mechanisms to effectively dissipate the heat generated. This can include the use of coolants, ventilated workspaces, or specialized machinery with built-in cooling systems.
  • Thermal Modelling: With advanced software tools, thermal modeling can predict heat generation and distribution during the stretching process. This allows for effective planning of cooling strategies and ensures optimal temperature conditions are maintained.



Let’s Start A New Project Today

What Are the Benefits of Sheet Metal Stretching?

Sheet metal stretching comes with several notable benefits that make it an attractive choice in numerous applications:

Benefit Description Application
Increased Strength Enhances the strength of the sheet metal due to the work-hardening effect. High stress-resistance applications
Improved Durability Improves the durability of sheet metal parts. Applications requiring resistance to wear and tear
Wide Range of Shapes and Sizes Allows for a wide range of shapes and sizes to be produced. Aerospace, automotive, and architectural design
High Precision and Accuracy Achieves high precision and accuracy. Production of parts that closely adhere to design specification



The Sheet Metal Stretching Procedure: Step-by-Step

Sheet metal stretching is a complex process that involves selecting the appropriate tool, securing the metal in place, stretching it using a hydraulic press, inspecting it for defects, and trimming it to its final size and shape. It requires precision, technical expertise, and a great deal of skill to execute properly.

Step 1: Material Selection

The first, and one of the most critical steps in sheet metal stretching is selecting the appropriate material for the project. Different metals possess varying degrees of ductility (the ability to deform without breaking), strength, and resilience to environmental factors. Thus, the choice of material can greatly influence the success of the stretching process and the functionality of the finished product.

Common materials used in sheet metal stretching include:

  • Aluminum: Known for its lightweight properties, corrosion resistance, and good ductility.
  • Stainless Steel: Recognized for its strength, resistance to corrosion and heat, and considerable ductility.
  • Copper: Valued for its excellent electrical conductivity and ductility but less frequently used due to cost.

Step 2: Design and Tooling

Once the appropriate material is selected, the design stage commences. Modern technology, particularly Computer-Aided Design (CAD) software, plays a vital role in this process. Engineers use these tools to develop detailed designs and blueprints of the desired part, including exact measurements and specifications.

The design then informs the tooling process. Specialized machines create the form blocks or dies – the tools that will shape the metal sheet. These dies must match the specifications of the design perfectly to ensure an accurate and quality end product.

Step 3: Stretching Process

With the design and tooling stages complete, the actual stretching process begins. The selected metal sheet is firmly clamped into the stretching machine. This machine then begins to pull the metal sheet over the form block or die.

As the machine applies controlled and even force, the metal sheet starts to stretch. The elongation of the metal grains allows the sheet to gradually take on the shape of the die. It’s essential to monitor the stretching process closely to prevent over-stretching, which could lead to thinning or breaking of the metal.

Step 4: Quality Assurance

The final step in the sheet metal stretching process is a rigorous quality assurance check. This step is critical to ensuring the newly formed part meets the required specifications and design standards.

Quality checks can include:

  • Dimensional Inspection: Using precision measuring instruments to verify that the part’s dimensions align with the original design specifications.
  • Surface Inspection: Examine the part’s surface for any imperfections, such as scratches, dents, or uneven finishes that may have occurred during the stretching process.
  • Material Testing: Performing tests to verify the material’s integrity, including its strength and resistance to environmental factors.

This rigorous, step-by-step approach ensures a consistent, high-quality result in sheet metal stretching, turning a flat piece of metal into a complex, intricately shaped component.

Related: Sheet Metal Bending and Forming Guidelines



Conclusion

Understanding the sheet metal stretching process opens the door to a world of engineering possibilities. From the core principles of metal behavior to the meticulous techniques utilized in the process, every aspect of sheet metal stretching is a testament to the marriage of science and craftsmanship. Whether your project requires intricate shapes, fine detailing, or extraordinary strength, sheet metal stretching delivers precision and versatility in one package.

By using services like Prolean’s Sheet Metal Forming Services, you can leverage the remarkable sheet metal stretching process to achieve your project goals. As we look to the future, this process continues to evolve, driven by advances in technology and a better understanding of material science. The stretch, quite literally, is only just beginning.



FAQ’s

1. What is sheet metal stretching?

Sheet metal stretching is a process that deforms a metal sheet by applying force and retaining the new shape. The ductility and plasticity of metal make this possible.

2. What materials are suitable for sheet metal stretching?

The choice of material for sheet metal stretching depends on the desired properties of the final product. However, materials with high ductility, such as aluminum and certain grades of steel, are often used in this process due to their ability to undergo significant deformation without breaking.

3. What are the advantages of sheet metal stretching?

Sheet metal stretching offers precise shaping of parts of various sizes and shapes, enhancing their strength and durability through work-hardening. Its design versatility makes it a popular choice across different industries.

4. What role does force control play in sheet metal stretching?

Force control is critical in the sheet metal stretching process. The applied force must be just right to induce plastic deformation without causing the metal to break. Too much force can lead to over-stretching and breakage, while too little force won’t produce the desired shape.

5. Why is thermal control important in sheet metal stretching?

Thermal control is critical in sheet metal stretching as heat can cause the metal to soften excessively, affecting the final product’s quality. Monitoring and dissipating heat effectively are essential steps in this process.
