How CNC Grooving Boosts Engine Performance and Extends Lifespan?

Published on: 2023-05-23

When it comes to engine parts manufacturing, precision is paramount. One process that significantly contributes to ensuring this precision is CNC Grooving

It’s a crucial, yet often overlooked component of engine part production, particularly for parts like piston rings, which demand exact grooving for optimal performance. This article dives into the remarkable role of CNC Grooving in engine parts manufacturing and how it aids in sealing and lubrication, thereby enhancing an engine’s performance and lifespan.



An Introduction to CNC Grooving

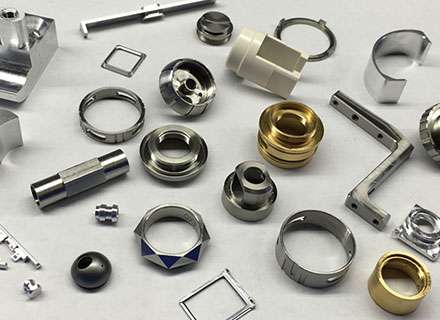

Various engine parts

CNC Grooving is a machining process where a tool creates a recess in a workpiece. In engine parts manufacturing, grooving is especially vital for creating specific designs or profiles on parts like piston rings. These grooves are not merely aesthetic features; they play a critical role in sealing, lubrication, and heat transfer, contributing significantly to the overall efficiency and longevity of an engine.



The Role of Grooving in Engine Parts Manufacturing

1. Precision Manufacturing with CNC Grooving

Accuracy and consistency are paramount in engine parts manufacturing. Every groove on a piston ring, for instance, must be machined to exact specifications for the engine to function correctly. CNC Grooving provides the high level of precision required for such tasks, ensuring consistent quality across all parts produced. The process is controlled by a computer, eliminating the risk of human error and delivering unmatched accuracy and repeatability.

2. Grooving for Piston Rings

The piston ring is a prime example of an engine part that requires precise grooving. These rings have two main functions: sealing the combustion chamber from the crankcase and regulating engine oil consumption. Grooves on the piston and the rings play a vital role in achieving these functions.

3. Sealing the Combustion Chamber

The combustion chamber in an engine is where the magic happens. It’s where fuel and air mix, ignite and produce the power that drives the vehicle. For the combustion process to be efficient, it’s crucial that the chamber is effectively sealed. This is where the grooves on piston rings come in.

The top two rings, also known as compression rings, use the pressure generated during combustion to create a seal, preventing gases from leaking into the crankcase. The precision of the grooves on these rings is critical to their sealing effectiveness.

4. Regulating Engine Oil Consumption

The lower ring, often referred to as the oil ring, plays a critical role in controlling the amount of oil that reaches the combustion chamber. The grooves on the oil ring help distribute the oil evenly around the piston, providing necessary lubrication while also scraping off excess oil to prevent it from entering the combustion chamber.



How CNC Grooving Enhances Sealing and Lubrication?

The creation of precise grooves in engine parts plays a critical role in sealing and lubrication. It’s a complex process that involves the strategic placement of grooves to facilitate optimal performance. Here’s how CNC grooving enhances sealing and lubrication in engine parts manufacturing:

1. Role of Grooves in Sealing

Engine parts, especially piston rings, require tight sealing to ensure efficient combustion. CNC grooving contributes significantly to this aspect in the following ways:

  • Compression Ring Grooving: The compression ring (top ring) is responsible for sealing the combustion chamber from the crankcase, ensuring that the maximum amount of energy from combustion is used to power the engine. CNC grooving creates perfect grooves on these rings, optimizing the seal and improving combustion efficiency.
  • Oil Control Ring Grooving: The oil control ring (bottom ring) helps regulate the amount of oil that reaches the cylinder wall. CNC grooving allows for precise control over the groove profile on this ring, regulating oil distribution effectively and reducing oil consumption.

Here’s a comparison of the groove profiles for compression and oil control rings:

Ring Type Groove Profile Role
Compression Ring Narrow, shallow grooves Optimize sealing of the combustion chamber
Oil Control Ring Wide, deep grooves Regulate oil distribution and consumption

2. Role of Grooves in Lubrication

Besides sealing, grooves play an essential part in lubrication, a key factor for reducing engine wear and extending its lifespan:

Lubrication Channel Creation

Grooves created by CNC machining act as channels for distributing lubricating oil. These channels guide the oil, ensuring it reaches critical areas, reducing friction and wear.

Heat Dissipation

Grooves also aid in heat dissipation, an often overlooked aspect of lubrication. By helping distribute the heat generated during engine operation more evenly, grooves contribute to keeping the engine cool and reducing thermal damage.

Here are the key points to remember about the role of grooves in lubrication:

  • Grooves act as channels for distributing oil, ensuring critical parts are adequately lubricated.
  • They contribute to heat dissipation, helping keep the engine cool and reducing thermal damage.
  • Properly grooved piston rings help control oil film thickness, optimizing lubrication and reducing wear.



Let’s Start A New Project Today

The Impact of CNC Grooving on Engine Performance and Lifespan

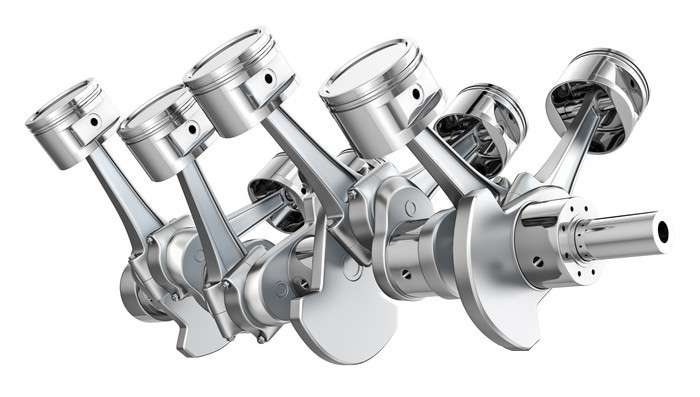

A main part of car-engine

The influence of CNC grooving on engine parts manufacturing extends beyond precision machining. It significantly impacts the performance and lifespan of an engine in several ways:

Improved Engine Efficiency

CNC grooving enhances engine efficiency by improving the sealing of the combustion chamber and the regulation of engine oil. Better sealing leads to more efficient combustion, while precise oil control minimizes oil consumption and optimizes lubrication.

Enhanced Engine Lifespan

Through improved lubrication and reduced wear and tear on engine components, CNC grooving contributes to extending an engine’s lifespan. Precise grooves on piston rings reduce the friction between the piston and the cylinder wall, minimizing wear and tear, and prolonging engine life.

Reduced Maintenance

Engines with parts precisely machined through CNC grooving typically require less maintenance. With optimal sealing and lubrication, these engines are less likely to experience problems like oil leaks or excessive wear, reducing the frequency and cost of maintenance.



CNC Grooving and the Future of Engine Parts Manufacturing

As technologies advance, CNC grooving is set to play an even more critical role in engine parts manufacturing. It’s poised to deliver higher levels of precision and consistency, further improving engine performance and lifespan.

Automation in CNC Grooving

Automation is transforming the landscape of CNC grooving. With automated CNC grooving machines, manufacturers can achieve even higher levels of precision and consistency. These machines also increase production speed and efficiency, making them an excellent choice for high-volume engine parts manufacturing.

CNC Grooving and Industry 4.0

Industry 4.0 technologies like the Internet of Things (IoT) and artificial intelligence (AI) are set to further revolutionize CNC grooving. IoT devices can monitor CNC grooving machines in real time, providing valuable data that can be used to optimize the process. Meanwhile, AI can analyze this data to predict and prevent potential issues, further enhancing precision and reliability.

CNC Grooving Service

CNC Grooving Services at Prolean

At Prolean, we understand the crucial role of CNC grooving in engine parts manufacturing. Our cutting-edge CNC grooving machines, combined with our skilled technicians, deliver precision-engineered engine parts that enhance performance and prolong engine life.

We continually evolve our CNC grooving services to meet the dynamic demands of our customers. By increasingly incorporating state-of-the-art innovations and AI technology into our operations, we can deliver precision-engineered components with unmatched accuracy and consistency.

Our team is not just trained in traditional CNC grooving methods, but they are also well-versed in the latest AI-driven machining processes. This fusion of skills and technology enhances our ability to deliver complex grooving projects with remarkable efficiency. We are capable of creating intricate designs and patterns, meeting stringent industry standards across diverse sectors.



Conclusion

CNC Grooving is a silent hero in the manufacturing of engine parts. From creating piston rings with precision grooves that enhance sealing and lubrication to contributing to the overall performance and lifespan of an engine, the importance of CNC grooving cannot be overstated. As technology advances, we anticipate CNC grooving playing an even more pivotal role in manufacturing high-performance, long-lasting engine parts.



FAQs

1. What is CNC Grooving?

CNC Grooving is a machining process where a tool creates a recess in a workpiece. It’s especially vital in engine parts manufacturing, where it’s used to create specific designs or profiles on parts like piston rings.

2. How does CNC Grooving impact engine performance?

CNC Grooving enhances engine performance by improving the sealing of the combustion chamber and the regulation of engine oil. Better sealing leads to more efficient combustion, while precise oil control minimizes oil consumption and optimizes lubrication.

3. How does CNC Grooving enhance the lifespan of an engine?

Through improved lubrication and reduced wear and tear on engine components, CNC Grooving contributes to extending an engine’s lifespan. Precise grooves on piston rings reduce the friction between the piston and the cylinder wall, minimizing wear and tear, and prolonging engine life.

4. What role does CNC Grooving play in the future of engine parts manufacturing?

As technologies advance, CNC Grooving is set to play an even more critical role in engine parts manufacturing. It’s poised to deliver higher levels of precision and consistency, further improving engine performance and lifespan. Industry 4.0 technologies like IoT and AI are set to further revolutionize CNC Grooving.
