ABS Injection Molding: The Complete Guide to Achieving Perfect Plastic Products
Acrylonitrile Butadiene Styrene (ABS) is not just another thermoplastic polymer; it’s an innovation driver in the manufacturing world. The versatility and durability of ABS have made it a staple material in various industries. Among several methods to shape and use ABS, injection molding stands out as a leading technique, transforming how products are designed and manufactured. Whether it’s the child’s toy that withstands countless hours of play or the robust components in machines and vehicles, ABS injection molding plays a pivotal role.
This article takes you on a journey through the intricacies of ABS as a material and unravels the sophisticated process of molding it into functional and aesthetic products.
What is ABS Injection Molding?
ABS injection molding is more than just a manufacturing technique; it’s an art and science combined that shapes the modern product landscape. But to truly appreciate the process, we first need to delve into the properties of ABS and why it’s such a sought-after material in the industry.
ABS: A Material Par Excellence
ABS is a copolymer, which means it’s a product of three different materials: Acrylonitrile, Butadiene, and Styrene. Each of these contributes distinct properties:
- Acrylonitrile: Provides chemical resistance and hardness.
- Butadiene: Adds toughness and strength, especially at low temperatures.
- Styrene: Gives the plastic a smooth finish and makes it easy to manufacture.
Table: Key Properties of ABS
Property | Value |
---|---|
Density | 1.04 g/cm^3 |
Melting Point | 200°C – 240°C |
Tensile Strength | 40 MPa |
Flexural Modulus | 2.2 GPa |
These properties make ABS a popular choice for numerous applications, from automotive components to consumer electronics.
Delving Into the Injection Molding Process

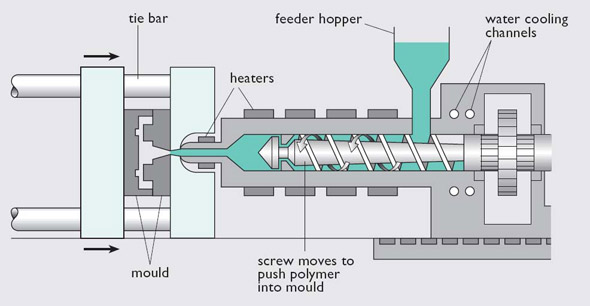

Schematic diagram of ABS injection molding
ABS injection molding is a method that transforms granulated ABS into a plethora of products. It might seem straightforward, but the process is a culmination of precise steps and considerations.
1. The Science Behind the Process
Temperature control is crucial in ABS injection molding. ABS has a specific melting point, usually between 200°C and 240°C. Ensuring the temperature stays within this range guarantees the optimal flow and molding of the material.
Additionally, pressure plays a pivotal role. Insufficient pressure might leave voids in the molded product, whereas excessive pressure could damage the mold. It’s a delicate balance, reliant on the design of the product and the specifications of the ABS being used.
2. The Role of Molds
The mold used in the injection molding process isn’t just a shell; it’s a precision-engineered tool. Designed often using CAD software, it ensures the final product’s accuracy. Depending on the complexity, a single mold can cost anywhere from a few thousand to several tens of thousands of dollars.

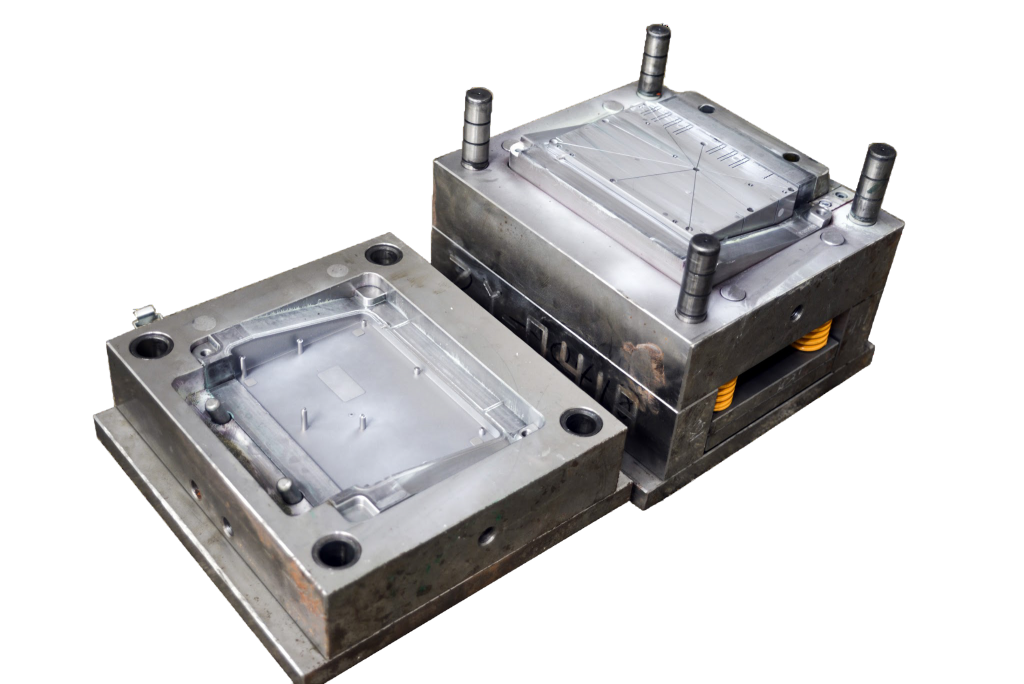

Plastic injection mold
The steps involved in ABS injection molding involves;
- Preparation of Material: ABS granules, typically in the form of small beads, are first dried. This step ensures that there’s no moisture content, which can adversely affect the molding process.
- Melting: The granules are then fed into the injection molding machine, where they are subjected to high temperatures. They melt into a viscous liquid, ready for molding.
- Injection: This melted ABS is injected into a pre-designed mold under significant pressure. The pressure ensures the material fills every nook and cranny of the mold, capturing intricate details.
- Cooling: Once inside the mold, the ABS begins to cool. During this cooling phase, it solidifies, taking the shape of the mold.
- Ejection: After sufficient cooling, the newly molded ABS product is ejected from the machine, often with the aid of pins.
Advantages of ABS Injection Molding
Acrylonitrile Butadiene Styrene, commonly known as ABS, stands tall amidst the vast expanse of materials available for injection molding. Its undeniable benefits, combined with the efficiency of the injection molding process, lead to results that are unparalleled in the world of manufacturing.
Let’s delve deeper into the salient advantages of ABS injection molding and understand the significance it holds in modern manufacturing.
1. A Pinnacle of Material Properties
ABS, as a material, is endowed with a unique combination of properties that position it as a favorite among manufacturers and engineers. Here are some of its intrinsic benefits:
Table: Values of Various ABS properties
Property | Value |
---|---|
Strength and Durability | ABS is inherently strong and can withstand considerable wear and tear. When molded using the injection molding process, the products exhibit increased resilience, making them suitable for applications that require longevity. |
Thermal Stability | ABS possesses a high melting point, which ensures that products made from it don’t deform easily under high temperatures. |
Chemical Resistance | The presence of Acrylonitrile in ABS grants it resistance against various chemicals. This characteristic is particularly beneficial for products that may come in contact with corrosive substances or need to be chemically bonded. |
Flexibility and Impact Resistance | Thanks to Butadiene, ABS showcases a good degree of flexibility, making it less prone to cracking under pressure or upon impact. |
2. Superior Finish and Aesthetics
When a product not only needs to function well but also look good, ABS injection molding is often the method of choice:. ABS, once molded, provides a smooth surface finish, often negating the need for any post-processing or polishing.
Superior finish of injection molded ABS part
Unlike some materials that require painting or secondary procedures for coloring, ABS can be compounded with colorants before the molding process. This results in uniform color distribution and a high-quality finish.
3. Cost-effectiveness in Production
The financial aspect is a major determinant in any manufacturing decision. Here, ABS injection molding showcases its efficiency:
- Reduced Waste: The injection molding process is precise, resulting in minimal waste of material. Furthermore, any leftover or rejected ABS can be recycled, further enhancing its economic viability.
- Efficient Production Cycles: ABS’s properties, combined with the streamlined process of injection molding, result in quick production cycles. This means that large quantities can be produced in relatively shorter time spans, meeting market demands promptly.
4. Versatility in Design and Application
The adaptability of ABS in the molding process is another feather in its cap. The nature of the injection molding process allows for intricate designs and detailed features to be incorporated into the product. Whether it’s a detailed logo or a complex internal structure, ABS injection molding can achieve it with precision.
Furthermore, from automotive components, and consumer electronics, to toys, the applications of ABS injection molded parts are vast and varied.
5. Environmental and Safety Considerations
In today’s world, environmental concerns are paramount, and ABS doesn’t disappoint. ABS injection molding emits fewer volatile organic compounds (VOCs) compared to other processes and materials. Additionally, ABS can be recycled. This characteristic not only aids in reducing waste but also promotes a circular economy.
What Are the Applications of ABS Injection Molding?
Acrylonitrile Butadiene Styrene (ABS) is renowned for its distinctive blend of toughness, rigidity, and aesthetic appeal. Its unique combination of properties has paved the way for ABS to be a preferred material in a multitude of industries, each leveraging the advantages of ABS injection molding to produce a range of products.
Let’s explore the wide-reaching applications of this versatile process.
Automotive and Transportation
The automotive sector has long recognized the potential of ABS injection molding. The material’s inherent toughness, coupled with its ability to resist high temperatures and impacts, make it invaluable for this industry.
Automotive application of ABS injection molding
ABS is utilized to mold interior parts like dashboards, which require a fine balance between aesthetics and functionality. Also, the high impact resistance of ABS ensures that car bumpers and panels can withstand minor collisions without detrimental damage.
Lastly, the ability to mold ABS with precision means that intricate components, such as light casings, can be produced to fit seamlessly with other car parts.
Medical Equipment and Devices
In the critical domain of healthcare, materials must adhere to strict standards. ABS, being reliable and safe, finds several applications in this sector. Devices such as blood pressure monitors or respiratory equipment benefit from the durability and sterilizability of ABS. Also, it provides a comfortable grip combined with strength, attributes that are crucial for surgical instruments.
Consumer Electronics
Custom electronic enclosure created with ABS injection welding
The modern-day reliance on electronic devices has created a significant demand for durable and aesthetically pleasing components. ABS injection molding emerges as a prime candidate for this role.
- Mobile Phone Housings**:** The sleek designs and robust nature of many phone cases owe their quality to ABS molding, ensuring protection and style.
- Television Frames**:** TVs require sturdy frames that can support the screen and house internal components. ABS, with its strength and smooth finish, is an ideal choice.
Household and Everyday Items
In our homes and daily lives, many items are results of ABS injection molding, often going unnoticed but playing essential roles. From mixer grinder bodies to the durable parts of a refrigerator, ABS proves its mettle by providing long-lasting components that can endure daily wear and tear.
Many children’s toys, especially those requiring structural integrity, are made from ABS. Its non-toxic nature and resistance to breakage make it suitable for this purpose.
Sports Equipment
The world of sports requires equipment that can withstand high stress and repeated use. ABS’s strength and resilience come into play here.
- Protective Gear: Helmets, guards, and other protective equipment often incorporate ABS to ensure athletes’ safety.
- Sporting Goods: Items such as rackets or bat handles, which need to endure forceful impacts, are enhanced with ABS components for longevity.
The ABS Injection Molding Process Step-by-Step
ABS (Acrylonitrile Butadiene Styrene) is a widely used thermoplastic in the injection molding world, primarily due to its easy mold-ability, strength, and resilience. Let’s embark on a step-by-step journey to elucidate this intricate procedure thought a detailed table.

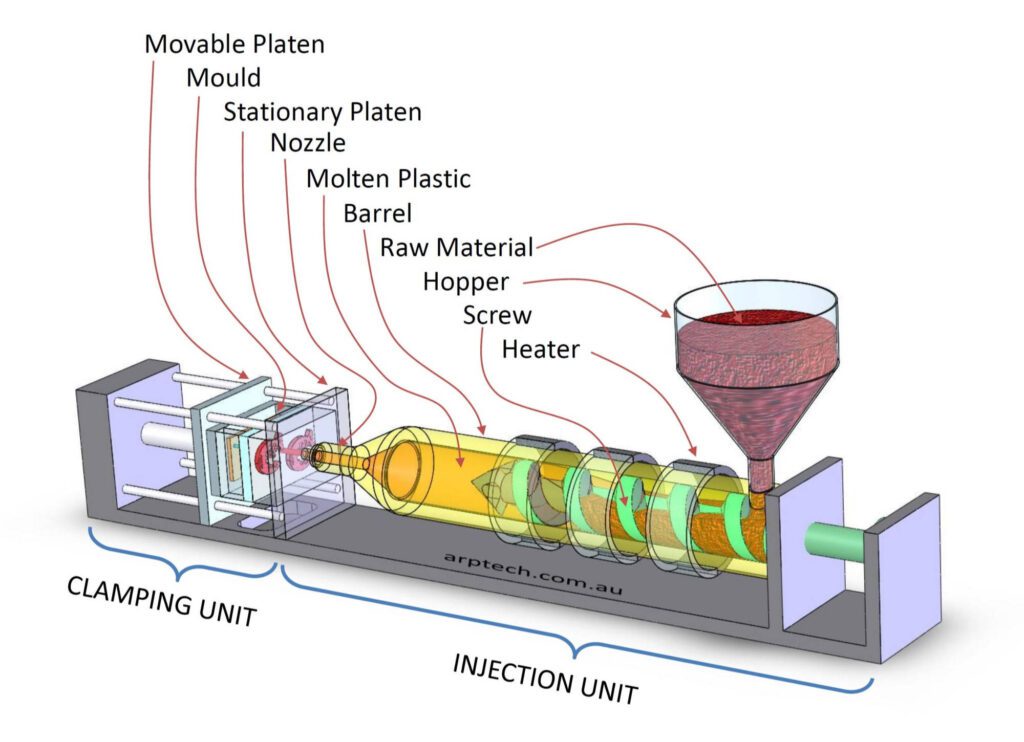

Injection molding process
The table below illustrates a structured overview of the entire ABS Injection Molding Process from material preparation to recycling and waste management.
Table: Comprehensive Overview of the ABS Injection Molding Process
Step | Action | Description | Additional Information |
---|---|---|---|
Material Preparation | Drying | ABS pellets are dried to reduce moisture. | Typically at 80-90°C for 2-4 hours |
Coloring | Addition of colorants or masterbatches to ABS pellets. | Specific proportions as needed | |
Feeding the Machine | Loading | Dried ABS pellets are loaded into the machine’s hopper. | – |
Gravity Assistance | Gravity funnels pellets into the heated barrel. | – | |
Melting the ABS | Heating | ABS pellets are melted in the barrel. | Via heaters that progressively raise the temperature |
Homogenizing | Ensuring consistency of the molten ABS. | In terms of temperature and viscosity | |
Injecting the Mold | Closing | The mold is securely closed. | Typically made of steel or aluminum |
Injecting | Molten ABS is injected into mold cavities. | Using hydraulic or mechanical pressure | |
Holding and Cooling | ABS solidifies inside the mold. | Accelerated by the mold’s water-cooling system | |
Key Parameters | Injection Pressure | Pressure when injecting ABS. | 50-100 MPa |
Injection Speed | Rate of material injection. | 50-100 mm/s | |
Mold Temperature | Temperature inside the mold. | 20-70°C | |
Ejecting the Component | Mold Opening | The mold’s two halves are opened. | Post adequate solidification of the part |
Ejection | The molded ABS part is ejected. | Via ejector pins built into the mold | |
Quality Check and Post-Processing | Inspection | Molded parts are checked for defects. | E.g., warping, sink marks, cosmetic flaws |
Trimming and Cleaning | Removal of excess material and cleaning. | Flash and residue, respectively | |
Secondary Operations | Additional operations on some parts. | E.g., painting, assembling, machining | |
Recycling and Waste Management | Regrinding | Waste ABS or rejected parts are reused. | Ground down for reuse |
Mixing with Virgin Material | Reground ABS mixed with fresh ABS pellets. | For certain non-critical applications |
ABS Plastic Molding vs. Other Methods
When it comes to manufacturing plastic components, there are several methods available. One of the most common techniques is ABS injection molding, which, as we’ve explored, is the process of creating parts by injecting molten ABS plastic into a mold. However, there are other methods to consider when determining the best approach for producing a plastic component.
Blow Molding
Another prevalent method in the plastic production industry is blow molding. It involves inflating a hot, hollow tube of melted plastic material into the inside of a closed mold. As the material cools, it solidifies and takes the shape of the mold.
Blow molding is exceptionally suited for creating hollow objects like bottles. It also allows for a consistent wall thickness, which can be beneficial for certain applications. However, this method might not achieve the same level of detail or precision as injection molding, especially for intricate or complex parts.
Rotational Molding
Rotational molding involves placing a certain amount of plastic in a mold, which is then rotated around two perpendicular axes. Heat is applied, melting the resin, which covers the internal surface of the mold, creating the desired shape.
This method is excellent for producing large, hollow objects. It’s cost-effective for low-volume productions and offers uniform wall thickness without thinning in material. Although, it might not be as efficient for high-volume production as ABS injection molding. Also, cycle times are generally longer.
Compression Molding
Compression molding entails placing a pre-measured amount of plastic material in a heated mold. The mold is then closed with a top plug and compressed to shape the material inside. This method can produce large, fairly intricate parts. It’s also suitable for high-tolerance, high-volume jobs.
The initial setup costs for molds can be high, which makes it less ideal for short runs. Additionally, it might not achieve the same level of fine detail as ABS injection molding.
Table: Comparison of Plastic Molding Methods
Molding Method | Best Suited For | Primary Advantage | Main Limitation |
---|---|---|---|
ABS Injection Molding | Detailed parts, high-volume production | Precision & efficiency | Initial mold setup cost |
Blow Molding | Hollow objects like bottles | Consistent wall thickness | Limited detail capability |
Rotational Molding | Large hollow objects | Cost-effective for low volume | Longer cycle times |
Compression Molding | Large intricate parts | High-tolerance jobs | High setup costs for molds |
ABS Plastic Welding | Repairing ABS parts | Strong joint strength | Operator-dependent |
Potential Challenges in ABS Injection Molding
ABS injection molding, while an incredibly versatile and reliable process, isn’t without its challenges. As manufacturers aim to produce high-quality parts efficiently, they must be aware of potential issues that can arise and affect the final product. Addressing these challenges requires an in-depth understanding of the process, the material, and the design intricacies.
Let’s discuss the key potential challenges in ABS injection welding;
1. Warping
One of the most common issues in ABS injection molding is warping, where the final molded product distorts from its intended shape. This generally happens when different parts of the product cool at different rates, leading to internal stresses that deform the product.
Causes:
- Uneven cooling, which can result from poor mold design or improper cooling system setup.
- Excessive injection speeds or high mold temperatures.
2. Sink Marks
Sink marks are depressions or dimples that appear on the finished product’s surface. They usually occur when the surface cools faster than the inner sections, causing the internal material to contract and pull the surface inwards.
Causes:
- Thick sections in the design, which take longer to cool.
- Insufficient pressure during the holding phase.
3. Short Shots
Short shots happen when the molten ABS doesn’t fill the entire mold cavity, leading to incomplete parts.
Causes:
- Insufficient material fed into the machine.
- Blocked or restricted mold gates.
- Inadequate injection pressure or speed.
4. Burn Marks
These are discolorations, often dark or rust-colored, appearing on the surface of the molded part. They can result from trapped air getting heated to the point of burning or from the material itself degrading due to excessive heat.
Causes:
- Excessively high melt temperatures.
- Slow injection speeds, causing prolonged exposure to heat.
- Inadequate venting, leading to trapped air.
5. Jetting
Jetting refers to a wavy pattern of lines that appears on the molded part’s surface. This occurs when the molten ABS doesn’t smoothly follow the mold’s contours, instead jetting through the mold in streams.
Causes:
- Misaligned or improperly designed gate locations.
- Too high injection speeds.
6. Delamination
Delamination is the appearance of flaky layers on the product’s surface. It indicates that the material hasn’t bonded correctly.
Causes:
- Contaminated material, often due to the presence of foreign particles or moisture.
- Incompatible materials mixed in the mold.
7. Flash
Flash is the presence of thin, unwanted excess material on the finished product’s edges. This usually results from material seeping into spaces between the mold’s parts.
Causes:
- Worn or damaged mold parts.
- Excessive injection pressure causing material to force its way into unintended areas.
Table: Common Challenges, Causes, and Solutions in ABS Injection Molding
Challenge | Primary Causes | Potential Solutions |
---|---|---|
Warping | Uneven cooling, Excessive injection speeds | Redesign mold for even cooling, Adjust injection settings |
Sink Marks | Thick design sections, Insufficient holding pressure | Redesign for uniform thickness, Adjust holding pressure |
Short Shots | Insufficient material, Blocked mold gates | Check material feed, Clean and maintain mold |
Burn Marks | High melt temperatures, Trapped air | Adjust temperature settings, Improve venting |
Jetting | Misaligned gates, High injection speeds | Redesign gate locations, Adjust injection speed |
Delamination | Contaminated material, Mixed materials | Ensure material purity, Avoid mixing incompatible materials |
Flash | Worn mold, High injection pressure | Repair or replace mold, Adjust injection pressure |
Conclusion
The realm of ABS injection molding is vast, encompassing intricate processes, diverse applications, and the potential to overcome various challenges. As with any manufacturing technique, its efficiency and output quality depend on the precise balance of material properties, machine settings, mold design, and operator expertise. ABS, given its favorable properties, remains a top choice for numerous industries, from automotive to consumer electronics. While the process has its set of challenges, they are surmountable with the right knowledge and approach. Continuous research, technological advancements, and training will only enhance the ABS injection molding process’s capabilities, paving the way for more innovative and high-quality products in the future.
FAQs
Why is ABS a popular choice for injection molding?
ABS combines the strength of acrylonitrile, the toughness of butadiene, and the ease of processing of styrene, making it a favored material for various applications due to its balanced properties.
Can ABS be recycled after injection molding?
Yes, ABS is recyclable. Waste ABS material or rejected parts can be ground down and reused, often mixed with fresh ABS pellets for non-critical applications.
What are the common defects in ABS injection molding?
Common defects include warping, sink marks, short shots, burn marks, jetting, delamination, and flash. Each of these defects has its own set of causes and solutions.
How can I minimize defects in the ABS injection molding process?
To minimize defects in the ABS injection molding process, ensure that the mold design is optimal, maintain consistent machine settings, use high-quality materials, and regularly inspect and clean the mold. By following these steps, the occurrence of defects can be significantly reduced.
Does the color of ABS affect the molding process?
Coloring agents or masterbatches can be added to ABS to achieve desired colors. While the fundamental molding process remains the same, the presence of colorants may require slight adjustments in processing temperatures or times to ensure consistent color and properties.
Is ABS injection molding suitable for high-volume production?
Absolutely. ABS injection molding is highly scalable and is often used for mass production due to its fast cycle times and the ability to produce complex parts with consistent quality.
