A Look at the Precision and Accuracy of EDM

Published on: 2023-06-01

In the realm of manufacturing, precision, and accuracy are paramount. Achieving tight tolerances and exceptional accuracy is crucial for various industries and applications. One technology that has revolutionized precision machining is Electrical Discharge Machining (EDM). EDM offers unparalleled precision, making it a preferred choice for intricate and delicate components.

This guide explains EDM precision and accuracy, covering tolerance concepts, manufacturing intricacies, and factors affecting precision. It also compares EDM to traditional machining and provides tips for achieving accuracy.


The Concept of EDM Tolerances

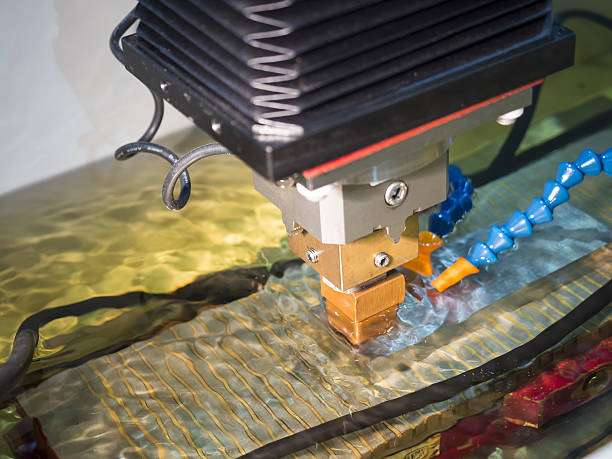

the operator uses copper EDM electrodes to make precision mold and die

EDM process

EDM tolerances play a crucial role in determining the level of precision and accuracy that can be achieved in electrical discharge machining. Tolerances refer to the acceptable deviation from the desired dimensions or specifications of a machined part. In EDM, tight tolerances are often required to meet the stringent requirements of various industries such as aerospace, medical, and electronics. Here’s an in-depth exploration of the concept of EDM tolerances:

  • Tolerance represents the allowable variation in dimensions, including size, shape, and position, of a machined part.
  • In EDM, tolerances are expressed in units of length, such as millimeters or inches, and indicate the permissible deviation from the intended design dimensions.

Commonly Achievable EDM Tolerances

The achievable tolerances in EDM vary depending on several factors, including the complexity of the part, material properties, and process optimization. While EDM is known for its ability to achieve tight tolerances, it is essential to consider practical limitations. Here are some commonly achievable EDM tolerances:

Type of Tolerance Achievable Tolerance Range
Linear ±0.005mm to ±0.025mm (±0.0002″ to ±0.001″), depending on the part geometry and material characteristics
Geometric (e.g. concentricity, parallelism, angularity) ±0.05mm to ±0.1mm (±0.002″ to ±0.004″)
Surface Finish Ra 0.2µm to Ra 1.6µm (8µin to 64µin), depending on the machining parameters, electrode selection, and material properties


Factors Affecting EDM Precision

Achieving high precision in Electrical Discharge Machining (EDM) relies on various factors that influence the machining process. Understanding and controlling these factors are crucial for obtaining accurate and precise results. Here are the key factors that affect EDM precision:

  1. Machine Stability and Rigidity: The stability and rigidity of the EDM machine directly impact precision. A robust and well-maintained machine minimizes vibrations and ensures consistent and accurate electrode positioning.
  2. Electrode Selection and Wear: The choice of electrode material, size, and wear rate affects EDM precision. Selecting appropriate electrodes and monitoring their wear is essential to maintain consistent material removal and dimensional accuracy.
  3. Dielectric Fluid Characteristics: Dielectric fluid properties, such as dielectric strength, viscosity, and flushing capability, influence EDM precision. Proper dielectric fluid selection and maintenance are crucial for efficient material removal and surface finish.
  4. Electrical Discharge Parameters: Parameters like pulse duration, current, voltage, and gap distance significantly impact EDM precision. Fine-tuning these parameters based on the workpiece material and desired surface finish is essential to achieve optimal precision.
  5. Workpiece Material Properties: Material properties, such as hardness, electrical conductivity, and thermal conductivity, affect EDM precision. Understanding the characteristics of the workpiece material helps in determining appropriate machining parameters for achieving precise results.
  6. Workpiece Fixturing and Alignment: Proper workpiece fixturing and alignment are essential for maintaining accuracy throughout the EDM process. Securing the workpiece in a stable position and aligning it correctly ensures consistent and precise machining.


EDM Precision vs. Traditional Machining Methods

EDM offers unique advantages over traditional machining methods when it comes to precision. Here’s a comparison highlighting the distinctive aspects of EDM precision:

Advantages of EDM over Traditional Machining Methods Explanation
Complex Geometries EDM excels at machining intricate and complex shapes, including small internal features, sharp corners, and fine details. Traditional machining methods often struggle to replicate such intricate geometries accurately.
Tight Tolerances EDM can achieve tight tolerances, typically within the range of ±0.005 to ±0.0001 inches (0.127 to 0.00254 mm), or even tighter in some cases. Traditional machining methods may require additional finishing operations to attain similar precision.
Hard Materials EDM is effective in machining hard materials, including hardened steels, carbides, and exotic alloys. Traditional machining methods, especially those involving cutting tools, may encounter difficulties or excessive tool wear when working with such materials.
Delicate or Fragile Materials EDM’s non-contact machining process makes it suitable for delicate or fragile materials prone to distortion or damage. Traditional machining methods, which involve physical contact with the workpiece, can pose risks to delicate materials.
Surface Finish EDM can achieve exceptional surface finishes, especially when using fine-finish electrodes or employing advanced surface finishing techniques. Traditional machining methods may require additional steps, such as grinding or polishing, to achieve comparable surface finishes.
Tool Wear EDM does not rely on cutting tools, which reduces the wear and tear associated with traditional machining methods. This leads to consistent accuracy and precision over extended machining operations.


What Are the Factors Affecting EDM Tolerances?

Several factors influence the achievable tolerances in EDM. Manufacturers must consider these factors to optimize the machining process and ensure precise results:

  • Material properties: The material being machined affects the achievable tolerances in EDM. Factors such as material hardness, thermal conductivity, and melting point impact the machining characteristics and ultimately influence the achievable precision.
  • Electrode wear: As the EDM process involves the erosion of both the workpiece and the electrode, electrode wear can affect tolerances. As the electrode wears down, its shape and dimensions change, potentially impacting the accuracy of subsequent machining operations.
  • Machine capabilities: The capabilities of the EDM machine, including its control systems, stability, and positioning accuracy, play a significant role in achieving tight tolerances. Machines with higher precision and advanced features can offer greater control and accuracy during the machining process.
  • Process parameters: Various process parameters, such as discharge energy, pulse duration, and gap distance, directly affect the material removal rate and precision in EDM. Optimizing these parameters based on the specific requirements of the part and the desired tolerances is crucial for achieving precise results.


Let’s Start A New Project Today

Tips for Achieving Unparalleled Accuracy in EDM

Achieving unparalleled accuracy in Electrical Discharge Machining (EDM) requires attention to detail and optimization of various factors. Here are some valuable tips to enhance precision and accuracy in EDM:

  1. Careful Electrode Selection: Choose the right electrode material, size, and shape based on the workpiece material and desired features. Consider factors like wear rate, flushing capabilities, and electrode geometry to ensure precise material removal.
  2. Optimize Electrical Discharge Parameters: Fine-tune pulse duration, current, voltage, and gap distance to achieve the desired material removal rate and surface finish. Experiment with different parameter settings to find the optimal combination for precise EDM machining.
  3. Control Dielectric Fluid Properties: Ensure the dielectric fluid’s quality and characteristics are well-maintained. Monitor and maintain appropriate dielectric fluid levels, temperature, and filtration to optimize flushing capabilities and prevent variations in machining performance.
  4. Maintain Machine Stability: Regularly inspect and maintain the EDM machine to ensure stability and rigidity. Minimize vibrations and ensure proper alignment of components to eliminate any sources of error that may affect accuracy.
  5. Workpiece Fixturing and Alignment: Secure the workpiece properly using reliable fixturing techniques. Pay attention to alignment to ensure accurate machining and avoid distortion or misalignment during the EDM process.
  6. Continuous Monitoring and Quality Control: Implement real-time monitoring systems to track key parameters like electrode wear, machining speed, and surface finish. Regularly inspect and measure machined features to ensure adherence to tolerances and quality standards.
  7. Advanced CAD/CAM Software: Utilize advanced computer-aided design (CAD) and computer-aided manufacturing (CAM) software to optimize tool paths, simulate machining processes, and generate precise EDM programs. This ensures accuracy in the design and execution of EDM operations.



The EDM manufacturing process offers precise and accurate machining capabilities, making it an invaluable technology in various industries. By following the key steps, utilizing appropriate equipment, and considering material compatibility and process optimization, you can achieve high levels of precision and quality in your EDM-manufactured parts.

At ProleanTech, we understand the importance of precision and accuracy in EDM machining. Our EDM services are designed to deliver exceptional results with uncompromising accuracy.



How long does the EDM manufacturing process typically take?

The duration of the EDM process depends on various factors, including the complexity of the part, desired tolerances, material properties, and EDM machine capabilities. Simple parts with standard tolerances may take minutes, while intricate components with tight tolerances can take several hours or more.

Can EDM be used for both conductive and non-conductive materials?

EDM is primarily suitable for conductive materials, such as metals and alloys, due to its reliance on electrical discharges. However, there are variations of EDM, such as Electrochemical Machining (ECM), that can be used for non-conductive materials like ceramics or composites.

What are the advantages of EDM over traditional machining methods?

EDM offers several advantages over traditional machining methods, including the ability to machine complex geometries, achieve tight tolerances, work with hard materials, and minimize tool wear. EDM also avoids the need for cutting tools, reducing the risk of tool breakage and enabling machining of delicate or intricate parts.

Is EDM suitable for large-scale production?

EDM is suitable for both prototyping and large-scale production. While EDM may be slower than some traditional machining methods, it offers excellent accuracy and consistency, making it a viable option for high-precision production requirements. The use of advanced EDM machines and automation further enhances the efficiency and productivity of the process.

How can I ensure the quality of EDM-manufactured parts?

Collaborating with experienced EDM specialists like ProleanTech is crucial for ensuring the quality of EDM-manufactured parts. They have the expertise, advanced equipment, and quality control processes to optimize the manufacturing process and deliver parts that meet desired specifications and tolerances.
