The Role of CNC Grooving in High-Precision Bearing Race Production

Published on: 2023-05-23

The use of CNC grooving in manufacturing has revolutionized industries worldwide, introducing unprecedented levels of precision and efficiency. One specific application where CNC grooving shines is in the manufacturing of bearing races. These integral components demand a high degree of accuracy and uniformity that CNC grooving readily provides.

This article delves into the role of CNC grooving in bearing races manufacturing, and its benefits.

Related: Industry Applications: CNC Grooving for Oil and Gas Industry



The Significance of Bearing Races

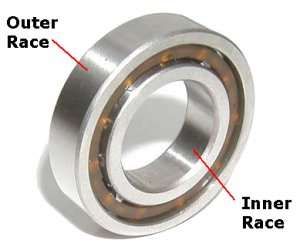

Bearing races, also known as raceways or inner and outer races, are the rings in which ball or roller bearings ride. They are essentially the heart of a bearing, providing a smooth and hardened surface that allows the bearings to move with minimal friction.

Bearing races form a crucial part of numerous mechanical systems, including automotive, aerospace, industrial machinery, and more. Serving as the tracks on which the rolling elements move, bearing races play a pivotal role in ensuring the smooth operation and efficiency of these systems.

Role in Different Mechanical Systems

Bearing races are found in a wide array of mechanical systems. Here are a few notable examples:

Industry Role of Bearing Races
Automotive Enables smooth rotation of wheel hubs, transmission, and engine parts
Aerospace Essential for efficient operation of aircraft engines, landing gear, and other rotating parts
Industrial Machinery Ensures smooth operation of various machinery, reducing wear and tear

Given the crucial role that bearing races play in various mechanical systems, the need for precision in their manufacturing is paramount.

  1. Performance: The performance of a bearing largely depends on the accuracy and finish of the bearing races. Precision-made races ensure smooth movement of the rolling elements, reducing friction and enhancing overall bearing performance.
  2. Lifespan: Accurate and high-quality bearing races can significantly extend the lifespan of a bearing. They help to distribute the load evenly, reducing localized stress and wear.
  3. Safety: In many applications, such as in the automotive and aerospace industries, the safety of the entire system can depend on the precision of the bearing races. Any inaccuracies can lead to bearing failure, which can have catastrophic consequences.

CNC Machining for Automotive Industry: Applications and Advantages

The Role of CNC Grooving

CNC grooving is a machining process where a single-point tool removes material from the surface of a part to create precise grooves. This method can produce grooves of varying widths and depths with high accuracy. In the context of bearing races, CNC grooving is used to create the raceways that the bearings ride on.

CNC grooving plays an indispensable role in the manufacturing of bearing races. Thanks to its precision, efficiency, and versatility, it has become the preferred choice for many manufacturers. The following points describe the roles of CNC grooving in bearing race manufacturing.

1. Precision and Consistency

One of the primary reasons CNC grooving is chosen for bearing races manufacturing is its precision and consistency. The process can produce grooves with tight tolerances, ensuring the raceways are of the right size and finish. This precision contributes to the overall performance and lifespan of the bearing.

Here’s a summary of the benefits of CNC grooving in terms of precision and consistency:

  • High dimensional accuracy: CNC grooving can achieve tolerances as tight as ±0.001 inches, ensuring the raceways are of the right size.
  • Consistent quality: The automated nature of CNC machining ensures that every part produced is virtually identical, minimizing variability.
  • Superior surface finish: CNC grooving can produce surfaces with a high degree of smoothness, reducing friction in the bearing.

2. Efficiency and Flexibility

Another advantage of CNC grooving is its efficiency and flexibility. Unlike traditional machining methods, CNC grooving can produce complex shapes and patterns quickly and without the need for manual intervention. This makes it ideal for producing bearing races, which often require complex geometries.

Here’s a look at the benefits of CNC grooving in terms of efficiency and flexibility:

  • Fast production: CNC grooving can produce grooves quickly, helping to increase the overall production speed.
  • Flexibility: The process can create a wide range of groove shapes and sizes, making it suitable for a variety of bearing types.
  • Automation: CNC machines can operate autonomously, reducing labor costs and improving productivity.



Let’s Start A New Project Today

Steps of creating Bearing Races

Bearing races are created using CNC Grooving through the following machining process:

  1. Material Selection: The first step involves selecting the appropriate material for the bearing race, usually high-quality steel or other alloys, depending on the bearing’s intended application.
  2. Initial Machining: The selected material is then subjected to primary machining processes, like turning and milling, to create a rough shape of the bearing race. The CNC machine follows programmed instructions to accurately shape the material.
  3. CNC Grooving: Once the basic shape of the race is created, CNC Grooving comes into play. A single-point tool is used to carve out grooves from the surface of the part. The machine follows a specific set of coordinates to ensure that the grooves are of the correct depth and width.
  4. Checking Tolerances: After grooving, the part is checked for tolerances. The precision of CNC grooving ensures that the grooves are within the specified range, often as tight as ±0.001 inches.



Performance of CNC Grooving

The precision and consistency of CNC grooving directly impact the functioning of bearing races, and therefore, the overall bearing performance.

Grooves in bearing races serve as tracks for the rolling elements (balls or rollers) of the bearing. The shape, size, and surface finish of these grooves directly affect the performance of the bearing in the following ways:

  • Friction: The smoothness of the grooves reduces friction between the rolling elements and the race, enabling smoother rotation and reducing heat generation.
  • Noise and Vibration: Precise and uniform grooves can reduce noise and vibration during bearing operation, leading to quieter operation.
  • Bearing Lifespan: Accurately machined grooves can distribute the load evenly across the bearing, reducing undue stress on any one point and increasing the bearing’s lifespan.

Precision and  Performance

CNC grooving’s precision directly impacts bearing performance. Here is a breakdown of how the accuracy of CNC grooving contributes to enhanced bearing performance:

Benefit Description
Dimensional Accuracy The ability of CNC grooving to achieve tight tolerances ensures that the grooves are of the correct width and depth, allowing the bearing to function as intended.
Surface Finish CNC grooving can achieve a high-quality surface finish, reducing friction between the rolling elements and the raceways, which can enhance bearing efficiency.
Consistency The consistency of CNC grooving ensures that every bearing race produced is identical, leading to predictable and reliable bearing performance.



Prolean’s CNC Grooving Services

ProleanTech is a leader in the machining industry, using CNC grooving to enhance bearing performance. Our CNC grooving service process delivers bearing races with perfect grooves, resulting in more efficient bearings. By reducing friction and noise while enhancing load distribution, ProleanTech’s CNC grooved bearings are designed to last longer and operate more smoothly, setting new industry standards in high-performance bearings. Our advanced CNC grooving technology ensures impeccable surface finish and dimensional accuracy within tight tolerances, resulting in identical bearing races.

CNC Grooving Service

Conclusion

In conclusion, the use of CNC grooving in bearing races manufacturing has brought about a new era of high-precision and high-performance bearings. CNC grooving ensures that bearing races are produced with exceptional accuracy and surface finish, directly impacting the efficiency, reliability, and lifespan of the bearings. By opting for CNC grooved bearings, industries can expect enhanced performance and reduced maintenance, ultimately leading to improved overall productivity.



FAQ’s

What are bearing races?

Bearing races, also known as raceways or inner and outer races, are the rings in which ball or roller bearings ride. They provide a smooth and hardened surface that allows the bearings to move with minimal friction.

How does CNC grooving impact bearing performance?

CNC grooving directly impacts bearing performance by ensuring precise and consistent grooves in bearing races. This leads to reduced friction, noise, and vibration, as well as an increased bearing lifespan.

What industries benefit from CNC grooved bearings?

Industries such as automotive, aerospace, and industrial machinery benefit from the use of CNC grooved bearings, as they require high-performance bearings for smooth operation and efficiency.

How does CNC grooving contribute to the precision and consistency of bearing races?

CNC grooving can achieve tight tolerances and produce grooves with a high degree of smoothness, ensuring dimensional accuracy and a superior surface finish for bearing races.
