Understanding the Different Types of Automotive Fasteners

Author: YiNuo Zhang
Published on: 2023-07-13

Automotive fasteners are an integral yet often overlooked part of any vehicle. They ensure the proper assembly and functioning of different vehicle components by securely joining or affixing parts together. From the small screws that secure the interior trim to the large bolts and nuts that hold the engine components together, fasteners are everywhere in an automobile. The importance of these seemingly insignificant components cannot be overstated. They not only facilitate assembly and disassembly but also contribute to the overall durability, safety, and performance of the vehicle.

In this article, we will delve into the details of automotive fasteners, exploring their various types, functions, and their pivotal role in the automobile industry.



Understanding the Automotive Fasteners

Automotive fasteners refer to a variety of hardware devices used to join or affix two or more parts together mechanically in automobiles. These fasteners come in a wide range of shapes, sizes, and materials, each suited to a particular application. The fundamental purpose of automotive fasteners is to provide non-permanent joints that can be removed or dismantled without damaging the joining components.

The importance of automotive fasteners goes beyond just holding things together. They are a crucial part of the assembly and maintenance process of vehicles. Without them, assembling complex vehicle components would be a daunting task. Moreover, fasteners contribute to the overall safety and structural integrity of the vehicle by ensuring that parts do not loosen or fall off during operation.

Here is a simple bulleted list to highlight the key roles of automotive fasteners:

  • Provide non-permanent joints, allowing for easy assembly and disassembly
  • Contribute to the structural integrity of the vehicle
  • Ensure parts are securely held in place, preventing accidents and improving safety
  • Facilitate the maintenance and repair process
  • Allow for the modification and customization of vehicles

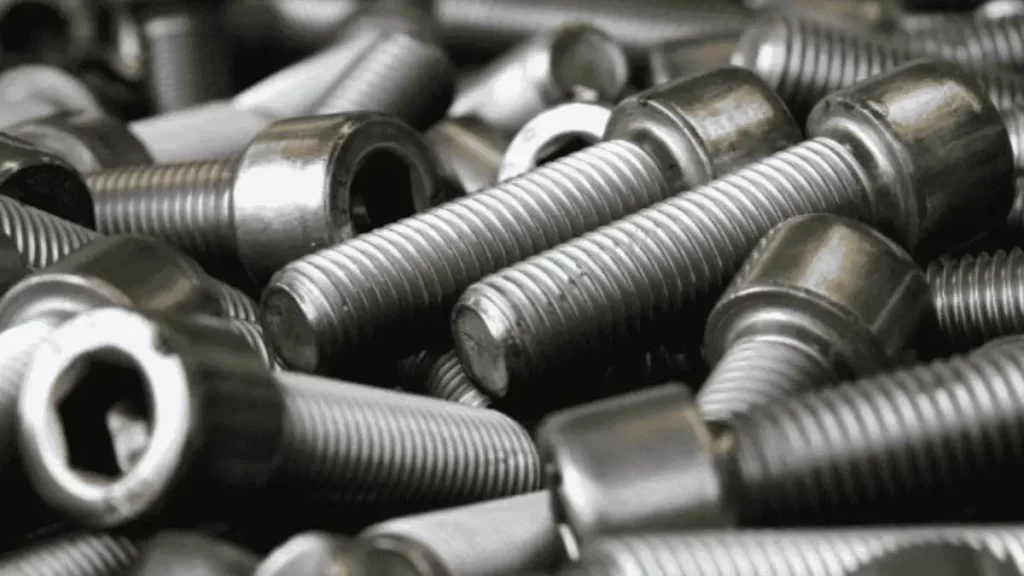

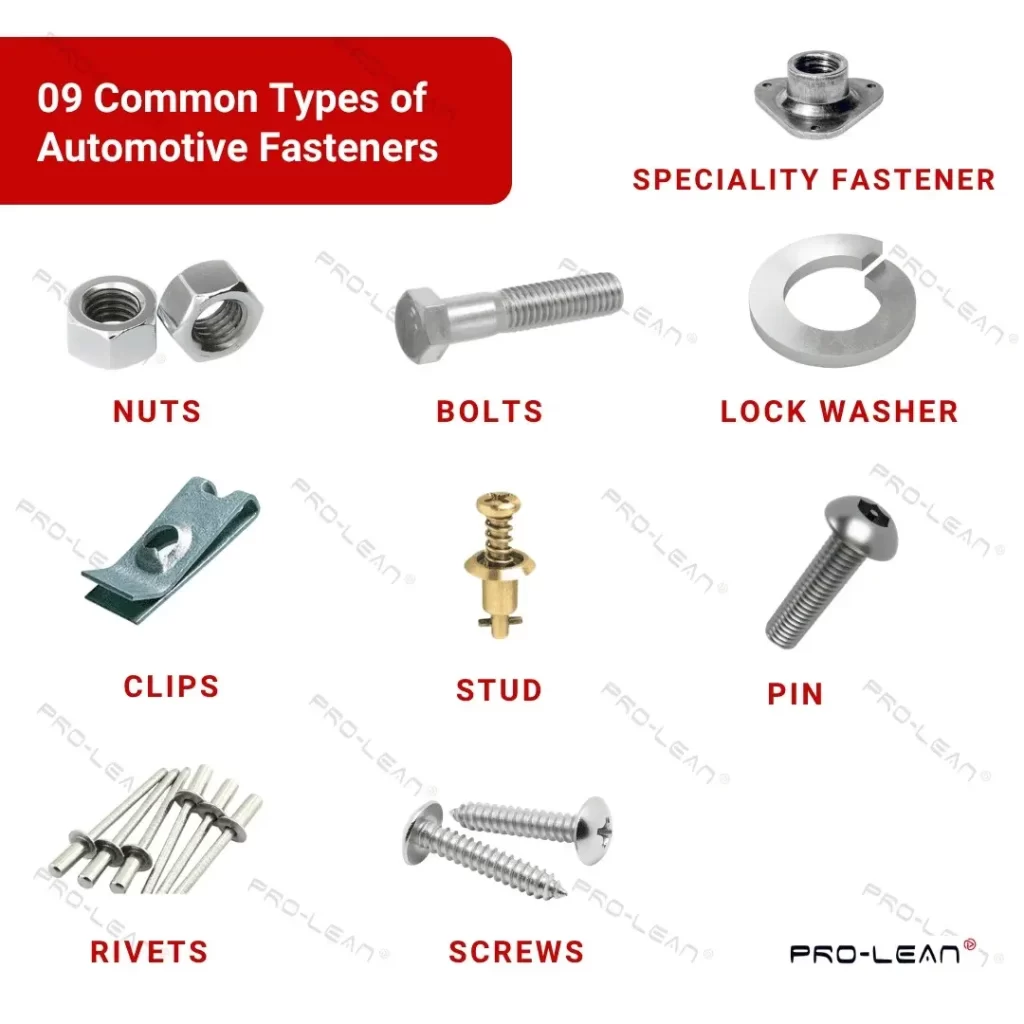

Common Types of Automotive Fasteners

Automotive fasteners are critical components that ensure the cohesion of various parts in a vehicle. The types of fasteners used in automotive manufacturing are diverse, each one serving a unique purpose. Here is an in-depth look at the most common types of automotive fasteners.

Exploring the High-Impact Role of CNC Machining in Modern Automotive Manufacturing

1. Bolts

One of the most common types of fasteners used in the automotive industry, bolts are typically used to assemble parts that don’t require regular disassembly. Bolts are threaded fasteners that require a matching thread, which is usually provided by a nut.

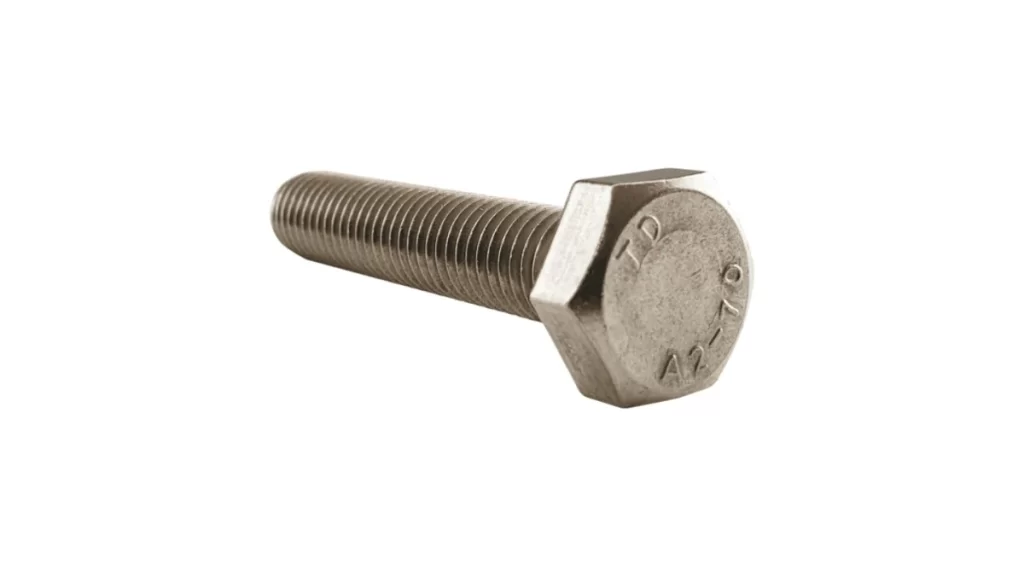

  • Hex Bolts: This is the most common type of bolt, named for its hexagonal head. Hex bolts are used in a variety of applications, but are often used in heavy-duty applications due to their strong grip.
  • Carriage Bolts: These have a rounded head and a square section underneath that prevents the bolt from turning when the nut is tightened. They’re primarily used in wood-to-metal fastening.
  • Flange Bolts: These bolts have an integrated flange at the bottom of the head which acts as a washer to distribute the load. Flange bolts are often used in vehicle frames.

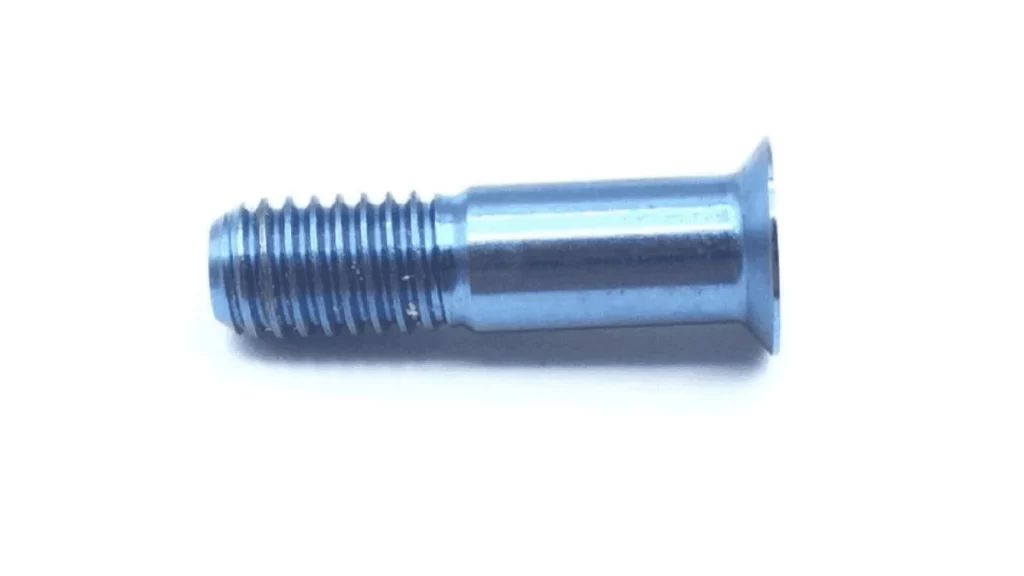

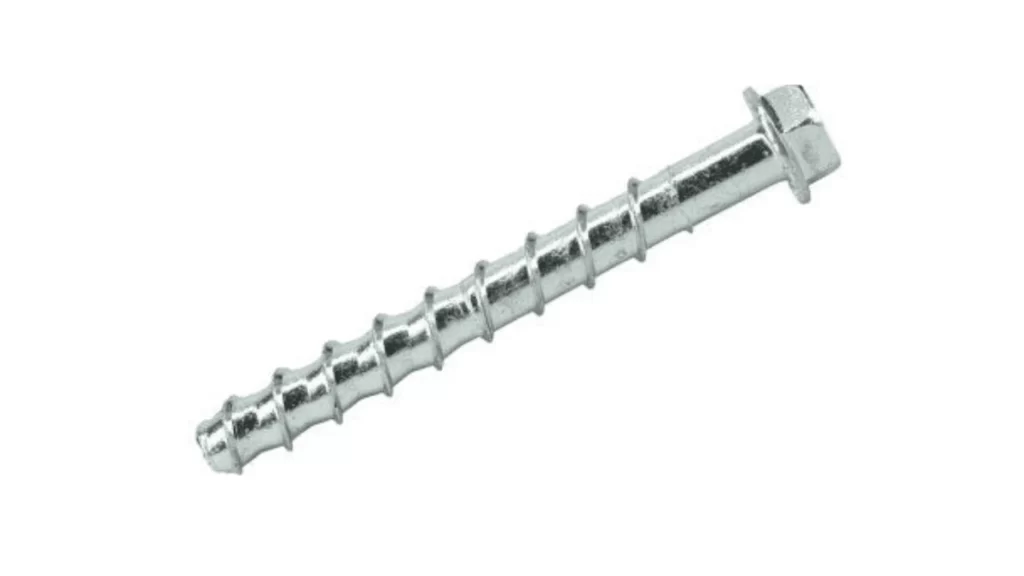

2. Screws

Screws are another type of commonly used fastener in the automotive industry. They are generally used to assemble parts that require frequent assembly and disassembly.

  • Machine Screws: Machine screws have a uniform shaft diameter and are designed to fit into a matching tapped hole or nut. They’re used in various applications, including securing panels and mounting electronic components.
  • Self-Tapping Screws: These screws are designed to form their own threads as they’re screwed into pre-drilled holes. They are often used in applications such as securing plastic parts or sheet metal.

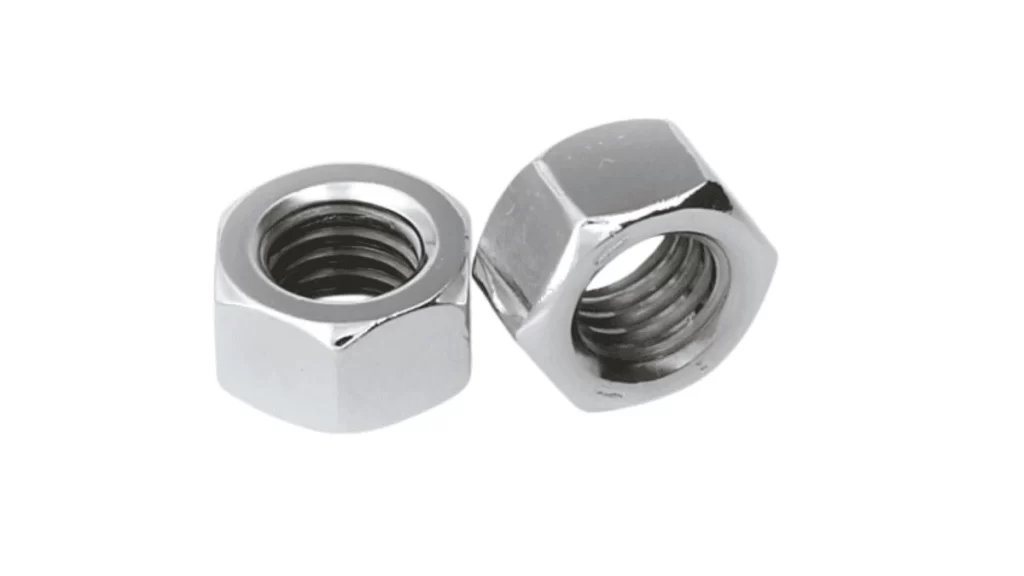

3. Nuts

Nuts are used in conjunction with bolts to fasten components together. They come in a variety of types, each suited for a specific purpose.

  • Hex Nuts: Hex nuts are the most common type of nut and are typically used with a bolt or a screw to secure two components together.
  • Lock Nuts: These have a locking mechanism that prevents them from loosening under vibration. They’re often used in applications where a secure fit is critical, such as engine mounts.
  • Flange Nuts: Flange nuts have a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage.

4. Washers

Washers are used to distribute the pressure of the nut or bolt evenly over the part being secured, preventing damage and ensuring a more secure fit.

  • Flat Washers: These are the most common type of washer and provide a flat, smooth surface for the nut or bolt to bear against.

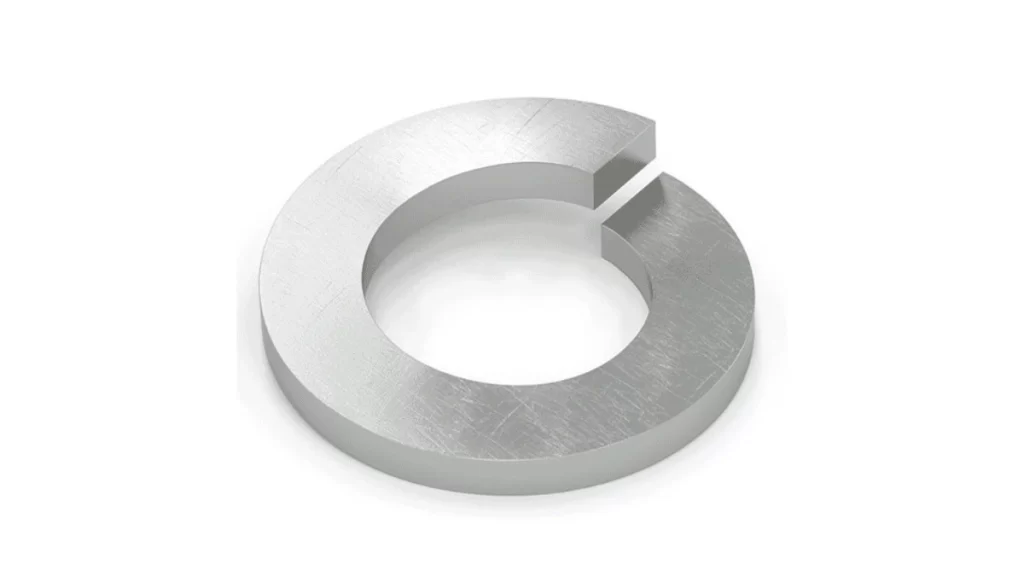

  • Lock Washers: Lock washers are used to prevent nuts and bolts from vibrating loose. They come in various styles, including split (helical) and toothed.
  • Belleville Washers: Belleville washers, also known as disc springs, are conical in shape and used in applications requiring high load with a small deflection.

The variety of fasteners available ensures that every part of an automobile, no matter how small, is secured precisely and reliably. Understanding the unique characteristics and uses of each fastener type is crucial in the automotive industry.

The following table summarizes the common types of automotive fasteners in brief;

Type of Fastener Description Typical Applications
Bolts Used with nuts to secure parts together. Come in different sizes, lengths, and thread patterns. Engine components, suspension systems, body panels, wheels
Nuts Used with bolts to create secure joints. Typically hexagonal in shape. Engine components, suspension systems, body panels, wheels
Screws Self-tapping fasteners that create their own thread. Commonly used in locations where quick assembly and disassembly are required. Interior trim, electrical components, air intake systems

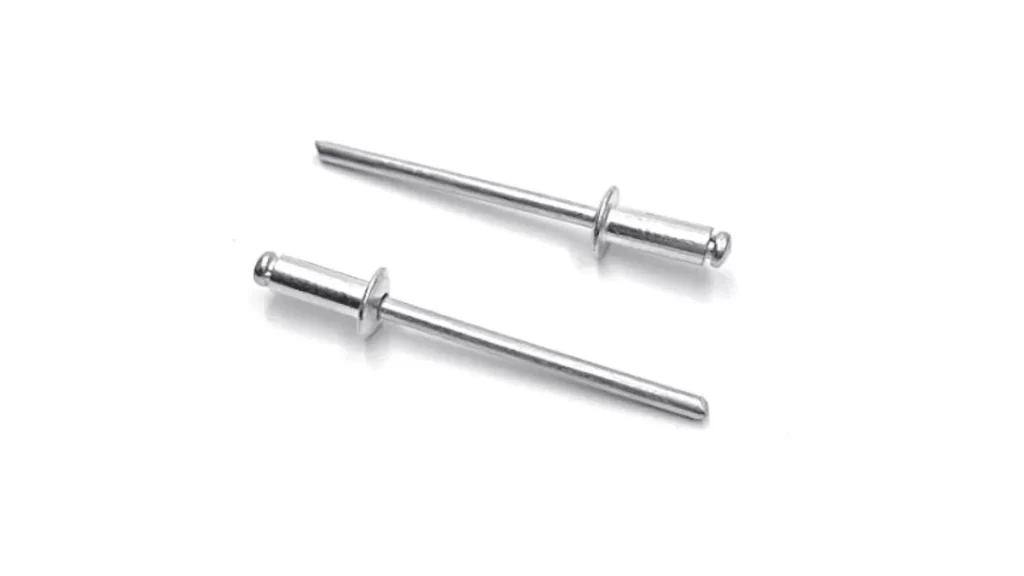

Rivets Provide a permanent joint and are typically used in areas where high strength is needed. Body panels, chassis components

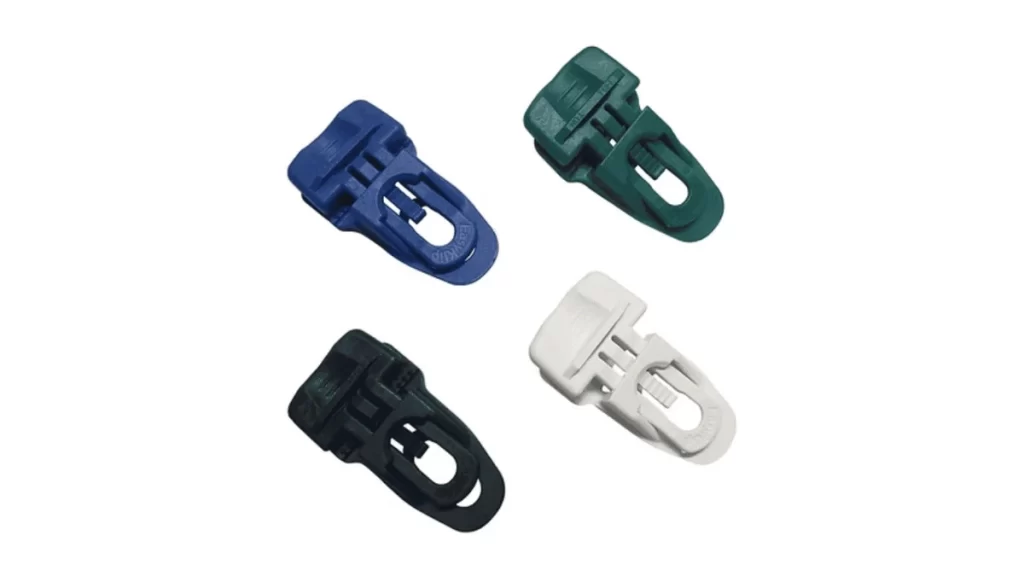

Clips and Retainers Fasteners are often used to secure wiring, hoses, and interior trim. Designed for quick and easy installation and removal. Wiring, hoses, interior trim
Washers Play a crucial role in distributing the load of a bolt or screw over a larger area, preventing damage to the material and reducing the chance of the fastener loosening due to vibration. All applications where bolts or screws are used



Let’s Start A New Project Today

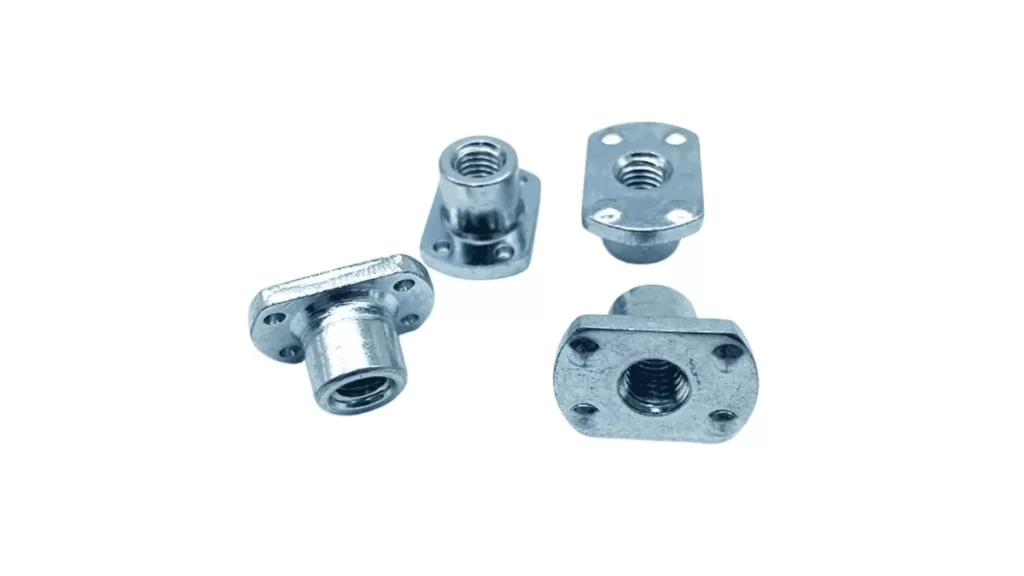

Specialized Automotive Fasteners

While standard bolts, nuts, and screws serve a multitude of functions, certain applications require specialized fasteners designed to meet specific operational demands in an automobile. These include:

  1. Torque-to-Yield Bolts: These bolts are engineered to stretch within a controlled yield zone and then twist to a specific degree, rather than a specific torque specification. This controlled stretching, coupled with the bolt’s ability to recover partially, allows for a more precise clamping force. It is typically used in critical areas such as cylinder head installations.
  2. Self-Tapping Screws: These screws can tap their own hole as they are screwed into the material. They save time and reduce the need for drilling separate pilot holes.
  3. Thread-Locking Devices: These are typically liquid solutions applied to fastener threads to prevent loosening due to vibration. Once applied, the solution hardens and securely locks the fastener in place.

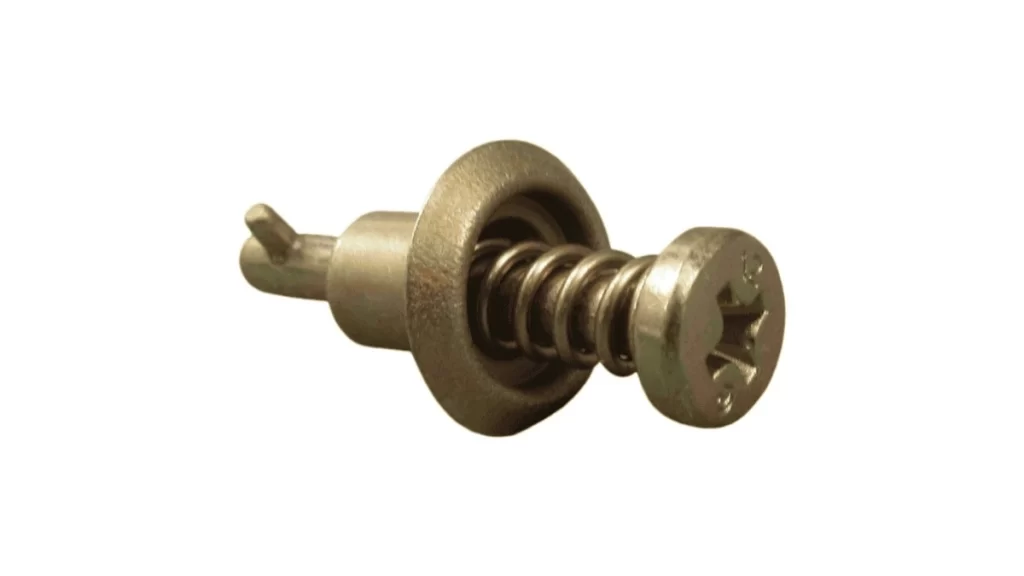

  4. Quick-Release Fasteners: Used in race cars and performance vehicles, these fasteners allow for rapid removal and replacement of panels and components for fast pit-stop repairs.
Type of Fastener Key Characteristics
Torque-to-Yield Bolts Controlled stretching, precise clamping force
Self-Tapping Screws Tap their own hole, save time
Thread-Locking Devices Prevent loosening due to vibration
Quick-Release Fasteners Allow rapid removal and replacement of components



Material Considerations for Automotive Fasteners

Material selection for automotive fasteners is vital. The fasteners must withstand high stress, vibrations, corrosion, and temperature fluctuations. Below are some commonly used materials:

Here is a table detailing the commonly used materials for automotive fasteners:

Material Key Characteristics Typical Applications
Carbon Steel High tensile strength, durable, often coated or plated to prevent corrosion Engine components, suspension systems, wheel assemblies, body panels
Stainless Steel Excellent corrosion resistance, high strength Exterior components, marine applications, exhaust systems
Aluminum Lightweight, corrosion-resistant Body panels, engine components, wheels
Plastic Insulating, corrosion-resistant, lightweight Interior trim, electrical components, air intake systems



What Are the Importances of Correct Fastener Installation?

The installation of automotive fasteners is just as critical as their design and material selection. Improperly installed fasteners can lead to joint failures, affecting the performance and safety of the vehicle. Technicians must ensure fasteners are installed with the correct torque, as both under-tightening and over-tightening can lead to issues. Furthermore, it’s essential to use the correct fastener for each application as using a substitute can result in failure.

Here are some important considerations:

  • Torque Specifications: Follow manufacturer-recommended torque settings to avoid under- or over-tightening.
  • Fastener Reuse: Some fasteners, such as torque-to-yield bolts, are not designed for reuse.
  • Corrosion: Rusty or corroded fasteners should be replaced.
  • Substitution: Always use the fastener type specified by the manufacturer.

Overall automotive fasteners, while small and often overlooked, play an integral role in vehicle assembly, performance, and safety. By understanding the different types of automotive fasteners and their proper installation methods, you can help ensure the long-term reliability and performance of a vehicle.



Fasteners and Vehicle Safety

While it may seem like a minor detail, the integrity of fasteners plays a crucial role in vehicle safety. Fasteners are used in safety-critical systems, such as the braking system, steering system, and the engine. A single faulty or failing fastener can have serious consequences, potentially leading to catastrophic failures. Hence, it’s essential to use high-quality, reliable fasteners and ensure they are properly installed and maintained.



Conclusion

The automotive industry relies heavily on the strength, durability, and reliability of automotive fasteners. They may be small in size, but their role is crucial in holding together the vehicle’s many parts. Understanding the various types of automotive fasteners, their materials, and their specific applications helps ensure the longevity and safety of a vehicle. As advancements in technology continue, automotive fasteners will also evolve, contributing even further to the industry’s growth and development.

Whether you need a specialized automotive fastener or a custom part for any application, Prolean’s on-demand machining services are here to help. Utilizing a diverse range of materials and state-of-the-art CNC machining processes, Prolean is equipped to produce high-quality, precision-engineered parts to meet your unique specifications. Contact us for all your automotive fastening and custom machining needs.



FAQs

Why are automotive fasteners so important?

Automotive fasteners are crucial because they hold together the various components of a vehicle. They need to be strong and durable to withstand the stresses and strains that a vehicle undergoes.

What types of materials are used for automotive fasteners?

The most commonly used materials for automotive fasteners are carbon steel, stainless steel, aluminum, and plastic. The choice of material depends on the specific application and requirements of the fastener.

What are the consequences of a faulty fastener?

A faulty fastener can lead to the failure of a component or system in a vehicle, potentially resulting in a breakdown or, in extreme cases, an accident. Therefore, it’s crucial to use high-quality fasteners and ensure they are correctly installed and maintained.

What innovations can we expect in automotive fasteners?

Future developments are likely to include the increased use of lightweight, high-strength materials for fuel efficiency, the development of smart fasteners with integrated sensors
