Advantages of Aluminium Extruded Heat Sink Solutions in Modern Electronics

Author: Max
Published on: 2023-05-06
Categories: Case Study

Aluminum extruded heat-sink

In the world of modern electronics, thermal management is an essential aspect of ensuring the optimal performance and longevity of electronic components. As electronic devices become more powerful and compact, the need for efficient heat dissipation methods becomes even more crucial. One such solution that has gained significant popularity in recent years is the use of aluminum extruded heat sink technology.

Aluminum extruded heat sinks are designed to absorb and dissipate heat generated by electronic components, such as processors, power supplies, and LEDs. The process of aluminum extrusion involves the shaping of aluminum material into a specific profile or shape that is optimized for efficient heat dissipation. As a result, aluminum extruded heat sinks can provide a high level of thermal conductivity and passive cooling, making them ideal for a wide range of applications in the electronics industry.

This article will explore the process of aluminum heat sink extrusions, the key characteristics of aluminum extrusion heat sinks, and the advantages they offer over other heat sink solutions. It will also delve into the applications of extruded heatsinks in modern electronics, as well as the customization options available for heatsink aluminum extrusions. Finally, it will discuss best practices for selecting and designing extruded heat sinks and provide an overview of the future of aluminum extruded heat sinks in the electronics industry.

Related:

An Overview of Heat Sink Design Process: Materials, Manufacturing, and Design Considerations.



The Process of Aluminum Heat Sink Extrusions

aluminum billet

The process of creating aluminum extruded heat sinks involves several steps. Firstly, an aluminum billet is heated to a specific temperature, typically between 350 and 500 degrees Celsius. This heating process ensures that the aluminum material becomes soft and malleable, allowing it to be shaped more easily.

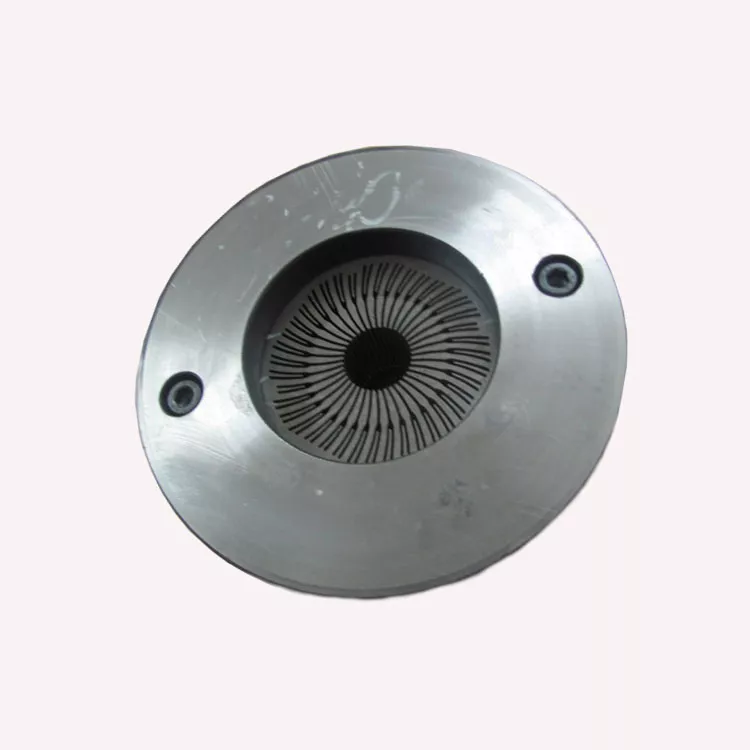

Heat Sink Extrusion Die

Next, the heated aluminum billet is placed into a die, which is a custom-designed tool that contains the desired profile or shape for the heat sink. The aluminum is then forced, or extruded, through the die using high pressure. As the material passes through the die, it takes on the shape of the desired heat sink profile.

Once the aluminum has been extruded, it is cooled using air or water to solidify the material and maintain its shape. The extruded aluminum is then cut into the desired lengths, and any necessary finishing processes, such as anodizing or powder coating, are completed to enhance the heat sink’s performance and appearance.

Key Characteristics of Aluminium Extrusion Heat Sinks

There are several key characteristics that make aluminum extrusion heat sinks an attractive option for thermal management in modern electronics. These include:

  1. High thermal conductivity: Aluminium is known for its excellent thermal conductivity, which allows it to efficiently absorb and dissipate heat. This makes aluminum extruded heat sinks highly effective at cooling electronic components.
  2. Lightweight and strong: Aluminium is a lightweight material, making it ideal for use in portable electronics where weight is a critical factor. Additionally, the extrusion process strengthens the aluminum material, providing a robust and durable heat sink solution.
  3. Design flexibility: The aluminum extrusion process allows for a wide range of heat sink designs, including complex geometries and custom profiles. This flexibility enables engineers to create heat sinks tailored to the specific needs of their applications.
  4. Cost-effective: Compared to other heat sink materials, such as copper, aluminum is a more cost-effective option. The extrusion process also lends itself to high-volume production, further reducing the overall cost per unit.

Advantages of Using Aluminium Extruded Heat Sink Solutions

There are several advantages to using aluminum extruded heat sink solutions in modern electronics, including:

  1. Improved thermal performance: Aluminium extruded heat sinks provide superior thermal performance compared to other passive cooling solutions. This results in lower operating temperatures for electronic components and improved overall performance.
  2. Longer component lifespan: By effectively dissipating heat, aluminum extruded heat sinks can help to extend the lifespan of electronic components, reducing the need for replacements and repairs.
  3. Enhanced energy efficiency: With improved thermal performance, electronic components are less likely to experience thermal throttling, resulting in more efficient operation and reduced energy consumption.
  4. Reduced system noise: Passive cooling solutions, such as aluminum extruded heat sinks, do not require the use of fans or other active cooling components. This results in quieter operation and reduced system noise.
  5. Ease of customization: As mentioned earlier, the aluminum extrusion process allows for a high level of design flexibility, enabling the creation of custom heat sink solutions tailored to the specific needs of an application.



Applications of Extruded Heatsinks in Modern Electronics

Aluminum extruded heat sinks are suitable for a wide range of applications in modern electronics, including:

  1. Consumer electronics: In devices such as smartphones, tablets, and laptops, aluminum extruded heat sinks can be used to efficiently dissipate heat from processors, memory, and other components.
  2. LED lighting: Extruded heatsinks are commonly used in LED lighting systems to prevent overheating and ensure optimal performance and longevity.
  3. Telecommunications equipment: In equipment such as routers and switches, aluminum extruded heat sinks can help to maintain stable operating temperatures and improve overall performance.
  4. Industrial electronics: In applications such as motor drives, power supplies, and control systems, aluminum extruded heat sinks can provide effective thermal management to ensure reliable operation.
  5. Automotive electronics: With the increasing use of electronics in vehicles, aluminum extruded heat sinks can be used to cool components such as ECUs, infotainment systems, and power electronics.



Customizing Heatsink Aluminum Extrusions for Specific Needs

One of the primary advantages of using aluminum extruded heat sinks in electronics is the ability to customize the heat sink design to meet the specific needs of an application. This can be achieved through several methods, including:

  1. Modifying the heat sink profile: By altering the shape and geometry of the heat sink profile, engineers can optimize the heat sink’s performance for a particular application.
  2. Adjusting the fin density and spacing: Changing the number of fins and the distance between them can impact the heat sink’s thermal performance and pressure drop, allowing for fine-tuning based on the requirements of the application.
  3. Selecting the appropriate surface finish: The choice of surface finish, such as anodizing or powder coating, can enhance the heat sink’s thermal performance and improve its appearance.
  4. Incorporating additional features: Designers can incorporate features such as mounting holes, clips, or thermal interface materials to further customize the heat sink for its intended application.



Let’s Start A New Project Today

Aluminium Extruded Heat Sink from ProleanTech

At ProleanTech, we pride ourselves on being a leader in the industry when it comes to providing top-quality Aluminum extrusion services for heat sink production. Our cutting-edge equipment and advanced technology ensure that we are able to produce custom-designed heat sinks with even the most complex geometries and tightest tolerances.

We understand that every client has unique needs and requirements, which is why we have assembled a team of experienced engineers and technicians who are dedicated to working closely with our clients to ensure that their needs are met. Our team takes the time to carefully listen to each client’s specifications and requirements and then develops tailored solutions that are designed to meet those needs. And, because we are committed to providing the highest level of customer service, we are always available to answer any questions or concerns that our clients may have throughout the process.

In addition to our top-notch services, we are also dedicated to using only the highest quality materials in all of our products. We take great care in sourcing materials that not only meet our exacting standards but are also environmentally friendly and sustainable. This means that clients who work with us can rest assured that they are not only getting the best possible product but that they are also doing their part to help protect the environment



Best Practices for Selecting and Designing Extruded Heat Sinks

When selecting and designing an aluminum extruded heat sink for a particular application, it is essential to consider the following best practices:

  1. Determine the thermal requirements: Understand the heat dissipation needs of the electronic components and the desired operating temperature range.
  2. Evaluate the available space: Consider the size constraints of the application and the available space for the heat sink.
  3. Optimize the heat sink design: Utilize tools such as computational fluid dynamics (CFD) and thermal simulation software to optimize the heat sink’s performance and ensure it meets the application’s requirements.
  4. Select the appropriate material and finish: Choose the right aluminum alloy and surface finish to maximize the heat sink’s thermal performance and durability.
  5. Collaborate with an experienced manufacturer: Work closely with a reputable aluminum extrusion and heat sink manufacturer to ensure the design meets the desired specifications and production requirements.

Conclusion: The Future of Aluminium-Extruded Heat Sinks in Electronics

As electronic devices continue to become more powerful and compact, the need for efficient thermal management solutions will only grow. Aluminum extruded heat sinks offer numerous advantages over other heat sink materials, making them an attractive option for modern electronics. With their high thermal conductivity, lightweight and strong properties, design flexibility, and cost-effectiveness, aluminum extruded heat sinks are an excellent choice for a wide range of applications.

In addition to their numerous advantages, aluminum extruded heat sinks can also be customized to meet the specific needs of an application. By modifying the heat sink profile, adjusting the fin density and spacing, selecting the appropriate surface finish, and incorporating additional features, designers can fine-tune the heat sink for optimal performance.

At ProleanTech, we specialize in providing high-quality aluminum extrusion services for heat sink production. With our advanced equipment and technology, we can produce custom-designed heat sinks that meet the specific requirements of our clients. Our team of experienced engineers and technicians works closely with clients to ensure that their heat sink design meets their needs and provides optimal thermal management for their application. If you are interested in aluminum-extruded heat sinks, Please feel free to contact us for any Stamping and Punching needs, or you can simply drop your drawing at our get a quote page, and our sales engineers will get your quote back as soon as an hour.



FAQ’s

What is an aluminum extruded heat sink?

An aluminum extruded heat sink is a thermal management solution designed to absorb and dissipate heat generated by electronic components, such as processors, power supplies, and LEDs. The aluminum extrusion process involves the shaping of aluminum material into a specific profile or shape that is optimized for efficient heat dissipation.

What are the advantages of using aluminum extruded heat sink solutions?

Aluminum extruded heat sinks offer several advantages over other heat sink materials, including high thermal conductivity, lightweight and strong properties, design flexibility, and cost-effectiveness. Additionally, extruded heat sinks provide improved thermal performance, longer component lifespan, enhanced energy efficiency, reduced system noise, and ease of customization.

What are the applications of extruded heat sinks in modern electronics?

Extruded heat sinks are suitable for a wide range of applications in modern electronics, including consumer electronics, LED lighting, telecommunications equipment, industrial electronics, and automotive electronics.

How can extruded heat sinks be customized for specific needs?

Extruded heat sinks can be customized for specific needs by modifying the heat sink profile, adjusting the fin density and spacing, selecting the appropriate surface finish, and incorporating additional features such as mounting holes, clips, or thermal interface materials.

Where can I get high-quality aluminum extruded heat sinks?

ProleanTech specializes in providing high-quality aluminum extrusion services for heat sink production. With our advanced equipment and technology, we can produce custom-designed heat sinks that meet the specific requirements of our clients. Our team of experienced engineers and technicians works closely with clients to ensure that their heat sink design meets their needs and provides optimal thermal management for their application.
