Explore Plating Surfaces: Techniques, Applications

Author: Yaozu Deng
Published on: 2023-08-15

The art of embellishing objects with precious metals can be traced back thousands of years, from golden Egyptian artifacts to silver-adorned ancient Chinese dynasties. Today’s plating surfaces are a sophisticated blend of historical artistry and modern-day technology. While these lustrous surfaces captivate our aesthetic senses, there’s a deep science and purpose behind them. The act of depositing a thin layer of metal onto an object — often called a substrate — goes beyond beautification. It seeks to endow objects with enhanced characteristics like corrosion resistance, reduced friction, and increased conductivity.

In this exploration, we’ll peel back the layers of plating to understand its core principles, techniques, and significance, especially in the context of modern industry applications, including how Prolean’s Surface Finishing Services have transformed the domain.



The Basics: Plating Surfaces Explained

Copper plating surface

Plating surfaces, in essence, is an intricate process where a thin layer of a specific metal is coated onto another material. This age-old technique has been refined and optimized over the years, evolving with technology and industry needs.

Historically, plating was pursued for aesthetic purposes, mainly to impart a luxurious appeal to everyday items. Royalty and nobility flaunted gold-plated jewelry and ornaments, making them symbols of wealth and power.

1. From Aesthetics to Functionality

Plating surfaces can provide enhanced durability, improved conductivity, and resistance to tarnish and corrosion. A plated layer can protect the underlying material from wear and tear. Certain metals, when plated, can drastically enhance electrical conductivity. Plating can also protect metals prone to tarnish and corrosion with a layer of resistant metal.

Table 1: Benefits of Plating Different Metals

Metal Benefit
Gold High conductivity, corrosion resistance
Silver Maximum electrical conductivity
Nickel Durability, shine
Copper Promotes adhesion, good for undercoating

2. The Depth and Thickness Factor

The thickness of the plated layer is paramount. Depending on the application, the thickness can range from a few nanometers to several micrometers. Decorative plating is used when aesthetics is the primary concern and often only requires a thin layer. On the other hand, functional plating demands thicker layers, especially when the focus is on enhancing the substrate’s physical properties.



Common Materials Used in Plating

Silver plating springs

The efficiency and effectiveness of a plating process are not just about the technique; the choice of material plays an equally critical role. Different metals and alloys provide unique benefits when used for plating, and understanding these differences is essential for achieving the desired outcome.

Gold Plating

Gold has always been a favorite for plating, thanks to its allure, conductivity, and resistance to tarnish.

  • Aesthetic Appeal: The shimmer of gold is synonymous with luxury, making it a favorite for decorative plating.
  • Electrical Applications: Due to its high conductivity, gold is often used in electronics where precision is paramount.
  • Corrosion Resistance: Gold doesn’t corrode or oxidize easily, ensuring the longevity of the plated object.

Silver Plating

Silver, another precious metal, boasts the highest electrical conductivity of all elements.

  • Electronics and RF Connectors: Ideal for high-frequency applications due to its conductivity.
  • Decorative Objects: The bright, white luster of silver makes it desirable for decorative plating.
  • Antibacterial Properties: Silver has natural antibacterial properties, making it useful for certain medical equipment.

Nickel Plating

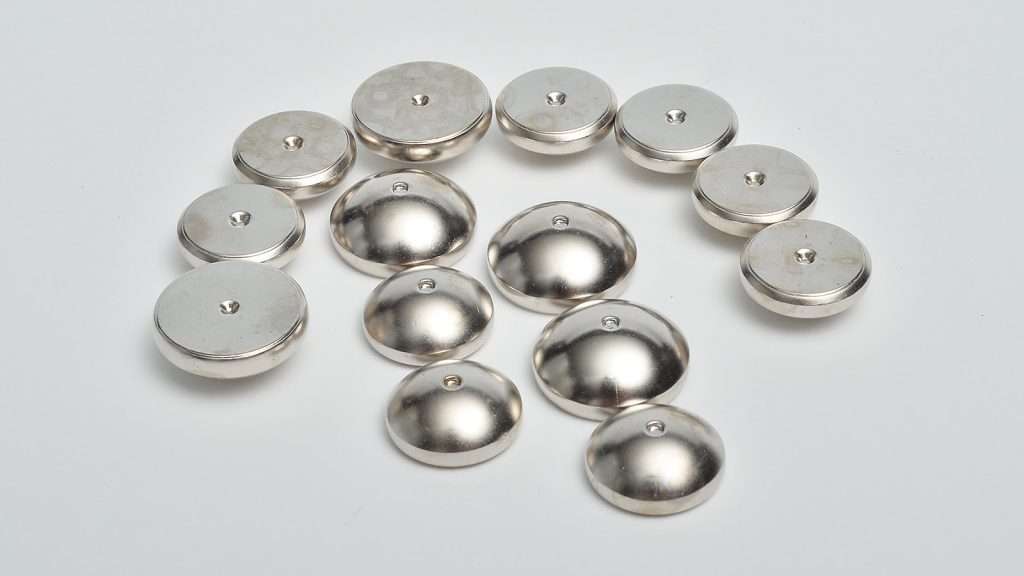

Part With Nickel Plating

Nickel plating is a process of depositing a layer of nickel on a metal substrate using an electrolytic or electroless process. Nickel’s resilience and versatility make it a staple in the plating industry.

  • Durability: Nickel layers can significantly enhance the lifespan of parts subjected to wear.
  • Uniform Deposits: Provides an even, smooth coating, ideal for parts with complex shapes.
  • Undercoat: Often used as a base layer before plating with other metals, like gold, for enhanced adhesion.

Copper Plating

Copper serves as a functional and foundational element in the plating realm.

  • Promoting Adhesion: It’s a great undercoat, preparing surfaces for subsequent plating.
  • Heat Dissipation: Copper’s high thermal conductivity makes it beneficial for devices that generate heat.
  • Electromagnetic Shielding: Useful in creating barriers against electromagnetic interference in electronic devices.

Table 3: Comparison of Plating Materials

Material Primary Benefit Common Application
Gold High Conductivity Electronics, Decorative Items
Silver Maximum Conductivity RF Connectors, Medical Equipment
Nickel Durability Automotive Parts, Decorative Coatings
Copper Promotes Adhesion Circuit Boards, Electromagnetic Shielding

In the vast world of plating, these materials are just the tip of the iceberg. Each metal, alloy, or composite offers unique advantages based on the intended application. But beyond understanding these metals in isolation, it’s essential to grasp how they can work in tandem. Layering, combining, and juxtaposing these metals through plating can lead to enhanced outcomes, bringing forth the best of each material



The Plating Process: Step-by-Step

Electroplating, which is a subset of surface plating, involves depositing a metal layer onto a workpiece through an electrolytic process. While it might seem simple, the actual process comprises numerous intricate steps that ensure the deposition is uniform, adherent, and serves its intended purpose.

1. Surface Preparation

Before initiating the plating process, the workpiece’s surface must be thoroughly cleaned to remove all contaminants such as dirt, grease, and oxidation layers. This is typically done using chemical cleaning agents or ultrasonic baths. The surface is then activated using an acid solution to make it receptive to the plating.

2. Electrolytic Bath Preparation

The bath used in plating surfaces contains the metal to be plated, dissolved as metal ions, and is crucial for the deposition process. Specific salts are dissolved in the bath depending on the metal being plated, such as gold chloride for gold plating. The temperature and pH of the bath are diligently maintained as variations can affect the deposition rate and quality.

Electroplating

This is the core of the process where the deposition occurs.

  • Electrode Setup: The workpiece becomes the cathode (negative electrode), while an anode (positive electrode) of the plating metal is also immersed in the bath.
  • Application of Current: A direct current is passed, causing metal ions from the electrolyte to be reduced and deposited onto the cathode.
  • Control of Parameters: Voltage, current density, and bath agitation are controlled to ensure uniform deposition.

4. Post-Plating Treatment

After the plating process is complete, further steps can be taken to improve the coating’s properties. This includes rinsing to remove any remaining electrolyte from the workpiece, drying either at room temperature or in ovens, and brightening or polishing to achieve the desired shine or finish.

Table 4: Overview of the Plating Process

Step Purpose Key Points
Surface Preparation Ensures clean and active surface Involves cleaning and activation
Electrolytic Bath Prep Provides metal ions for deposition Requires precise control of temperature and pH
Electroplating Deposits metal onto workpiece Control of voltage and current density is critical
Post-Plating Treatment Enhances properties of the plated layer This can include rinsing, drying, and brightening



Let’s Start A New Project Today

Different Types of Plating Surface Techniques

Nickel Plated steel parts

In the vast domain of surface finishing, plating stands out due to its versatility, offering solutions that cater to various needs, from wear resistance to aesthetic appeal. While electroplating is a standard method, there are several other plating techniques, each with its unique applications and benefits.

Electroless Plating

Unlike the traditional electroplating process, which relies on an external power source, electroless plating uses a chemical reduction mechanism.

Electroless plating deposits metal onto a workpiece without using electricity. Instead, a reducing agent present in the bath facilitates the deposition.

  • Advantages:
    • Uniform thickness over irregularly shaped objects
    • No need for electrodes or external power
    • Offers better corrosion resistance compared to electroplated coatings.

Immersion Plating

This method is driven by the displacement of one metal by another, typically of a more noble nature. Immersion plating involves submerging a workpiece into a solution containing ions of a more noble metal, which then displaces the base metal from the surface and gets deposited.

  • Advantages:
    • Simple process with no need for electricity
    • Ideal for depositing thin layers of precious metals.

Brush Plating

A selective plating technique where localized areas of a part can be plated. Brush plating uses a mobile tool (usually wrapped in an absorbent material) that’s soaked in the plating solution. As it’s moved across the workpiece, metal deposition occurs on specific areas.

  • Advantages:
    • Precise plating on select regions of a component
    • Ideal for repair work or adding thickness to worn-out parts.

Vapor Deposition

A high-tech process that involves depositing materials in a vapor phase onto a solid substrate. Under a vacuum, the plating material is vaporized and then condenses on the workpiece, forming a thin, adherent layer.

  • Advantages:
    • Can be used to plate non-metallic substrates
    • High purity and dense coatings.

Table 5: Plating Techniques Overview

Technique Methodology Key Applications
Electroless Plating Chemical reduction without electricity Printed circuit boards, corrosion-resistant coatings
Immersion Plating Displacement of one metal by another Decorative finishes, gold plating of jewelry
Brush Plating Localized plating using a mobile tool Repair work, localized thickness enhancement
Vapor Deposition Deposition in vapor phase under a vacuum Electronic components, high-performance applications



What Are the Benefits of Plating Surfaces?

The process of plating is not just about depositing a layer of metal onto a substrate; it brings along a host of advantages, transforming the properties of the surface in significant ways. Let’s delve into the myriad benefits that come with plating surfaces.

1. Enhanced Corrosion Resistance

One of the primary reasons industries prefer plating is to provide a barrier against corrosion, especially in metals prone to rusting. It increases the longevity of the part, reduces the need for regular maintenance or replacement, and offers protection in harsh environments, such as marine or chemical exposures.

2. Improved Wear Resistance

Plating can significantly enhance the wear resistance of a surface, making it more durable against abrasion and reducing wear and tear. It prolongs the functional life of machinery parts, reduces friction, and offers protection against high-traffic usage or mechanical stresses.

3. Enhanced Electrical Conductivity

Certain plating materials, like gold or copper, can enhance the electrical conductivity of a component, making it ideal for electronic applications. It improves the efficiency of electronic components, reduces energy losses, and is ideal for connectors, switches, and other electrical interfaces.

4. Aesthetic Appeal

Plating can dramatically improve the appearance of an object, making it shiny, and reflective, or giving it a desired color or finish. Plating increases the market value of products, especially in jewelry and decorative items. It offers a diverse range of finishes, from matte to glossy. providing a clean & polished look that appeals to consumers.

Table 6: Benefits of plating finish

Benefit Category Description Applications
Corrosion Resistance Barrier against environmental factors causing corrosion Marine parts, outdoor machinery
Wear Resistance Enhanced durability against abrasion Gears, bearings, sliding parts
Electrical Conductivity Improved flow of electricity Circuit boards, connectors
Aesthetic Appeal Enhanced visual appearance Jewelry, decorative items, luxury products



Prolean’s Surface Finishing Services: Expertise and Technology

In the world of surface finishing, Prolean stands out as an epitome of excellence, blending state-of-the-art technology with decades of expertise. Recognizing the crucial role surface plating plays across various industries, Prolean provides a comprehensive range of services to meet diverse demands.

Our Surface Finishing Services are underpinned by their unwavering commitment to state-of-the-art technology, showcasing advanced machinery, integration of automation, and ongoing technological enhancements in line with global trends. Recognizing the distinctiveness of each client, they champion tailored solutions, actively consulting to discern requirements, and developing bespoke finishing processes, even extending pilot runs for client satisfaction. Quality is ingrained in our ethos, marked by stringent checks, international standards adherence, and a dedicated quality assurance team ensuring consistency.

Table 7: Highlights of Prolean’s Surface Finishing Services

Key Aspect Description Benefits to Clients
Technological Advancement Use of the latest machinery and techniques Precision, speed, and quality
Customized Solutions Services tailored to individual needs Personalized results
Quality Assurance Stringent quality checks and protocols Reliability and consistency
Expert Team A blend of experience and expertise Effective problem-solving and project handling



Conclusion

The intricate art and science of surface plating have become an integral part of modern manufacturing and finishing processes. As industries continue to advance, the significance of enhancing surface properties for both functional and aesthetic purposes cannot be overstated. Surface plating, with its myriad techniques and materials, offers solutions that cater to a broad spectrum of requirements. From ensuring longer lifespan of components to achieving a mirror-like finish, plating surfaces hold the key. As the manufacturing world becomes even more demanding, innovations in this realm promise a future where surfaces are not only more resilient but also more sustainable.



FAQs

What is the primary purpose of surface plating?

Surface plating is primarily used to enhance the properties of materials, be it for corrosion resistance, wear resistance, aesthetics, or other functional enhancements.

How does the choice of plating material impact the final result?

The choice of plating material determines the properties the plated surface will have, such as hardness, resistance to certain chemicals, or aesthetic appeal.

Are there environmentally friendly plating methods?

Yes, with advancements in technology, many environmentally friendly plating methods have been developed that reduce waste and minimize the use of toxic substances.

Is surface plating suitable for all materials?

While surface plating can be applied to a vast majority of materials, compatibility, and desired outcome must be considered. Some materials might require specific pre-plating treatments or processes.

How do I determine the best plating technique for my needs?

It depends on the specific requirements, like wear resistance, corrosion protection, or aesthetic appeal. Consulting with a professional or service provider like Prolean can offer insights.

Can surface plating repair damaged components?

Yes, certain plating processes can restore worn-out or damaged components to their original dimensions or provide them with improved surface properties.
