Parts of a car wheel
Since Karl Benz invented the first car wheel in 1885, manufacturers have been reinventing the parts of a car wheel. The modern car wheel types are a marvel, with a convergence of high-level engineering design and manufacturing evident.
Without the car wheel, a car would be akin to an ornamental structure. Thanks to invention and decades of refinement, the wheel continues to fascinate and contribute to the basic functions of a car.
Manufacturers use many approaches to manufacture car wheels, from casting to forming. Provided the goal is achieved – weight, tolerances, durability – each of these processes is worth considering.
But it matters who is handling the manufacturing process. With so many providers claiming to deliver excellent work, identifying the best is the secret to getting quality parts of a car wheel.
ProleanTech – Your Cutom Parts Manufacturing Partner – is a CNC machining professional company with a large portfolio of projects and countless satisfied clients. Our reputation in China and beyond is huge for our close tolerances and overall high quality products.
This article is about the different parts of a car wheel, the functions, and manufacturing processes for this product.
The Structure And Function Of The Car Wheel
Before outlining the different parts of the car wheel, there are few important points to remember. One is that the car wheel comprises both the rim and the tire, as seen in the parts of a car wheel diagram below.

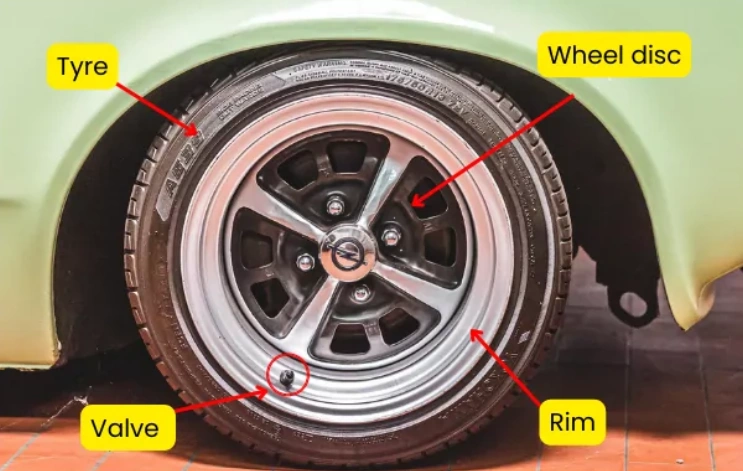

Car wheel components
In other words, it entails the complete rotating assembly of the car that comes in contact with the ground. With our CNC machining, rapid prototyping, sheet metal fabrication, and other solutions, none of these parts is beyond our manufacturing capability.
Continuing with this discussion, looking at the car wheel components also involves the identification of wheel car tire parts names.
It is also important to point out the fundamental role of the car wheels. The basic function of these components is to rotate around the car axles and facilitate movement. The tire, as part of the wheel, provides the much-needed grip, traction, and cushion.
Overall, the car wheel enhances the performance, safety, and comfort of the car.
A lot goes into the design of car wheels for any particular application. There are many issues to consider including standard vs. performance and small vs. large vehicles.
So, the wheel is not just a single cylindrical component. We’ll now outline its main parts one by one for better understanding.
What Are The Parts Of The Car Wheel?
The car wheel contains many parts, all of which ProleanTech has expert knowledge on how to manufacture. You can contact us now to learn how each of the parts fits into our diverse manufacturing processes.
Here are the main parts of a car wheel with their description:
Center Bore

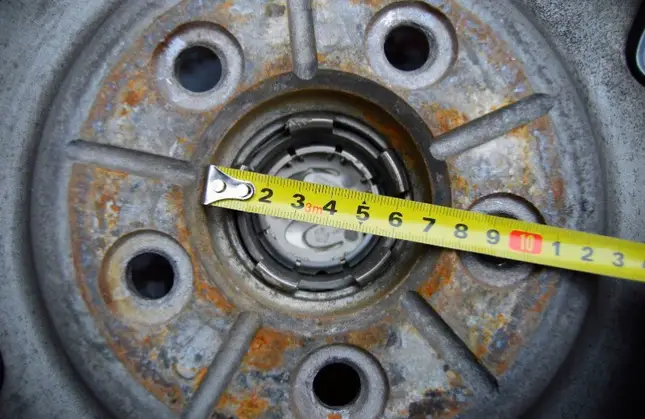

The center bore
The center bore is the hole at the center of the car wheel that accommodates the spigot. The part is typically cnc-machined to exact measurements of the hub to prevent vibrations when the car is moving.
The Center Cap
A center cap is a disc that covers the center of the wheel for various reasons. It should at least cover the wheel bearings and lug nuts to prevent exposure to dust, debris, and corrosion. To add to the protective role, the center caps are also used for aesthetic reasons.

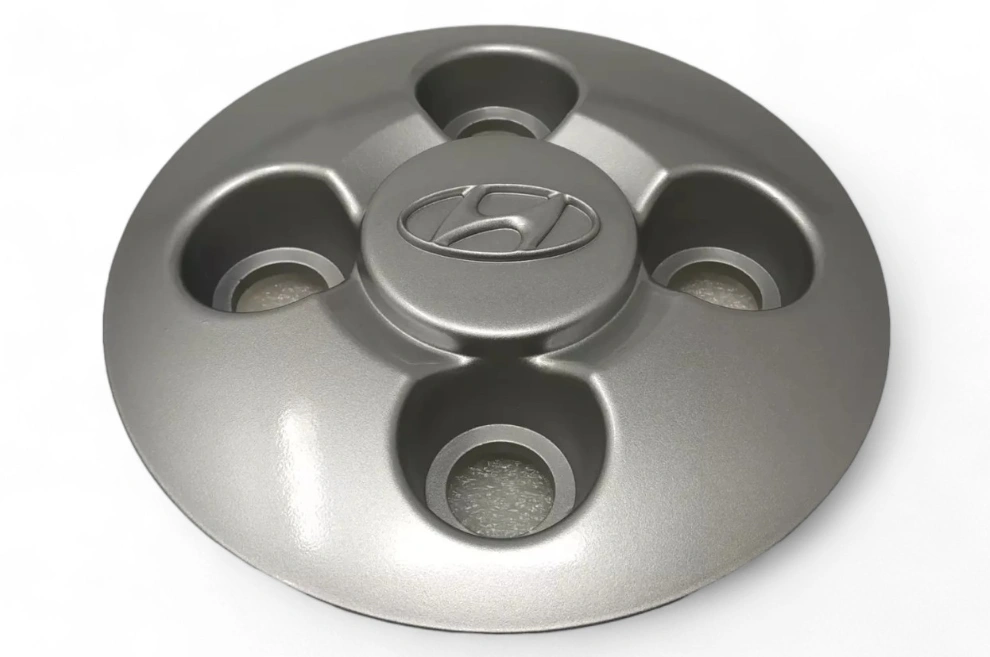

A center cap
The Lug Holes
Lug holes are the holes used to attach the rim to the hub. These holes may be spherical, cylindrical, or conical. The lug holes are used together with lug notes to secure the wheel to the axle.
The Barrel
The barrel is the part of the wheel that rests against the tire. It completes the enclosure of the tire.

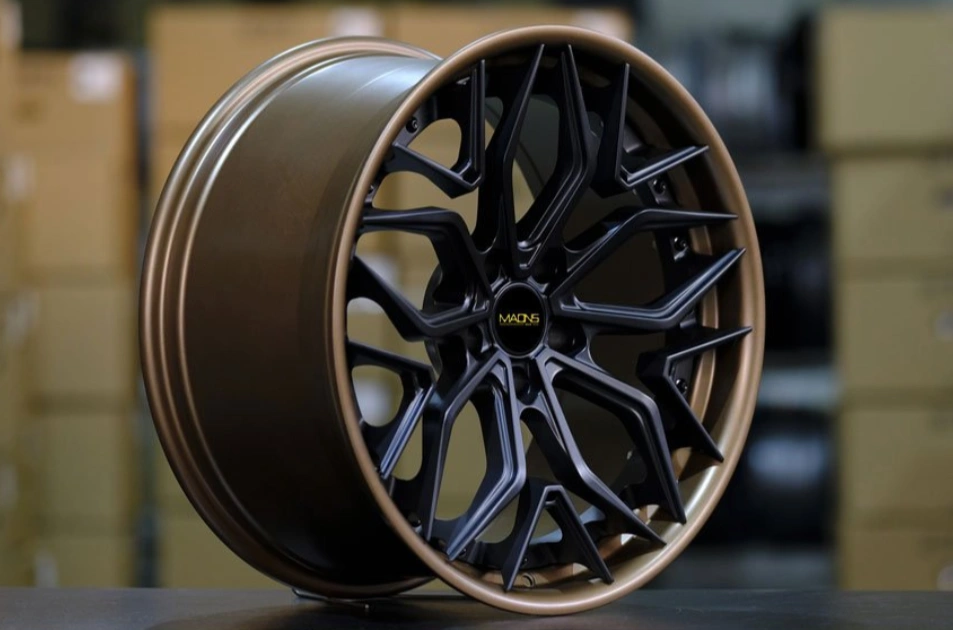

A car wheel barrel
Valve System
The inflatable car tires are inflated and deflated through the valve system. Modern car wheels have valve systems work in tandem with the pressure monitoring system to keep the driver abreast with the pressure level.
The Tire
As mentioned, the car tire performs several functions including cushioning the car and providing traction. We can actually consider it a part of the car suspension system.

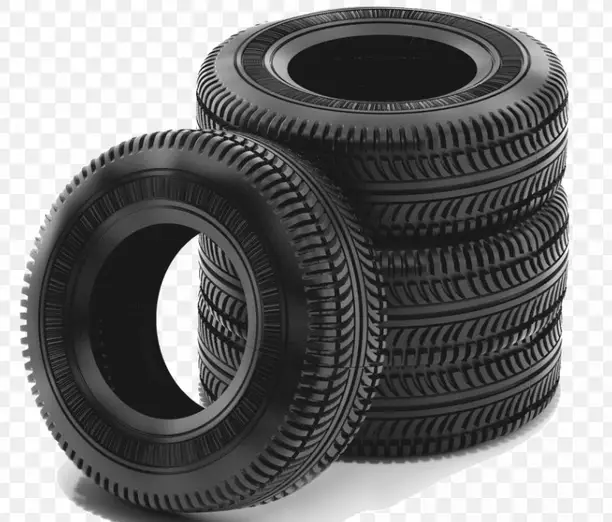

Car tires
When acting as a traction device, the tire transmits force such as braking, engine acceleration, and steering movements to the road. They also prevent contact between the road and the other parts of a car wheel.
The car tire is a crucial component, so we dedicate the following section to it.
Try Prolean Now!
More Details About The Car Tire Components
Regardless of the category, every tire has several fundamental components. These are beads, bead filler, tread, sidewall, and others we will discuss in this section.

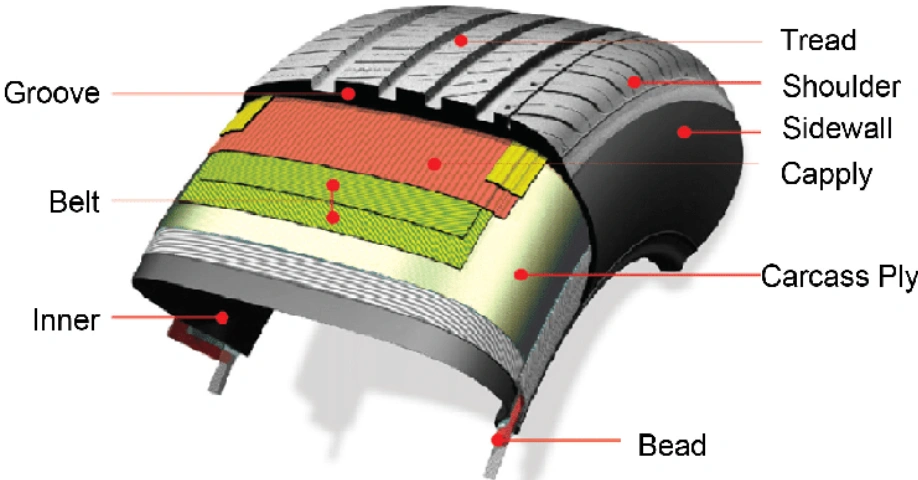

Car tire parts
The Beads For Sturdy Connection
This is the insidemost part of the car wheel tire. The beads connect the tire to the rim. These parts comprise high-tensile steel wires covered in a special tough rubber band. Their function is to ensure slip-free engagement between the car wheel rim and tire.
Bead Filler With A Stabilizing Effect
This is a special rubber compound in the beads. It stabilizes the bead section and the sidewall. Its properties such as toughness and density affect the tire’s performance.
Tread Contacts The Surface
The tire’s tread is the section that touches the surface or road. Its design and composition must be such that they balance various car tire characteristics such as handling, traction, and fuel efficiency.
You will agree that there are all sorts of tread designs in the market. What makes a good tread design? Consider factors such as groove depth, groove spacing, and rubber type.
Belt Plies For Enhanced Tire Strength
Belt plies are cord layers just beneath the tread. The function of these two or more layers is to provide stability and strength to the tire. These layers have a rubber coating for reliable bonding with surrounding parts.
Inner Liner – Tire Pressure Maintenance
The inner liner of the tire is some kind of an inner tube for the tire. Its main function is to help maintain car tire pressure. The part is mostly made of halogenated butyl rubber compound, which has minimal air permeability.
Radial Cord Body’s Structural Integrity
This is a reinforcement material embedded in the tire material for enhanced performance, strength, and structural integrity. Apart from providing strength in the tire, this part conveys forces between the wheel and tread.
Polyester is the most popular material for the radial cord body because of rigidity and stability. Other options are nylon and rayon.
Sidewall Protects The Radial Cord Body
As the name sounds, the sidewall is the part on the side of the tire that stretches from the tread to the bead. It protects the radial cord body. If you want information about the tire – size, speed rating, etc. – check in this part.
You may also find interesting information here: Types of Automotive Steel and Their Usage in Modern Vehicles and Automotive Steering System CNC Parts Guide.
The Manufacturing Methods For Car Wheel
The first wheels were carved out of stone, long before people discovered wheels could aid movement. Centuries later, we have different car wheel manufacturing techniques namely casting, flow forming, and forging.
These primary manufacturing methods give products that are further refined through CNC machining and other methods. There are several high precision CNC machining options at ProleanTech applicable for car wheel production.
You can explore CNC machining & its advantages to learn more about the relevance of this method for car wheels.
The following is an overview of the primary manufacturing methods.
The Metal Casting Method
Casting, the technique of pouring molten metal into a mold to produce a part of a certain shape, is very popular in car wheel manufacturing. It is a simple and cost-effective process.
The cast car wheel closely resembles the envisaged product, but needs further improvement to refine the surface finish. High precision CNC machining is ideal for this secondary process.
The Flow Forming Technique
Also applicable is flow forming, which partly involves casting. The wheel is first cast, leaving an allowance in dimensions (it is much smaller). To attain the final size, the barrel of the cast wheel is subjected to rolling.
This mechanical forming process produces the final size of the car wheel. Flow forming is also preferred for its cost-effectiveness.
The Forging Method
Forging is the process of transforming a metal piece into the desired part (car wheel) using compressive force.
The lightest and sturdiest car wheels are made through forging. Though expensive, these wheels are extremely durable. Even in the case of accidents, these wheels rarely crack; they only bend.
Read more related to automotive manufacturing here: Guide to High-End 3D Printed Motorcycle Parts, Top Headlight Manufacturing Process With CNC Machining and Guide to Quality Parts for Car Fuel System.
Try Prolean Now!
Material Options For Car Wheel Parts Manufacturing
The material used for car wheel parts can affect the performance and appeal of a car. You can liaise with ProleanTech, a company that has used more than 100 materials in different manufacturing processes, for the best materials for your car wheel parts.
Here are a few materials used to make car wheels today:
Steel Car Wheels – Strength, Durability, And Friendly Price
Steel car wheels are relatively strong and affordable. However, the heavier construction means lower fuel efficiency, which could be a turnoff for some users.

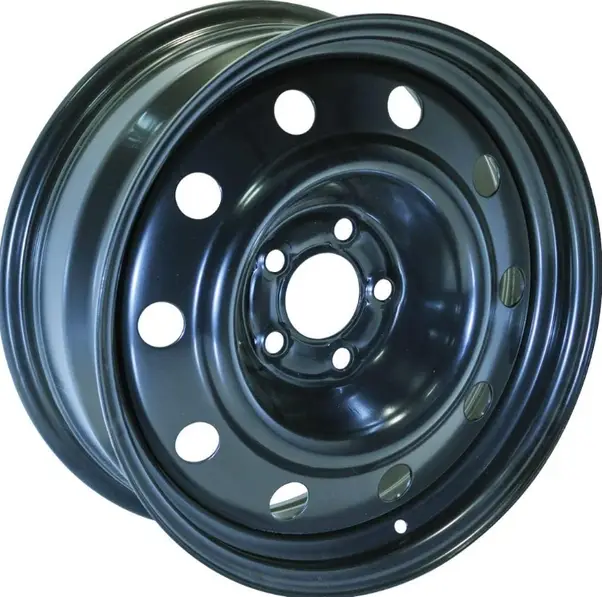

A steel car wheel
Alloy Car Wheels – Light And Fuel-Efficient
Alloy car wheels are lighter, thus more fuel-efficient. The wheels are typically made from aluminum and silicon. Their corrosion resistance is another selling point.

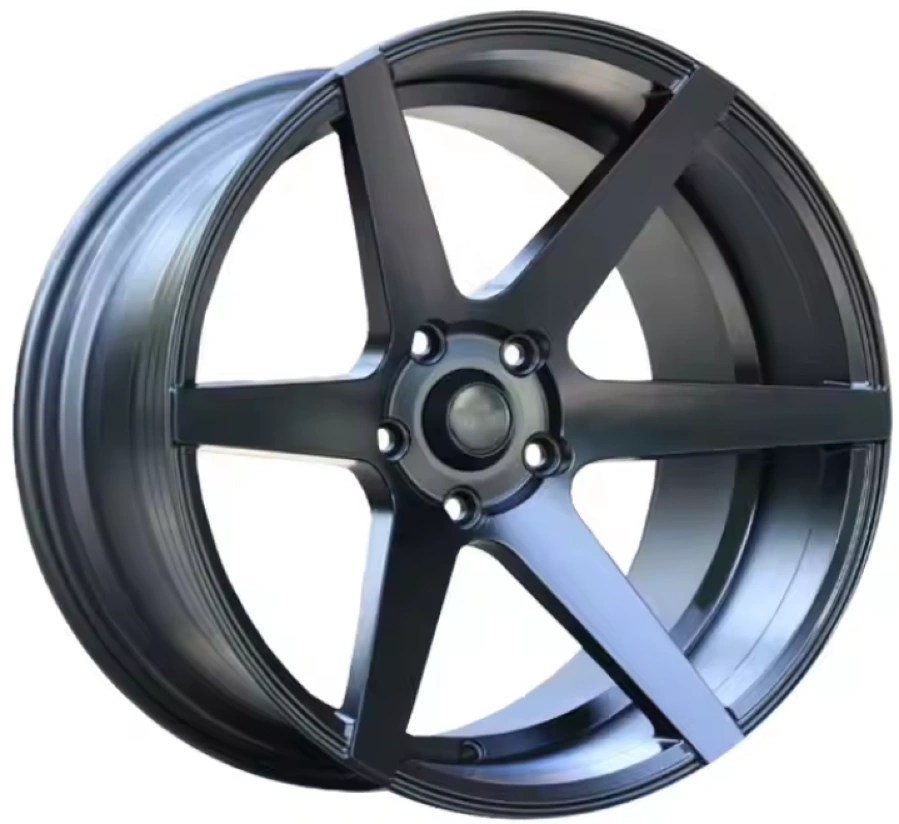

Aluminum alloy car wheel
Carbon Fiber Car Wheels With Overall Quality
Interwoven carbon fibers are also effective materials for car wheels. The material performs well on many fronts: It is lightweight, strong, corrosion resistant, and durable. The higher initial investment required for these wheels is worth it for many users.

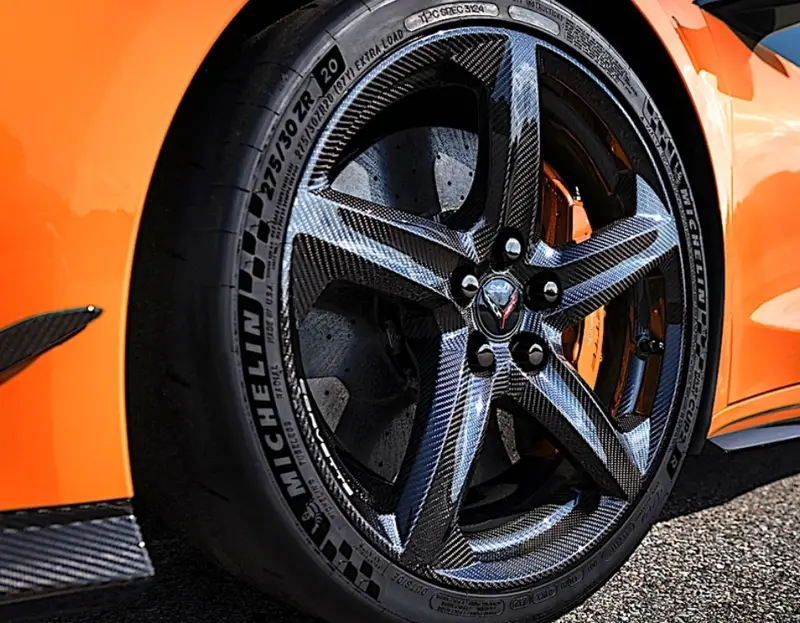

Carbon fiber wheel
Considerations For The Best Car Wheel Parts
When looking for car wheels, you should consider a few things related to the different parts of the wheel. These factors are weight, aesthetics, maintenance, material, and budget. The application of the wheels also matters.
Aesthetics Of The Car
Custom-made car wheels offer the aesthetic touch that is increasingly getting popular among users. Users have many options for customized car wheels, whether for the complete component or some parts of the car wheel.
CNC machining is a popular choice for custom-making car wheel parts. Get your quote now if you need the best CNC machining services for car wheel parts.
Maintenance Requirements
A car wheel user or dealer must think about the effort needed to keep the product like it has just been unboxed. Certain CNC machining finishes require a specific type of care. The right cleaning products must be used to guarantee the expected durability.
Here are some points for maintaining parts of a car wheel:
- Avoid curb damage with proper parking practice
- Check for damage (cracks, scratches, etc.) on the parts regularly
- Do wheel detailing only at expert centers
- Perform inflation checks and other tire maintenance procedures
- Regularly clean the wheels to remove grime and dust
- Dont use abrasive cleaners or chemicals to safeguard the integrity of the wheel
Material And Its Qualities
For a long time, there has been debate pitting steel vs. alloy material for car wheels. When choosing a material for car wheels, users mostly consider these two. The fact is that each material has pros and cons.
For instance, while steel wheels are durable and cost-effective, they are heavier and poorer heat conductors than alloy wheels.
The Overall Weight Of The Car Wheel
It is important to reiterate on the wheel weight element because it affects the overall car performance. The most important thing is to minimize the unsprung weight (weight that is not connected or supported by the car’s suspension, for instance, car wheel weight).
It is always a delicate balancing act because heavier provide better designs and related benefits.
Budget Limitations
Equally important is the budget. It is normal to want to buy something a little bit more pricey, but it is better to stick to a budget. Staying within a manageable budget doesn’t mean there arent exciting parts of a car wheel out there.
Common Issues To Remember About Car Wheels
Car wheels have common issues, from cracked rims to uneven tire wear, and bent rims to punctures.

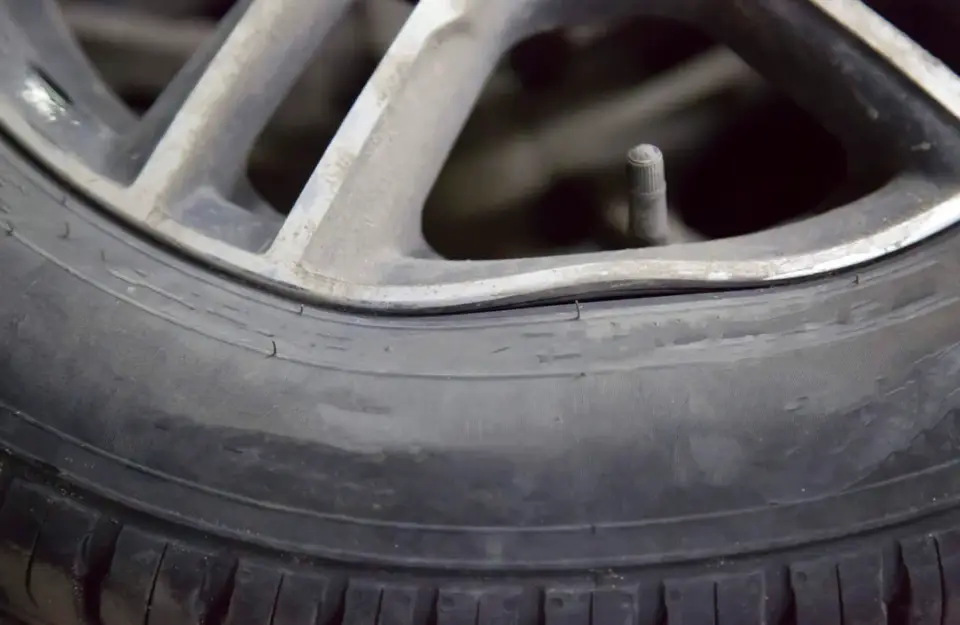

A bent rim of a car wheel
Fortunately, each of these issues can be remedied. Here is a summary of common car wheel part issues and the steps to manage them.
| Car wheel issue | Solution |
| Bent rim |
|
| Cracked rim | Welding then CNC machining |
| Tyre puncture |
|
| Uneven tire wear |
|
| Chipping or scratching of paint/finish | Polishing |
| Dust buildup | Clean wheel using specified cleaning agents and tools |
CNC machining is a popular solution in solving car wheel part cracks and other imperfections.
Read more about the process here: Solutions for Classic and Vintage Car Parts.
In Conclusion
Engineers consider different elements when designing car wheels, but performance beats everything else all the time. Considering the many parts of a car wheel, navigating the trade-offs can be challenging. Focusing on one part can mean downgrading on another one.
However, with technology advancements and experienced personnel like in ProleanTech, manufacturing car wheel parts is based on predictable performance metrics. Each part is designed and manufactured to operate optimally and last long.
Get a taste of modern CNC machining services for car tires today.
FAQs
What is the thing in the center of a wheel called?
The thing at the center of a wheel is called the hub.
What does a wheel consist of?
A car wheel consists of several main parts namely the tire, disc, hub, and rim.
What is the center cover on a wheel called?
The center cover on a wheel is called the center cap.
What are the components of a wheel and axle?
The components of a wheel and axle are the shaft on which the wheel rotates (the axle) and the wheel itself.
How often should I inspect and maintain my car wheels?
You should inspect and maintain your car wheels as regularly as necessary based on usage and other factors.
Can I customize my car wheels for improved performance or style?
Yes, you can customize your car wheels for improved performance and style.
