Laser Beam Welding (LBW): Advancing Precision Joining Techniques

In today’s advanced manufacturing industry, precision, speed, and efficiency are paramount. Laser Beam Welding (LBW) has emerged as a revolutionary technique that meets these requirements, offering unmatched precision and versatility.

This comprehensive guide will delve into the world of LBW, providing insights into its process, applications, and advantages.

Understanding Laser Beam Welding: The Science Behind Precision Joining

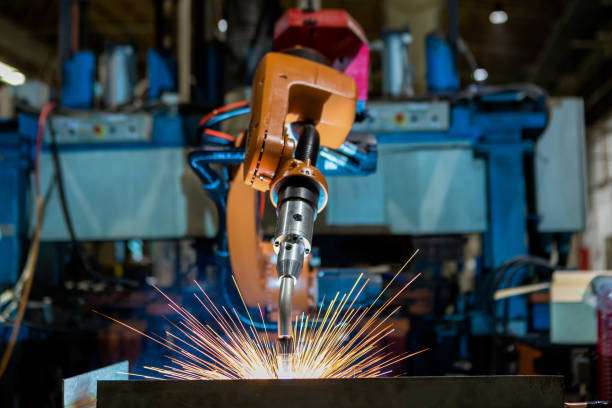

Robots are welding assembly of automotive parts in a car factory

Laser Bean Welding

Laser Beam Welding (LBW) is a highly advanced welding technique that utilizes a focused laser beam to join materials together. The process involves the use of a high-energy laser that melts and fuses the materials, creating a strong and precise weld. LBW offers exceptional precision, accuracy, and control, making it a preferred choice for applications that require high-quality welds and intricate designs.

The Laser Beam Welding Process

The laser beam welding process involves several key steps:

• Beam Generation: A high-energy laser beam is generated using a laser source, typically a solid-state or gas laser.
• Beam Focusing: The laser beam is then focused onto the workpiece using lenses or mirrors, creating a small and intense heat source.
• Material Interaction: The focused laser beam heats and melts the materials at the joint, creating a molten pool.
• Weld Formation: The molten pool solidifies to form a strong bond as the laser beam moves along the joint.
• Cooling and Solidification: The welded joint cools down and solidifies, resulting in a high-quality weld.

Advantages of Laser Beam Welding

Laser Beam Welding offers several advantages over traditional welding methods, including:

• Exceptional precision and accuracy, even for complex and delicate welds.
• The minimal heat-affected zone (HAZ), reducing the risk of distortion and material damage.
• High welding speeds and efficiency, enabling faster production cycles.
• Versatility in material compatibility, allows for the welding of a wide range of metals and alloys.
• Superior weld quality and strength, meeting stringent industry standards.

Limitations of Laser Beam Welding

While Laser Beam Welding offers many advantages, it also has a few limitations to consider:

• Initial equipment and setup costs can be higher compared to traditional welding methods.
• Limited access in tight spaces and difficult-to-reach areas due to the requirement of line-of-sight between the laser and the workpiece.
• Sensitivity to certain materials, such as those with high reflectivity or high thermal conductivity, may require additional techniques or modifications.

Applications of Laser Beam Welding: From Aerospace to Microelectronics

Laser Beam Welding finds extensive applications across various industries due to its precision, versatility, and high-quality welds. Here are some notable applications:

1. Aerospace and Aviation Industry

In the aerospace and aviation industry, Laser Beam Welding is used for critical components such as airframes, engine parts, and turbine blades. Its ability to produce strong and precise welds is essential for ensuring the structural integrity and safety of aircraft.

2. Automotive and Transportation Sector

Laser Beam Welding plays a vital role in automotive manufacturing, including body-in-white assembly, exhaust systems, and battery pack assembly for electric vehicles. Its accuracy and efficiency contribute to the production of high-quality and durable automotive components.

3. Medical Device Manufacturing

In the medical device industry, Laser Beam Welding is utilized for the fabrication of surgical instruments, implants, and medical tubing. The precise and controlled welding process ensures the integrity and reliability of medical devices, meeting stringent quality and safety standards.

4. Microelectronics and Electronics Industry

Laser Beam Welding is instrumental in the microelectronics and electronics sector, enabling precise welding of electronic components, wire bonding, and hermetic sealing for electronic packages. Its ability to create small and intricate welds is crucial for the manufacturing of electronic devices.

5. Manufacturing and General Industry

Laser Beam Welding finds applications in various manufacturing sectors, including machinery, tooling, and general fabrication. Its versatility and accuracy make it suitable for a wide range of materials and component sizes.

Advancements in Laser Beam Welding Technology: Pushing the Boundaries

Laser Beam Welding technology continues to advance, driven by ongoing research and development efforts. These advancements aim to enhance the capabilities, efficiency, and accessibility of Laser Beam Welding processes.

1. High-Power Laser Sources

The development of high-power laser sources enables higher welding speeds, deeper penetration, and improved weld quality. Fiber lasers and disk lasers are among the advanced laser sources used in Laser Beam Welding.

2. Beam Shaping and Delivery Systems

Innovations in beam shaping and delivery systems allow for more precise control of the laser beam, enabling complex welding geometries and improved process efficiency.

3. Real-Time Process Monitoring and Control

Advanced monitoring and control systems provide real-time feedback on the welding process, allowing for immediate adjustments and optimization. This enhances the consistency and quality of the welds.

4. Hybrid Laser Welding

Hybrid laser welding combines laser beam welding with other welding methods, such as arc welding or electron beam welding, to achieve synergistic effects and expand the range of applications.

5. Robotics and Automation

Integration of Laser Beam Welding with robotic systems and automation technologies improves process efficiency, repeatability, and flexibility. This allows for faster production cycles and reduced human error.

ProleanTech’s Laser Beam Welding Services: Precision and Quality Assured

ProleanTech is a trusted provider of Laser Beam Welding services, offering precision, quality, and expertise. With state-of-the-art laser equipment, experienced technicians, and a commitment to customer satisfaction, ProleanTech ensures the success of your welding projects.

ProleanTech utilizes cutting-edge laser technology, including high-power lasers and advanced beam delivery systems, to deliver precise and high-quality welds. Our team of skilled and experienced technicians are experts in Laser Beam Welding techniques. They have the expertise to handle complex projects and ensure exceptional welding results.

We believe in maintaining the highest standards of quality and is ISO-certified. Stringent quality assurance processes and thorough inspections are conducted to ensure the integrity and reliability of the welds.

Conclusion

Laser Beam Welding is a highly advanced and versatile welding technique that offers exceptional precision, accuracy, and quality. Its wide range of applications, continuous technological advancements, and the expertise of service providers like ProleanTech make it a preferred choice in various industries. By leveraging Laser Beam Welding, manufacturers can achieve superior welds, enhance productivity, and meet the demanding requirements of modern fabrication.

FAQs

Is Laser Beam Welding suitable for all materials?

Laser Beam Welding is suitable for a wide range of materials, including metals and alloys such as stainless steel, aluminum, titanium, and more. However, certain materials with high reflectivity or high thermal conductivity may require specific considerations and modifications.

What are the advantages of Laser Beam Welding over other welding methods?

Laser Beam Welding offers several advantages over traditional welding methods, including superior precision, minimal heat-affected zone, high welding speeds, and the ability to weld a wide range of materials.

Is Laser Beam Welding a cost-effective welding method?

Laser Beam Welding can provide cost-effective solutions in various scenarios. While initial equipment costs may be higher, precise control, minimal rework, and reduced post-welding operations can result in overall cost savings.

What industries benefit from Laser Beam Welding?

Laser Beam Welding finds applications in industries such as aerospace, automotive, medical devices, electronics, and general manufacturing. Its ability to deliver high-quality welds with precision and efficiency makes it suitable for diverse industrial sectors.
