Machining Inconel is the most challenging procedure in contemporary manufacturing. Inconel is a nickel-chromium-based superalloy known for its remarkable strength, resistance to corrosion, and capacity to tolerate high temperatures. Because of these special qualities, Inconel is used in fields including power generating, automobile engineering, and aerospace. Inconel is a desirable metal, but its machining is both difficult and complex.
This comprehensive tutorial delves deeply into the nuances of Inconel machining, its characteristics, the difficulties in machining Inconel alloys, and the function of sophisticated CNC machining in producing high-performance parts. In addition, it will help you select the best Inconel manufacturer and machining partner for your custom metal machining requirements.
What is Inconel?
Inconel is a superalloy composed of nickel and chromium engineered to withstand extreme environments. Some of its primary characteristics are excellent heat management, corrosion resistance, and strength at high temperatures. Because of its durability and oxidation resistance, common grades of Inconel, such as Inconel 625 and Inconel 718, are used extensively in chemical processing, aerospace, and marine applications.

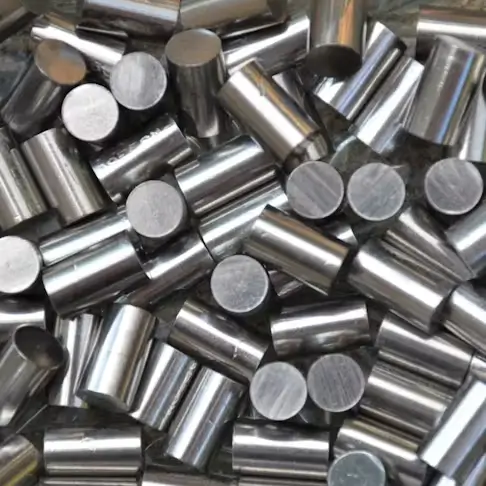

Nickel Alloy
Processing Inconel is difficult due to its hardness and propensity to work-harden during machining. When dealing with Inconel pieces, accuracy and efficiency require the use of custom CNC machining processes and careful heat treatment.
Inconel 718 and Inconel 625 Properties
Inconel 718 and Inconel 625 possess many characteristics of the Inconel alloy family, as well as of the nickel alloy and stainless steel families. They also have observable differences that provide special usage for specific applications.
Inconel 625 Properties and Strength Factors
Inconel 625 is mainly made of nickel and chromium. Additionally, it contains niobium and molybdenum. Inconel 625 properties contribute to its high tensile strength and corrosion resistance, particularly against crevice corrosion.
Its remarkable strength in cryogenic or extremely high temperature conditions is attributed to columbium and molybdenum. According to its technical bulletin, Inconel 625 has strong resistance to carburization and oxidation. It may retain its strength in temperatures as high as 2,000° F.

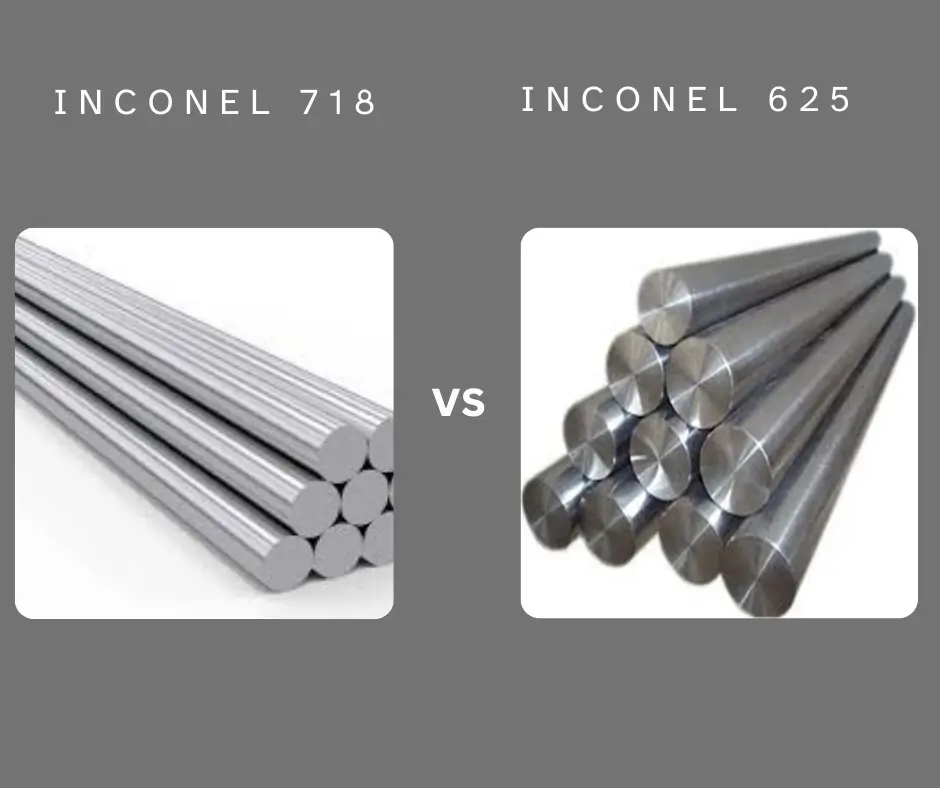

Inconel 718 vs Inconel 625
Inconel 718 Turnings and Machining Considerations
Inconel 718 and Inconel 625 have similar chemical makeup but only slight differences. Additionally, the technical bulletins mentioned that Inconel 718 properties are exceptional because it may be precipitation hardened without experiencing post-weld cracking. Additionally, it can withstand creep rupture at temperatures as high as 1,300°F. This feature enables Inconel 718 to retain high tensile strength while exhibiting alloy properties such as good formability.
| Property | Inconel 718 | Inconel 625 |
| Composition | Nickel 50–55%, Chromium 17–21%, Iron 17% approx | Nickel 58%, Chromium 20–23%, Molybdenum 8–10% |
| Density | 8.19 g/cm³ | 8.44 g/cm³ |
| Tensile Strength | 1,240 MPa (ultimate) | 827 MPa (ultimate) |
| Yield Strength | 1,035 MPa | 414 MPa |
| Hardness (Rockwell B) | 90–100 | 85–95 |
| Maximum Service Temperature | ~700°C | ~982°C |
| Corrosion Resistance | Excellent in oxidizing environments | Excellent in marine and chemical environments |
| Work-Hardening Tendency | High | Moderate |
| Applications | Aerospace turbines, gas turbines, nuclear reactors | Marine components, chemical processing, exhaust systems, heat exchangers |
Inconel 718 is comparable to regular stainless steel grades in several aspects due to its high weldability. Conversely, annealed Inconel 625 is stronger and more corrosion resistant, notably in environments like seawater.
Challenges of Machining Inconel Alloys
Inconel alloys may be challenging to process despite their many advantages. The following are a few difficulties with Inconel machining:
High Work Hardening Rate: Inconel is a harder and stronger alloy due to its high work hardening rate. It can quickly wear out cutting tools. Custom metal machining tools that can endure high levels of stress are necessary to maintain precision during CNC machining. Hence, it is challenging to get the right size and shape.
Tool Wear and Breakage: The difficulty of cutting Inconel alloys can lead to high cutting forces and tool wear. However, high speed steel (HSS) is not ideal for Inconel machining. Therefore, coated carbide tools, ceramic, and CBN tools perform better for machining Inconel. However, high-speed steel or carbide tools are better for inconel machining. Regular inspection and replacement are necessary to keep perfection in custom CNC machining projects.
High-Precision Inconel Machining Process
Heat Generation: Inconel is a poor conductor of heat. Inconel alloys have low thermal conductivity. Hence, heat concentrated in the cutting area during machining, leading to high temperature and rapid toll wear.
Inconel is a good conductor of heat. Inconel alloys produce a lot of heat during machining. Overheating raises the possibility of thermal deformation, damages tools, and lowers part quality. Heat control and coolant application must be done correctly.
Work Deflection: It is a common issue when machining Inconel alloys, which are susceptible to workpiece deflection. This deflection may lead to dimensional errors. Hence, with the use of a rigid setup, proper fixturing helps to lessen these errors during CNC machining.
Try Prolean Now!
Comparison of CNC Machining Methods for Inconel
| Machining Method | Advantages | Limitations / Challenges | Best Use Cases |
| Turning | High precision for cylindrical and round parts; good surface finish | Rapid tool wear due to hardness; heat generation | Shafts, turbine discs, cylindrical aerospace components |
| Milling | Can produce complex geometries and intricate features | Requires a rigid setup, workpiece deflection, and is slower than steel | Engine blocks, impellers, complex aerospace, and power generation parts |
| Drilling | Efficient for creating precise holes; can be automated. | Heat buildup, work-hardening, and tool wear; risk of burrs | Turbine blades, exhaust systems, and chemical processing equipment |
| Grinding | Achieves tight tolerances and smooth surface finish | Slow process; tool wear is high; requires precision fixturing | Final finishing of Inconel components, aerospace, and medical parts |
| Electrical Discharge Machining (EDM) | Excellent for extremely hard alloys; can create intricate shapes | Slow, higher cost, requires electrical conductivity | Complex aerospace or prototype components, thin-walled parts |
Tips for Successful Inconel Machining
Inconel can be effectively machined in spite of the difficulties. Here are some tips to remember:

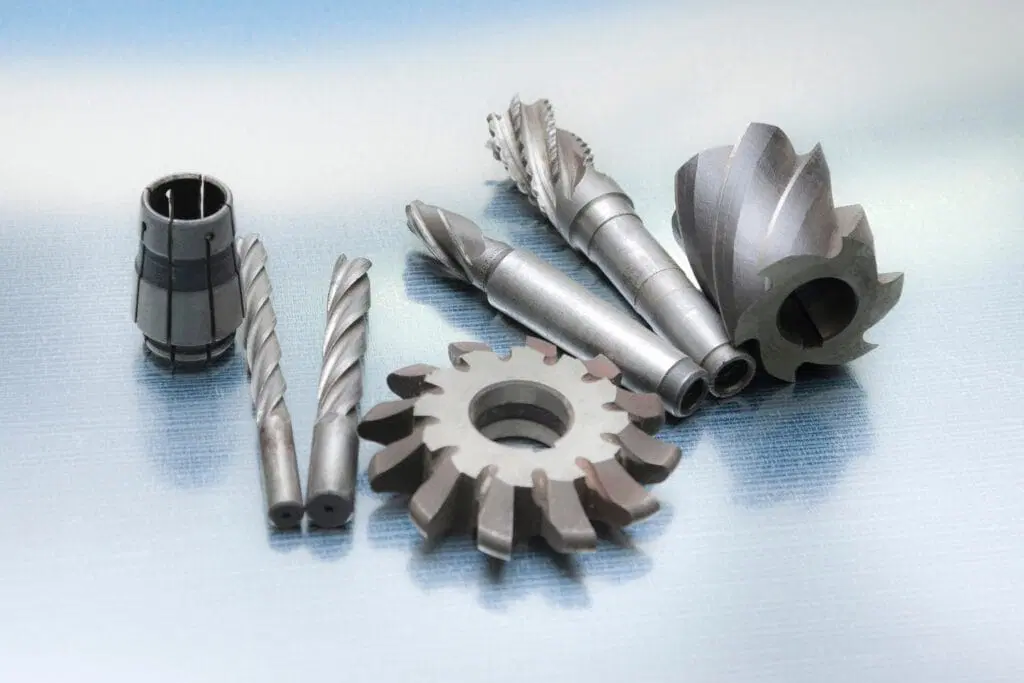

- Select the Appropriate Cutting Tools: Select cutting tools made especially for Inconel machining. The best options are usually carbide tools with a high positive rake angle.
- Apply Effective Coolant and Lubrication Use: To keep the temperature down and minimize thermal damage, it is crucial to use a lot of coolant since inconel produces a lot of heat during machining.
Inconel CNC Machining
- Optimize Cutting Speeds and Feed Rates: To get the best results, adjust machining parameters including depth of cut, feed rate, and cutting speed.
- Ensure a Stable and Rigid Setup: Given Inconel’s propensity for workpiece deflection, a rigid setup is essential to reducing deflection and guaranteeing dimensional accuracy.
- Plan Post-Machining Operations Carefully: Because inconel can be difficult to machine to the necessary tolerances, it’s important to take into account post-machining processes like honing and grinding in order to obtain the requisite precision.
CNC Machining Solutions for Inconel
Inconel alloys require specific CNC machining procedures due to its properties. Manufacturers may achieve accuracy and high-quality outcomes by utilizing advanced equipment when dealing with Inconel metal.
Custom CNC Machining for Complex Inconel Parts
Numerous Inconel components require custom CNC machining because of their complex geometry, particularly in the aerospace and power generation industries. Complex CNC machining with precise tolerances is made possible by advanced technology. It ensures that every detail of the part meets requirements. Even in hard-to-machine locations, producers may preserve precision and minimize tool wear by using stiff setups and high-quality cutting tools.

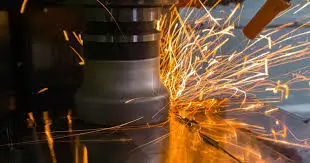

Inconel Machining
Precision Techniques for Machining Inconel 625 and 718
Various Inconel grades need specific machining techniques. Careful management of cutting speeds and feeds reduces heat production and work-hardening while machining Inconel 625. For Inconel 718 turnings to preserve dimensional precision, certain carbide or high-speed steel tools, appropriate coolant application, and optimized tool paths are needed. Manufacturers may create high-performance parts with excellent surface quality and less tool wear by using these precise techniques.
Role of CNC Machining Materials and Alloy Compatibility
Successful Inconel machining depends on knowing alloy compatibility and choosing the appropriate CNC machining materials. To minimize wear and provide reliable results, the alloy’s characteristics must be matched by the tool’s shape, material, and coating. Precision is guaranteed, deflection is reduced, and high-strength Inconel materials may be produced efficiently when the cutting tool, fixture, and alloy materials are compatible.
Industry Applications of Inconel
Here, we examine the several uses of Inconel across a range of sectors:
- Aerospace: Inconel’s resistance to high temperatures is advantageous for engine thrust reversers, exhaust systems, and turbine blades.
- Automotive: Inconel is used in high-performance exhaust systems and turbocharger rotors to endure the pressure and heat of racing.
- Oil and Gas: The corrosion resistance of Inconel is essential for downhole tubing and safety valves in sour gas situations.
- Power Generation: Inconel is used to make gas turbine parts that can withstand high temperatures, such as rotor blades and combustors.
- Chemical Processing: Inconel is used in reactor cores and containment vessels to withstand corrosive materials and preserve structural integrity under heat stress.
- Marine: Because Inconel is strong and resistant to corrosion in saltwater conditions, it is used to make propulsion motors and navy submarine components.
- Medical Devices: Inconel’s strength and biocompatibility make it a good choice for surgical and dental tools.
- Nuclear: Because Inconel can endure the harsh conditions seen in nuclear reactors, it is used in control rods and reactor cores.
Try Prolean Now!
Case Studies: Successful Inconel Machining Projects
Success in machining Inconel depends on an awareness of the particular needs and technical proficiency of every project. Working together with clients at ProleanTech guarantees efficient processes, accurate tool selection, and creative custom CNC machining techniques that produce high-performance components for a variety of sectors.
Aerospace Inconel Industry – Turbine Blades with Inconel 718
Aerospace Inconel industry parts are subjected to corrosive conditions, high temperatures, and stress. Inconel 718 is perfect for critical aircraft components like combustor parts and turbine blades because of its excellent tensile strength and creep resistance.

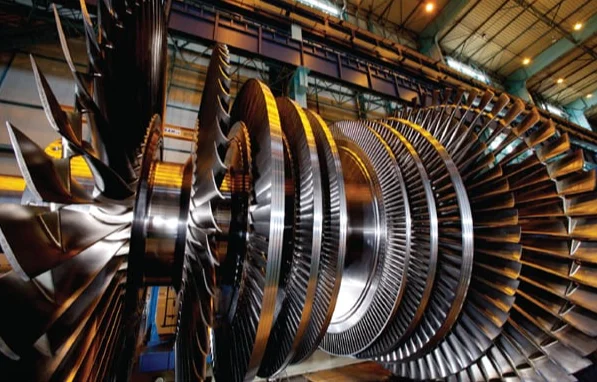

Inconel 718 for Turbine Blades
ProleanTech used multi-axis CNC turning and milling to make turbine blades. One of the problems was controlling tool wear and heat accumulation while maintaining precise tolerances on intricately curved surfaces. The team created blades with exceptional surface polish and dimensional precision by carbide tools, specialized CNC machining processes, and their expertise in inconel 718 turnings.
Power Generation – Gas Turbine Components with Inconel 625
Machining Inconel 625 is a critical material for gas turbine parts. Its a heat exchanger and chemical processing equipment used in power generating applications.

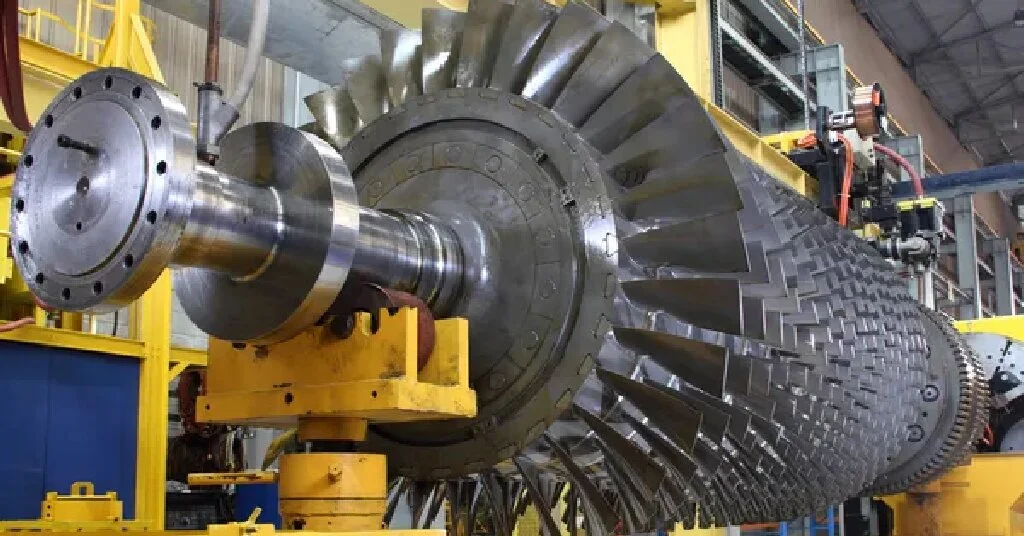

Inconel Gas Turbine Rotor for Power Generation
ProleanTech had to deal with issues, including workpiece deflection and tool wear, during precision milling when working with a power plant OEM. The team achieved precision and longer tool life by using appropriate CNC machining materials, optimal feed rates, and robust fixturing. This illustrates how the difficulties associated with high-strength Inconel alloys may be addressed by alloy materials and custom CNC machining techniques.
Automotive – High-Performance Exhaust Systems
Components in high-performance automotive applications need to withstand corrosive exhaust fumes, severe heat, and vibration. Inconel is the perfect material for exhaust manifolds and turbocharger components.
Complex Inconel exhaust parts with narrow walls and complex bends were manufactured by ProleanTech. Multi-axis programming, coated carbide tools, and complex CNC machining were used to maintain tight tolerances free of warping or surface flaws. Accurate findings and less tool wear were made possible by an understanding of the hardness of Inconel. This example demonstrates how CNC metal machining contributes to the production of high-performance vehicle parts.

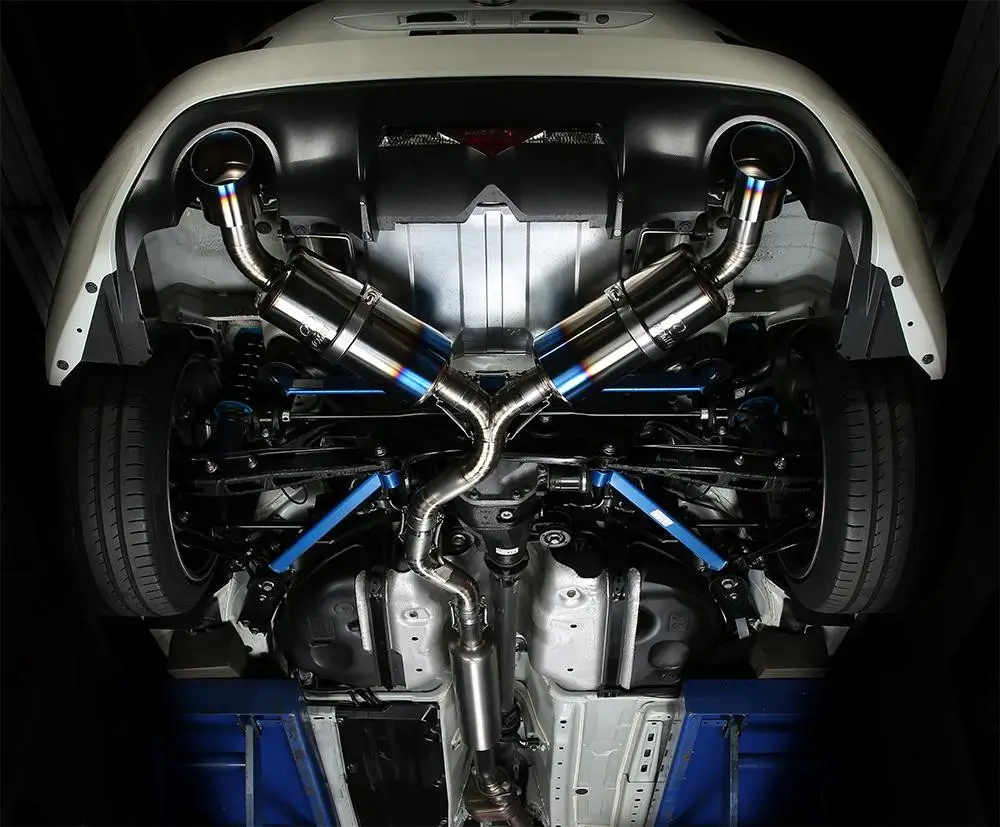

Inconel Exhaust System for High-Performance Cars
Choosing an Inconel Manufacturer and CNC Partner
The stakes are always high when you’re looking for Inconel machining services. Here’s something to think about:
- Technological Capability: Machining Inconel requires sophisticated machinery. Seek out service providers who have the newest CNC equipment capable of handling the stiffness and precision needed for Inconel machining. Technologies that demonstrate a provider’s capabilities include 3-, 4-, and 5-axis CNC milling machines and tools that can maintain tolerance as close as ±0.01 mm.
- Industry Experience: Having the correct tools isn’t enough for inconel machining; you also need to know how to utilize them. The success of your project might be greatly impacted by experience in your particular business. Suppliers who have a history of producing high-quality components for the marine, aerospace, or other industries that commonly utilize Inconel are more likely to be aware of your particular requirements and difficulties.
- Assurance of Quality: It is impossible to compromise on consistent quality. To guarantee that every part satisfies your requirements and is defect-free, the supplier should have a strict quality control system in place with comprehensive inspection capabilities like Olympus XRF analyzers and Hexagon CMMs (Coordinate Measuring Machines).
- Quick Prototyping for Large-Scale Manufacturing: The ideal service provider will give scalable solutions, whether you want large manufacturing or a one-off prototype. Because of this flexibility, you may begin testing and validating prototypes before proceeding with full-scale manufacturing, guaranteeing that the finished product satisfies all specifications.
- Delivery and Turnaround Time: Every day matters in the competitive market of today. You might get a competitive advantage from suppliers who can promise quick delivery dates without sacrificing quality.
- Stainless Steel machining vs. Inconel in High-Performance Engineering: Inconel performs better than stainless steel in high-temperature and high-stress settings, despite stainless steel’s widespread use in many industrial applications. The variations in tool selection, machining settings, and heat management are brought to light when comparing the Inconel machining and stainless steel machining. Hence, due to the differences in harness of Inconel and thermal properties, steel CNC machining requires different strategies. For components needing exceptional strength, resistance to corrosion, and long-term endurance in harsh environments, engineers opt for Inconel.
ProleanTech possesses extensive experience and skills in machining superalloys such as Inconel. We employ cutting-edge machinery and tried-and-true methods to produce premium Inconel components since we have a thorough awareness of the difficulties involved.
Customers that select Prolean have the advantage of collaborating with an expert who can manage the intricacies of Inconel machining, guaranteeing accuracy and dependability. Successful Inconel machining project case studies highlight our proficiency and dedication to quality. For project inquiries and discussions, get in touch with the ProleanTech team.
Conclusion
Machining Inconel is difficult because of its hardness, heat resistance, and work-hardening qualities. However, because of these characteristics, Inconel alloys are crucial for use in power generation, automotive, and aerospace applications.
Precision and quality may be attained with the correct custom CNC machining methods, equipment, and a knowledgeable partner. ProleanTech helps customers fulfill even the most exacting specifications by providing dependable, high-performance Inconel 625 and 718 components for both prototypes and large-scale production.
FAQs: Machining Inconel and CNC Solutions
1. What is Inconel, and why is it used in high-performance applications?
A family of superalloys based on nickel and chromium, Inconel is renowned for its exceptional strength, resistance to corrosion, and ability to withstand heat. It is extensively utilized in the chemical, power generation, and aerospace sectors where resilience in harsh environments is essential.
2. What are the differences between Inconel 625 and Inconel 718?
Inconel 625 is appropriate for chemical and marine applications because of its low work-hardening and exceptional corrosion resistance. Inconel 718, which is frequently used in aircraft turbines, offers greater strength and durability at extremely high temperatures. For both alloys, specific CNC machining methods are needed.
3. Why is machining Inconel so challenging?
Because of its great hardness, propensity for work-hardening, and poor heat conduction, Inconel alloys are challenging to machine. Rapid tool wear, workpiece bending, and heat production are caused by these conditions, necessitating sophisticated, specialized CNC machining techniques to preserve accuracy.
4. What are the best tools for Inconel machining?
For the machining of Inconel 625 and 718, carbide or high-speed steel tools are recommended. In order to reduce tool wear and preserve dimensional accuracy in custom metal machining projects, routine inspection, appropriate coolant application, and optimal cutting rates are crucial.
5. Which industries commonly use Inconel components?
The chemical processing, power generating, marine, and aerospace sectors all make substantial use of Inconel alloys. They are perfect for heat exchangers, exhaust systems, engine parts, and turbine blades because of their exceptional strength, resistance to corrosion, and heat tolerance.
