In-Depth Guide to Sheet Metal Blanking: Process, Applications, Advantages, and Optimization”
Sheet metal blanking is a critical process in metal fabrication that involves the cutting or shearing of a shape from a metal sheet. This method plays a significant role in industries such as automotive, aerospace, and construction, where precision and accuracy are essential. By understanding the intricacies of the sheet metal blanking process, manufacturers can optimize their production and ensure high-quality results.
In this in-depth guide, we will explore the sheet metal blanking process, common applications, advantages, innovative technologies, and tips for optimizing the procedure.
Understanding the Sheet Metal Blanking Process

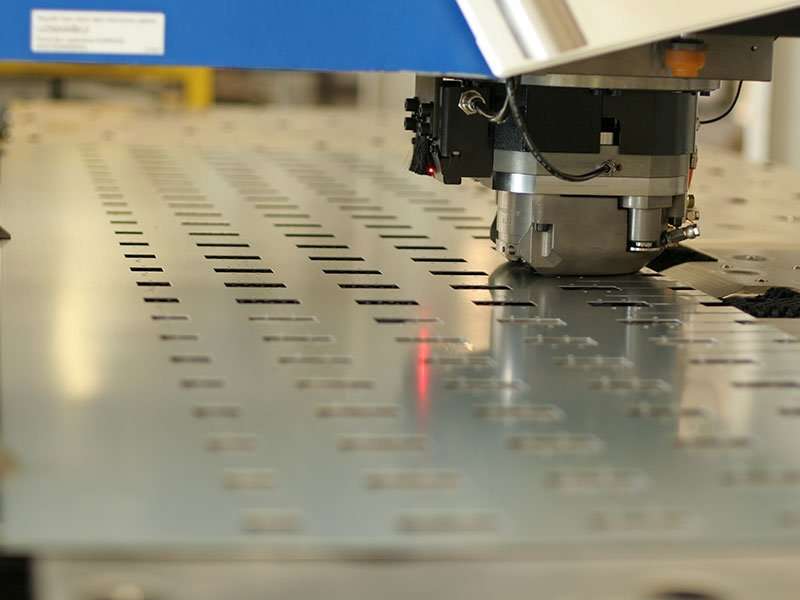

Sheet metal blanking process

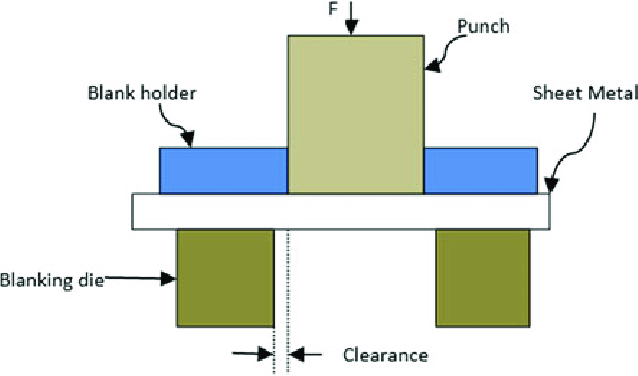

Sheet metal blanking is a versatile and efficient manufacturing process that involves cutting flat sheet metal into predefined shapes or profiles. It is also known as shearing, a process used to remove a part from a sheet of metal by applying a force strong enough to separate the material cleanly. The force is typically applied using a punch and die, which are specially designed to match the desired shape of the finished part. The process results in a clean, precise cut that requires minimal finishing or deburring.
Types of sheet metal blanking
There are several different methods of sheet metal blanking, each with its advantages and limitations. Some of the most common types of blanking include:
- Mechanical blanking uses a mechanical press to exert force on the sheet metal, cutting it with a punch and die. It is a popular choice due to its speed and accuracy.
- Hydraulic blanking relies on hydraulic pressure to force the punch through the sheet metal. This method offers greater control over the cutting process, making it suitable for more delicate or intricate parts.
- Laser blanking uses a high-powered laser to cut through the sheet metal, resulting in a clean and precise cut. It is ideal for complex shapes or materials that are difficult to cut using traditional methods.
Furthermore, several factors can impact the sheet metal blanking process, including the material type, thickness, and hardness. The design of the punch and die, as well as the amount of force applied can also influence the quality of the cut. Understanding these factors is essential for optimizing the blanking process and achieving the best possible results.
Sheet Metal Blanking Process: Step-by-Step
The sheet metal blanking process involves several critical steps that must be carefully executed to ensure high-quality results. The common steps include material selection, designing the punch and die, setting up the blanking equipment, performing the blanking operation, and finishing and inspection.
Let’s discuss these steps in detail.
Step 1: Material selection
The first step in the sheet metal blanking process is selecting the appropriate material. It is crucial to choose a material that is suitable for the desired part’s application and has the necessary strength and durability. Common materials used in sheet metal blanking include aluminum, stainless steel, copper, and brass.
Step 2: Designing the punch and die
Once the material has been selected, the next step is to design the punch and die to match the desired shape of the finished part. This involves creating a detailed drawing of the part, including dimensions and tolerances, which is then used to create the tools required for the blanking process.
Step 3: Setting up the blanking equipment
After designing the punch and die, the blanking equipment must be set up correctly to ensure a precise and accurate cut. This includes aligning the material, punch, and die, as well as setting the appropriate pressure or force for the chosen blanking method.
Step 4: Performing the blanking operation
Once the equipment is set up, the blanking operation can begin. The punch is forced through the sheet metal, cleanly cutting the desired shape. Depending on the material and thickness, multiple hits may be required to complete the cut.
Step 5: Finishing and inspection
After the blanking process is complete, the resulting part may require finishing or deburring to remove any rough edges or imperfections. The part is then inspected to ensure it meets the specified dimensions and tolerances.
Common Sheet Metal Blanking Applications
Sheet metal blanking is used in a wide variety of industries and applications, including:
|Automotive||Body panels, brackets, and structural parts.|
|Aerospace||Lightweight, high-strength components for aircraft and spacecraft.|
|Construction||Components for buildings, such as roofing, siding, and structural elements.|
|Electronics||Circuit board housings and heat sinks.|
|Appliances||Parts for appliances, such as washing machines, refrigerators, and ovens.|
Advantages of Sheet Metal Blanking
There are several advantages to using sheet metal blanking, including:
- Precision: Blanking provides a high level of precision and accuracy, allowing for the production of complex shapes and designs.
- Efficiency: The sheet metal blanking process is relatively fast and efficient, making it ideal for high-volume production.
- Material utilization: Blanking generates minimal waste, as the process uses most of the sheet metal, resulting in a more cost-effective and environmentally friendly production method.
- Surface quality: The blanking process typically results in a clean, smooth surface that requires minimal finishing or deburring.
- Versatility: Sheet metal blanking can be used with a wide range of materials and thicknesses, making it suitable for various industries and applications.
Let’s Start A New Project Today
Innovative Metal Blanking Process Technologies
Several innovative technologies have been developed to improve the sheet metal blanking process, including:
- Servo presses: These advanced mechanical presses use servo motors to control the punch and die, providing greater accuracy and control over the blanking process.
- Fiber laser cutting: Fiber laser cutting is a newer technology that offers increased cutting speeds and precision compared to traditional laser blanking methods.
- Automation: The integration of automation technologies, such as robotics and computer numerical control (CNC) systems, has improved the efficiency and accuracy of the sheet metal blanking process.
Tips for Optimizing the Sheet Metal Blanking Process
To optimize the sheet metal blanking process, consider the following tips:
- Choose the right blanking method: Select the most suitable blanking method based on factors such as material type, thickness, and desired part complexity.
- Design the punch and die properly: Ensure the punch and die are designed accurately to match the desired part shape and dimensions, minimizing the risk of errors or defects.
- Maintain the blanking equipment: Regularly inspect and maintain the blanking equipment to ensure optimal performance and minimize downtime.
- Optimize material utilization: Maximize material utilization by strategically placing parts on the sheet metal to minimize waste and improve cost-efficiency.
- Implement quality control measures: Implement regular inspections and quality control measures to ensure the finished parts meet the specified dimensions and tolerances.
Choosing the Right Blanking Equipment and Tools
Selecting the appropriate blanking equipment and tools is crucial to achieving optimal results in the sheet metal blanking process. When choosing blanking equipment, several factors must be considered to ensure optimal results. First, the desired blanking method, such as mechanical, hydraulic, or laser, should be taken into account when selecting equipment.
It is also important to ensure that the chosen equipment can handle the specific material type and thickness required for the project. Choosing equipment that is suitable for the intended production volume, whether it is low-volume prototyping or high-volume manufacturing, is also crucial. Finally, the available budget should be considered when selecting equipment. Investing in higher-quality equipment may result in long-term cost savings due to improved efficiency and reduced downtime.
Sheet metal blanking is a critical process in metal fabrication that offers numerous advantages, including precision, efficiency, and material utilization. By understanding the different blanking methods, optimizing the process, and choosing the right equipment, manufacturers can ensure high-quality results for a wide range of applications.
