Common Spring Types: Types, Applications, and Machining Process

Author: Max
Published on: 2023-09-19
Categories: Industry Solutions
Tags: Springs

A spring is usually composed of a coiled metal wire or strip, usually divided according to load and shape. And it is customized with different materials according to different application scenarios.

Often taken for granted, springs are essential elements in countless applications, from everyday gadgets to sophisticated, large-scale machinery. While they might appear simple at first glance, their underlying intricacies allow them to effectively store and release energy, making them a staple in many industrial and daily contexts. Central to a spring’s function is its inherent capability to return to its initial form after elongation or compression, a quality that has been utilized for ages in diverse domains.

This article offers an insightful peek into the dynamic world of springs, their significance, design, and the ongoing innovations in materials and manufacturing processes.



The Springs Overview

Springs have facilitated significant advancements in various industries. Serving as critical components in mechanisms, springs exhibit both simplicity in design and complexity in function. Their subtle presence, spanning from everyday gadgets to sophisticated machinery, underscores their undeniable importance.

Compression and torsion spring

A spring is normally made with a coiled wire or strip of metal. It is a device crafted to store mechanical energy. When a force is applied to a spring, it either compresses or elongates and upon removal of this force, the spring endeavors to return to its original state. This tendency of a spring to revert back to its initial form is the hallmark of its functionality. Springs play a pivotal role in absorbing shock, maintaining contact, and regulating motion.

Fundamental of Springs (Hook’s Law)

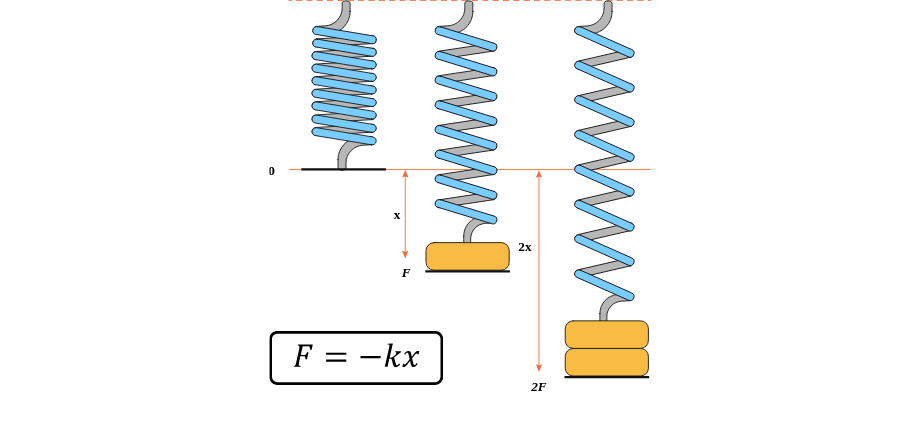

Hook’s law interpretation

Diving into the core principle governing the behavior of springs, we encounter Hooke’s Law, represented by the equation

F=-Kx

In this equation:

  • F stands for the force exerted by the spring (either tension or compression).
  • K is the spring constant, which is a measure of the stiffness of the spring. It indicates how much force is needed to compress or extend the spring by a certain distance.
  • x represents the displacement of the spring from its equilibrium or original position.

Hooke’s Law encapsulates the linear relationship between the force applied to the spring and its resultant displacement, up to a limit called the elastic limit. Beyond this limit, the spring may undergo permanent deformation and not return to its original shape. Essentially, this foundational equation informs us that the force exerted by a spring is directly proportional to its displacement, with the negative sign indicating the force acts in the opposite direction of displacement.



Classification of Springs by Load

While there are numerous ways to categorize springs, one particularly insightful method is by the type of load they are designed to bear. Understanding these classifications can help in the selection of the right spring for a specific application, ensuring optimal performance and longevity.

1. Tension or Extension Springs

Tension spring example

Tension springs, also known as extension springs, are designed to operate with a tensile load. This means they stretch when subjected to force. Typically crafted with closed and wound-tight coils, these springs have hooks or loops at either end, allowing them to be attached to components. When these components move apart, the spring tries to pull them back together.

Key features:

  • Designed to absorb and store energy as they expand.
  • Often found in trampolines, garage doors, and even some types of screen doors.

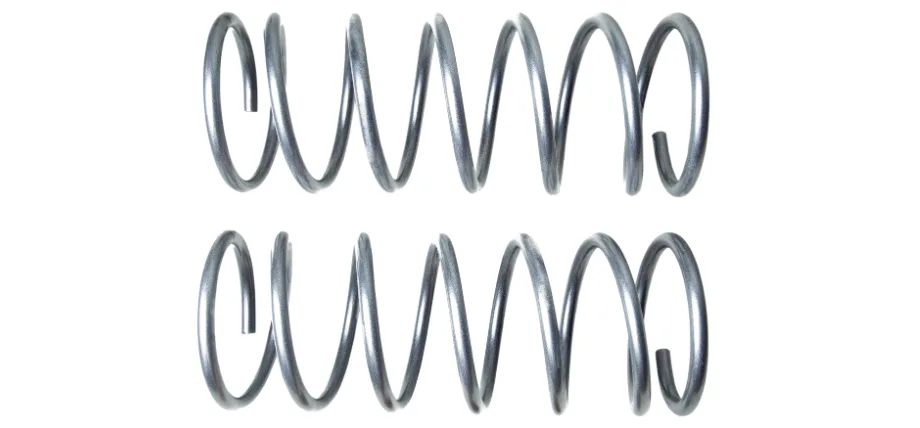

2. Compression Springs

Perhaps the most widely recognized category, compression springs are designed to resist a compressive force. When pressure is applied to a compression spring, it contracts, and once the load is removed, the spring returns to its original length. Its primary function is to resist being pushed or compressed.

Distinct characteristics:

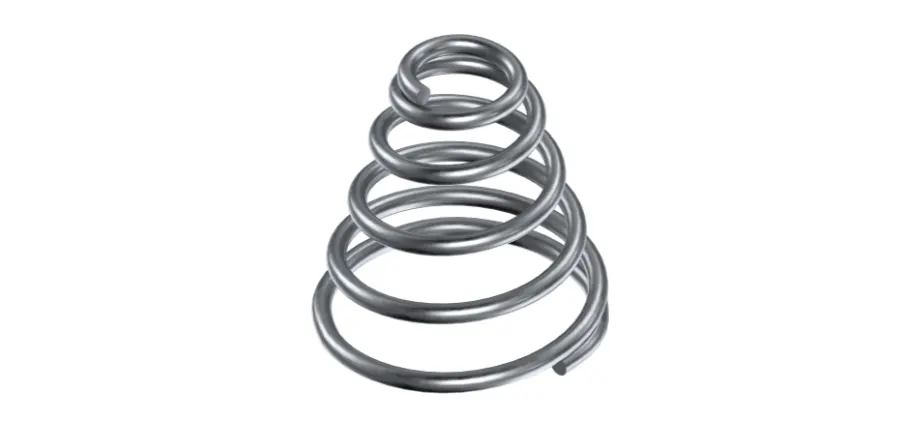

  • Typically cylindrical but can also be conical, barrel-shaped, or even hourglass-shaped.
  • Common applications include mattress springs, automotive suspensions, and pen internals.

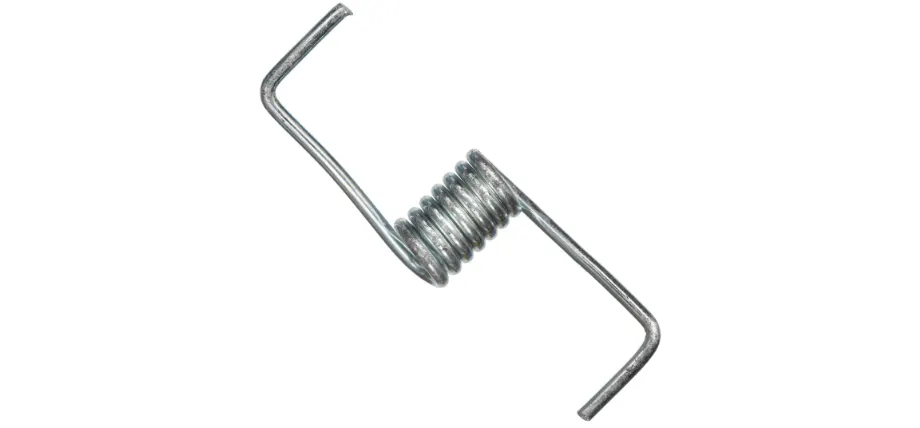

3. Torsion Springs

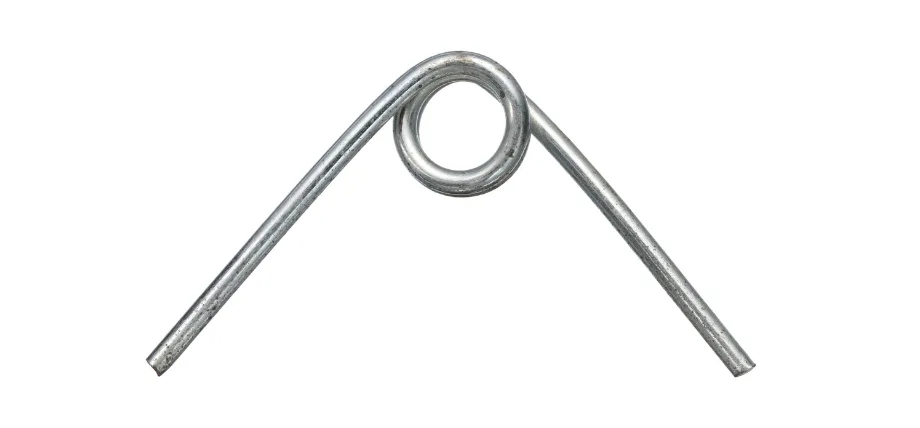

Torsion spring examples

Torsion springs are designed to work under rotational or twisting forces. When a force is applied to a torsion spring, it will twist and coil around its axis. Once the force is removed, it tries to return to its original position. These springs exert torque and rotate about a central axis, meaning their ends rotate in angular deflection.

Hallmarks of torsion springs:

  • Found in clothespins, door hinges, and even in the machinery of clipboards.
  • Characterized by their helical design and the manner in which they exert force.

4. Shear or Lateral Springs

Shear spring examples

Shear springs are slightly less common and are designed to handle side loads, which are forces applied laterally or off-axis. Instead of compressing or extending, they deflect or bend side-to-side.

Key aspects:

  • Typically found in applications like aircraft landing gear, where they absorb side loads during landing.
  • They can be quite long and thin, allowing for significant lateral movement.

To truly appreciate the diversity of springs based on load, it’s essential to visualize their application scenarios. In the world of springs, the same material and coil design can behave entirely differently based solely on the type of load it’s expected to handle. An illustrative table can be beneficial:

Table: Types of springs by load

Type of Spring Load Handled Common Applications
Tension Springs Tensile Trampolines, Screen doors
Compression Springs Compressive Mattresses, Pen internals
Torsion Springs Rotational/Twisting Clothespins, Door hinges
Shear Springs Lateral/Side Aircraft landing gear, Seismic isolators



Classification of Springs by Shape

The shape of Springs plays a crucial role in determining the spring’s function and application. The shape or configuration of a spring, aside from its material and load type, is instrumental in dictating how it will behave under stress. With a multitude of configurations to choose from, understanding springs by shape offers a tangible method to discern the right fit for an application.

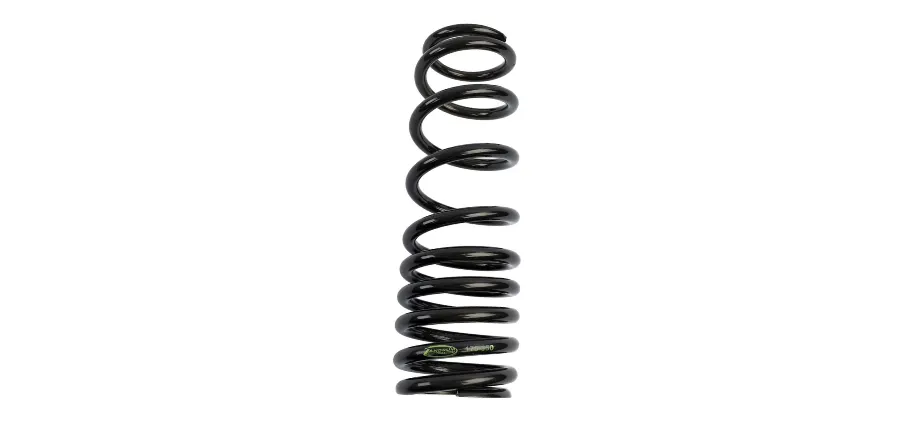

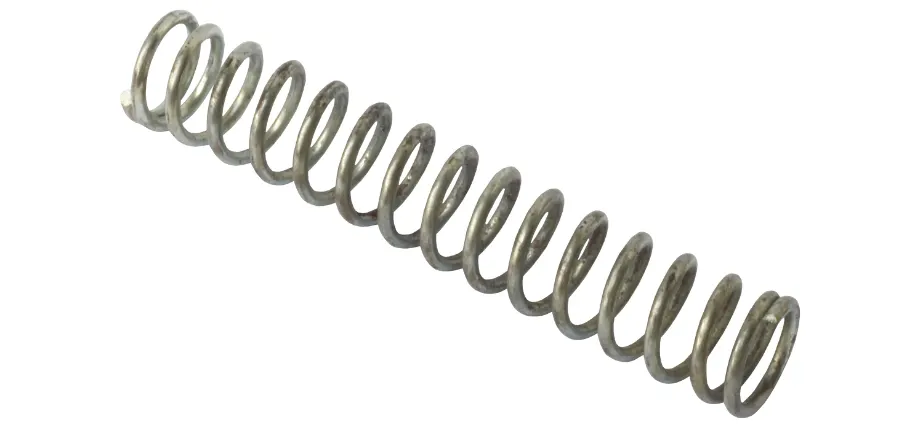

1. Coil Springs

coil spring on car shock absorber

Perhaps the most iconic representation of a spring, coil springs, are wound in a helical pattern. This configuration allows them to effectively handle tension, compression, and torsion loads. Their omnipresence is a testament to their versatility—whether in the modest ballpoint pen offering a smooth click or in vehicle suspensions, managing bumps and ensuring a comfortable ride.

2. Leaf Springs

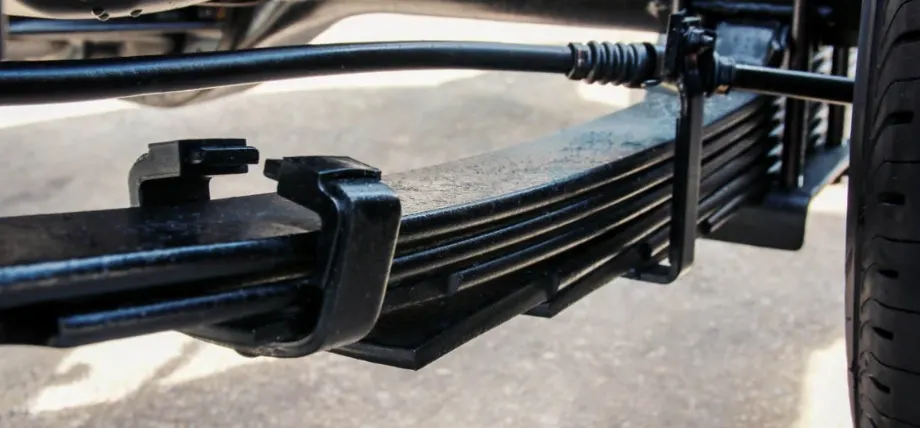

Leaf spring in automobile

At first glance, leaf springs might appear to be rudimentary—layers of metal stacked upon one another. But beneath this simplicity lies their strength. Predominantly found in heavy-duty vehicle suspension systems, the length and thickness of the metal leaves are adjusted meticulously. This modulates the spring’s characteristics, ensuring it provides optimal support, especially for heavyweight vehicles.

3. Belleville Springs

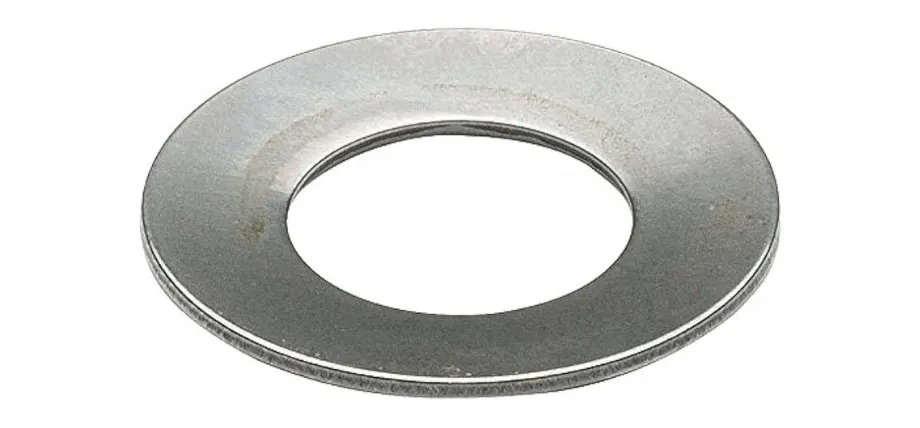

Belleville or disc spring

Belleville springs, also known as disc springs, are intriguing. Their conical disc shape allows them to exert large forces in surprisingly tight spaces. Beyond their compactness, they offer a specific range for deflection. This makes them indispensable in industrial machinery and for maintaining bolt tension in bolted joints.

4. Wave Springs

Marrying the best of coil and disc springs, wave springs boast of coiled flat wires infused with waves. This design enables them to provide a consistent load even with varying deflection, making them ideal for tight spaces where traditional coil springs might be deemed unfit.

5. Constant Force Springs

Constant force springs

The name says it all. These springs, crafted from a rolled band of spring steel, exert a nearly unchanging force throughout their motion range. This predictability makes them a favorite in devices like retractable cords, window shades, and cable retractors. Their consistent force output ensures a reliable performance, time after time.

6. Volute Springs

Volute spring with its schematic diagram

Volute springs, with their distinctive spiral or scroll shape, are a marvel in shock absorption. Though not as commonly seen as their coil or leaf counterparts, they shine in applications where space is abundant. Their most renowned application? Artillery recoil mechanisms. The unique shape enables them to manage significant impacts with aplomb, ensuring machinery remains intact even under duress.

To further illustrate the diversity in spring shapes, consider the following table, which succinctly captures the essence of each spring type:

Table: Spring types by shape

Spring Shape Defining Feature Common Applications
Coil Springs Spiral Configuration Pens, Vehicle suspensions
Leaf Springs Stacked metal layers Heavy-duty vehicle suspensions
Belleville/Disc Springs Conical discs Industrial machinery, Bolted joints
Wave Springs Coiled flat wires with waves Compact applications with tight space
Constant Force Springs Delivers consistent force Retractable cords, Window shades
Volute Springs Spiral or scroll shape Artillery recoil mechanisms



Let’s Start A New Project Today

What Are the Uses of Springs?

Have you ever paused to consider the forces that make retractable pens click, cars absorb road bumps, or even watches tick? These seemingly unrelated actions share a common hero: the spring. Springs, often overlooked for their quiet efficiency, play pivotal roles in a myriad of everyday applications. Their primary function? Storing and releasing energy.

1. Springs as Energy Stores

At the heart of understanding springs lies their capability to store mechanical energy. When a force is applied to a spring, it deforms. This deformation, whether it’s compression, tension, or torsion, allows the spring to accumulate energy.

  • Potential Energy Transformation: When a spring is compressed or extended, potential energy is stored within. This energy is released when the spring returns to its original form.
  • Resistance to External Forces: Springs counteract the force applied to them. This is why a sofa cushion springs back up after you get up or a door with a spring hinge closes behind you.

2. Springs in Motion Control

Springs aren’t just about energy storage; they are quintessential in governing motion. They provide resistance, and damping, and can modulate movement in machinery and tools.

  • Vibration Damping: Springs, especially in combination with other components like shock absorbers, dampen vibrations. This is evident in vehicle suspension systems that mitigate the effects of rough roads, ensuring a smoother ride.
  • Regulation of Motion: Springs are instrumental in mechanisms like pendulum clocks or metronomes, where they regulate the motion to maintain consistent time intervals.

3. Springs as Safety Mechanisms

A critical but perhaps less evident role of springs is in ensuring safety. Their ability to absorb energy and impacts makes them invaluable in various safety apparatus.

  • Absorbing Sudden Impacts: In situations like a car crash, springs in the car’s bumper can absorb a portion of the impact, potentially reducing the damage and injury.
  • Holding Mechanisms in Place: Springs in locks or latches ensure that mechanisms stay in place, adding an element of security.

4. Springs in Everyday Utilities

Beyond the technicalities, springs bring convenience to our daily lives in ways often taken for granted.

  • Facilitation of Movement: The retractable mechanism in pens, the pop-up feature in toasters, or even the spring-loaded clip on a clipboard owe their functionality to springs.
  • Enhanced Comfort: Mattresses with spring coils adjust to body contours, offering a comfortable sleep.

To contextualize the diverse roles springs play, a table consolidating their functions in various applications might be illuminating:

Table: Function of springs

Function of Springs Description Examples
Energy Storage Store mechanical energy through deformation Slingshots, Jumping toys
Motion Control Provide resistance, damping, and regulate movement Vehicle suspensions, Pendulum clocks
Safety Mechanisms Absorb impacts and hold mechanisms securely Car bumpers, Door latches
Everyday Utilities Offer convenience in daily tools and appliances Retractable pens, Spring mattresses



The Springs Materials

There are various materials that have been used in the manufacturing of springs. Different materials grant springs varying properties, affecting their elasticity, longevity, and resistance to environmental factors.

Let’s dive deep into the materials that give springs their unique characteristics.

1. Stainless Steel

When discussing spring materials, stainless steel often takes the spotlight. And for good reason. It’s a versatile material, offering a combination of strength, corrosion resistance, and affordability. Stainless steel springs are renowned for their ability to maintain their shape and strength even after repeated loading.

In environments where corrosion can be an issue—think marine or chemical industries—stainless steel stands out as the go-to material. This resistance to rust and tarnish means these springs can have a prolonged life with minimal maintenance. Moreover, with its good heat resistance, stainless steel springs are often preferred in applications where temperature fluctuates.

2. Phosphor Bronze

Phosphor bronze may not be as popular as stainless steel, but its properties make it a material worth considering for springs. An alloy of copper with traces of tin and phosphorus, phosphor bronze offers superior fatigue resistance. Its standout characteristic, however, is its excellent elasticity, especially when subjected to varying loads.

Apart from its mechanical attributes, phosphor bronze springs are resistant to chemical attacks, especially from chemicals like sulfuric acid. This makes them ideal for use in specific industrial settings. Another notable advantage is their resistance to wear and tear, ensuring longevity even in high-friction environments.

3. Beryllium Copper

Beryllium copper, as the name suggests, is an alloy of copper and beryllium. This combination endows the material with outstanding conductivity, making beryllium copper springs a favorite in electrical applications. These springs excel in maintaining electrical continuity, especially in devices where components are subjected to movement or vibration.

But it’s not just conductivity that beryllium copper brings to the table. The alloy is non-magnetic and resists sparking, making it suitable for environments where these characteristics are crucial, such as in explosive or flammable situations. Its resistance to stress relaxation and fatigue ensures that the springs retain their shape and function over extended periods.

4. Exploring Other Notable Materials

While stainless steel, phosphor bronze, and beryllium copper are among the frontrunners in spring manufacturing, there are other materials worth mentioning:

  • Carbon Steel: Often used for larger springs, carbon steel offers good tensile strength. It’s relatively affordable but may require additional coatings for corrosion resistance.
  • Nickel-based Alloys: In extreme temperatures, springs made of nickel-based alloys like Inconel come into play. These springs can handle both high and low temperatures without compromising their integrity.
  • Titanium: With a high strength-to-weight ratio, titanium springs are ideal for applications where weight is a concern. Moreover, they exhibit good corrosion resistance, especially against chlorides.
  • Hastelloy: In environments where other materials succumb to corrosion, Hastelloy stands strong. This nickel-based alloy is often the choice for springs in chemical processing industries due to its resistance to a plethora of aggressive agents.



Spring Manufacturing

The manufacturing of springs requires precision, an understanding of materials, and a keen attention to detail. Depending on the application, the method used for spring manufacturing can vary significantly. Let’s embark on the different techniques used in spring production.

Cold Coiling: Precision at Ambient Temperatures

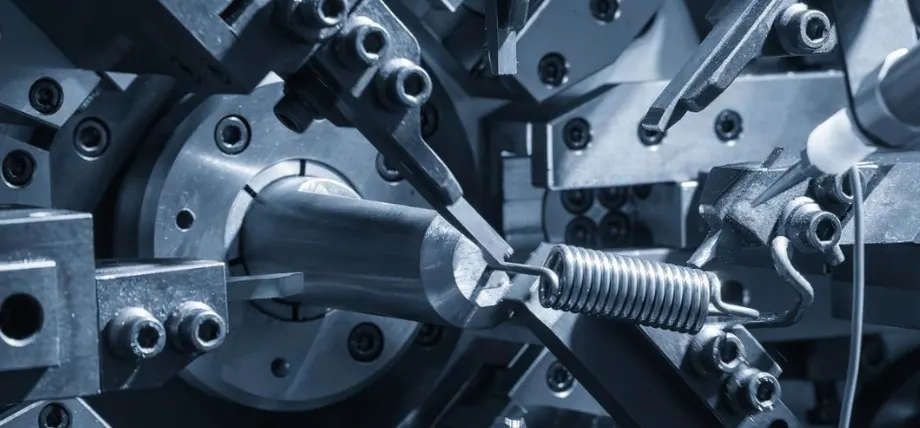

Cold coiling process

Cold coiling, as the name subtly hints, involves forming a spring at room or ambient temperatures. This method is predominantly used for springs made of wire diameters ranging from a fraction of a millimeter up to 20 millimeters. Here are some essential aspects of this method:

  • Material Preservation: Since the metal is not heated, there’s no risk of altering its core properties, ensuring a consistent finish and performance.
  • Efficiency: Modern cold coiling machines can produce springs at a rapid pace, catering to high-volume demands with ease.
  • Flexibility: With advancements in technology, cold coiling equipment can be programmed to produce springs of varying shapes and complexities without the need for extensive tool changes.
  • Surface Quality: Cold coiling often results in a smooth surface finish, which can be a pivotal factor in certain applications where aesthetics or reduced friction is essential.

Hot Coiling: Molding the Heated Giants

Hot coiling

When dealing with larger wire diameters, typically above 20 millimeters, hot coiling becomes the method of choice. The process involves heating the metal wire or rod until it’s red-hot and then shaping it around a mandrel. Key points to consider are:

  • Material Adaptability: The heated metal becomes more malleable, allowing for the creation of large springs without the risk of cracking or breaking.
  • Cooling Considerations: Post-coiling, the springs need to be cooled, either in the open air or quenched in oil, depending on the desired properties.
  • Final Treatments: Often, hot-coiled springs undergo additional processes like tempering to enhance their strength and longevity.
  • Industrial Niche: Hot coiling is the go-to method for heavy machinery and industrial applications where robust, large-scale springs are crucial.

Spring Grinding: Achieving the Perfect End

Springs, especially compression ones, require flat ends to distribute the force evenly. Spring grinding is the process dedicated to achieving this flatness. A few facets of this method are:

  • Parallelism: By grinding both ends of a spring simultaneously, manufacturers ensure that they are parallel to one another.
  • Variable Techniques: Depending on the spring’s size and purpose, either surface grinding or outer diameter grinding can be employed.
  • Consistency: Automated grinding machines ensure that every spring coming off the production line meets the exact specifications, ensuring consistency in performance.
  • Finish and Feel: Apart from functional benefits, grinding gives springs a polished look and smoother feel, which can be especially vital for consumer-facing products.



Summing Up

As we’ve discussed the multifaceted springs, from their diverse types and shapes to the intricate nuances of their manufacturing, it’s evident that these seemingly simple components are anything but. Springs play a silent yet paramount role in our daily lives, ensuring the functionality of various tools, machinery, and consumer products. Their production demands precision and material knowledge. Each method of manufacturing, be it cold coiling, hot coiling, or the meticulous process of spring grinding, is tailored to the specific requirements of the end product.

The choice of materials further adds to the complexity, as every application demands a particular strength, flexibility, or resistance. In essence, springs underscore a critical lesson: it’s often the smallest, unseen components that hold together the vast expanse of our mechanical world. So, the next time a pen retracts smoothly, a car suspension responds impeccably, or a watch ticks flawlessly, remember the silent and relentless service of springs and the expertise behind their creation.



FAQs

What is the basic principle of a spring?

Springs operate on the equation F=−Kx, which depicts the force exerted by a spring in relation to its displacement.

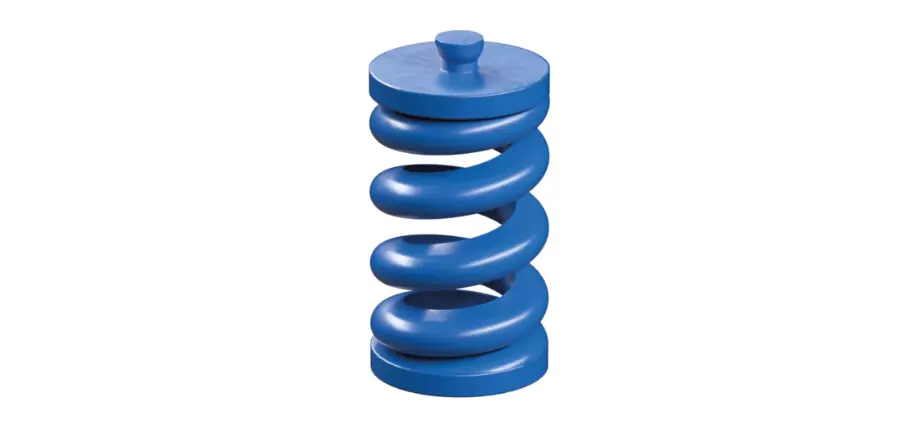

Are all springs made of metal?

While many are, springs can also be made from plastic, especially when corrosion resistance or electrical insulation is crucial.

What’s the difference between tension and compression springs?

Tension springs work with a stretching load, while compression springs compress under a load.

Why are there different shapes of springs?

Different shapes cater to different applications and space constraints, ensuring optimal performance.

How are springs manufactured?

Common methods include cold coiling, hot coiling, and grinding, among others.

Which material is best for high-conductivity spring applications?

Phosphor bronze and beryllium copper are often chosen for high conductivity needs.
