CNC Teflon machining
The CNC machining process is one of the most prominent manufacturing processes used to create various products from widely used thermoplastic polymers, such as PTFE machining materials, also known as Teflon.
Polytetrafluoroethylene (PTFE) is an extremely versatile material with a unique balance of mechanical properties, making it an ideal material for CNC machining. The material is commonly known by its brand name, Teflon.
This article guides CNC machining, detailing teflon machining, its applications and properties, and the best method to produce high-quality machined PTFE parts.
What Is Teflon (PTFE)?
Teflon sleeves
Polytetrafluoroethylene (PTFE) is an artificial material that is well known for its stick-proof properties and high heat resistance. The common brand name for PTFE is Teflon. It is commonly known as Teflon.
PTFE is suitable for making parts used in applications where the parts exhibit high performance under stress and high temperatures. Manufacturers often use PTFE to make highly durable and chemically unreactive parts that are critical in assemblies and require a long lifespan.
Manufacturers often use PTFE in industries requiring durable, low-friction, and chemically inert components. PTFE is suitable for applications where parts exhibit exceptional performance under extreme conditions, such as high temperatures or corrosive environments.
The material is commonly known as Teflon and is highly reliable and versatile, which makes it the primary choice of material for CNC machining.
Properties of Teflon
PTFE, also called Teflon, is a primary material used for CNC machining, due to the properties of PTFE that enable the achievement of tight tolerances in custom parts.
The physical and mechanical properties of PTFE are significant factors that promote its use in popular CNC machining and milling. The physical and mechanical properties are discussed below:
Physical Properties
PTFE is commonly known as Teflon and is used to make parts such as bearings and seals, due to its physical properties and formability as a versatile material.
Teflon is an excellent electrical insulator due to its chemical inertness and unique balance of properties that guarantee parts are safe for electrical connections in various applications.
Apart from that, PTFE has high heat resistance, which is beneficial in minimizing heat generated during CNC machining. Its versatility and durability make PTFE suitable for use in demanding conditions.
Mechanical Properties
The mechanical properties of PTFE make it extremely easy to use a CNC machine compared to other alternatives to Teflon, such as nylon.
PTFE is softer than nylon, and its low frictional properties increase the lifespan of machined parts. Glass-filled PTFE is a stronger variant that is a suitable material for structural parts and is used in valve seat applications.
Machined PTFE parts are biocompatible due to the material’s unreactive nature, which makes medical PTFE machined parts prominent in various medical applications.
Try Prolean Now!
Teflon CNC Machining Methods
There are various methods used in CNC machining teflon, such as CNC milling, CNC turning, CNC drilling, and threading, which enable manufacturers to create custom teflon parts of specific shapes with high precision.CNC machines offer greater control with tight tolerances in Teflon parts.
CNC Milling

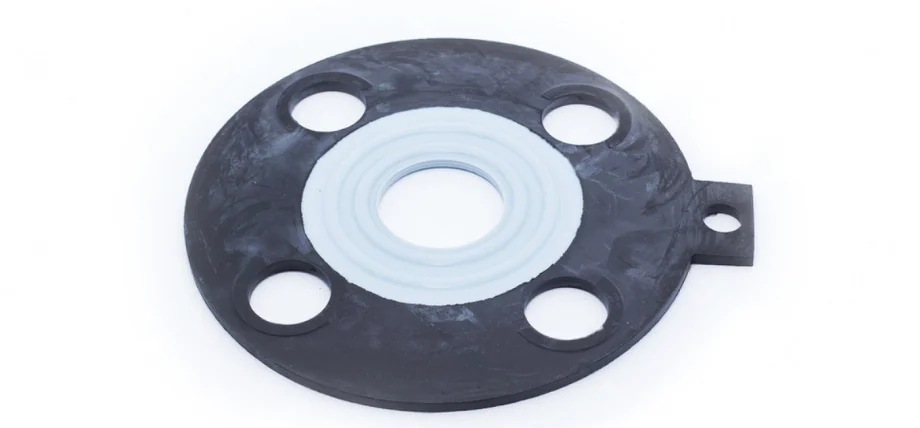

Teflon Gasket
The CNC milling process is suitable for creating complex custom parts using materials such as Teflon. It utilizes a lower/moderate-speed rotating cutting tool that slowly shaves away material to form a workpiece.
Popular machining and milling plastics, such as PTFE, result in high-quality parts with tight tolerances, but special care is required to monitor tool chatter during CNC machining, which produces teflon parts with rough edges.
CNC Turning
The CNC turning process involves holding the Teflon material in a chuck that rotates it at high speed, and at the same time, a sharp tool slowly chips away at the workpiece to create a part.
CNC turning produces hollow Teflon parts with rough bottoms similar to a cylinder with high accuracy. It is suitable for manufacturing Teflon parts, such as bushings and fittings used in different applications.
PTFE is susceptible to increased stress, so the process involves holding the PTFE material in a tight and secure position to ensure a smooth turning procedure.
CNC Drilling
The process of CNC drilling uses a drill bit to create holes in Teflon parts. It is a highly precise and accurate machining process, suitable for making complex parts that are used in various applications.
CNC drilling works well with PTFE materials due to their high machinability and softness, but requires high control over feed rates to prevent tool chatter during machining, which produces teflon parts with rough edges.
Threading
Threading is commonly used in Teflon CNC machining to thread PTFE parts, providing a fastening mechanism to the components. The process of threading Teflon depends on various factors, such as the softness of the material. CNC machines maintain repeatability in threading due to their precision when working with various materials.
The process is used in machined PTFE that requires precise tolerances in applications like fittings and connectors.
Try Prolean Now!
Why Is Teflon Material Used In CNC Machining?
Teflon has unique material properties, which have been one of the main reasons it is a widely used material for CNC machining. The durability and high resistance to chemicals make it an ideal material to use in various applications that demand high precision and performance under pressure.
CNC machining is ideal for plastic machining materials such as Teflon because of its workability, which makes producing high-precision custom parts easier. Apart from that, the CNC machine maintains repeatability, which ensures consistency across all machined Teflon parts.
Teflon is easy to CNC machine and does not require specialized machining tools. The selection of a machining tool for your Teflon machined parts is crucial to avoid issues such as tool chatter and heat generated when CNC machining PTFE.
PTFE is a better alternative to PFA, due to its cost-effectiveness and versatility as a material for CNC machining services, ensuring PTFE parts meet the standards to be used in applications.
Applications of Teflon Machining
Various industries utilize PTFE applications for the plastic’s properties, which enable it to be worked into CNC-machined PTFE parts. Some important applications of Teflon CNC machining are mentioned below:
Aerospace

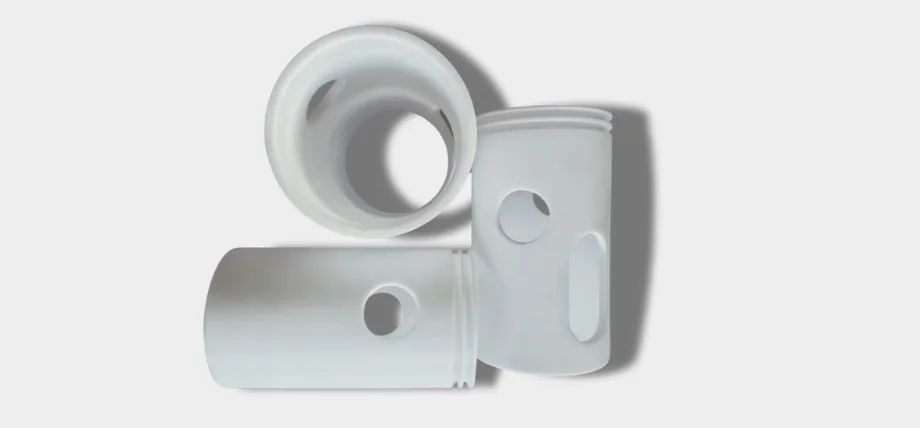

Teflon Sleeve
The aerospace industry uses Teflon parts in various demanding applications due to its ability to withstand harsh environments and extreme temperatures.
PTFE is used to make components such as seals and gaskets because of its low friction and durability, which ensures high performance under demanding conditions.
Medical

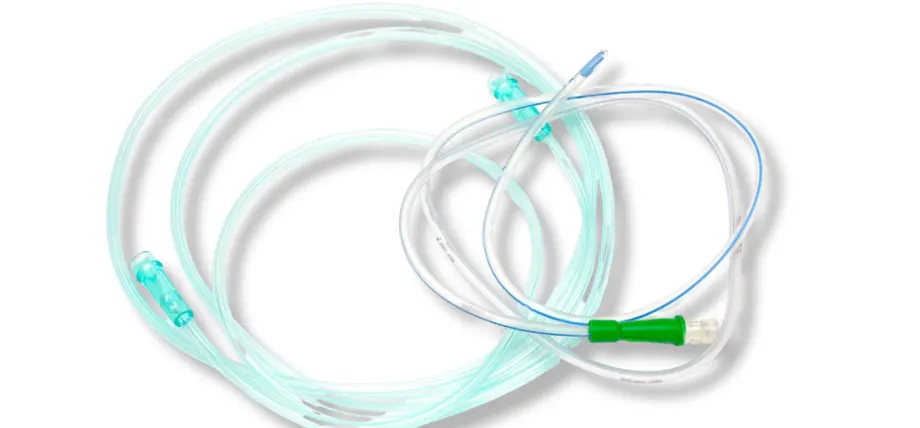

Teflon tubing
The material is used to make Medical PTFE machined parts due to its biocompatibility and chemical inertness. It is commonly used in medical applications such as surgical implants, where PTFE’s properties are vital.
The machined parts in this industry have become a crucial component that serves to maintain processes cost-effectively and reliably.
Electronics
Teflon possesses excellent electrical insulation properties, which are used to make parts safe for electrical connections such as electrical wires and breadboards.
CNC-machined Teflon parts are ideal for electronic devices that require high-performance insulation.
Chemical Processing
Chemical processing uses machined PTFE parts due to their chemical inertness and durability, which serve in major components such as gaskets, valves, and fittings.
These parts have high durability and can function in highly corrosive environments where other materials decompose.
Automotive
PTFE has become a vital material used in the automotive industry to make parts such as bearings and bushes due to its low coefficient of friction and durability.
CNC machining and milling plastics such as PTFE have made producing custom Teflon parts with high precision cost-effective, which has reduced vehicle cost while boosting performance.
Teflon Machining Best Practices
Machining Teflon, since its introduction in CNC applications, has endured various tests and trials to create the best results for machined parts. Some important tips for optimizing the CNC machining process for PTFE are mentioned below:
- Tool Selection: Tool chatter during CNC machining is a common problem that can be addressed by using the right machining tool for your Teflon parts. Steel or carbide blades are optimal to reduce any risk of flaws.
- Feed Rates: Heat generated when CNC machining PTFE can cause problems since PTFE is susceptible to increased heat buildup. So, a low cutting speed is recommended to avoid such problems when working with the material.
- Cooling Techniques: PTFE can be affected by high temperatures, so air-based cooling is used to regulate the temperature of the machined parts.
- Fixturing: The CNC turning process involves holding the teflon material securely, so it is essential to confirm a secure position of the teflon material in the chuck to avoid any complications.
- Surface Finish: Teflon parts with rough edges need to go through light machining passes with a slow speed to take on a finished look; this process is essential for hollow teflon parts with rough bottoms.
- Material: Glass-filled PTFE is a variant of PTFE. Ideal for applications that require high strength and durability.
Plastic CNC machining services specialising in CNC machining and milling plastics, which are processes that produce fine components made of PTFE.
CNC Teflon Machining Service
Are you looking for high-quality, low to high-volume precision machining? Cutting Teflon can be tricky with chip stringing and material wrapping. At Prolean-Tech, we provide the highest quality machining through our expert team of engineers and state-of-the-art multi-axis machines.
Get a free quote today.
Conclusion
CNC machining of Teflon (PTFE) is highly versatile and has become an important component in modern manufacturing due to the material’s unique properties, which make it an ideal material to use in various applications.
CNC machining methods, such as CNC milling, CNC turning, CNC drilling, and threading, require a proper understanding of PTFE before being applicable to produce high-quality machined parts.
While CNC machining of PTFE is important, its unique properties and use across various industries to produce reliable plastic parts.
