Aluminum car parts
When manufacturing parts for the automotive industry, several key factors must be considered, including durability, weight, and strength. These factors can seriously affect the car’s performance. For instance, a too-heavy car has poor fuel efficiency. Aluminum car parts are highly regarded for ticking important boxes – low weight, strength, corrosion resistance, and more.
This article surveys these properties, alongside the types of alloys typically used, which include 2024 aluminum, 6061 aluminum, 6063 aluminum, and 7075 aluminum. Applications of these parts, body panels, engine blocks, suspension systems, and others, have also been discussed.
Read on for more details.
How to Manufacture Aluminum Car Parts
The top manufacturing processes for aluminum car parts are aluminum CNC machining, aluminum die casting, aluminum extrusion, aluminum forging, and aluminum stamping. Aluminum 3D printing is also in the mix, mostly for prototyping purposes.
Each of these processes has its advantages and limits. Therefore, the design and performance suitability for the processes can differ significantly.
CNC-Machined Aluminum Car Parts
CNC machining is a popular subtractive aluminum parts manufacturing process that uses a cutting tool to systematically remove material from an aluminum block to form a part. The tight tolerances and flawless surface finish achievable with CNC aluminum machining are valuable for many auto parts.

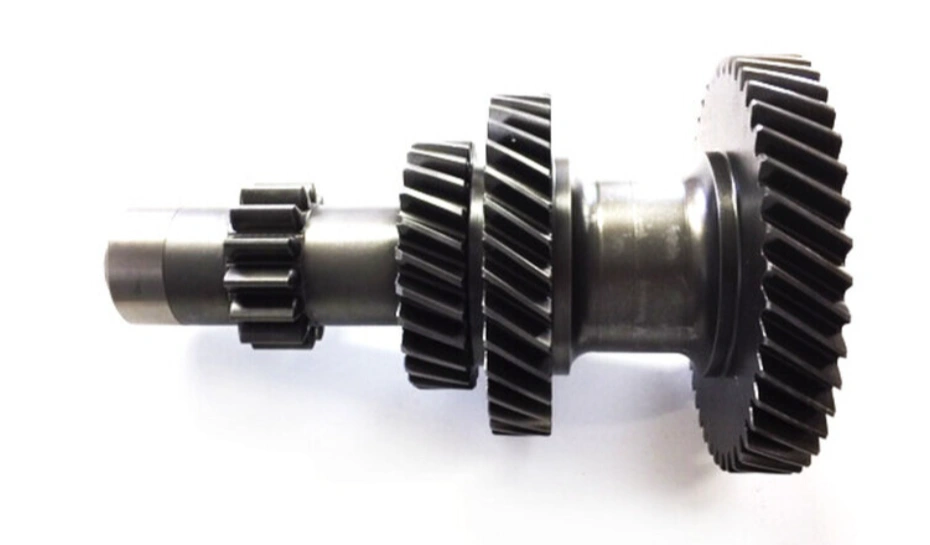

CNC-machined aluminum transmission shaft
Examples of CNC-machined aluminum car parts are engine blocks, transmission shafts, and bumper mounting brackets.
Die-Cast Aluminum Car Parts
Aluminum die casting is the process of injecting molten aluminum into a metal mold, under pressure, to produce complex parts. A big benefit of aluminum die casting is that it can produce many complex car parts, which is a common requirement for mass manufacturing. Car wheels and engine blocks can be manufactured this way.

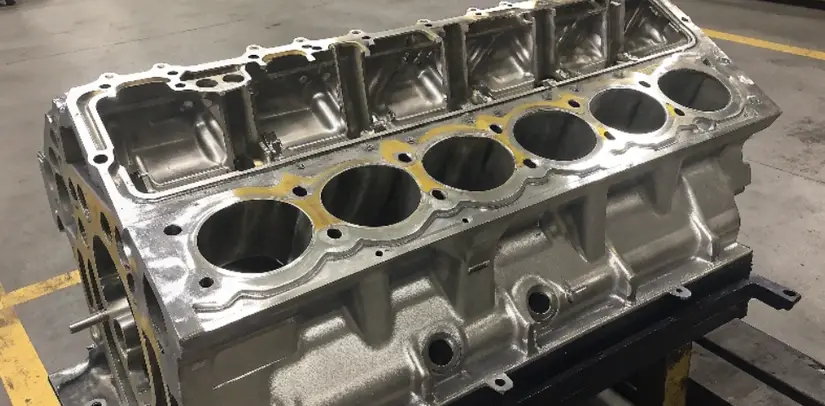

Die-cast engine block
Extruded Aluminum Car Parts
To produce extruded aluminum car parts, raw aluminum is forced through a die to form a continuous profile. Structural sections of the car, for instance, frames and rails, are built this way.

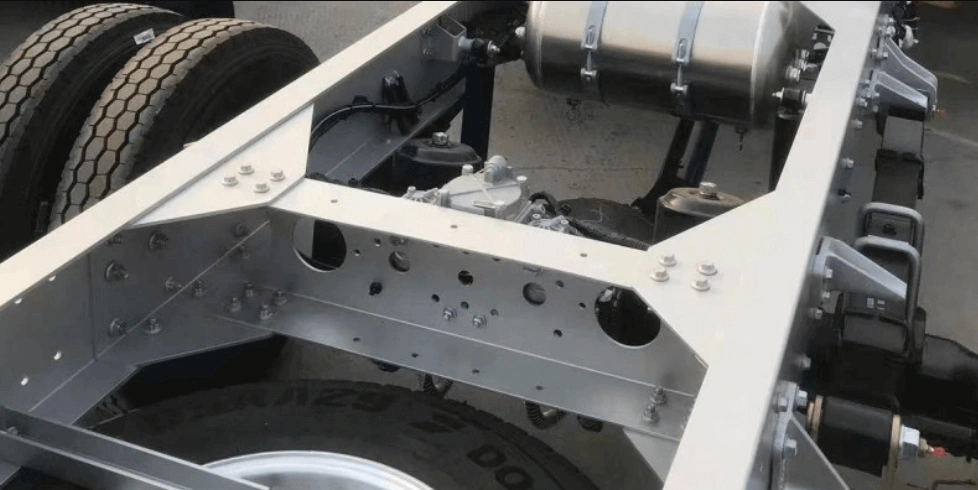

Extruded aluminum frame
Forged Aluminum Car Parts
Forging entails using a hammer or press to subject an aluminum block to compressive force. The resulting aluminum car parts have a high strength-to-weight ratio, hence suitable for connecting rods, suspension systems, and other tough car parts.

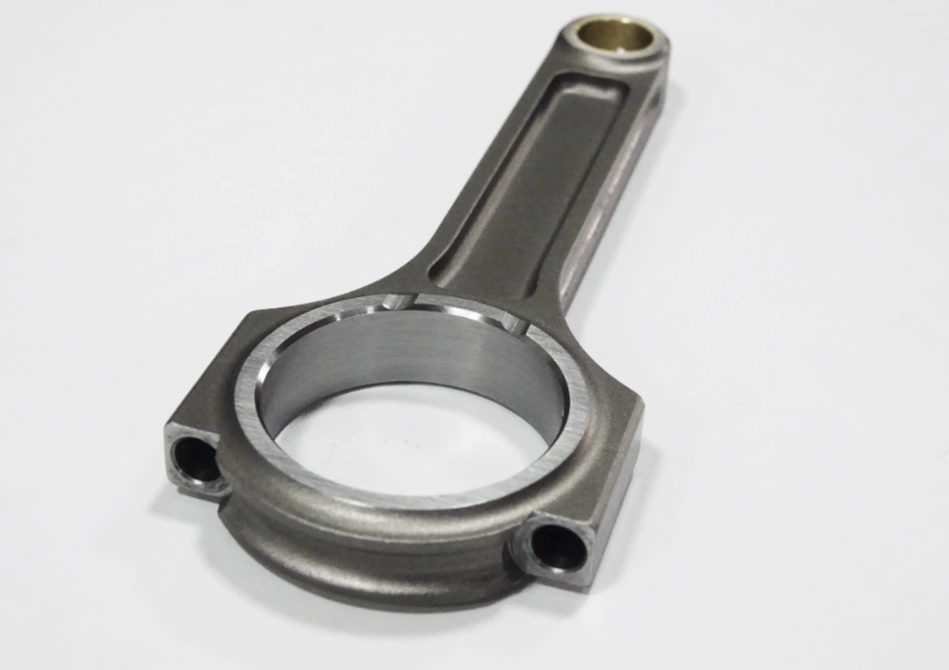

A forged connecting rod
Aluminum Sheet Metal Car Parts
Thin aluminum sheets are shaped and formed using techniques like punching, bending, cutting, and stamping. As high-volume processes, these methods are widely used to produce flat car parts like doors, roofs, and body panels.

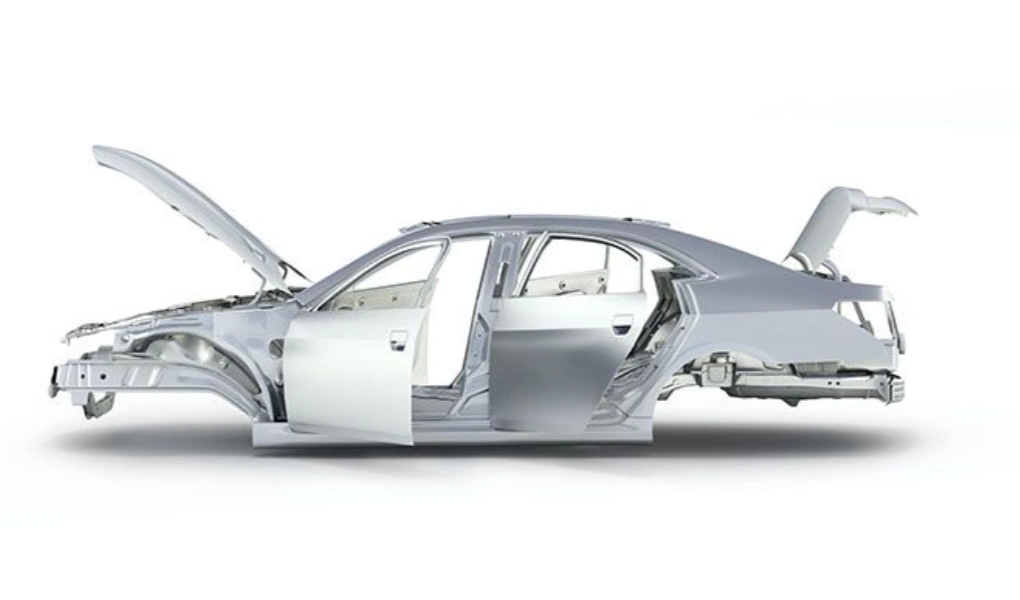

Aluminum sheet metal body panel
Read more:
Try Prolean Now!
What Grade Of Aluminum Is Used In The Automotive Industry?
There are many options for aluminium in automotive when you want to choose the right material for automotive parts, but the main ones are in the 5xxx, 6xxx, and 7xxx series.
These alloys make excellent choices for their rich blend of corrosion resistance, machinability, and strength. For instance, while 5052 aluminum thrives in body panels, 2024 aluminum is preferable in high-strength auto applications.
Here are some common aluminum alloys for car parts:
6061 Alloy: 6061 aluminum is highly weldable and corrosion resistant, two properties that make it popular for car parts. The 6061 T6 aluminum sheet is particularly excellent for sheet metal parts because it also adds strength to the mix. You can find it even in the car chassis.

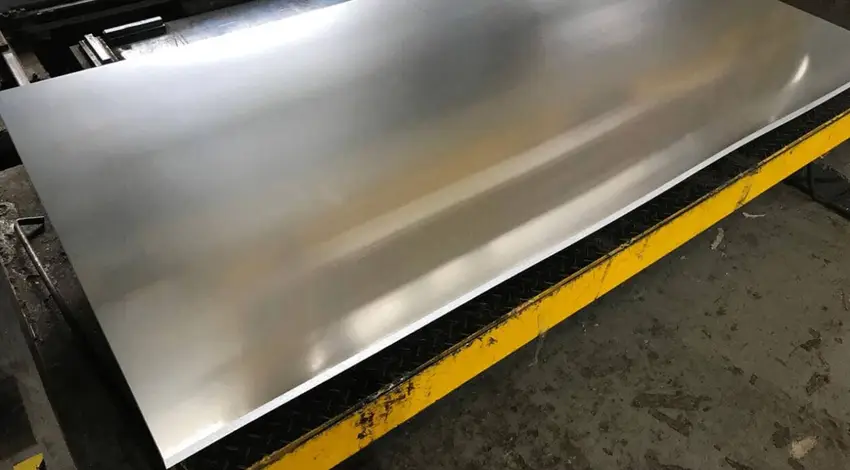

6061 aluminum sheet metal
7075 Alloy: This is another popular aluminum alloy, mostly for its strength. The combination of zinc, magnesium, and copper alloying elements makes this aluminum grade extremely strong.
If this initial strength is inadequate, manufacturers can heat treat the alloy for even higher yield strength and tensile strength. The metal can be comfortably used for the suspension system, rims, and other high-stress areas.

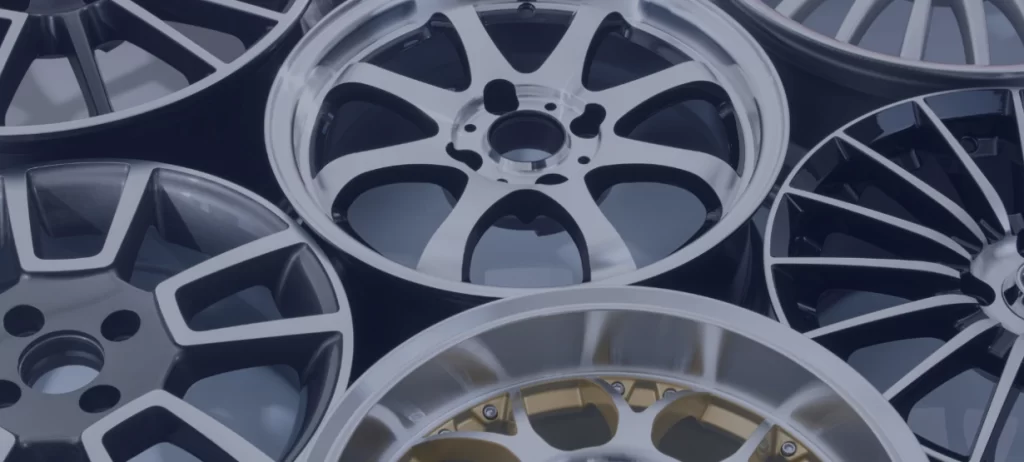

7075 aluminum car rims
5052 Alloy: 5052 aluminum comprises magnesium and chromium as the main alloying elements. This explains why the metal is strong, fatigue-resistant, and rust-resistant. Examples of 5052 aluminum automotive components in a car are fuel tanks.

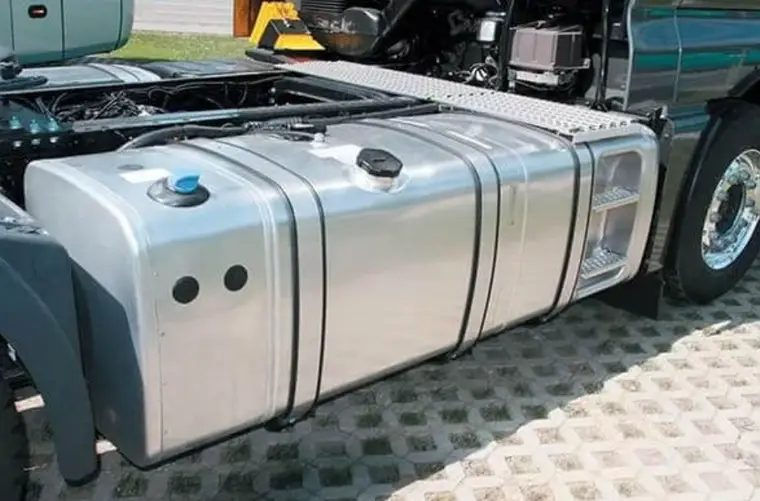

5052 aluminum fuel tank
6082 Alloy: When it comes to automotive structural parts, 6082 aluminum (T6) is one of the best options. This temper is stiff, strong, and lightweight. It can be forged to make aluminum car parts for brakes, suspension, engine, and structural parts.
5754 Alloy: Another alloy that makes excellent sheet metal parts is 5754 aluminum. With its medium strength and expert fabrication, this material is a great choice for sheet metal parts, especially where corrosion is a concern.
2024 Alloy: 2024 aluminum has a unique combination of fatigue resistance and strength-to-weight ratio, making it ideal for several aluminum car parts. Of immediate note is their suitability for brake discs.
319 Alloy: For its thermal conductivity and low weight, this aluminum alloy makes a range of car parts. Its intake manifolds, valve components, transmission covers, and gearbox covers perform very well.

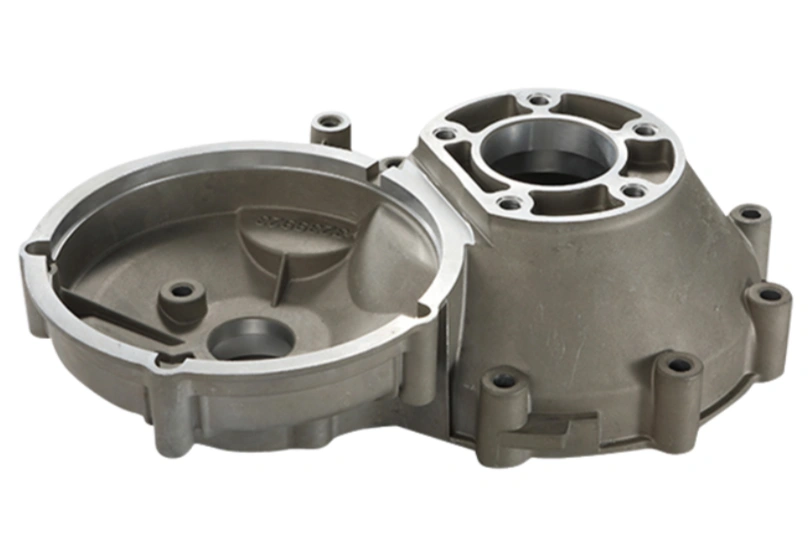

Aluminum gearbox cover
356 Alloy: The corrosion resistance, strength, and castability of 356 alloy make it a valuable option for die cast parts, for instance, car engine heat sinks.
Suggested reading: Automotive Plastic Parts
Are Aluminum Car Parts Good?
Yes, aluminum car parts present many benefits. First, the weight reduction capability of aluminum car parts is unrivaled – it can be 50% lighter than steel parts for the same application. Beyond that, these parts have impressive corrosion resistance, design flexibility, and thermal conductivity.
-
Electrical And Thermal Conductivity
Aluminum has good electrical and thermal conductivity, properties that suit car parts that require heat dissipation and flawless electric current flow.
-
Do Aluminum Car Bodies Rust?
Aluminum car parts are renowned for excellent corrosion resistance, which makes them formidable in humid and salty environments, for instance, coastal areas.
-
Design Flexibility
Design flexibility in this context means that common aluminum alloys can be used for innovative designs, even in concept cars. Manufacturers have an easy time using this material for suspension parts, different shafts, brakes, and so on.
-
Low Weight
The low weight is a big selling point, not only in the automotive world but also in other essential industries. By virtue of being lightweight, aluminum car parts contribute to fuel efficiency.
-
High Malleability
The high malleability of aluminum makes it easy for manufacturers to produce complex vehicle designss, whether through extrusion or forging.
-
Precise Parts
Aluminum can be easily processed through die casting, CNC machining, sheet metal fabrication, and other methods to produce precise car parts. This is essential for the increasing requirement for precision and accuracy in automotive manufacturing.
-
Vibration Resistance
Lightweight materials trigger fewer vibrations. When the material is used for car parts, the users have a friendly experience.
-
Durability
If there were any durability and safety concerns about aluminum car parts, then the wide adoption of these parts in defense and military vehicles has erased that. Users of aluminium car frames and aluminium car body parts can rest assured that their products have standard armour.
Try Prolean Now!
What Car Parts Are Made Of Aluminum?
Aluminum alloys are widely used in crucial car parts such as engine blocks, suspension systems, heat exchangers, body panels, and transmission covers. The adoption of the material in modern cars is particularly noteworthy.
While we have already mentioned several applications of aluminum alloys in different parts of automobiles, here is a further outline.
- Gearss, wheels, pistons, rotors – 2024 aluminum
- Doors, floor paneling, radiators, cowl grille panels, pipes – 3xxx manganese series
- Compressor parts, pistons – 4xxx series
- Fuel tanks, steering plates, body paneling, piping – 5xxx series
- Exterior body paneling, receiver tanks, trunks, brakes – 6xxxx series
- Bumper reinforcement, seat sliders – 7xxx series

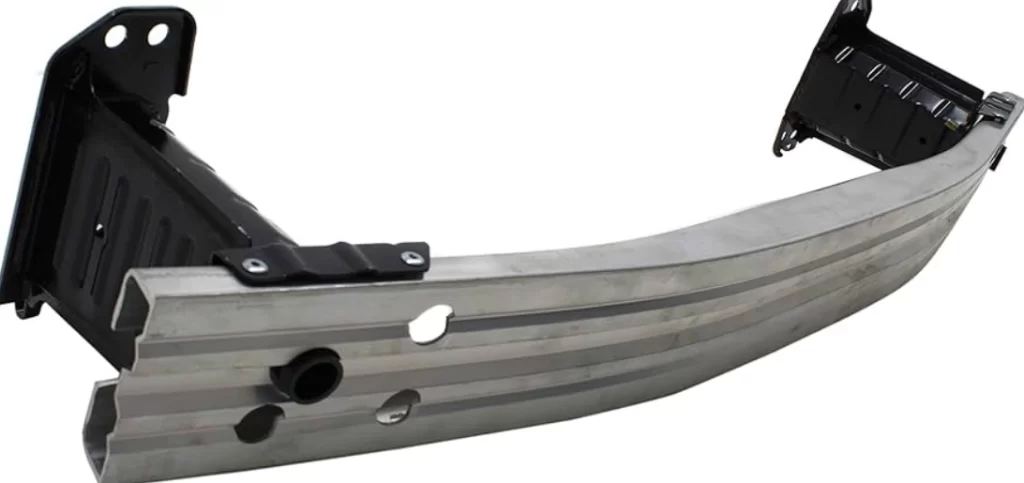

Aluminum bumper reinforcement
The Future Outlook For Aluminum Car Parts
The future looks promising for the aluminum car parts market, with projections showing significant growth to 2030 and beyond. Advanced manufacturing processes, advocacy for metal recycling, and the increasing adoption of electric cars are among the factors driving this growth.
In Conclusion
The current and future automotive manufacturing processes use aluminum car parts to a large extent, propelled by the material’s low weight, corrosion resistance, design versatility, and strength.
Ask for the best CNC machining services today and learn more about the capabilities and options of aluminum car parts from the experts!
FAQ’s:
What is the best aluminum for car parts?
The best aluminum for car parts depends on the application, but if you are considering the most important elements – strength, machinability, and corrosion resistance – alloys like 6061, 6082, and 5754 are the most popular.
What parts of a car engine are aluminum?
Common engine parts made of aluminum are the piston, engine block, intake manifold, and cylinder head.
What is the highest quality aluminum?
The highest quality aluminum in automotive applications is high-strength options like the 6xxx series or aerospace-grade ones like 7075 aluminum.
What is the best grease for aluminum parts?
Synthetic or lithium-based grease is usually the most suitable for aluminum parts.
Are car pistons aluminum or steel?
Aluminum pistons are prominent in modern cars, while steel pistons are found in many high-performance and heavy-duty vehicles.
Are cars made of aluminum?
Significant portions of modern cars are made of aluminum, but there is always a mixture of other metals, such as steel and composite materials. Aluminum is mostly used in frames and body panels.
