Alloy Steel vs Carbon Steel: Discover the differences

Steel, as we know, has been a pivotal component in the growth of modern civilization. From constructing skyscrapers that kiss the sky to forming the bodywork of vehicles that have enabled global movement, steel’s versatility cannot be understated. However, as one delves deeper into the world of metallurgy, it becomes clear that not all steel is created equal. Alloy steel and carbon steel, despite sharing a common lineage, differ in terms of composition, characteristics, and applications. This differentiation doesn’t just stem from the chemical content but also from the varied behavior these steels exhibit under different conditions.

In this comprehensive guide, we will unravel the intricacies of these two steel types and determine where each excels.



Unraveling the Basics of Steel Composition

Steel’s essence is its composition. From towering skyscrapers to the tiniest microchips, the steel’s properties, defined primarily by its elemental components, dictate its performance and application.

Elemental Components – The Building Blocks of Steel

At the base level, steel is an alloy made predominantly of iron. The addition or subtraction of other elements creates a broad spectrum of steel varieties.

• Carbon: All steel contains carbon, but its percentage varies. Carbon binds with iron to provide strength. Higher carbon content can make the steel harder but also more brittle.
• Alloying Elements: In alloy steel, elements such as chromium, nickel, molybdenum, and others are added. These elements can provide a range of attributes from improved durability, and corrosion resistance, to better heat resistance.

Table 1: Common Elements in Steel and Their Effects

Element	Effects on Steel Properties
Carbon	Increases hardness; can increase brittleness
Chromium	Enhances corrosion resistance; boosts hardness
Nickel	Improves toughness; increases strength
Molybdenum	Enhances strength; improves heat resistance

Classification by Carbon Content – Understanding Carbon’s Role

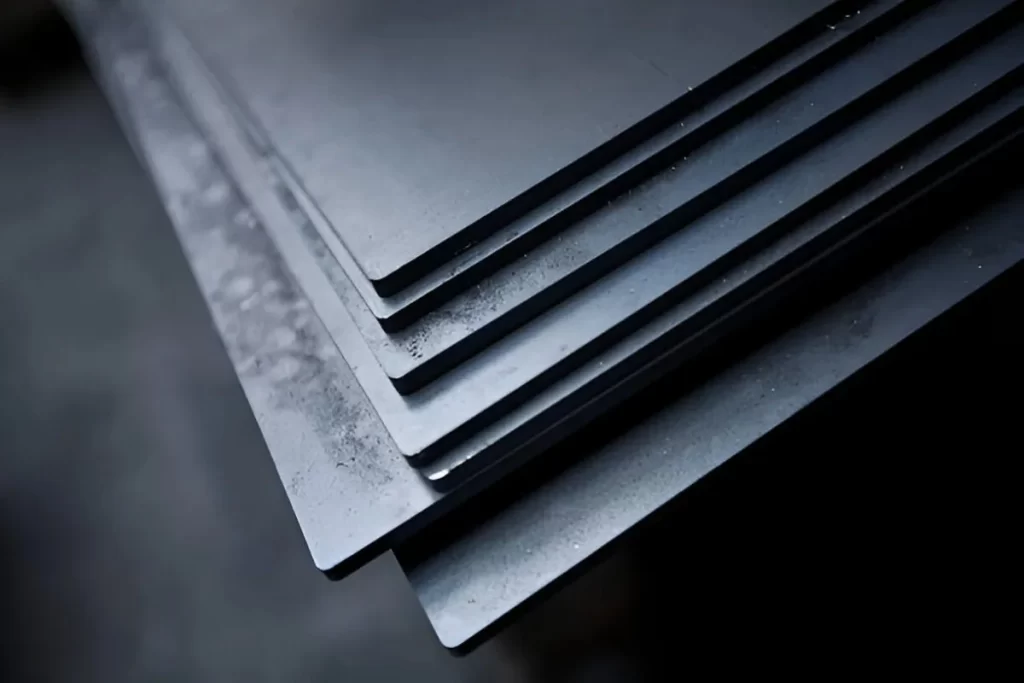

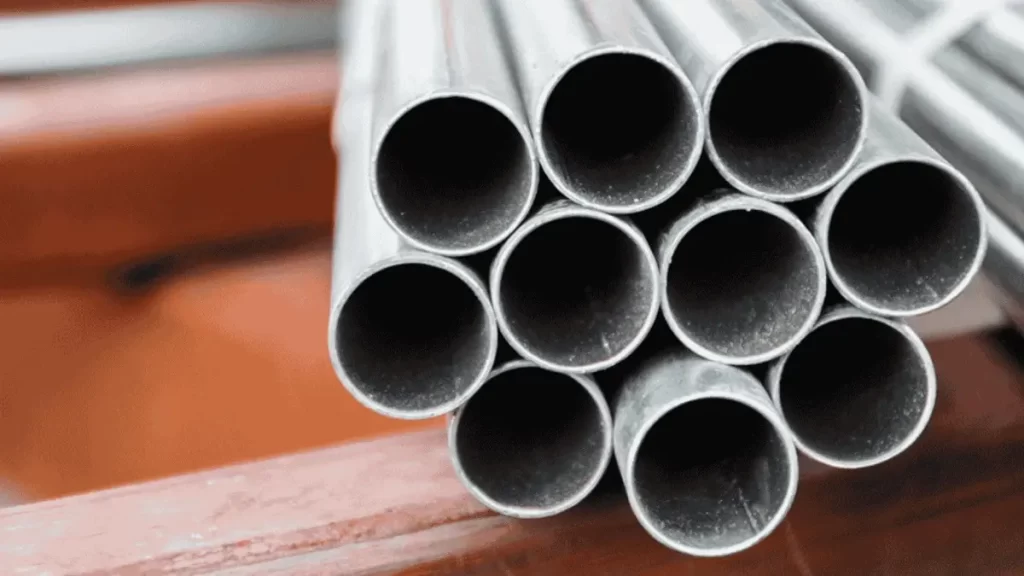

Carbon steel

Carbon, as a primary influencer of steel’s properties, has led to a classification system based on its content.

• Low Carbon Steel: This contains about 0.05% to 0.30% carbon. Because of its lower carbon content, it’s more malleable and ductile. It’s often used where large quantities of steel are required, and extreme hardness isn’t necessary, such as in structural steel.
• Medium Carbon Steel: With carbon content ranging from 0.31% to 0.60%, this steel is stronger than low carbon steel but is also more challenging to form, weld, and cut.
• High Carbon Steel: This comprises 0.61% to 1.50% carbon, making it the hardest and strongest form of carbon steel. However, it’s less ductile and more challenging to fabricate.

Table 2: Steel Classification by Carbon Content

Carbon Steel Type	Carbon Percentage	Typical Applications
Low Carbon Steel	0.05% – 0.30%	Structural beams, car body panels
Medium Carbon Steel	0.31% – 0.60%	Rail tracks, structural components
High Carbon Steel	0.61% – 1.50%	Springs, high-strength wires

Alloy Steel – More Than Just Iron and Carbon

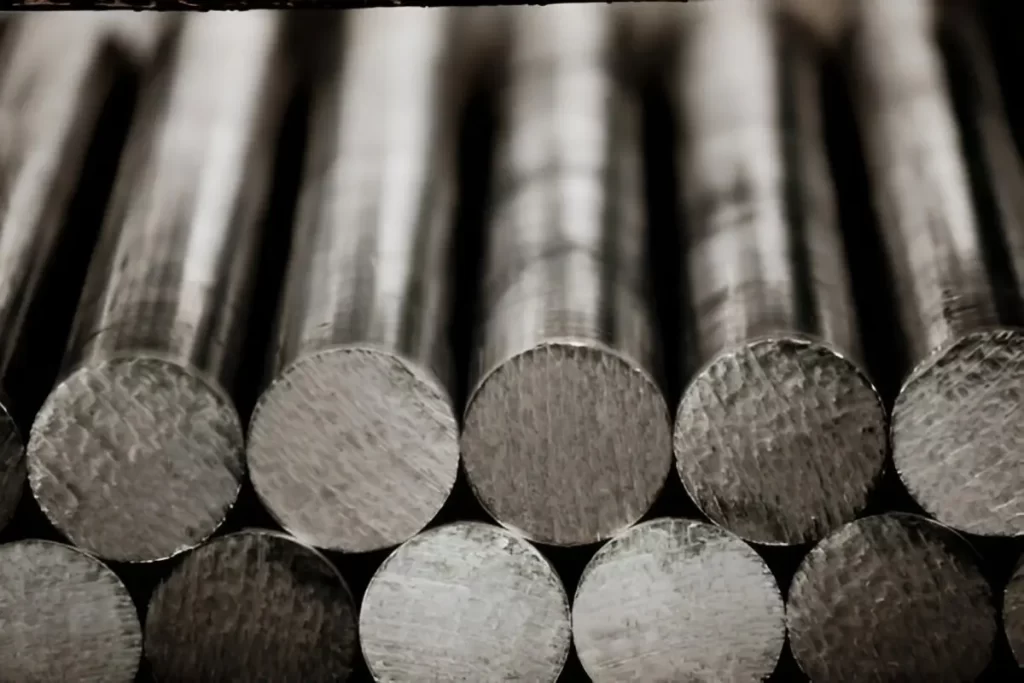

Alloy steel bars

Alloy steel takes the basic composition of carbon steel and enhances it by adding other elements. These additional elements can be introduced to counteract some of carbon steel’s vulnerabilities or to impart new properties to the steel.

For instance, adding chromium can make steel more resistant to rust (leading to types like stainless steel). Nickel can be introduced to increase toughness, especially at low temperatures. The inclusion of elements like molybdenum can make steel more resistant to heat, an essential property for components exposed to high temperatures.



Key Properties and Characteristics

When assessing materials for projects, it’s essential to have a clear understanding of their innate properties and characteristics. Both carbon steel and alloy steel offer a vast array of attributes that can significantly influence their application and performance. Let’s Delve into the specifics of these properties that can better guide you in your choice between the two.

1. Hardness and Strength

The strength and hardness of steel are primarily determined by its carbon content. Carbon steel, as its name suggests, relies on varying carbon percentages to modify its hardness.

Table 1: Comparing Hardness Across Steel Types

Steel Type	Hardness Level	Influencing Elements/Reasons
Low Carbon Steel	Low	Minimal carbon content
Medium Carbon Steel	Medium	Balanced carbon content
High Carbon Steel	High	Highest carbon content
Alloy Steel	Varies	Additional elements like manganese, tungsten, etc.

2. Ductility and Malleability

Ductility and malleability are essential properties when it comes to forming and shaping steel. They determine how easily a metal can be stretched into a wire (ductility) or hammered into sheets (malleability).

Carbon steel has high ductility in low carbon steel, making it ideal for drawing into wires or other extended forms. However, as the carbon content rises, the ductility decreases, making high-carbon steel less suitable for such applications. In contrast, alloying elements can both improve and reduce steel’s ductility. For example, nickel can enhance the ductility of steel, making it more stretchable.

3. Corrosion Resistance

Corrosion, or the gradual degradation of materials due to environmental factors, is a crucial concern, especially for elements exposed to moisture.

Generally, carbon steel without added protections is vulnerable to rust when exposed to moisture. Its corrosion resistance isn’t as prominent as some of its alloyed counterparts. On the other side, alloy steel has improved resistance to rust and corrosion due to the addition of elements such as chromium, nickel, and copper. Stainless steel, a type of alloy steel with a significant chromium content, is particularly known for its corrosion resistance.

4. Heat Resistance

For components used in high-temperature environments, heat resistance becomes paramount. Without specific treatments, carbon steel’s heat resistance is not its most significant strength. Extended exposure to high temperatures can lead to a loss of strength and hardness.

In alloy steel, elements such as molybdenum, tungsten, and chromium can drastically improve steel’s ability to withstand high temperatures without deforming or losing strength.

5. Cost Implications

The choice between carbon steel and alloy steel often also comes down to cost. Carbon Steel is generally more affordable due to its straightforward composition. In contrast, alloy steel can be more expensive, attributed to the addition of various alloying elements and the processes involved.



Applications: Where Do They Fit Best?

Steel, as one of the world’s most versatile materials, finds its application in numerous industries. Its wide array of types, notably carbon steel and alloy steel, allows for specific and specialized use cases. When it comes to application, understanding where each type fits best is essential for efficient and cost-effective operations.

Carbon Steel Applications

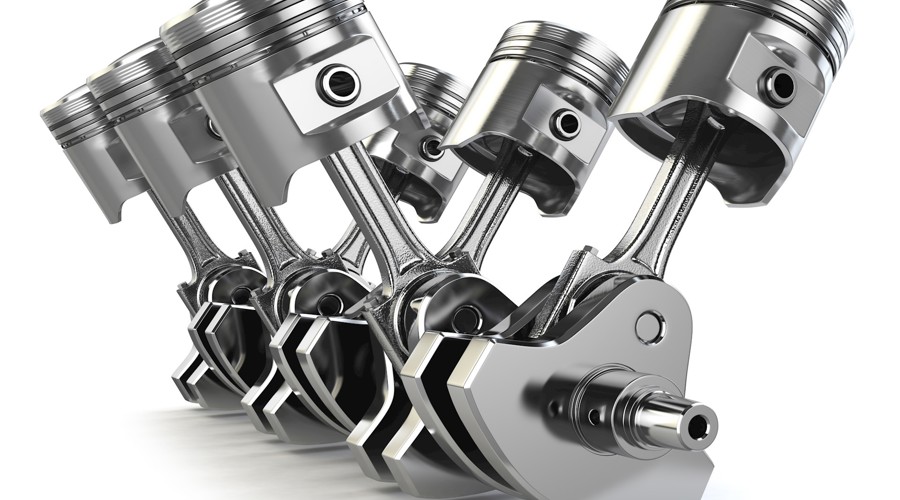

Carbon steel Parts

• Infrastructure and Construction

Carbon steel, particularly low to medium-carbon variants, is extensively used in infrastructure and construction projects. Its malleability makes it ideal for shaping rebars, beams, and plates. Structures like bridges, highways, and high-rise buildings heavily rely on carbon steel for its strength and foundational stability.

• Automotive Manufacturing

Automobile manufacturers harness the properties of medium to high-carbon steel for various vehicle components. The rigidity of this steel type is crucial for parts that must withstand significant wear and tear, such as shafts, gears, and bearings.

• Kitchenware

Low-carbon steel finds its way into our homes as kitchenware. Given its good heat conduction properties, it’s commonly used for pots, pans, and baking sheets. Though they may require more care to prevent rusting, they offer even cooking, which is a cherished feature among culinary enthusiasts.

• Railways

The railway industry depends heavily on medium and high-carbon steel for the production of rails, carriages, and related components. The strength and durability of carbon steel resist the continuous stress and heavy loads of daily rail transport.

Alloy Steel Applications

Alloy-steel(Ni) machining application

• Aerospace Industry

When it comes to the aerospace sector, the stakes are high. Components must be lightweight yet robust and durable. Alloy steel, infused with elements like titanium and nickel, provides the required strength without adding unnecessary weight. These alloys are commonly used in aircraft engines, frames, and landing gear components.

• Medical Tools and Implants

Given the need for precision, durability, and biocompatibility in the medical sector, certain alloy steels are indispensable. Surgical instruments, as well as implants like rods, screws, and pins, are often made from stainless steel alloys, ensuring corrosion resistance and minimal reaction with the human body.

• Electronics and Semiconductors

Microelectronics and semiconductors demand materials with specific conductive properties. Alloy steel, customized with elements like silicon or copper, can achieve the desired conductivity or resistivity, making them ideal for components like transistors, diodes, and integrated circuits.

• High-Temperature Environments

Industries like power plants and refineries often involve high-temperature operations. For components used in these conditions, alloy steel incorporated with chromium, molybdenum, or tungsten is preferred. These elements enhance the metal’s ability to withstand prolonged exposure to elevated temperatures without degrading its structural integrity.

Table: A Brief Comparison of Applications

Industry/Application	Preferred Steel Type	Rationale
Infrastructure	Carbon Steel	Malleability and foundational strength
Automobiles	Carbon Steel	Durability in high-wear components
Kitchenware	Carbon Steel	Effective heat conduction
Aerospace	Alloy Steel	Strength-to-weight ratio
Medical Devices	Alloy Steel	Corrosion resistance and biocompatibility
Electronics	Alloy Steel	Specific conductive properties
High-temperature Operations	Alloy Steel	Resistance to temperature-induced degradation



Comparing the Durability and Resistance: Alloy Vs Carbon Steel

When it comes to evaluating materials for specific applications, especially in demanding environments, two attributes play a pivotal role: durability and resistance. Steel, in its various forms, is often chosen for these qualities.

Let’s delve deep into how carbon and alloy steel fare concerning durability and resistance.

Carbon Steel: Durability Aspects

Carbon steel’s durability largely hinges on its carbon content, which can range from as low as 0.04% to as high as 2.5%.

• Low Carbon Steel: This type is often referred to as mild steel. It’s relatively soft, making it easy to shape. However, this softness means it can wear out or deform faster under high stress.
• Medium Carbon Steel: Here, the carbon content is finely balanced to offer increased strength and hardness compared to low carbon steel. This balance affords it decent durability, particularly against wear and tear.
• High Carbon Steel: This is the hardest among carbon steels, and as a result, is incredibly durable against abrasion. However, its hardness renders it more brittle, meaning it can be prone to breaking under extreme stress or when subjected to sudden impacts.

Alloy Steel: The Durability Play

Alloy steel’s durability is a composite result of the various metals mixed with the base iron and carbon. Elements like manganese, chromium, and nickel can be added to enhance specific properties.

• Wear Resistance: Some alloy steels are formulated to provide exceptional wear resistance. Chromium, for instance, when added, creates a protective layer on the steel’s surface, drastically reducing wear.
• Impact Resistance: Nickel and manganese can increase the toughness of steel. This means that the steel can absorb more energy during an impact without fracturing, making it ideal for environments where sudden stresses are a concern.

Resistance: Against Corrosion and Heat

• Carbon Steel’s Corrosion Resistance: On its own, carbon steel’s resistance to corrosion isn’t particularly high. Exposure to moisture or chemicals can lead to rusting. However, protective coatings or treatments, like galvanizing or painting, can safeguard it against corrosion.
• Alloy Steel’s Corrosion Resistance: Alloy steel shines in this department. The addition of metals like chromium, nickel, or copper can dramatically bolster its resistance to oxidation and corrosion. Stainless steel, for example, with its substantial chromium content, is particularly resistant to rust and staining.
• Heat Resistance in Carbon Steel: While carbon steel can handle everyday temperature fluctuations, it isn’t designed for high-temperature applications. Prolonged exposure to elevated temperatures can weaken it, reducing its overall life span.
• Heat Resistance in Alloy Steel: Here again, alloy steel takes the lead. Specific alloying elements, such as molybdenum, tungsten, and vanadium, can significantly enhance steel’s heat resistance. This makes certain alloy steels perfect for industries like energy generation, where components are frequently subjected to high temperatures.

Environmental Resistance

Beyond corrosion and heat, resistance to environmental factors can be vital. For instance, steel used in marine environments needs to resist saltwater, which can be corrosive. Here, stainless steel or specially formulated alloy steels are chosen for their ability to withstand the saline onslaught.

Table: Comparative Durability and Resistance Between Carbon and Alloy Steel

Attribute	Carbon Steel	Alloy Steel
Basic Durability	Varies with carbon content	Enhanced by alloying elements
Wear Resistance	Medium to High	Generally High (especially with chromium addition)
Impact Resistance	Low to Medium	High (with nickel or manganese)
Corrosion Resistance	Low (requires protective coatings)	High (thanks to elements like chromium or nickel)
Heat Resistance	Moderate (not for high-temperature applications)	High (with elements like molybdenum or tungsten)
Environmental Resistance	Can vary but generally needs protective measures	Typically high in specially formulated types



Welding and Machinability: Carbon Vs Alloy Steel

Two essential considerations for industries using steel are welding and machinability. The ability to seamlessly join two pieces of metal and the ease of shaping that metal play a critical role in determining its utility for certain applications. Both alloy and carbon steel have unique characteristics in these aspects.

Welding Characteristics Comparison

Carbon steel is typically more welder-friendly than alloy steel, which presents varied welding attributes dependent on specific alloying constituents. The table below compares the various welding characteristics of alloy & carbon steel.

Table: Welding Characteristics of Carbon Steel vs. Alloy Steel

Characteristic	Carbon Steel	Alloy Steel
General Weld-Friendliness	More weld-friendly due to consistent composition.	Varied welding attributes depending on specific alloying constituents.
Composition Impact on Welding	Fewer elements interfere with the welding process due to its relative simplicity.	Certain steels are sensitive to heat input during welding, affecting properties near the welded area.
Preferred Welding Techniques	Shielded Metal Arc Welding (SMAW) and Gas Metal Arc Welding (GMAW) are well-suited.	Specialized welding rods or techniques might be required based on specific alloying elements.
Heat Treatment Requirements	Medium and high carbon steels might need post-weld heat treatment to relieve stresses and reduce brittleness.	Often requires both preheating before welding and post-weld heat treatment to ensure weld integrity and to prevent cracking.
Specialized Welding Considerations	Not typically required.	Use of specialized welding rods might be necessary depending on the alloying element.

Machinability Comparison

The machinability of carbon steel generally decreases as its carbon content increases. However, with the right tools and techniques, even high carbon steel can be machined effectively.

In contrast, alloy steel’s machinability is influenced heavily by the specific alloying elements it contains. Some elements can enhance machinability, while others might decrease it. For instance:

• Sulfur: Often added to improve machinability.
• Nickel, Chromium, Molybdenum: These can reduce the machinability of steel.

Table: Welding and Machinability Comparison

Characteristics	Carbon Steel	Alloy Steel
Weldability	Generally easier to weld	Can be challenging, depending on alloying elements
Machinability	Varies with carbon content; generally machinable	Influenced by specific elements; can range from easy to difficult



Unleashing Precision with Prolean’s Expertise in Steel Machining

The realm of steel machining and fabrication is intricate, demanding utmost precision, skill, and technological excellence. At the heart of this dynamic industry, Prolean stands tall, offering unparalleled services in both alloy and carbon steel fabrication.

At Prolean, we understand that every project has unique requirements. Whether it’s the resilience of alloy steel for high-performance parts or the malleability of carbon steel for specific designs, our team is equipped to handle diverse needs with dexterity. Our advanced machining facilities, combined with our rich experience, ensure that every cut, bend, and weld is precise, meeting the strictest of tolerances.

Beyond just technical prowess, what sets Prolean apart is our commitment to client satisfaction. From the inception of a project to its completion, our dedicated team collaborates closely with clients, offering insights, updates, and recommendations to ensure the final product is nothing short of perfection.



Conclusion

When deliberating between carbon steel and alloy steel, the choice is rarely straightforward. Both types have distinctive advantages that make them suitable for a myriad of applications. Carbon steel, with its consistent composition, offers excellent weldability and is often the choice for construction projects and applications demanding ductility. On the other hand, alloy steel, with its amalgamation of various elements, provides enhanced durability, heat, and corrosion resistance, making it the preferred option for high-performance parts and applications in demanding environments.

If you’re looking to harness the power of these steels, Prolean’s Steel Machining Services offers unparalleled expertise and quality in steel processing and manufacturing.



FAQs

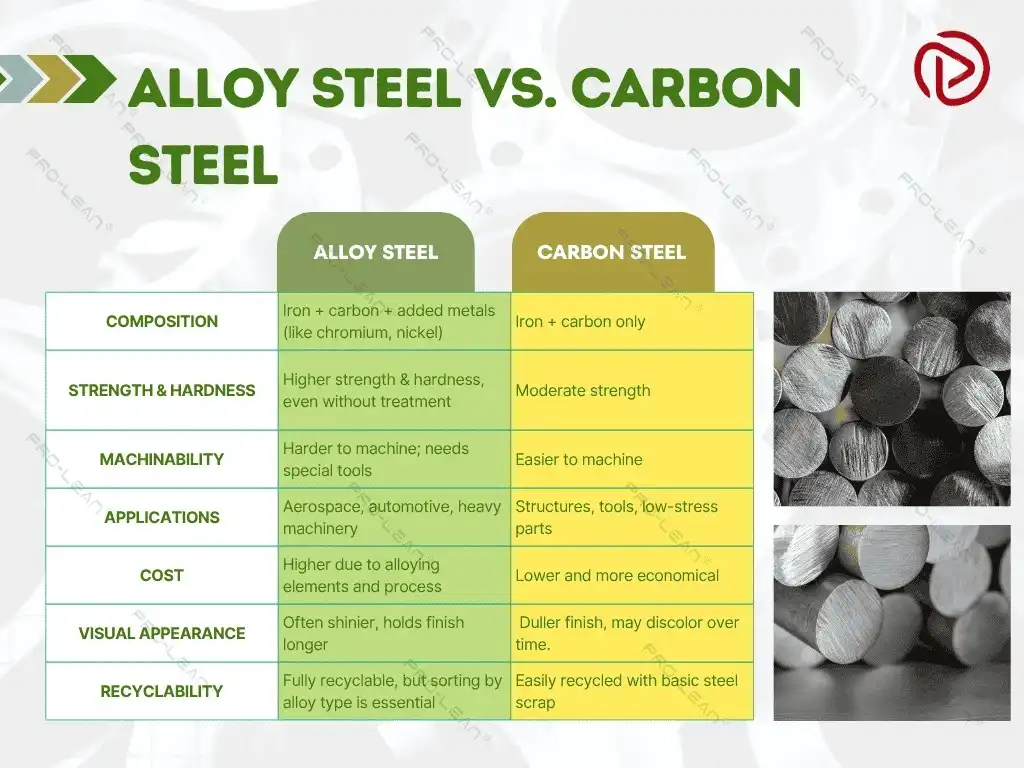

What are the primary differences between carbon steel and alloy steel?

Carbon steel mainly contains carbon, while alloy steel contains additional alloying elements that provide specific attributes.

Is alloy steel more durable than carbon steel?

Generally, alloy steel offers better resistance to corrosion, heat, and wear, making it more durable in many applications.

Which is easier to weld, carbon steel or alloy steel?

Carbon steel is generally more weld-friendly due to its consistent composition, whereas alloy steel’s weldability varies based on its alloying elements.

Why might someone choose carbon steel over alloy steel?

Factors like cost, availability, and specific application requirements can influence the choice. Carbon steel is often more affordable and sufficient for many general applications.

Are all alloy steels resistant to rust?

Not all alloy steels are resistant to rust. However, specific alloying elements, like chromium, enhance corrosion resistance.

Which steel type requires more post-weld treatments?

Alloy steels often require both pre-welding and post-welding heat treatments, while carbon steel might need post-weld heat treatment depending on its carbon content.
