“6061 vs. 7075 Aluminum Alloys: In-depth Analysis, Properties, and Applications”
When it comes to the field of metallurgy and material science, aluminum and its alloys hold a significant place due to their incredible properties and versatile applications. From aviation to construction, automotive to musical instruments, the uses of aluminum alloys like 6061 and 7075 are seemingly limitless. Understanding the intricacies and unique characteristics of these two common aluminum alloys can be quite an intriguing endeavor.
The 6061 and 7075 aluminum alloys are two standout performers in the vast array of aluminum variants. You might wonder, why these two? Well, these alloys strike an impressive balance between strength, weight, corrosion resistance, weldability, and machinability. They are among the most widely used aluminum alloys, each with its unique strengths and areas of applications. This article will give you a detailed insight into these two alloys, exploring their properties, uses, and how they stack against each other.
Understanding Aluminum Alloys

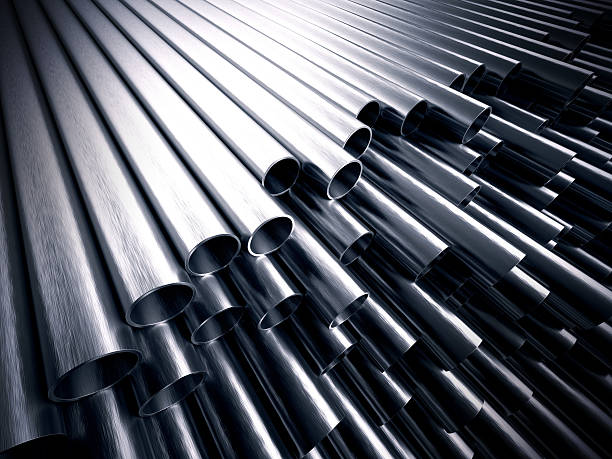

Aluminum alloy pipes
Aluminum alloys are a fusion of aluminum and several other elements designed to augment properties such as strength, malleability, hardness, and resistance to corrosion. The composition and treatment of these alloys can be manipulated to tailor them for specific applications. Let’s delve a little deeper to truly understand what aluminum alloys are and what they bring to the table.
The primary component of aluminum alloys is, unsurprisingly, aluminum. Pure aluminum boasts excellent corrosion resistance, thermal and electrical conductivity, and ductility. However, it lacks in terms of strength. This is where alloying comes into play.
By combining aluminum with elements like copper, silicon, magnesium, and zinc, we can significantly enhance its strength. The choice of these elements and their proportions can lead to a wide variety of aluminum alloys, each with unique properties.
Here are the main types of aluminum alloys:
Table 1: Main types of Aluminum Alloys
|Alloy Type||Alloying Element||Notable Characteristics|
|1xxx||None (Minimum 99% Aluminum)||Excellent corrosion resistance, high thermal and electrical conductivity, low strength|
|2xxx||Copper||High strength, good machinability, less corrosion resistance|
|3xxx||Manganese||Medium strength, good formability, high corrosion resistance|
|4xxx||Silicon||Lower melting point, good fluidity|
|5xxx||Magnesium||Good strength, excellent corrosion resistance, good formability|
|6xxx||Magnesium and Silicon||Medium strength, excellent corrosion resistance, good formability, good weldability|
|7xxx||Zinc||Highest strength among aluminum alloys, good fatigue strength|
6061 falls under the 6xxx series, while 7075 belongs to the 7xxx series. Each series brings something unique to the table, explaining why certain aluminum alloys are favored in specific industries. In the next sections, we’ll delve into the specific properties and applications of 6061 and 7075 aluminum, setting the stage for our comparative analysis.
Exploring 6061 Aluminum
6061 aluminum, a member of the 6xxx series, is an alloy that contains magnesium and silicon. This combination imparts some excellent properties to 6061, making it a highly versatile alloy used in a myriad of applications.
6061 Aluminum Properties
6061 aluminum is an all-rounder, featuring good strength, excellent corrosion resistance, and superb weldability. Its mechanical properties can vary significantly based on the tempering process it undergoes. The most commonly used temper is 6061-T6, which indicates that the alloy has been solution heat-treated and artificially aged.
Let’s break down the key properties of 6061 aluminum:
Table 2: Key Properties of 6061 Aluminum
|Strength||Medium to high (Yield Strength: 276 MPa, Tensile Strength: 310 MPa in T6 temper)|
|Cost||Lower compared to 7075|
Common Uses of 6061 Aluminum
Thanks to its properties, 6061 aluminum is used across various industries and products. Some common applications include:
- Construction: 6061 aluminum’s excellent weldability and resistance to corrosion make it a popular choice for building structures.
- Automotive parts: The alloy’s strength, lightness, and resistance to corrosion are beneficial in automotive applications.
- Furniture: 6061 aluminum is often found in modern furniture due to its aesthetic appeal, strength, and resistance to corrosion.
- Yachts and boats: Given its resistance to corrosion, particularly from saltwater, 6061 is a favorite in the marine industry.
- Musical Instruments: Due to its ability to be easily shaped and its resistance to wear, 6061 is used in some musical instruments.
The versatility and adaptability of 6061 aluminum are truly remarkable. Whether it’s a structural component of a building, a complex automotive part, or a shiny trumpet, 6061 aluminum finds its way into various facets of our everyday lives.
Next, let’s turn our attention to the 7075 aluminum alloy, which has quite a different set of characteristics and uses compared to 6061.
Delving into 7075 Aluminum

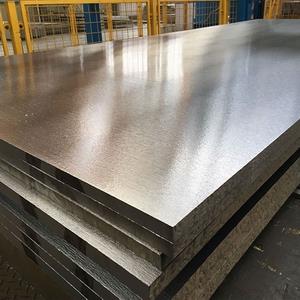

7075 Aluminum sheets
Moving on to 7075 aluminum, a representative of the 7xxx series, this alloy is famed for its extraordinary strength. 7075 aluminum is an alloy of aluminum, zinc, magnesium, and copper, resulting in high strength but lower weldability.
7075 Aluminum Properties
When the conversation turns to the strength of aluminum alloys, 7075 is usually the front-runner. Known as an aircraft alloy, it has some other remarkable properties as well. Here are some key attributes of 7075 aluminum:
Table 3: Key Properties of 7075 Aluminum
|Strength||Very high (Yield Strength: 503 MPa, Tensile Strength: 572 MPa in T6 temper)|
|Cost||Higher compared to 6061|
Common Uses of 7075 Aluminum
The immense strength of 7075 aluminum makes it suitable for high-stress applications. Some typical uses include:
- Aerospace Applications: 7075 is often referred to as an aircraft aluminum alloy. Its high strength-to-weight ratio makes it perfect for applications in aircraft structures.
- Structural Parts: High-stress structural parts, like those found in the automotive and firearms industries, often employ 7075.
- Sporting Equipment: Sports equipment that needs to withstand high stress, like mountain bike frames, benefit from the strength of 7075.
- Military Applications: The military uses 7075 for various applications, including in the production of combat vehicles and firearms due to its high strength.
While 7075 may not be as versatile as 6061, its unparalleled strength makes it a prime choice in industries that demand highly robust and durable components. It’s no wonder that it plays such a vital role in aerospace, automotive, and military applications, where the stakes are high, and failure is not an option.
Let’s Start A New Project Today
Comparing 6061 and 7075 Aluminum: A Head-to-Head Showdown
Having delved into the intricacies of both 6061 and 7075 aluminum alloys, it’s time to compare them head-to-head. This comparison will provide you with a clear understanding of how these two alloys differ and where each one shines, giving you insights to make informed decisions.
1. Strength and Durability
7075 aluminum takes the crown in terms of strength. It is one of the highest-strength aluminum alloys available, making it suitable for high-stress applications where durability is crucial.
On the other hand, 6061 aluminum, while not as strong as 7075, offers ample strength for many applications. Its strength, combined with its excellent corrosion resistance and weldability, makes it a more versatile option.
2. Weldability and Machinability
When it comes to welding, 6061 aluminum is the clear winner. Its excellent weldability makes it a top choice for structures that require welding.
In terms of machinability, 6061 aluminum is easier to machine due to its lower strength, making it suitable for applications that require complex and detailed machining.
3. Corrosion Resistance
Both alloys offer good resistance to corrosion. However, 6061 aluminum has superior resistance, particularly to rust. Therefore, it’s a better choice for applications that will be exposed to corrosive environments.
6061 aluminum is generally less expensive than 7075 aluminum. This cost difference is due to the higher strength and harder machinability of 7075, which makes it more costly to produce.
Table 4: Comparative Analysis of 6061 and 7075 Aluminum
|Property||6061 Aluminum||7075 Aluminum|
|Strength||Medium to high||Very high|
Impact of Heat Treatment on 6061 and 7075 Aluminum

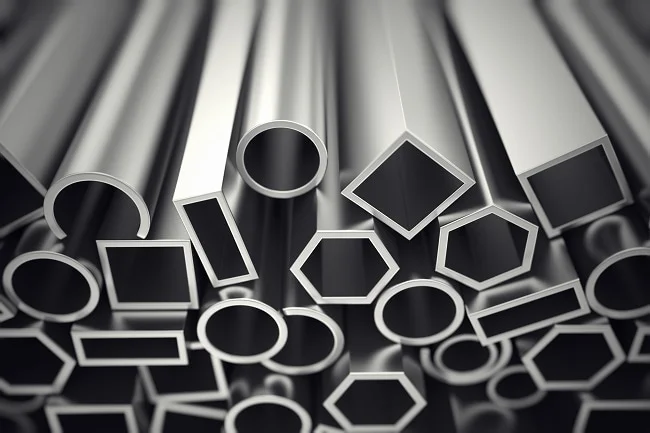

Heat treated aluminum
The mechanical properties of both 6061 and 7075 aluminum alloys can be significantly enhanced by heat treatment. Specifically, these alloys are often aged to boost their strength, a procedure known as precipitation hardening.
Heat Treatment of 6061 Aluminum
6061 aluminum typically comes in the T6 temper, implying that it has undergone a process of solution heat treatment and artificial aging. This heat treatment not only enhances the strength and hardness of the alloy but also retains satisfactory ductility.
During solution heat treatment, the alloy is heated to high temperatures (around 530°C-540°C) until the alloying elements dissolve into a solid solution. The alloy is then rapidly cooled or quenched, locking the elements in place. The artificial aging process follows, where the alloy is reheated to a lower temperature (around 175°C) and held for a certain period, allowing the alloying elements to precipitate, further strengthening the alloy.
Key benefits of heat treatment on 6061 Aluminum:
- Increased yield strength: Heat treatment enhances the yield strength of 6061 aluminum from around 110 MPa (in the annealed state) to approximately 276 MPa (in the T6 temper).
- Improved hardness: The hardness also increases from around 30 Brinell hardness (in the annealed state) to around 95 Brinell hardness (in the T6 temper).
Heat Treatment of 7075 Aluminum
Just like 6061, 7075 aluminum is frequently used in the T6 temper. The heat treatment process for 7075 involves solution heat treatment, quenching, and artificial aging, resulting in an alloy with very high strength and hardness but less ductility than 6061.
Key benefits of heat treatment on 7075 Aluminum:
- Superior strength: The yield strength of 7075 aluminum in the T6 temper reaches up to 503 MPa, which is a significant increase compared to its annealed state.
- Increased hardness: The hardness of the alloy is also significantly boosted, making it one of the hardest aluminum alloys.
Table 5: Impact of Heat Treatment on 6061 and 7075 Aluminum
|Property||6061 Aluminum (Annealed)||6061 Aluminum (T6 Temper)||7075 Aluminum (Annealed)||7075 Aluminum (T6 Temper)|
|Yield Strength||Approx. 110 MPa||Approx. 276 MPa||Approx. 240 MPa||Approx. 503 MPa|
|Hardness||Approx. 30 Brinell||Approx. 95 Brinell||Approx. 60 Brinell||Approx. 150 Brinell|
Environmental Impact and Sustainability of 6061 and 7075 Aluminum
In today’s environmentally-conscious era, the sustainability factor of materials is of paramount importance. Aluminum, being highly recyclable, presents significant environmental benefits.
Environmental Impact of 6061 Aluminum
6061 aluminum is commonly recycled, contributing to its sustainability. Recycling aluminum uses only about 5% of the energy needed to produce the primary metal, offering substantial energy savings. Additionally, the excellent corrosion resistance of 6061 can lead to longer life cycles in applications, further reducing its environmental impact.
Key Environmental Benefits of 6061 Aluminum:
- High recyclability: Almost 75% of all aluminum ever produced is still in use today, highlighting its recyclability.
- Energy-saving: Recycling aluminum saves about 95% of the energy it would take to make new aluminum.
- Longer life cycles: The corrosion resistance of 6061 allows for longer product lifetimes, reducing the frequency of replacement and waste.
Environmental Impact of 7075 Aluminum
7075 aluminum, while also recyclable, has a slightly more complex recycling process due to its alloying elements, particularly zinc. However, the high strength of 7075 can lead to the production of lighter components, potentially reducing energy consumption in applications such as transportation.
Key Environmental Benefits of 7075 Aluminum:
- Recyclability: Although the recycling process for 7075 is more complex due to its alloying elements, it is still widely recycled.
- Energy-efficient transportation: Lightweight components made from 7075 can lead to more fuel-efficient vehicles, contributing to reduced CO2 emissions.
- Durability: The high strength of 7075 aluminum ensures durability and a longer lifespan, which can reduce the overall environmental impact of products.
Table 6: Environmental Impact and Sustainability of 6061 and 7075 Aluminum
|Aspect||6061 Aluminum||7075 Aluminum|
|Energy Efficiency in Production||High (95% energy savings when recycled)||High (95% energy savings when recycled)|
|Lifespan||Long (due to excellent corrosion resistance)||Long (due to high strength)|
|Contribution to Energy-efficient Transportation||Moderate||High|
Prolean’s Aluminum Machining & Fabrication Services
Prolean offers top-tier aluminum machining and fabrication services, delivering high-quality components crafted from both 6061 and 7075 aluminum alloys. Whether your project demands the all-around versatility of 6061 or the high-strength performance of 7075, Prolean has the expertise and equipment to turn your vision into reality.
Our services encompass everything from intricate machining to complex welding and fabrication projects. Our experienced team of engineers and machinists are committed to providing the highest quality, precision-machined components to meet and exceed your expectations.
Choose Prolean for your aluminum machining and fabrication needs, and experience the difference that expertise, quality, and a customer-focused approach can make.
In the face-off between 6061 vs 7075 aluminum, the key takeaway is that each alloy has its unique strengths and applications. While 7075 aluminum stands out for its extraordinary strength, 6061 aluminum wins points for its excellent weldability, machinability, and superior corrosion resistance.
It’s crucial to remember that the choice between these two aluminum alloys isn’t a simple matter of “which is better?” Instead, the question should be “which is better for your specific application?” Whether it’s the versatility and all-around performance of 6061 or the high-strength prowess of 7075, your choice should align with the demands of your project. And when you need professional machining and fabrication, remember that Prolean’s Aluminum Machining & Fabrication Services are here to cater to all your needs.
Which is stronger, 6061 or 7075?
7075 aluminum is significantly stronger than 6061. It has a yield strength of 503 MPa and a tensile strength of 572 MPa in the T6 temper, compared to 6061’s yield strength of 276 MPa and tensile strength of 310 MPa in the T6 temper.
Why is 7075 aluminum called aircraft aluminum?
7075 aluminum is often referred to as “aircraft aluminum” because of its high strength-to-weight ratio, which is crucial in the aerospace industry. It’s extensively used in the manufacture of aircraft parts and other high-stress components due to its excellent strength.
Can you weld 7075 aluminum?
While it’s technically possible to weld 7075 aluminum, it’s generally not recommended due to its high zinc content, which can lead to cracks and weak joints. If welding is a key aspect of your project, 6061 aluminum, with its excellent weldability, would be a more suitable choice.
What are the key applications of 6061 and 7075 aluminum?
6061 aluminum is highly versatile and is used in various applications like construction, automotive parts, furniture, yachts, boats, and musical instruments.
7075 aluminum, on the other hand, is used in high-stress applications such as aerospace, structural parts, sporting equipment, and military applications due to its superior strength.
Which is more expensive, 6061 or 7075 aluminum?
7075 aluminum is generally more expensive than 6061 due to its superior strength and harder machinability, which make it more costly to produce.
