Glass Filled Nylon: Types, Advantages & Applications

Glass Filled Nylon

Manufacturing industries face critical challenges with traditional materials failing under demanding conditions.. Standard nylon lacks sufficient strength for structural applications. Metal components add excessive weight and cost to modern designs. These limitations force the manufacturers to compromise between performance and strength.

Glass-filled nylon emerges as a final solution. This overall material combines the chemical resistance of nylon with glass fiber strength. It provides extraordinary performance for motor vehicle, aerospace and electronics applications. The material provides improvement in 300% power on standard nylon while maintaining cost-efficiency.

ProleanTech specializes in glass-filled nylon manufacturing solutions. . Our expertise helps businesses to customize material selection and processing parameters.

This comprehensive blog covers glass-filled nylon types, properties, applications and more. Let’s get right into the topic:

Interesting Read: Discover the CNC machining process, its benefits, and applications—learn how it ensures precision and efficiency in modern manufacturing!

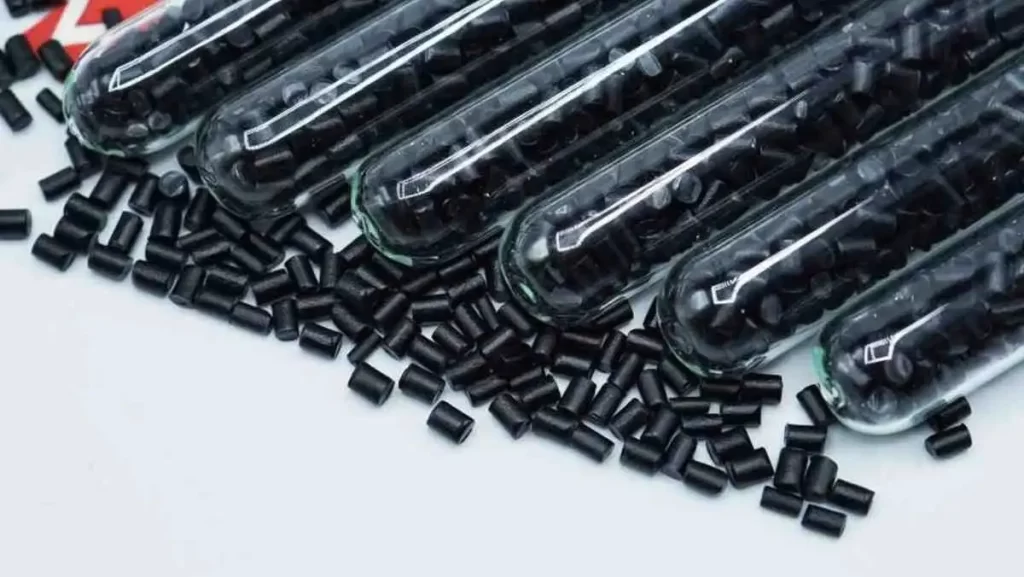

What is Glass-Filled Nylon?

Glass Filled Nylon

Glass-filled nylon is a composite material made by reinforcing nylon polymer with glass fibers. The glass fibers are typically 10% to 50% by weight. This reinforcement dramatically improves nylon material properties like strength, stiffness and dimensional stability.

The manufacturing process involves mixing chopped glass fibers with molten nylon resin. This creates a uniform distribution of reinforcement throughout the material. The result is a composite that maintains nylon’s chemical resistance while gaining superior mechanical properties.

Different glass fiber concentrations offer varying performance characteristics. Higher glass content increases strength but may reduce impact resistance. Engineers need to balance these properties based on application requirements.

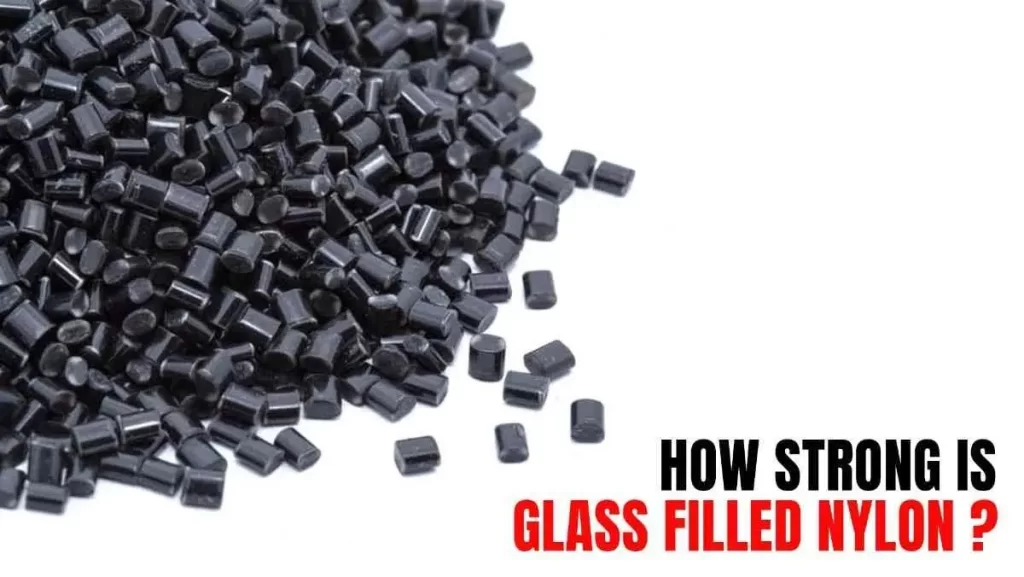

How Strong is Glass-Filled Nylon?

How Strong is Glass Filled Nylon?

Glass filled nylon is super strong and outperforms standard nylon materials. The yield strength nylon values increase significantly with glass fiber reinforcement. Typical glass filled nylon has tensile strength ranging from 80-200 MPa depending on glass content.

The material’s flexural strength often exceeds 150 MPa in 30% glass filled configuration. That’s 300% better than unreinforced nylon. The added strength allows for thinner wall sections while maintaining structural integrity.

Impact resistance varies with glass fiber content and orientation. Short glass fibers provide balanced properties for most applications. Long glass fibers offer higher strength but may present processing challenges.

Glass Filled Nylon – Common Types

Different glass filled nylon grades offer unique properties for specific industrial applications. The choice depends on temperature requirements, chemical exposure, and mechanical demands.

Understanding each type helps manufacturers select the optimal material for their production needs.

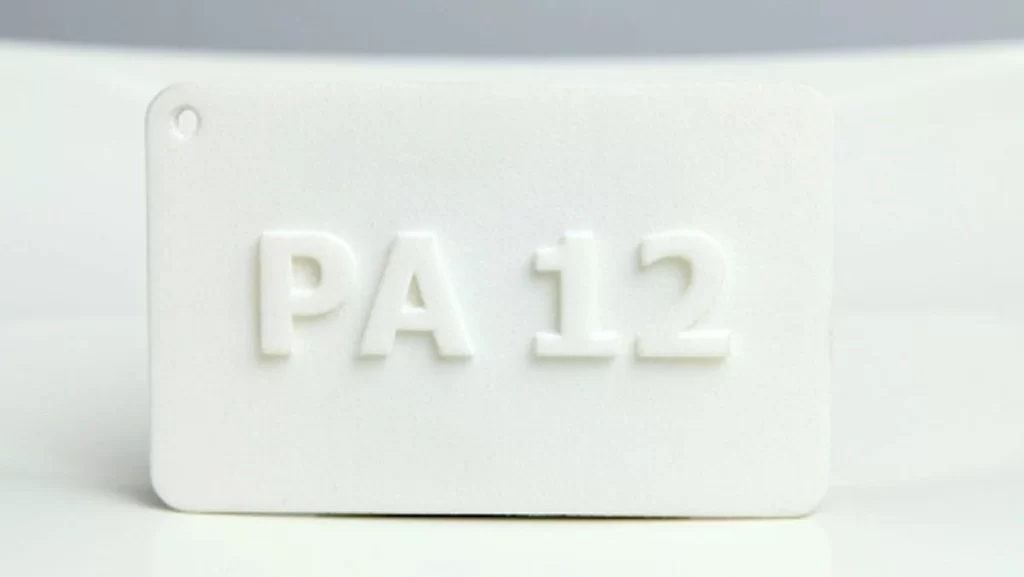

1. PA12 Reinforced Glass Fiber (PA12-GF)

PA12 Reinforced Glass Fiber (PA12-GF)

PA12 reinforced glass fiber has excellent chemical resistance and dimensional stability. This material is flexible at low temperatures and has added strength. The PA12 matrix has better impact resistance than other nylon grades.

Glass fiber content is typically 15% to 40% by weight.PA12-GF has excellent fatigue resistance for dynamic applications. It has low water absorption, maintains properties in humid environments.

Processing temperatures are low, reduces energy costs and equipment wear. The combination makes it ideal for automotive fuel systems, pneumatic components and electrical housings that require long term reliability.

2. PA6 Reinforced Glass Fiber (PA6-GF)

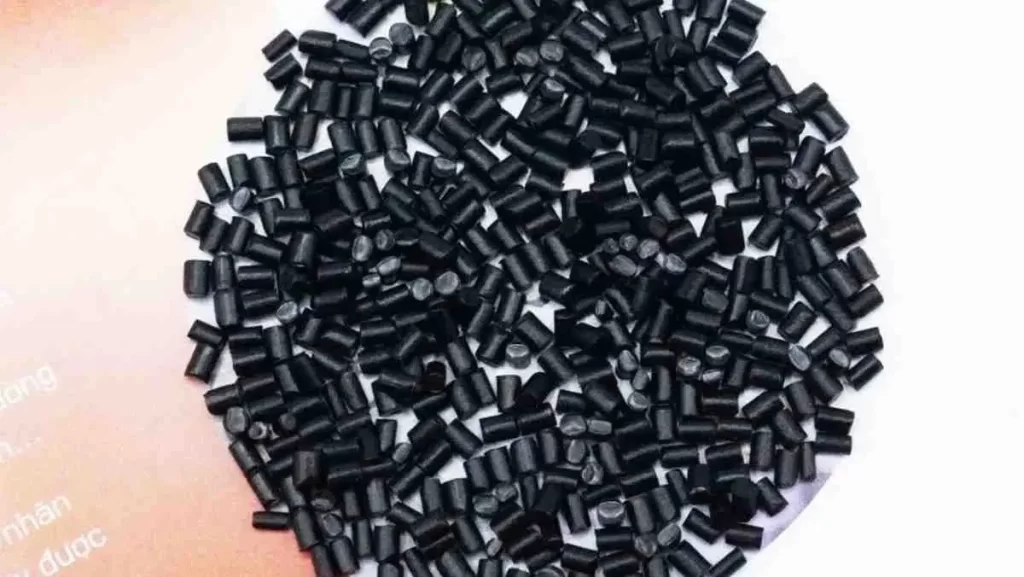

PA6 Reinforced Glass Fiber (PA6-GF)

PA6 reinforced glass fiber has excellent strength to weight ratio for structural applications.

This material has superior thermal properties up to 150°C continuous use. The crystalline structure of PA6 improves creep resistance under sustained loads. Glass fiber reinforcement improves dimensional stability significantly.

PA6-GF has excellent chemical resistance to oils, greases and most solvents. It processes well in injection molding with good surface finish. Typical applications include engine components, electrical connectors and structural brackets. The balanced properties makes PA6-GF suitable for demanding automotive and industrial applications that require consistent performance.

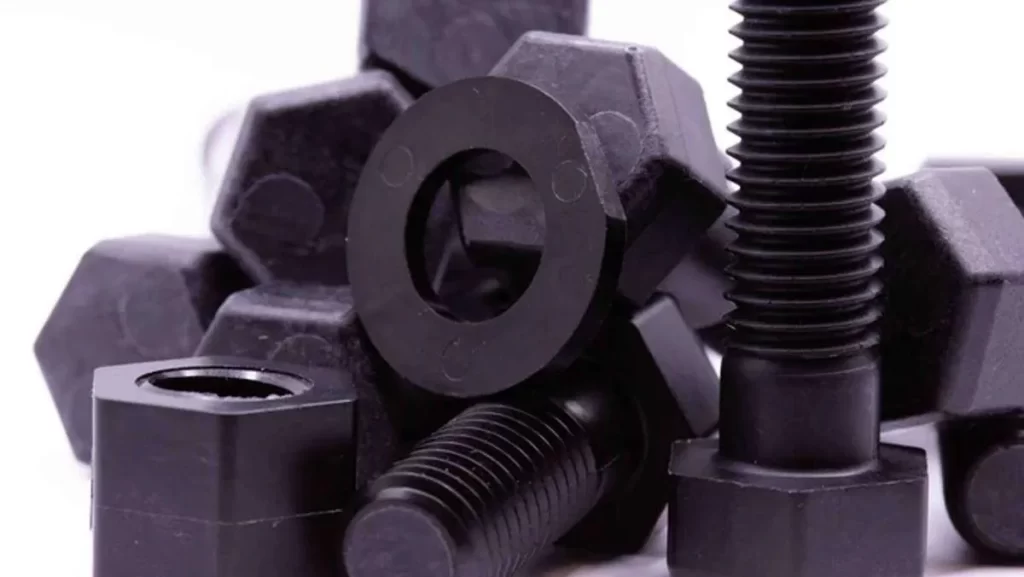

3. PA66 Reinforced Glass Fiber (PA66-GF)

PA66 Reinforced Glass Fiber (PA66-GF)

PA66 reinforced glass fiber has the highest strength and temperature resistance among nylon composites.

This material maintains structural integrity up to 180°C continuous use. The rigid molecular structure provides excellent creep resistance and dimensional stability. Glass fiber content is typically 20% to 50%.

PA66-GF has superior wear resistance for sliding applications. It has excellent electrical insulation properties for electronic housings. Processing requires higher temperatures but provides excellent surface quality.

Applications include gear housings, pump components and high temperature electrical assemblies where maximum performance is required.

Glass Filled Nylon Material Properties

Understanding glass filled nylon material properties helps manufacturers select the optimal grade for specific applications. Each reinforced nylon type offers unique characteristics balancing strength, flexibility, and processing requirements.

The following comparison highlights key performance differences across common glass filled nylon grades.

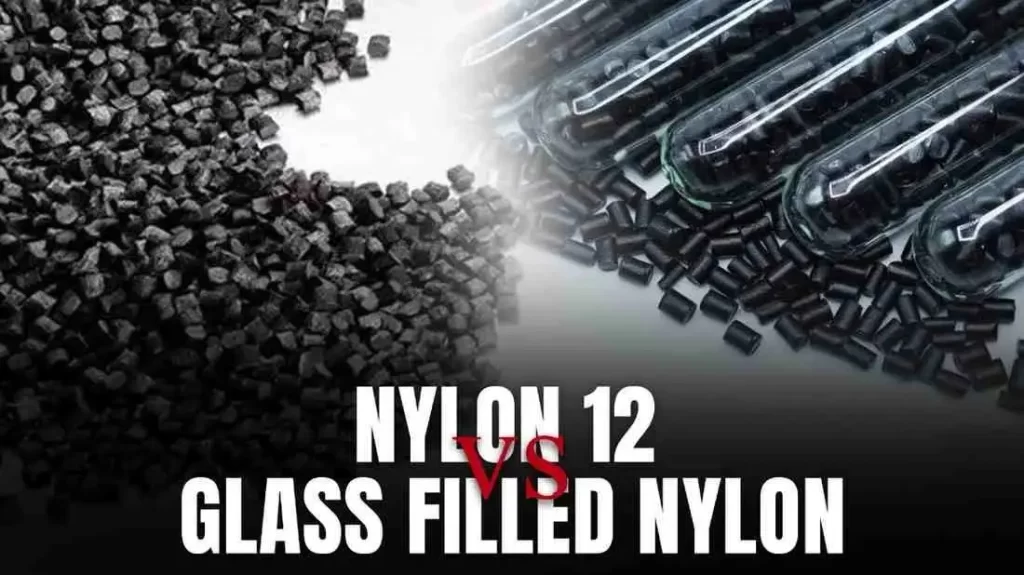

What is the Difference Between Nylon 12 and Glass Filled Nylon?

Nylon 12 vs. Glass Filled Nylon

Nylon 12 and glass filled nylon serve different industrial applications based on their properties. Pure nylon 12 has better flexibility and impact resistance. It is flexible at low temperatures and has excellent chemical resistance. The material processes easily with minimal warpage or shrinkage.

Glass filled nylon has much higher strength and stiffness. The glass fiber reinforcement increases tensile strength by 200-400%. Dimensional stability improves dramatically, reduces thermal expansion. But glass filled variants have lower impact resistance and higher brittleness.

Cost also differs significantly between materials. Nylon 12 is cheaper initially but may require thicker sections for strength. Glass filled nylon is more expensive per pound but allows for lighter, stronger designs. Volume of production and part complexity affects the economic choice between materials.

Advantages of Nylon Glass Filled

Glass filled nylon offers transformative benefits for industrial manufacturing applications.

Advantages of Nylon

Understanding these benefits helps manufacturers to make strategic material decisions. Increased properties provide better performance than traditional materials.

• Excellent chemical resistance to oil, fuel and most solvents
• High wear resistance to sliding and rotating applications
• Good electrical insulation for electronic components
• Easy processing in injection molding and extrusion
• Light than metal option
• Effective cost for high volume production
• Detailed temperature range for various operating conditions
• Resistant to dynamic applications
• Good surface ends directly from molding process
• Recycled material for permanent manufacturing

Glass Filled Nylon limitations

• Water absorption affects dimensional stability over time
• UV degradation requires stabilizers for outdoor use
• Limited high temperature performance without reinforcement
• Notch sensitivity in unreinforced grades
• Shrinkage requires careful mold design

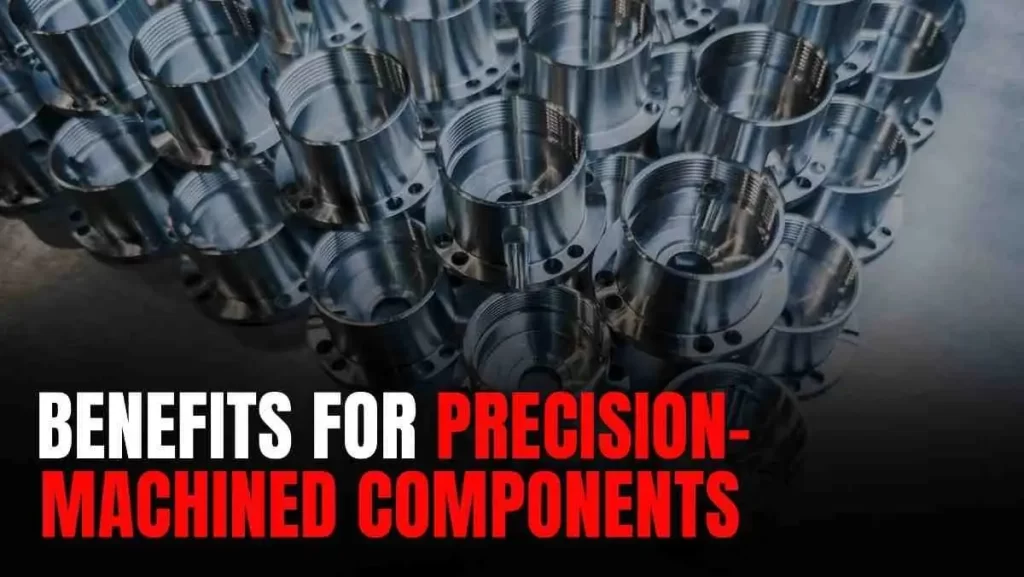

Machining Benefits for Precision-Machined Components

Benefits for Precision-Machined Components

Glass filled nylon enhances machining capabilities for demanding applications. The increased stiffness reduces deflection during cutting. This allows for tighter tolerances and better surface finish. Machinists get consistent results across production runs.

The material’s dimensional stability prevents warpage after machining. Parts stay accurate throughout temperature cycles. Reduced thermal expansion ensures consistent fits and clearances. Tool wear decreases due to the material’s predictable cutting characteristics.

Glass filled nylon allows for complex geometries impossible with metals. Undercuts and intricate features machine cleanly without special tooling. The material’s self-lubricating properties reduce cutting forces and extend tool life.

Glass filled Nylon for 3D Printing

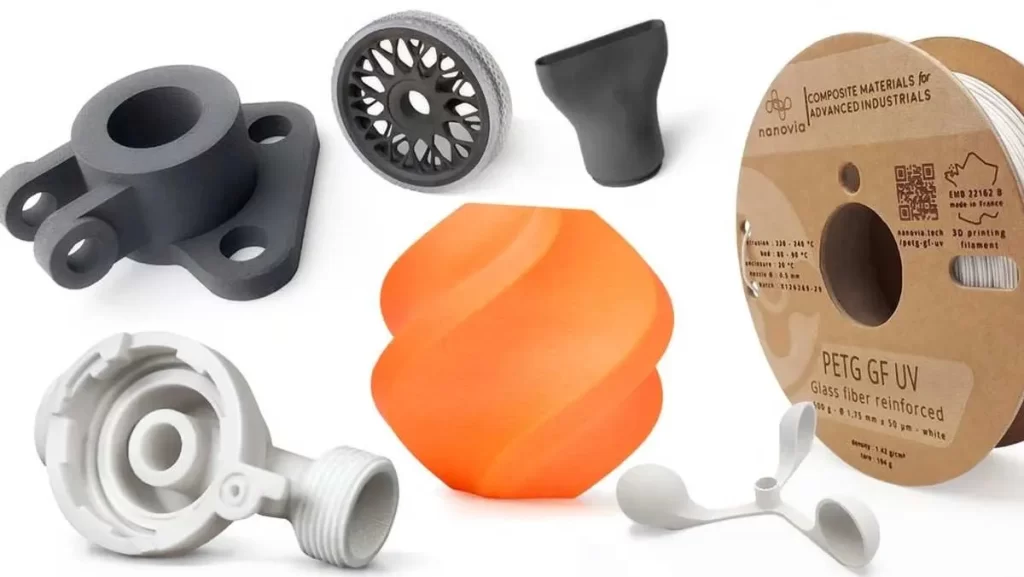

Glass Filled Nylon for 3D Printing

Glass filled nylon revolutionizes 3D printing for functional prototypes and production parts. The reinforced material reduces warpage common in standard nylon printing. Layer adhesion improves significantly with glass fiber reinforcement. Print accuracy increases across large build areas.

The increased strength enables lightweight lattice structures and hollow designs. Support material requirements decrease due to better bridge spanning. Post-processing is minimal with good as-printed surface finish. Glass filled nylon parts often require no additional strengthening treatments.

Temperature resistance allows printed parts to operate in harsh environments. Chemical resistance enables cleaning with industrial solvents. The combination creates production-ready parts directly from 3D printers without additional processing steps.

Glass Filled Nylon for Injection Molding

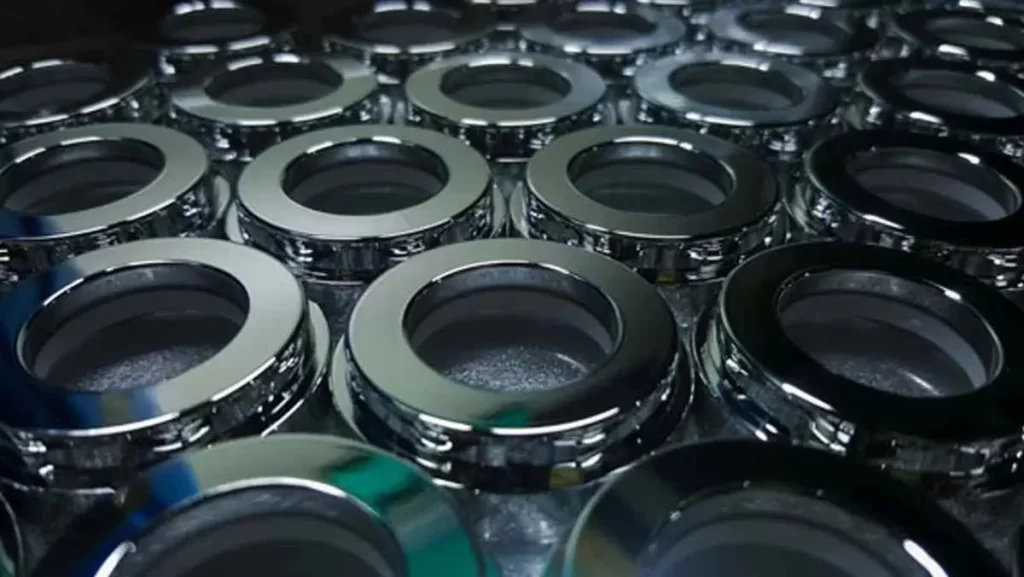

Glass Filled Nylon for Injection Molding

Glass-filled nylon is ideal for injection molding applications requiring precision and durability. The material flows well through complex mold geometries. Cycle times are competitive with excellent part ejection. Dimensional accuracy is better than unreinforced grades.

Mold wear is reduced due to improved flow and reduced shrinkage stresses. Gate and runner systems require minimal modification from standard nylon processing. The material is thermally stable for long production runs.

Surface finish is excellent without secondary operations. Glass filled nylon parts often meet automotive Class A surface requirements. The combination of properties allows for one-step production of complex high-quality parts.

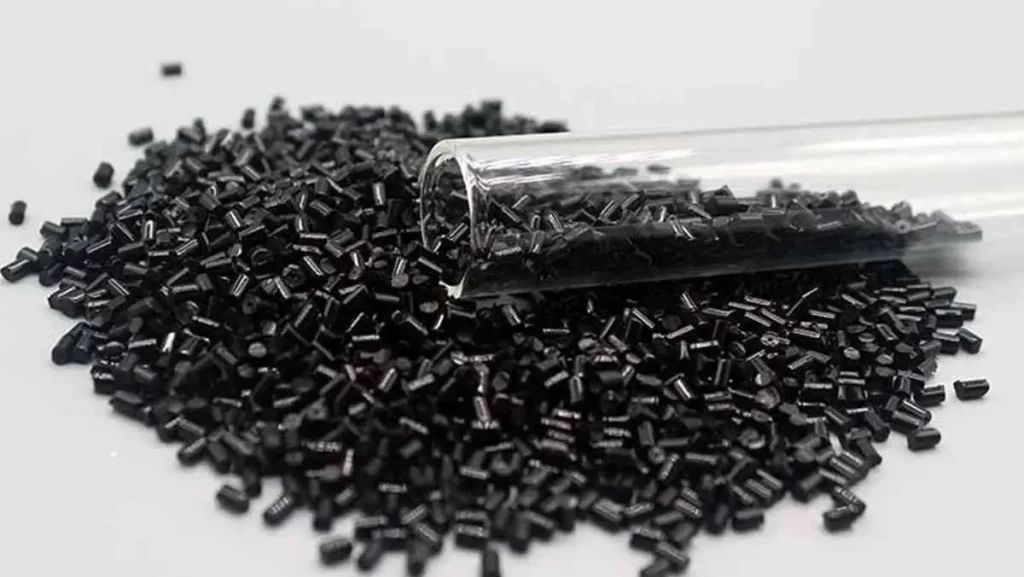

Nylon Heat Resistance and UV Protection

Nylon Heat Resistance

Glass-filled nylon has better heat resistance than unreinforced grades. Continuous operating temperature is 150-180°C depending on grade. Short-term exposure up to 220°C without damage. This thermal stability is for automotive under-hood applications.

The material maintains strength and stiffness at elevated temperatures. Creep resistance is much better with glass fiber reinforcement. Long-term thermal aging shows minimal property degradation when properly formulated.

Standard glass-filled nylon requires UV stabilizers for outdoor use. The material is nylon uv resistant when properly formulated with stabilizers. UV degradation affects surface appearance before structural properties. Proper additive package for long term outdoor durability.

Industrial Applications for Glass-Filled Nylon

Industrial Applications for Glass-Filled Nylon Components

Glass-filled nylon is used in various industrial applications requiring strength, durability and chemical resistance. The automotive industry uses this material extensively for under-hood components. Electrical housings benefit from excellent insulation and dimensional stability. Here are the applications:

• Automotive: Engine brackets, fuel system parts, electrical connectors
• Aerospace: Interior panels, structural brackets, wire management systems
• Industrial machinery: Gear housings, pump components, bearing retainers
• Electronics enclosures: Switch housings, connector bodies, cable management
• Consumer goods: Power tool housings, appliance components, sporting goods. The material’s versatility allows for metal replacement with significant weight savings. Cost savings often accompany material substitution due to simplified processing.

What is the Difference Between PA12 and Glass-Filled Nylon?

PA12 vs. Glass-Filled Nylon

PA12 is a specific nylon polymer known for flexibility and chemical resistance. Glass filled nylon is various nylon grades with glass fibers. PA12 can be glass filled itself to create PA12-GF composites with improved properties.

Pure PA12 has better impact resistance and flexibility at low temperatures. The material is elastic over wide temperature ranges. Chemical resistance is better than most other nylon grades, especially against fuels and oils.

Glass filled variants sacrifice some flexibility for much higher strength and stiffness. The choice depends on application requirements balancing flexibility against structural performance. Both materials are used in modern manufacturing applications.

Is a Glass-Filled Nylon Frame Good?

Glass filled nylon is great for demanding applications that require strength and durability. The reinforced material has better dimensional stability than standard nylon. Glass fibers prevent warpage and maintain tolerances under temperature changes. It resists chemical exposure, UV degradation and mechanical stress.

Lightweight construction reduces overall system weight while maintaining structural integrity. Cost is competitive with excellent surface finish. The material allows for complex geometries not possible with metal.

Glass filled nylon is good for automotive, electronics and industrial equipment where reliability is critical. Proper grade selection ensures optimal performance for specific operating conditions and load requirements.

What are Some Applications for Glass-Filled Nylon Parts?

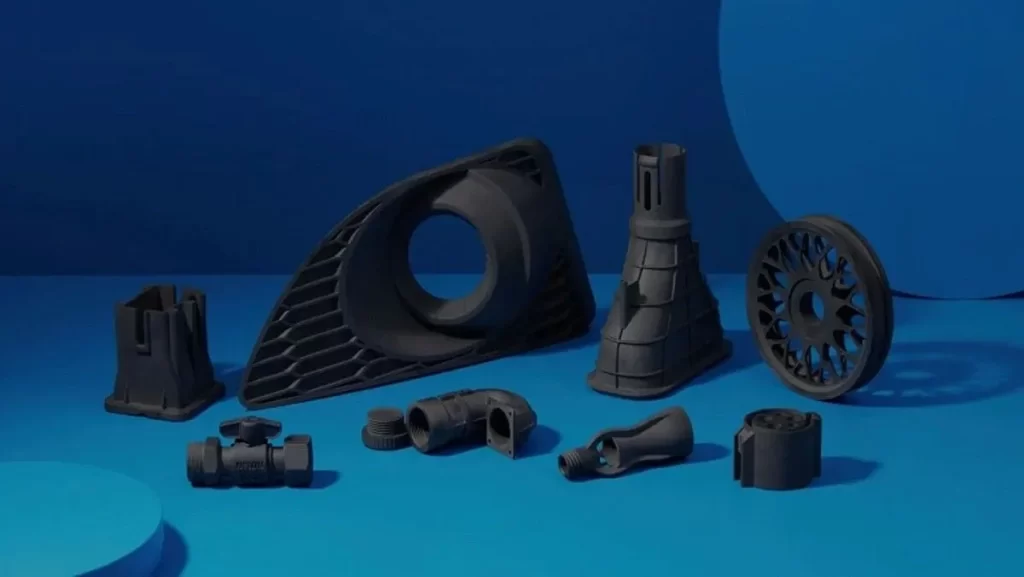

Applications for Glass-Filled Nylon Parts

Glass filled nylon parts serve critical functions across multiple industries that require reliable performance under harsh conditions. The material’s combination of strength, chemical resistance and dimensional stability makes it perfect for precision applications. Manufacturing industries get reduced weight and improved durability vs traditional materials.

The versatility allows for complex designs with consistent quality and performance. Industries use glass filled nylon for components that require long term reliability and minimal maintenance.

Key Applications:

• Automotive engine brackets and transmission components
• Aerospace interior panels and structural elements
• Industrial pump housings and valve components
• Electronic connector bodies and switch housings
• Medical device housings and surgical instruments
• Consumer appliance components and power tool case

What is 30% Glass-Filled Nylon?

30% glass filled nylon is 30% glass fibers by weight mixed with 70% nylon resin. This is the most common commercial grade for general applications. The glass content increases mechanical properties while maintaining reasonable impact resistance.

This composition is the most common grade for general use. Tensile strength increases 200-300% over unfilled nylon. Stiffness improves 400% or more with proper fiber orientation during processing.

Can you machine Glass-Filled Nylon?

Glass filled nylon machines well with proper tooling and technology. Sharp carbide equipment gives the best results with frequent surface finish. The speed of cutting  should be moderate to prevent heat buildup and decline of materials. Proper chip drainage edges inhibits the material buildup on cutting.

Glass fiber tools can cause wear if cutting parameters are incorrect. Flood coolant helps to maintain dimensional accuracy and surface quality. Climb milling often produces better finish than traditional milling.

Can you injection mold Glass Filled Nylon?

Injection Molded Glass Filled Nylon

Glass filled nylon injection mold with standard equipment modifications. The processing temperature based on grade is 260–300°C. The mold temperature should be 80–120°C for best surface quality and dimensional accuracy.

The material requires high injection pressure due to high viscosity. Screw design modifications optimize glass fiber distribution and reduce breakage. The appropriate gate design prevents fiber orientation issues and weakness of the weld line.

Which is better Nylon or Polycarbonate?

Which is Better: Nylon or Polycarbonate?

The choice between nylon and polycarbonate depends on the application requirements and operational conditions. Nylon has better chemical resistance and wears properties for mechanical applications. It is cheap and easy for the process in most manufacturing functions.

Polycarbonate has better optical clarity and high impact resistance. The temperature resistance for continuous use is more than most nylon grades. But chemical resistance is limited compared to nylon content.

Glass filled nylon often defeats polycarbonate in structural applications. The reinforced material has better creep resistance and dimensional stability. Cost saving is important in high volume production where mechanical performance is more important than optical properties.

What are Glass Filled Nylon Parts Used For?

Glass-filled nylon parts perform important functions in many industries where performance requires.

The automotive uses them for engine management systems, transmission components and electrical systems. Aerospace applications include internal panels, structural brackets and environmental control systems.

Industrial machinery benefits from glass-filled nylon wear resistance and chemical compatibility. Pump housings, valve components and bearing retainers opearte in a rigid environment. The electrical insulation properties of the material make it ideal for electronic enclosure and connector bodies.

How Strong is Glass Filled Nylon?

Glass filled nylon has tensile strengths of 100-250 MPa depending on glass content and grade. This is 200-400% stronger than unfilled nylon materials. Flexural strength often exceeds 200 MPa in highly filled grades.

The material’s strength to weight ratio competes with aluminum in many applications. Specific strength calculations show advantages for weight critical applications. Impact strength varies with glass content but is sufficient for most structural uses.

Is Glass-Filled Nylon Abrasive?

Glass filled nylon is moderately abrasive due to glass fiber content. The material can wear down mating surfaces without lubrication. But it’s less abrasive than ceramic or metal composites.

Proper system design minimizes abrasive effects through material selection and lubrication strategies. The self-lubricating properties of nylon reduce friction and wear in many applications. Surface treatments can further reduce abrasive characteristics when required.

ProleanTech: Your Glass Filled Nylon Experts

Proleantech: Your Trusted Partner for Glass Filled Nylon Solutions

ProleanTech provides comprehensive glass filled nylon solutions for your industry. Our engineers understand the challenges of modern manufacturing. We guide you on material selection, design optimization and processing parameters.

We have advanced manufacturing capabilities for precision CNC machining, injection molding and 3D printing. Quality certifications ensure consistent results meeting industry standards.

Consult with our industry specialists to see how glass filled nylon can benefit your product. We support you from concept to production to get the best results for your application.

Conclusion – Glass Filled Nylon

Glass filled nylon is the better material for demanding industrial applications. Strength, chemical resistance and processability make it the perfect material for modern manufacturing. Knowing the benefits of nylon helps you make informed decisions.

The material addresses the cons of nylon through glass fiber reinforcement. Better nylon material properties means lighter, stronger designs that save cost and perform better. From automotive to aerospace, glass filled nylon delivers.

Proper material selection and processing gets you the best results for your needs. Contact us to get your quote to see how ProleanTech can transform your manufacturing and deliver value to your business.
