Tube Laser Cutting has completely changed metal fabrication and modern manufacturing. It cuts pipes and tubes into intricate forms using very precise lasers. However, engineers and fabricators can accomplish high-precision, clean, and efficient cuts by knowing its benefits over conventional techniques like sawing, mechanical cutting, and plasma cutting.
At ProleanTech, we specialize in precision metal cutting, custom tube laser cutting, and efficient fabrication solutions. Our expertise provides precise cuts, minimum heat-affected zones, and maximum material use in every project.
This guide covers tube laser cutting, its benefits, applications, and why it’s the preferred choice for modern manufacturing and metal fabrication.
What Is Tube Laser Cutting?
Tube laser cutting Process
Tube laser cutting is a high-precision laser used to cut pipes and tubes. It produces unique channels, holes, and forms. The material revolves in a controlled lathe during the procedure. It ensures uniform and accurate cuts. The procedure will cut items to the required length. Materials like copper, titanium, brass, aluminum, stainless steel can be processed using this method.
This method makes possible features like through-holes as tiny as the wall thickness. Additionally, it creates accurate channels that make welding and bending simpler. For any project, contemporary tube laser cutting services provide unparalleled accuracy and reliability.
ProleanTech provides laser cutting services with instant online pricing, DFM feedback, and quick turnaround times. We employ fiber and CO₂ lasers to achieve precise tolerances and cut wall thicknesses of up to 1/2″. Upload your 3D CAD to the ProleanTech Instant Quoting Engine® to quickly and easily configure your quote. What you see is what you pay. Your prototype pricing includes customs and delivery for standard shipments.
Our skilled team is ready to support your project. We provide a smooth, fast manufacturing experience tailored to your specific requirements.
Get an instant quote!
2-Axis or 3-Axis
Tube laser cutting equipment is available for different types to facilitate various cutting requirements:
- Two-dimensional tube cutting is achieved with a 2-axis laser tube cutter. It’s perfect for cutting tubes to the proper length and making joins for structural assemblies.
- A 3-axis laser tube cutter is used in three dimensions. These devices are frequently used for tilt cutting and chamfering. Other sophisticated tube laser cutting services that need higher accuracy are also handled by them.
Tube Laser Cutting vs. Traditional Methods
Laser cutting works better than more traditional techniques like sawing, mechanical cutting, and plasma cutting when it comes to cutting tubes.
High accuracy with tolerances as small as ±0.1 mm is possible with laser cutting. It creates crisp edges without the need for additional polishing. It can cut intricate angles and forms with few areas damaged by heat.
Depending on the thickness of the material, the processing speed can reach several meters per minute. Steel, aluminum, and stainless steel are among the metals that it works best with.

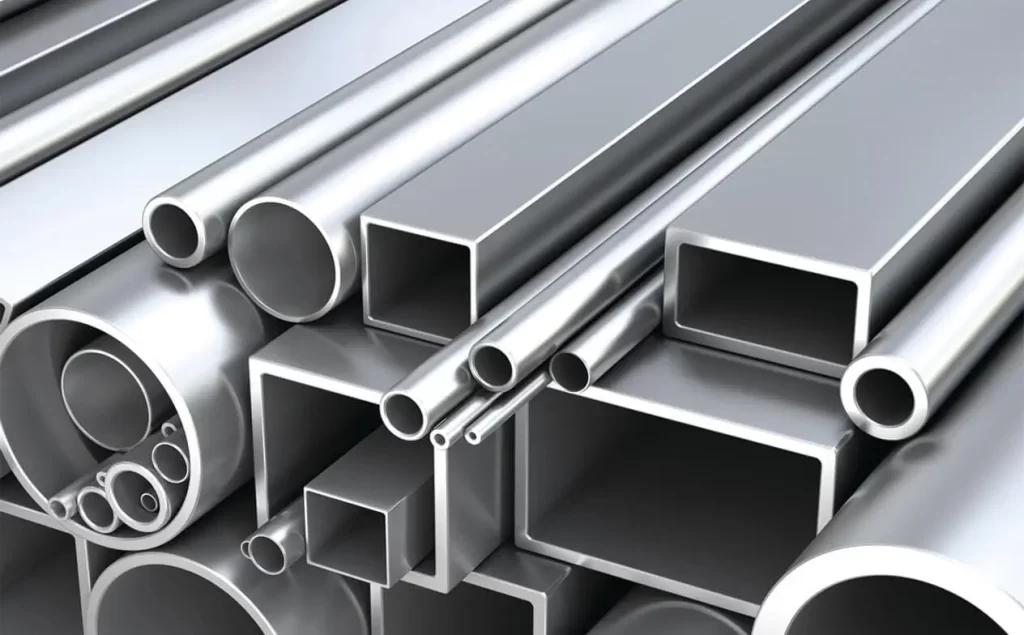

Aluminum Tubes and Profiles
However, older technologies are still in use. Frequently, laser cutting is more accurate, quicker, and wastes less material. It is therefore perfect for contemporary manufacturing.
Best Situations to Use Tube Laser Cutting
It’s critical to know when to employ tube laser cutting for effective manufacturing. A laser tube cutter yields the most precise results when welding tube pieces. Cutting using a laser tube is quite accurate. It ensures accurate welding between tube segments.
Tube laser cutting services deliver the right type of cut for tubes that need to bend before welding.These cuts decrease welding during assembly, reduce parts, and facilitate manual bending.
How Does Tube Laser Cutting Work?
The technology applied in this cutting is called CNC tube cutting. CNC stands for Computer Numerical Control, and its application controls the laser beam with great precision.
Here is how the procedure goes:
- Material Loading: Steel, aluminum, or even another material constructed into tubes or pipes is loaded into the machine.
- Laser Cutting: A highly focused laser beam is provided to cut through the material along previously programmed paths. The system of CNC Tube Cutting ensures a laser beam tracing out intricate designs with pinpoint accuracy.
- Part Ejection: Once the laser finishes cutting, the parts are ejected out and then can proceed to other manufacturing stages like assembly or finishing.
Try Prolean Now!
Key Advantages And Disadvantages of Tube Laser Cutting Services
The advantages of laser tube cutting services go beyond precision. They improve flexibility, speed, and cost-efficiency across production lines.
Flexibility
Tubes of various sizes and forms can be cut with tube laser cutting. It consistently produces precise cuts with diameters ranging from less than an inch up to 9 inches in diameter. Additionally, it is ideal for standard tubing up to 24 feet in length and rectangular tubes up to 9 inches across.
Carbon steel up to 0.25 inches, stainless steel up to 0.25 inches, and titanium up to 0.04 inches can all be easily processed by laser tube cutting equipment. They can easily cut irregular, circular, or rectangular profiles. This demonstrates the versatility of tube cutting services.
Materials
Carbon steel, titanium, stainless steel, and aluminum are the materials that can be cut using laser tube technology.
A fiber laser performs better than CO₂ cutters for cutting reflective materials. Its flexibility is increased by its ability to cut non-metal materials including foam, wood, and plastic.
Efficiency
The accuracy and adaptability of laser tube cutting make it incredibly effective. There is no need for additional processing because the cuts are precise and clean. One machine can handle both cutting to length and intricate patterns without requiring tool changes.

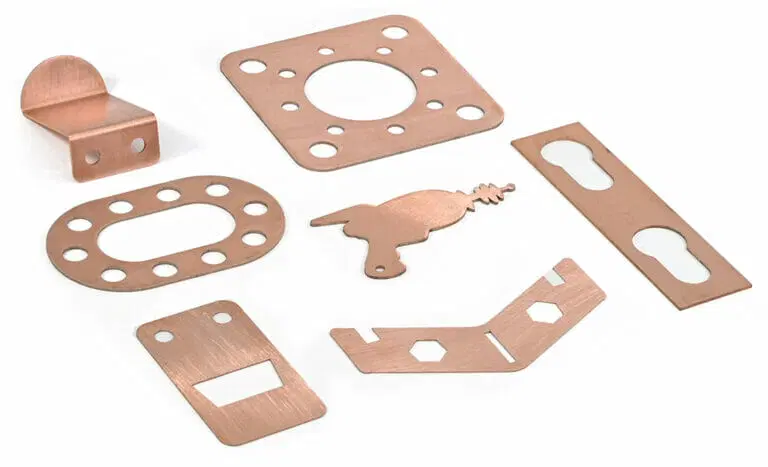

Copper Laser Cut Parts
A single piece of raw metal is used for several parts, decreased project expenses and material waste. The final components fit together exactly, which speeds up and simplifies assembly.
Precision
The laser tube cutting equipment is so accurate, no further processes are required. After cutting, every component is instantly usable or assembleable.
Cost
The precision and automation of tube laser cutting services reduces cost of production. Your production process becomes more economical and efficient with less manual work, quicker turnaround, and less waste.
The disadvantages or limitations of laser tube cutting include the following:
- Certain cut materials can exhibit a little halo discoloration around the cut edges due to splashback or overspray.
- A cutting profile’s lead-in and lead-out points can have a little lump of material or a noticeable edge condition.
- The technique is frequently applied to materials with thin walls that are between 0.500″ and 1.000″ thick.
Core Applications of Tube Laser Cutting
The core applications for tube laser cutting include both commercial and industrial. It is perfect for very precise cutting, welding, and marking in industrial situations. These systems manage intricate activities requiring precision and reliability.
Laser tube cutting is used commercially to fabricate signage, consumer gadgets, and unique designs. It is appropriate for high-quality output because of its precision and speed.
Tube laser cutting services are now widely used in many different sectors, demonstrating their versatility and reliability.
Electronics and Technology Applications
Tube laser cutting is used to cut small, accurate parts in the electronics and technology sector. It is frequently used to create complex patterns and fabricate sheet metal. Parts can be correctly assembled without the need for further procedures.
Automotive Industry Applications
Aluminum and stainless steel tubes and brackets are cut using laser tube cutting in the automobile industry. It is also often utilized in the manufacturing of exhaust systems and other auto parts.
Aerospace Industry Applications
Tube laser cutting services are crucial in the aircraft manufacturing industry. It is utilized for lightweight materials and aviation tubing. These lasers can cut advanced material and composites used in spaceships and airplanes.
Furniture Manufacturing Applications
Laser cutting is used in furniture manufacturing to quickly prepare plastic tubes and wood. They are able to produce intricate shapes and patterns with this that are not possible using conventional techniques.
Medical Device Applications
Tube laser cutting is used in the medical device sector to create complex titanium and stainless steel tubes and components. It guarantees the accuracy and caliber needed for parts of medical grade.
Try Prolean Now!
Laser Categories Used in Tube Laser Cutting
There are two main types of lasers in tube laser cutting and fabrication: gas lasers (such as CO₂ lasers) and solid-state lasers (which include fiber, disk, and Nd:YAG lasers).
Solid-State Lasers
A crystalline rod serves as the medium for these lasers. A laser beam is created by pumping energy into the rod. They are renowned for their accuracy and steady performance.
Gas Discharge Lasers
Gas discharge lasers produce light by running an electric current through gas. It is causing the emission of photons.
Fiber Lasers

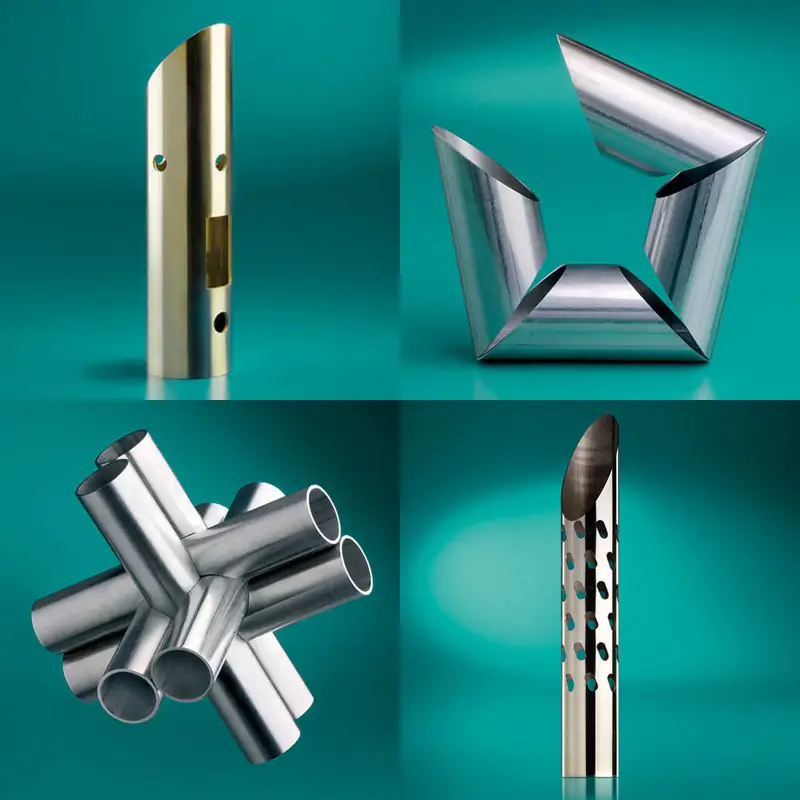

Fiber Laser Tube Cutting
The laser beam is transmitted via fiber optics in fiber lasers. They are frequently employed in high-power cutting tasks. The active medium is the fiber. It offers laser tube cutting services with accuracy and efficiency.
Laser Power & Efficiency
- Fiber lasers provide high wall plug efficiency, which use less power to cut exact tubes.
- Typically, tube laser cutting devices consume up to 5 kW. It is sufficient to safely cut thick aluminum or stainless steel tubes.
- Tube laser cutting machines prioritize accuracy above raw wattage, in contrast to flat sheet lasers that demand more power.
Types of Laser Tube Cutting Machines
There are multiple types of tube laser cutting machines, such as fiber and CO₂ systems. Each is designed for a particular use in tube cutting. These cutting-edge devices cut materials including brass, titanium, aluminum, and stainless steel with great accuracy, speed, and adaptability for a variety of industries.
Combination Tube and Flat Sheet Cutters
Both tube and flat sheet cutting can be done with these laser tube cutting machines. They are perfect for minor projects when flexibility is required. Despite this, they work with both materials. However, they work best on custom metal parts and light fabrication activities.
Dedicated Laser Tube Cutters
Self-contained laser tube cutters are made specifically for tube laser cutting applications. Round, rectangular, and octagonal tubes can all be easily processed by these equipment. They deal with long stock lengths (typically over 3 feet). They provide excellent precision for operations including laser cutting pipes and metal manufacturing.

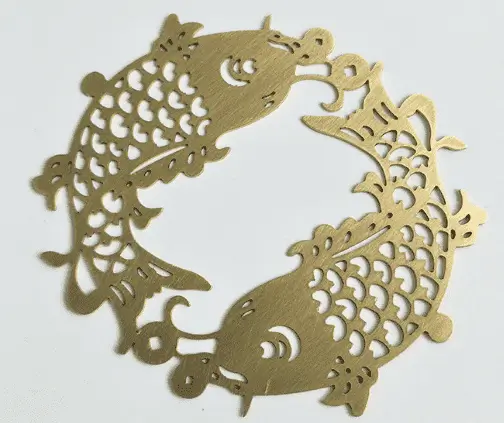

Brass Laser Cut Design

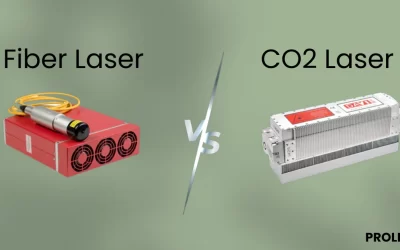

Fiber Lasers vs. CO₂ Lasers
Laser tube cutting systems use either fiber lasers or CO₂ lasers. The demands of the project will determine this.
- Fiber lasers can be used with a wide range of materials, such as copper, aluminum, and stainless steel.
- Compared to conventional CO₂ lasers, fiber laser generators are smaller. They are therefore perfect for cutting contemporary tubes.
- Precise cuts are guaranteed since the laser light passes via fiber-optic connections without losing power.
- The beam diameter of fiber lasers is smaller. It offers quicker material cutting and a better power density.
- Brass and other shiny metals are easily sliced by fiber lasers with a wavelength of 1.06 microns.
- Fiber laser systems require little maintenance. Consequently, tube laser cutting services have less downtime.
- Fiber lasers are recommended over CO₂ lasers for cutting titanium because of their superior efficiency and use of inert gasses, such as argon or nitrogen, to avoid oxidation.
- For cutting metal tubes, CO₂ lasers are less effective than fiber lasers and use more energy.
High power, precise tolerances, and a reduction in the need for additional operations are features of both laser types. They are perfect for industrial metal fabrication and precise tube laser cutting services.
Machine Power and Specifications
Each laser tube cutting machine is defined by key performance factors such as:
- Wattage: Higher wattage provides deeper and sustained cuts.
- Material Size Capacity: Defines maximum tube diameter and material weight.
- Assist Gas Type: Nitrogen, CO₂, or other gases used during tube cutting.
- Electrical Requirements: Motor and power configurations (e.g., 3-phase VAC).
- Repeatability and Automation: Some models feature automated loading systems or conveyors for continuous operation.
Materials & Metals You Can Laser Cut
Shapes and Materials for Tube Laser Cutting Services
At ProleanTech, our tube laser cutting systems handle a wide range of tube shapes and profiles, including round, square, and rectangular tubes.
Our advanced laser tube cutting services are designed for both precision and flexibility across different materials and wall thicknesses.

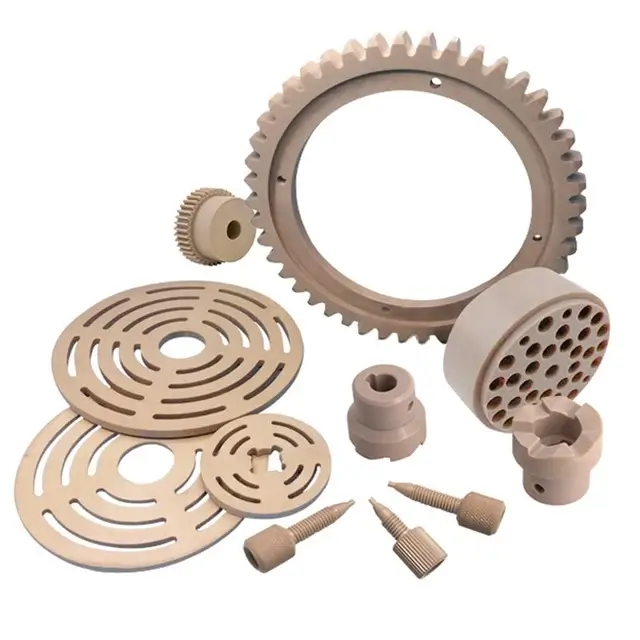

PEEK Laser Cut Components
Supported Materials for Tube Cutting
We work with a variety of metals and alloys, ensuring high precision and clean finishes for every application, from laser cutting pipe to structural components.
- Stainless Steel Laser Cutting: SS 304 and SS 316 (Welded & Seamless)
- Aluminum Laser Cutting: 6061 (Extruded & Drawn)
- Alloy Steel: A513 (DOM, HREW, CREW) and 4130 (Chromoly, Seamless)
- Copper Laser Cutting: C11000, C10100 (High-conductivity grades)
- Brass Laser Cutting: C26000, C27000 (Copper-zinc alloys)
- Laser Cutting Titanium: Commercially pure titanium (Grade 1, Grade 2) and titanium alloys (Grade 5 / Ti-6Al-4V)
- Laser Cutting PEEK: Polyether ether ketone (PEEK) – high-performance engineering thermoplastic for aerospace, medical, and electronics applications
| Material Type | Grades / Specifications | Compatible Tube Shapes | Laser Type Used | Common Applications |
| Stainless Steel | SS 304 (Welded & Seamless), SS 316 (Welded & Seamless) | Round, Square, Rectangular | Fiber Laser | Structural frames, furniture, stainless steel laser cutting, medical and food-grade tubing |
| Aluminum | 6061 (Extruded & Drawn) | Round, Square, Rectangular | Fiber Laser | Automotive frames, aerospace brackets, aluminum laser cutting, signage |
| Alloy Steel | A513 (DOM, HREW, CREW), 4130 (Chromoly, Seamless) | Round, Square, Rectangular | CO₂ / Fiber Laser | Industrial machinery, heavy-duty tubing, laser cutting pipe |
| Titanium | Grade 2, Grade 5 | Round, Square | Fiber Laser | Laser cutting titanium, aerospace and medical components |
| Brass | C260, C360 | Round, Square | Fiber Laser | Decorative work, laser cut brass, fittings |
| Copper | C110 | Round, Square | Fiber Laser | Electrical, heat exchangers, copper laser cutting |
| PEEK / Engineering Plastics | PEEK, PTFE, Acrylic | Round, Rectangular | CO₂ Laser | Prototyping, insulation parts, laser cutting PEEK |
ProleanTech Laser Tube Cutting Services
ProleanTech offers cutting-edge laser tube cutting services with excellent precision, quick turnaround, and consistent outcomes. We can cut walls up to 0.5 inches thick and provide tight tolerances using both fiber and CO₂ laser cutting machines. Our procedure achieves precise, and clean cuts. It is perfect for complex geometries, pipe laser cutting, and tube cutting.
Our skilled engineers assist you with your project from the beginning to the end, guaranteeing a seamless and effective manufacturing process that meets your requirements.
ProleanTech Tube Laser Cutting Capabilities
ProleanTech’s tube laser cutting capabilities can cut round, square, and rectangular tubes in a variety of sizes and wall thicknesses.
Kerf widths vary based on the type of material, laser power, and cutting parameters. They are still thinner than traditional cutting techniques, which helps cut down on material waste.
| Specification | Details |
| Cutting Technology | Fiber & CO₂ Laser Tube Cutting |
| Maximum Wall Thickness | Up to 0.5 inches |
| Minimum Wall Thickness | 0.035 inches |
| Round Tube Diameter (Min) | 0.500 inches |
| Round Tube Diameter (Max) | 6.000 inches |
| Square/Rectangular Tube (Min) | 0.500 inches |
| Square/Rectangular Tube (Max) | 6.000 inches |
| Cut Type | Normal-to-Surface |
| Edge-to-Edge Tolerance | ± 0.010 inches (nominal, inner face) |
| Minimum Feature Size | Generally not less than the pipe wall thickness |
| Supported Materials | Carbon Steel, Stainless Steel, Aluminum, Titanium, and more |
| Applications | Tube Cutting, Laser Cutting Pipe, Laser Tube Cutting Services |
Tube Material Handling & Challenges
- For precise processing, tube laser cutting machines frequently use bundle loaders to feed one tube at a time.
- In China, ProleanTech tubes are typically 20 to 24 feet long, necessitating cautious handling in laser tube cutting services.
- Weld seams need to be taken into account; correct alignment guarantees clean cuts that don’t obstruct holes or pins.
- Although tubes are rarely flawless, bows and seam protrusions can compromise accuracy. Modern tube laser cutters effectively manage these difficulties.
Industry Use Cases & Examples
Case Study: Medical / Device Components
ProleanTech produces stainless steel and titanium tubing for use in diagnostic and surgical devices. For optimal fluid flow and installation, each tube needed precisely placed perforations and channels. For instance, while adhering to strict standards of 0.001 inches (0.025 mm), drill holes as small as 0.002 inches (0.05 mm) were produced.
Precision Laser Cutting for Medical Device Components
Fiber laser cutting enabled high repeatability and decreased post-processing. ProleanTech’s innovative laser tube cutting services guaranteed the timely delivery of completely compliant products.
Case Study: Stainless Steel Structure
ProleanTech completed a commercial construction project by fabricating structural frames with stainless steel laser tube cutting services. Tubes from 1 to 6 inches in diameter were cut with tolerances of ±0.005 inches. Custom joints and accurate channels enabled flawless assembly while reducing the need for additional welding.

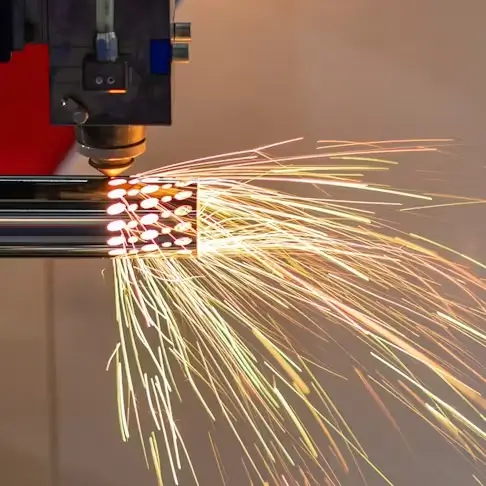

Laser Cutting Stainless Steel Tube
Reddit users on r/metalworking frequently emphasize the necessity of fiber lasers for clean edges, low material waste, and constant precision, which ProleanTech used to increase productivity and reduce production time.
Case Study: Aerospace Component (Titanium, Aluminum)
ProleanTech manufactured lightweight titanium and aluminum tube components for an aerospace client. Using cutting-edge tube laser cutting technology, tubes with diameters ranging from 0.5 to 3 inches were precisely cut with tolerances of around ±0.002 inches (0.05 mm) and features as small as 0.02 inches (0.5 mm).
Laser Cutting for Aerospace Components
Fiber laser tube cutting produced angled cuts and chamfers, allowing proper assembly in complicated aeronautical components.
Why ProleanTech Is Your Trusted Choice for Tube Laser Cutting?
Fast Access to Laser Tube Cutting
Quickly connect with hundreds of laser tube cutting suppliers through our user-friendly platform. Get instant quotes and configure your project with ease.
Certified Supplier Network
ProleanTech exclusively collaborates with reliable, ISO-certified vendors. Reliable tube laser cutting services are ensured by our network’s compliance with ISO 9001:2015, ISO 13485, IATF 16949:2016, and AS9100D standards.
Our expertise include laser cutting titanium, copper, brass, stainless steel, aluminum, and high-performance materials like PEEK.
Expert Support
Our Solutions Engineers and Process Specialists offer advice on fabrication, design, and manufacturability issues in order to provide accurate and seamless laser tube cutting projects.
Advanced Technology & Automation
Our fiber and CO₂ laser systems offer precise, high-speed cuts for tubes of all forms and sizes. Automated feeders and multi-axis machines help to decrease material waste. It also enhances uniformity in tube and laser cutting pipe projects.
Conclusion
Tube laser cutting offers unrivaled precision, efficiency, and versatility in various sectors. ProleanTech’s fiber and CO₂ lasers provide tight tolerances, clean edges, and minimal waste. Insights emphasize the significance of dependability and skilled service, establishing ProleanTech as a reliable alternative for tube laser cutting services, laser cutting applications, and high-quality component manufacturing.
FAQs
What is tube laser cutting?
Tube laser cutting uses a high-precision laser to cut tubes and pipes into custom shapes, holes, and channels. During the process, the material rotates in a controllable lathe, ensuring accurate and uniform cuts. The process will cut these items to the length needed. This process works on a wide range of materials, including stainless steel, aluminum, brass, copper, and titanium.
What materials can be cut with a tube laser?
ProleanTech’s tube laser cutting services work with metals such as stainless steel, aluminum, copper, brass, titanium, and even high-performance polymers like PEEK. Whereas CO₂ lasers work better on non-reflective metals and non-metallic materials, fiber lasers are excellent at cutting reflecting materials like copper and aluminum.
How precise is laser tube cutting?
Modern fiber laser tube cutting delivers remarkable accuracy with tolerances of ±0.002 inches (0.05 mm) and feature sizes often as small as 0.02 inches (0.5 mm). This provides accurate assembly, particularly for medical devices, aircraft components, and structural applications.
