A Comprehensive Guide on Thread Tapping: Techniques, Benefits, and Applications

Published on: 2023-05-18

Thread tapping is an essential technique in the manufacturing world. It involves creating internal threads in a pre-drilled hole, enabling the attachment of bolts, screws, or other threaded parts. While thread tapping might seem straightforward, the process is nuanced, with various factors influencing its success, including the type of tap, the material being tapped, and the tap’s alignment.

In this article, we will delve into the intricacies of thread tapping, its benefits, and applications. We will also explore how thread tapping service is revolutionizing the industry with its high-quality, cost-effective solutions.


Understanding Thread Tapping Process

Thread tapping is a vital process in manufacturing that involves the creation of internal threads in a pre-drilled hole. This process is achieved using a tool known as a tap, which is available in various types and sizes, each suited for specific applications. Thread tapping is a universal method employed in various industries due to its flexibility, accuracy, and efficiency.

1. Thread Tapping Mechanics

Thread tapping mechanics involve multiple stages:

SN Step Description
1 Preparation Drilling a hole of appropriate size into the material. The size of the hole should be sufficient to accommodate the tap, while also allowing room for the creation of threads.
2 Alignment The tap needs to be perfectly aligned with the hole. This alignment is crucial for achieving straight threads.
3 Lubrication The application of cutting fluid or lubricant to the tap and the hole helps reduce friction and heat during the process, minimizing the risk of damaging the threads.
4 Tapping The tap is inserted into the hole and rotated clockwise, gradually cutting the threads into the material. It’s essential to occasionally reverse the tap to break the chips and prevent them from clogging the hole.
5 Clean-up After the tapping process is complete, the hole is cleaned to remove any leftover chips or cutting fluid.

2. Categories of Taps

Taps come in a variety of types, each designed for a specific purpose or material. The most common types are:

  • Taper Tap: This tap has a pointed end and gradually increases in diameter. It’s typically used to start the thread-tapping process as it reduces the risk of damaging the threads.
  • Second Tap (Intermediate Tap): This tap has a slightly tapered end and is used to cut the threads further into the hole after the taper tap.
  • Plug Tap (Bottoming Tap): This tap has a flat end and is used to cut threads to the bottom of a blind hole (a hole that doesn’t go all the way through the material).

3. Types of Thread Tapping Methods

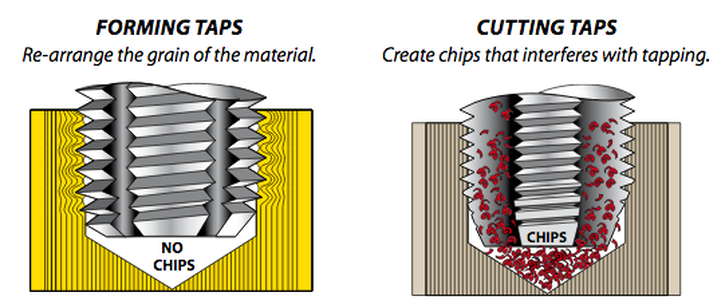

There are two primary types of thread tapping “Cut tapping & Form tapping”. Cut Tapping is the more traditional form of thread tapping, where the tap physically cuts the threads into the hole. This method is suitable for a wide range of materials but generates chips that need to be carefully managed to prevent damage to the threads.

On the other hand, form tapping (also known as roll tapping) involves forming the threads by displacing the material rather than cutting it. This method produces no chips and typically results in stronger threads. However, it’s only suitable for ductile materials.

Type of Tapping Advantages Disadvantages
Cut Tapping Suitable for a wide range of materials Generates chips that need to be managed
Form Tapping Produces no chips, results in stronger threads Only suitable for ductile materials

Related: Thread Taps: A Complete Guide on the Cutting Tool


Unveiling the Benefits of Thread Tapping

The benefits of thread tapping are vast, making it a valuable process in the manufacturing industry. Below are some of the most significant advantages of thread tapping:

Benefit Description
Versatility Thread tapping is a versatile process that can be used with a wide variety of materials. Whether it’s metal, plastic, wood, or any other material that can be threaded, thread tapping can handle it.
Precision Precision is one of the hallmarks of thread tapping. With the right tools and technique, thread tapping can create perfectly formed threads that fit neatly with the corresponding external threads.
Strength The threads created by the thread-tapping process are generally stronger than those created by other methods. The process creates a tight fit between the threads, resulting in a strong and durable connection that can withstand considerable stress.
Efficiency Thread tapping, particularly when automated, is a highly efficient process. It allows for quick and accurate creation of internal threads, significantly improving production speeds and reducing the time to market for manufactured goods.
Cost-Effectiveness While the initial investment in high-quality taps and tapping machines can be significant, the long-term cost benefits are considerable. Given the speed, precision, and durability of the threads produced, thread tapping can significantly reduce production costs over time.
Reduced Waste Thread tapping, especially form tapping, generates less waste compared to other threading methods. Form tapping displaces the material to create threads rather than cutting it, resulting in no chip production and reducing the overall waste generated.


Applications of Thread Tapping

Thread tapping finds applications in a wide range of industries due to its versatility, precision, and efficiency. The ability to create strong and durable threads makes it a popular choice for various products and components. Here are some of the most common applications of thread tapping across different sectors:

  • Automotive Industry

In the automotive industry, thread tapping is used to create internal threads in engine blocks, transmission housings, brake systems, suspension components, and various other vehicle parts. The strength and precision provided by thread tapping make it ideal for producing high-quality, reliable components.

  • Aerospace Industry

The aerospace industry demands high-precision components that can withstand extreme conditions and stresses. Thread tapping is used to create threads in aircraft components, such as engine parts, landing gear, and structural components, ensuring that these critical parts meet the rigorous standards required for safe and reliable operation.

  • Electronics Industry

Thread tapping is used in the electronics industry to create threads for screws and fasteners in various devices, including computers, smartphones, and other consumer electronics. The process is suitable for threading small and intricate components, ensuring proper assembly and functionality.

  • Medical Industry

In the medical industry, thread tapping is used to produce threads in medical equipment and surgical instruments. The precision and cleanliness provided by thread tapping make it ideal for the stringent requirements of medical applications.

  • Construction Industry

Thread tapping is employed in the construction industry to create threads in various structural components, including steel beams, rebar, and fasteners. The strength and durability of threads produced through tapping ensure that the structural integrity of buildings and infrastructure is maintained.

Here’s a summary of the applications of thread tapping in various industries:

Industry Applications
Automotive Engine blocks, transmission housings, brake systems, suspension components
Aerospace Engine parts, landing gear, structural components
Electronics Computers, smartphones, consumer electronics
Medical Medical equipment, surgical instruments
Construction Steel beams, rebar, fasteners


Let’s Start A New Project Today

Challenges in Thread Tapping and How to Overcome Them

Despite its many benefits, thread tapping can present some challenges that need to be addressed to ensure optimal results. By understanding these challenges and implementing appropriate solutions, you can achieve consistent and high-quality threading outcomes.

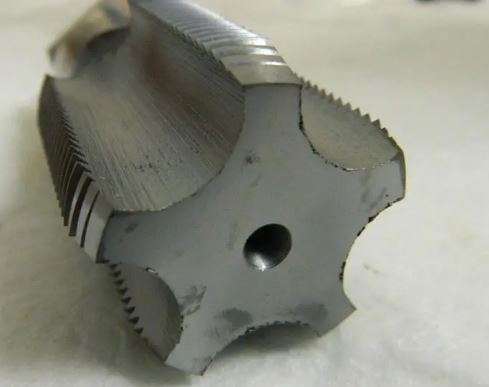

1 Tap Breakage

Tap breakage is a common issue encountered during the thread-tapping process. It can occur due to excessive cutting forces, insufficient lubrication, or improper tap alignment. To overcome tap breakage:

  • Ensure proper tap alignment and setup
  • Use high-quality taps made from durable materials
  • Use appropriate cutting speeds and feeds
  • Apply sufficient cutting fluid to reduce friction and heat

2 Thread Quality Issues

Poor thread quality can arise from various factors, including incorrect tap selection, worn taps, and improper cutting conditions. To improve thread quality:

  • Choose the correct tap for the material and application
  • Regularly inspect and replace worn taps
  • Adjust cutting speeds, feeds, and depths according to the material and tap specifications
  • Ensure proper lubrication to minimize friction

3 Material Work Hardening

Some materials, such as stainless steel, can work harden during the thread tapping process, making it difficult to tap and resulting in premature tap wear or breakage. To address work hardening:

  • Use taps specifically designed for difficult-to-machine materials
  • Employ lower cutting speeds and higher feeds to minimize work hardening
  • Apply generous amounts of cutting fluid to dissipate heat



Prolean’s Thread Tapping Service: Precision at its Best

Prolean’s thread-tapping service embodies precision, efficiency, and reliability. With a fleet of advanced CNC machines and a team of skilled professionals, we are equipped to handle a wide variety of thread-tapping needs across different industries and applications.

Our services encompass a range of tapping types, including straight tapping, spiral tapping, and form tapping, offering you the flexibility to choose the best option for your specific requirements. We also provide tapping for a variety of materials, from aluminum and steel to titanium and other exotic metals.

At Prolean, we understand that the quality of threads is crucial to the functionality and longevity of your products. Hence, we place utmost emphasis on ensuring the quality and accuracy of our thread-tapping services. Our taps are regularly inspected and maintained to provide consistent performance, and our cutting conditions are meticulously optimized to prevent common issues such as tap breakage and thread quality issues.



Thread tapping is a critical process in manufacturing, used to create internal threads in a wide range of products across various industries. While it offers several benefits, such as versatility, precision, and efficiency, it can also present certain challenges that need to be carefully managed to ensure optimal results.

By understanding the fundamentals of thread tapping, its benefits, applications, and challenges, you can leverage this process to enhance the quality and functionality of your products. And with services like Prolean’s thread-tapping service, you can rest assured that your threading needs are in safe and capable hands.



What is thread tapping?

Thread tapping is a machining process used to create internal threads in a pre-drilled hole using a tool called a tap.

What are some benefits of thread tapping?

Thread tapping offers several benefits, including precision, versatility, compatibility with a wide range of materials, and the ability to produce strong, durable threads.

Where is thread tapping used?

Thread tapping is used in various industries, including automotive, aerospace, electronics, medical, and construction, to create threads in different products and components.

What are some challenges in thread tapping?

Common challenges in thread tapping include tap breakage, thread quality issues, and work hardening of certain materials. These can be addressed through proper setup, choice of tap, cutting conditions, and lubrication.

How can I ensure good-quality threads with thread tapping?

Good quality threads can be ensured by choosing the correct tap for the material and application, maintaining the taps properly, adjusting the cutting conditions according to specifications, and using sufficient lubrication.

What materials can be tapped?

A wide range of materials can be tapped, including aluminum, steel, stainless steel, brass, copper, titanium, and various types of plastic.

Can thread tapping be used for creating external threads?

No, thread tapping is specifically used for creating internal threads. For external threads, methods, like die threading or thread cutting, are used
