Sheet metal forming, a versatile and vital manufacturing process, serves as the backbone of numerous industries, creating an array of products we use daily. Be it the car we drive, the airplane taking us to our destinations, the electronic devices we rely on, or even the simple kitchen utensils we use, sheet metal forming plays a pivotal role. Delving into this intricate process will illuminate its principles, techniques, and applications, and show us how it shapes the world around us.
Over the last few decades, technological advancements have propelled sheet metal forming to new heights, enhancing its precision, efficiency, and adaptability. Techniques have evolved, capabilities have expanded, and the materials used have diversified. This guide covers sheet metal forming from basic principles to advanced techniques, exploring its benefits and applications.
Unveiling Sheet Metal Forming
At its core, sheet metal forming is a transformative process, shaping flat sheets of metal into specific geometries by manipulating the material in various ways. Depending on the desired outcome, manufacturers employ different processes, each with its unique approach and benefits.
Sheet metal forming, in its most basic sense, involves changing the shape of metal sheets without altering their mass or composition. It is accomplished through a combination of pressure, heat, and mechanical force. The process takes a flat, two-dimensional sheet of metal and turns it into a three-dimensional object with a specific shape and geometry.
There are three fundamental processes in sheet metal forming: bending, drawing, and stretching. Each serves unique manufacturing purposes and is best suited to particular types of shapes and designs.

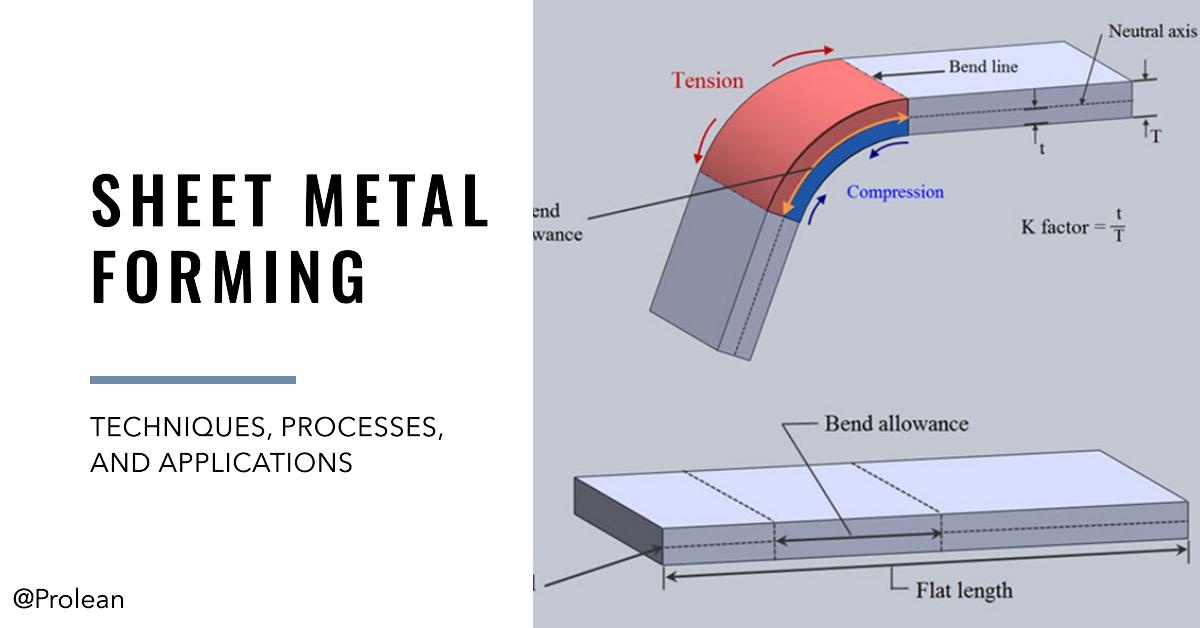

1. Bending
Bending is one of the simplest and most common processes in sheet metal forming. The process involves applying force along a linear axis to create a bend in the sheet. The degree and direction of the bend are controlled by the force applied and the tools used. Bending is highly versatile and can produce an array of shapes, from simple bends to complex geometries. It’s frequently used for making brackets, boxes, enclosures, or any product requiring angled bends.
2. Drawing
Drawing is another integral process in sheet metal forming. In this technique, the metal sheet is drawn or pulled into a die to form a three-dimensional shape. The force applied causes the metal to stretch and take the shape of the die. This method is particularly useful for creating hollow objects or deep shapes, such as cups, cans, sinks, or automobile parts.
3. Stretching
Stretching forms the metal by applying force to the edges while the middle section is kept over a form block. The applied force causes the material to stretch, forming a shape that conforms to the block’s shape. This process is most effective for producing complex geometries, organic shapes, or parts that require a smooth surface finish. It’s often used in the aerospace industry to form panels for aircraft.
Techniques in Sheet Metal Forming
In the world of sheet metal forming, numerous techniques are employed to achieve the desired results. These techniques are often selected based on the nature of the project, the material used, the required precision, and the scale of production. Some of the most commonly employed techniques include stamping, laser cutting, and CNC punching.
1. Stamping
Stamping is a popular technique that utilizes a die or a set of dies to shape the metal sheet under high pressure. This high-pressure impact forces the metal into the die’s shape, creating the desired part. The stamping process can be simple or complex, depending on the design of the part being produced. Simple stamping processes can produce flat parts with various cutouts and bends. In contrast, complex stamping processes can create intricate three-dimensional parts with high precision and repeatability.
2. Laser Cutting
Laser cutting is a non-contact sheet metal forming technique that uses a high-powered laser to cut precise shapes and sizes out of the metal sheet. The laser beam is directed at the surface of the material, which it heats until it melts or vaporizes, creating a clean cut. This process is controlled by a computer program, allowing for a high degree of precision and the ability to handle complex designs. Laser cutting is particularly useful when dealing with intricate parts or when high accuracy is required.
3. CNC Punching
CNC punching is another prominent technique in sheet metal forming. This process involves creating holes or designs in the metal sheet using a CNC punch press. This machine operates under computer control, enabling it to move the metal sheet to the correct position and punch the desired shape. CNC punching is appreciated for its speed, efficiency, and adaptability to different designs. It’s often used when the production volume is high, and a balance of speed and precision is needed.
Let’s Start A New Project Today
What Are the Benefits of Sheet Metal Forming?
Sheet metal forming brings a host of benefits to the table. It’s this plethora of advantages that make it such an attractive option for manufacturers across a variety of industries.
1. Versatility
First and foremost, sheet metal forming boasts an incredible level of versatility. With the myriad of techniques available – each with its unique capabilities – manufacturers can create a wide array of shapes and sizes. From simple flat designs to complex three-dimensional parts, sheet metal forming can accommodate nearly any design specification. This flexibility extends to the types of metals that can be formed as well, with the process suitable for everything from aluminum and steel to copper and brass.
2. Efficiency
Efficiency is another key advantage of sheet metal forming. Many of the processes involved, particularly those that are automated, can quickly produce large quantities of parts. This high-speed production not only shortens lead times but also boosts overall productivity. Moreover, since sheet metal forming often involves transforming a metal sheet directly into the desired shape, it can significantly reduce material waste.
3. Cost-effectiveness
The efficiency of sheet metal forming translates into substantial cost savings, making the process highly cost-effective. The rapid production rates mean that more parts can be manufactured in less time, driving down the cost per unit. Furthermore, since the process can efficiently use materials and often requires fewer steps than other manufacturing methods, it can significantly reduce overall production costs. This cost-effectiveness makes sheet metal forming an appealing choice, especially for large-scale production runs.
Applications of Sheet Metal Forming
Sheet metal forming has a broad range of applications, underscoring its integral role in various industries. Its versatility, efficiency, and cost-effectiveness make it an ideal solution for many manufacturing needs.
| Industry | Application | Product |
|---|---|---|
| Automotive and Aerospace | Car bodies, engine components, airplane wings, fuselage sections | Complex, three-dimensional parts |
| Electronics | Casings, brackets, heatsinks, enclosures | Precision components |
| Consumer Goods | Kitchen appliances, furniture | Various consumer products |
| Architecture | Cladding, roofing, facades | Decorative and functional components |
| Medical | Medical equipment, surgical instruments | High-precision components |
| Energy | Solar panels, wind turbines | Components for renewable energy sources |
Prolean’s Superior Sheet Metal Forming Services
In the realm of sheet metal forming services, Prolean stands out for its commitment to excellence, innovative approach, and comprehensive solutions. Leveraging cutting-edge technology and a team of skilled technicians, Prolean provides unparalleled service in sheet metal forming.
We utilize state-of-the-art machinery and software in sheet metal forming services. Whether it’s advanced laser cutting equipment, precise CNC punching machines, or sophisticated stamping presses, Prolean ensures that every project benefits from the best technology available. This commitment to technological excellence allows for higher precision, greater efficiency, and superior quality in every part produced.
Our technicians bring a wealth of experience and expertise to every project. Their deep understanding of sheet metal forming principles and techniques, combined with their commitment to quality, ensures that every part meets the highest standards of precision and performance.
Conclusion
Sheet metal forming represents a pillar of industrial manufacturing, delivering an essential blend of versatility, precision, and efficiency. It’s the unsung hero behind countless products we use daily, a silent partner transforming design dreams into tangible reality. From cars to consumer electronics, aerospace to household appliances, sheet metal forming techniques give life to objects that shape our everyday world.
FAQ’s
What is a sheet metal forming?
Sheet metal forming involves shaping flat sheets of metal into specific shapes using techniques such as bending, drawing, or stretching.
What are some techniques used in sheet metal forming?
Some common techniques include stamping, laser cutting, and CNC punching.
What are the benefits of sheet metal forming?
The benefits include versatility, efficiency, and cost-effectiveness.
Where is a sheet metal forming used?
Sheet metal forming is used in various industries, including automotive, aerospace, electronics, and consumer goods.
